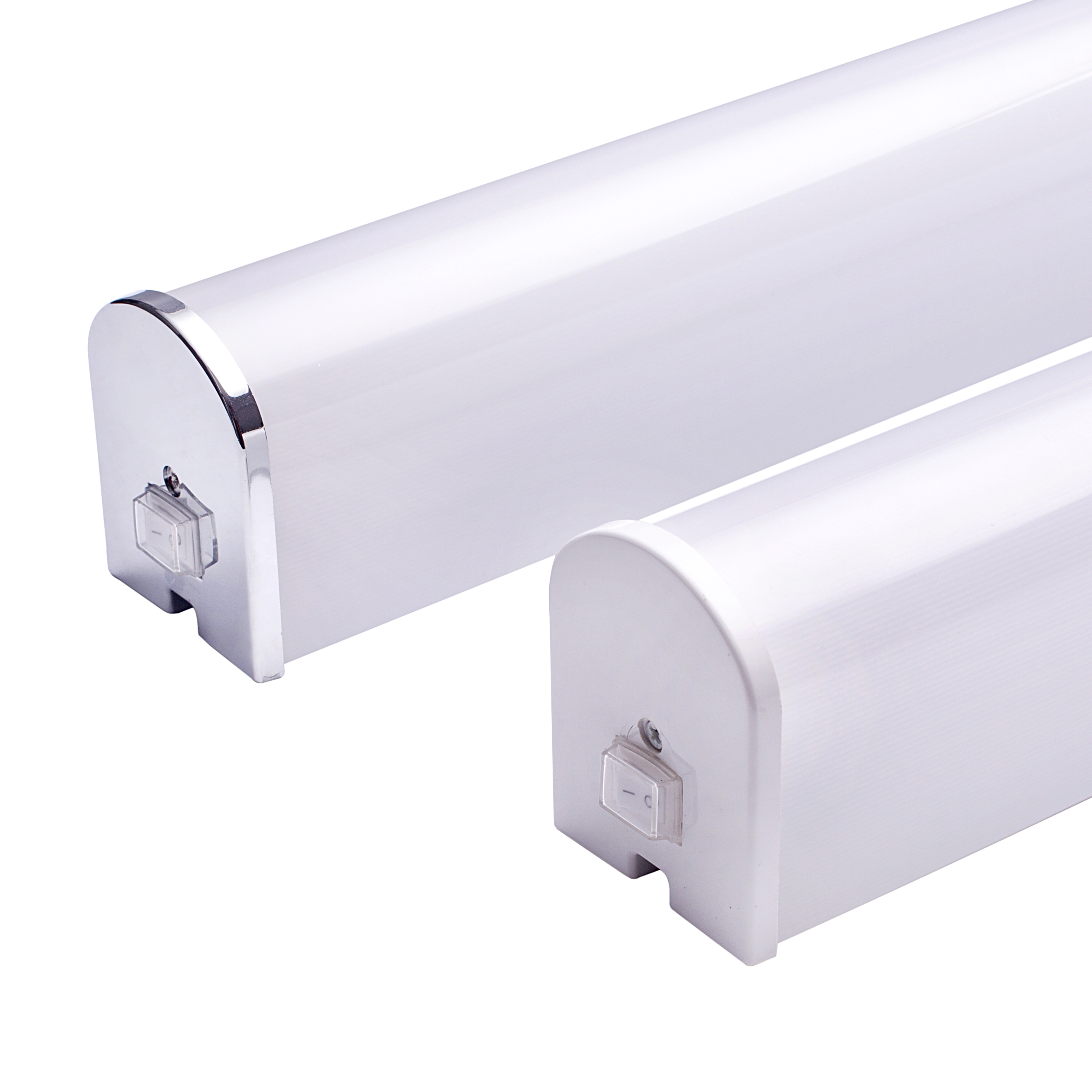

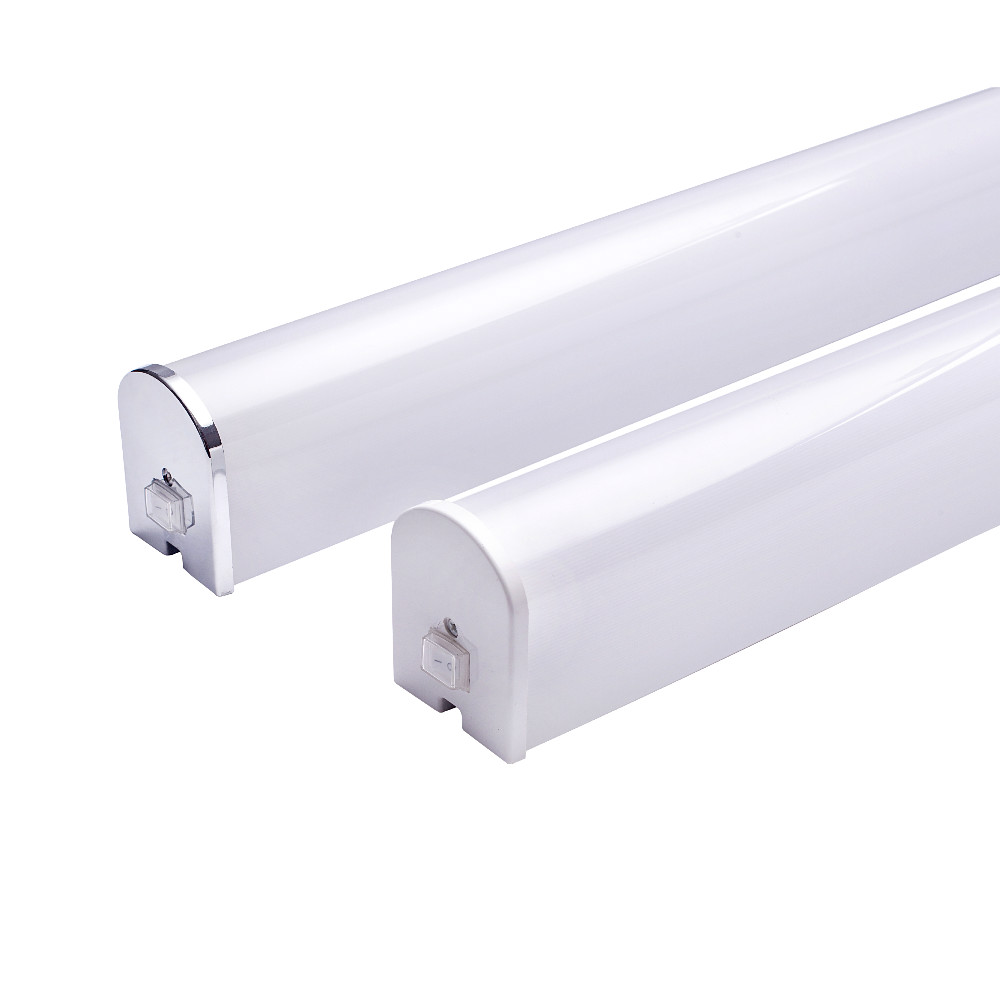

Designed with a specialized waterproof switch to ensure safety and durability in humid environments.

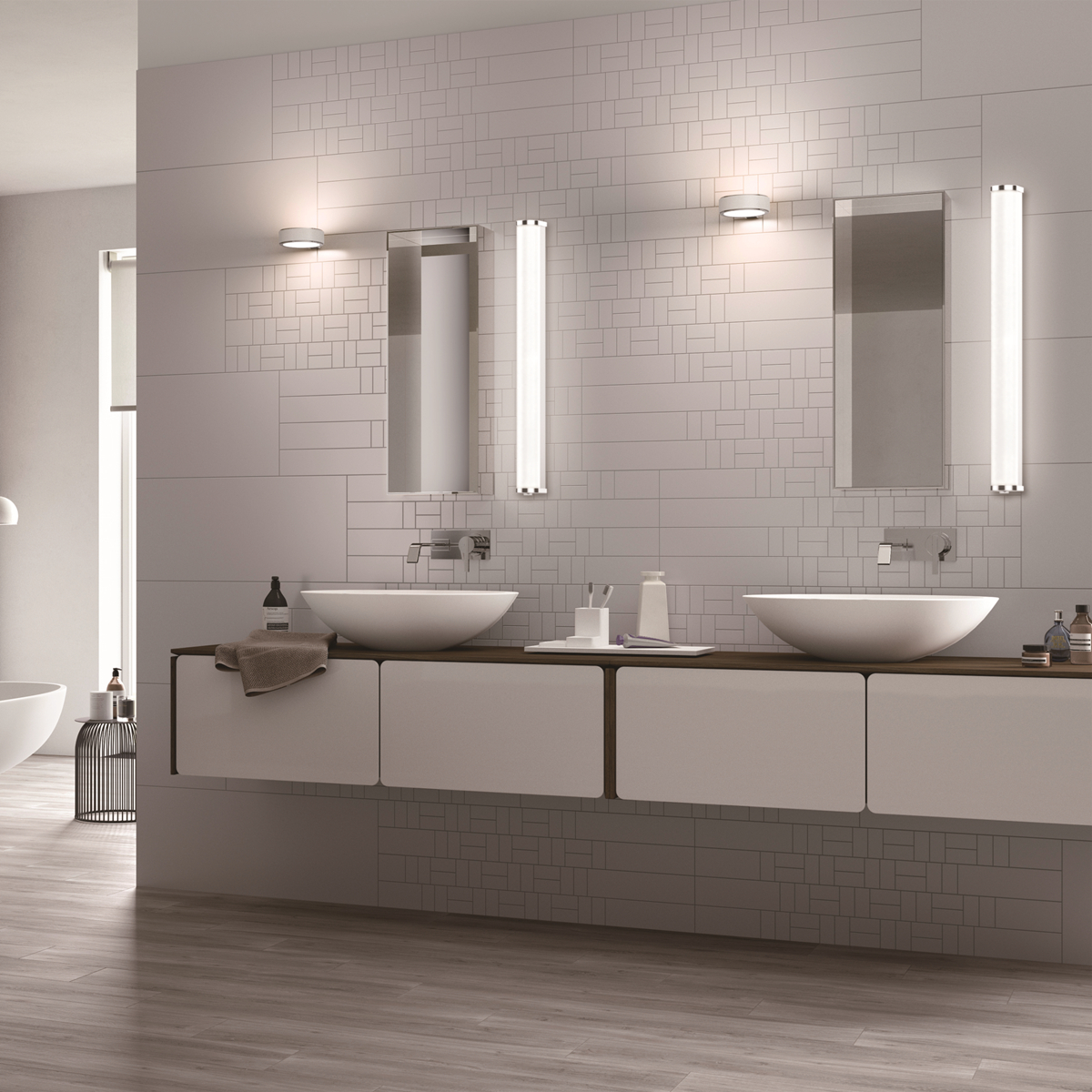

Splash-proof and anti-fog technology makes it ideal for bathroom mirrors and damp indoor areas.

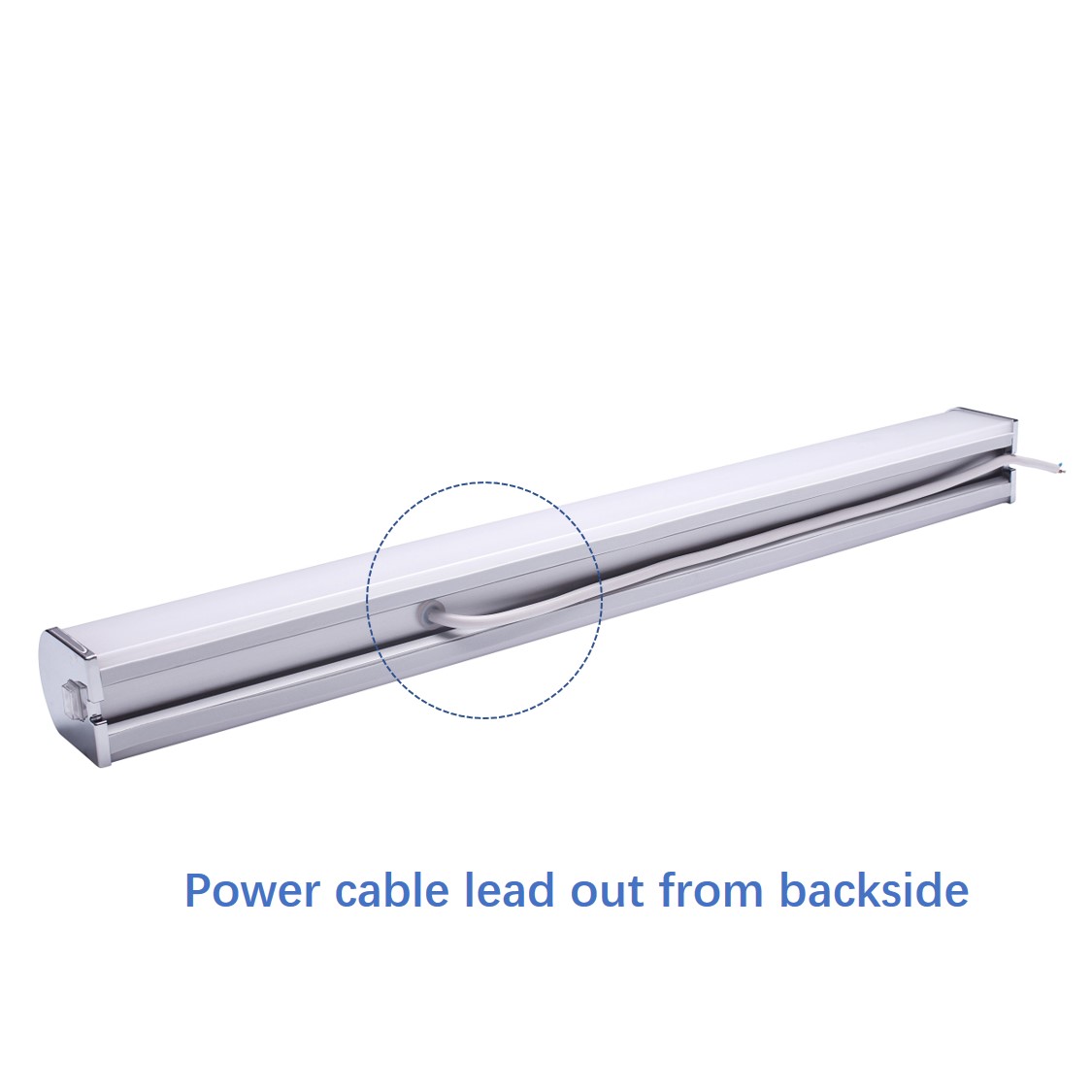

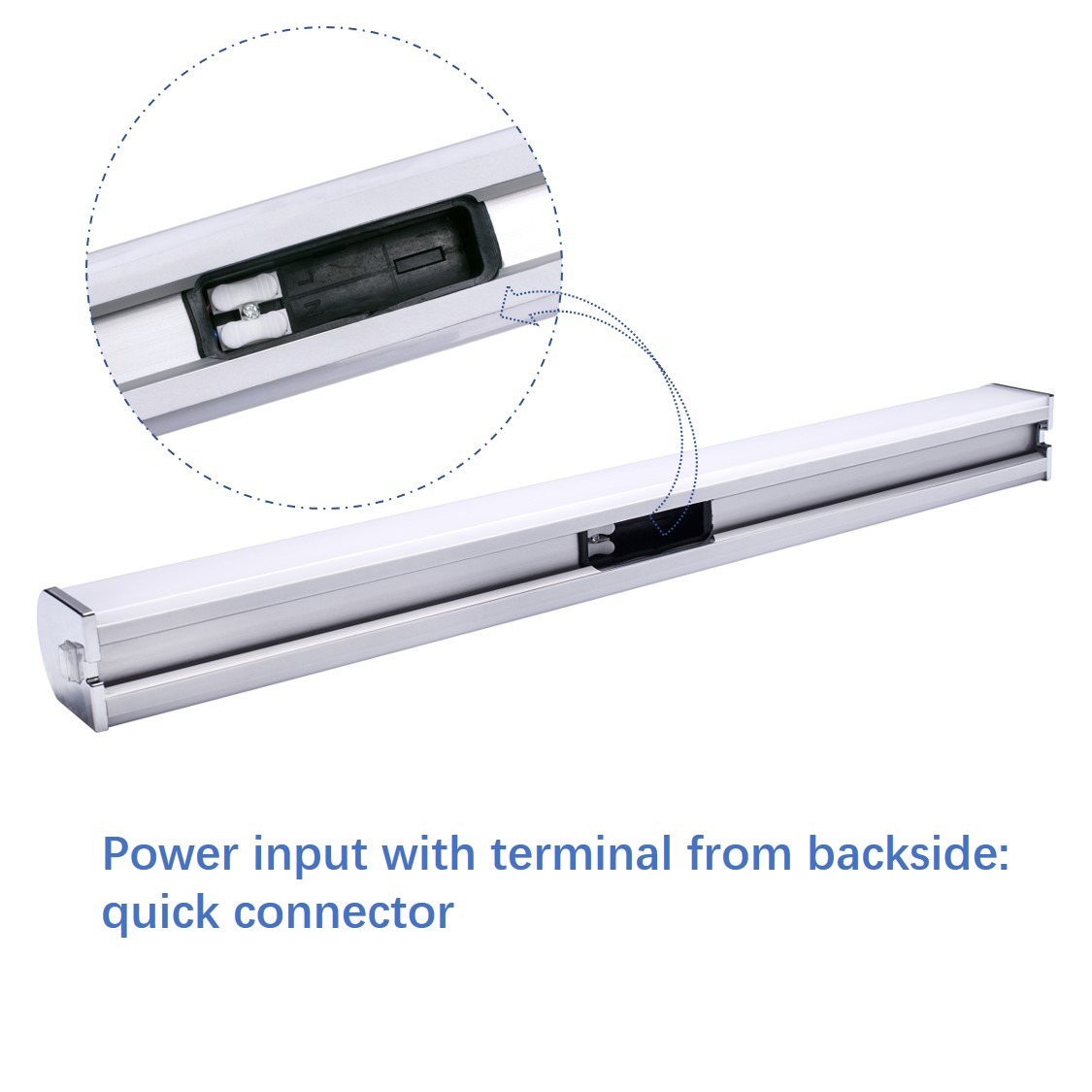

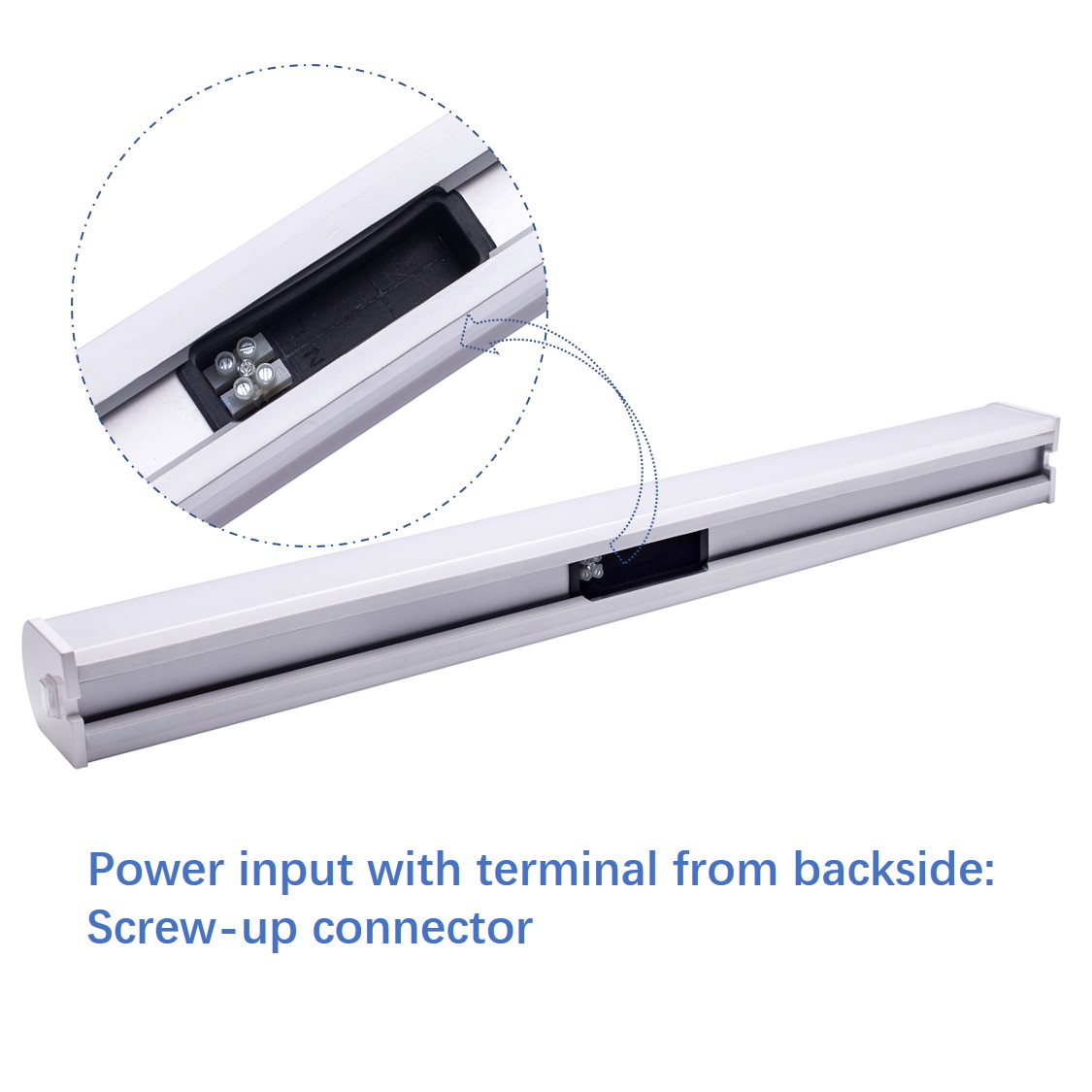

Power cable lead out from the backside with screw-up and quick connectors for a seamless installation.
| Technical - Electrical Data | |
|---|---|
| Rated Wattage | 8W - 20W |
| Dimensions | 53mm (W) x 65mm (H) x 410mm/900mm (L) |
| Rated Voltage | 220-240VAC |
| Luminous Flux | 800lm (100lm/W) |
| Color Temp | 2700K - 6500K |
| Lifespan | 30,000 Hours |
| Protection | IP44 Waterproof |
| Material | Aluminum + PC Diffuser |

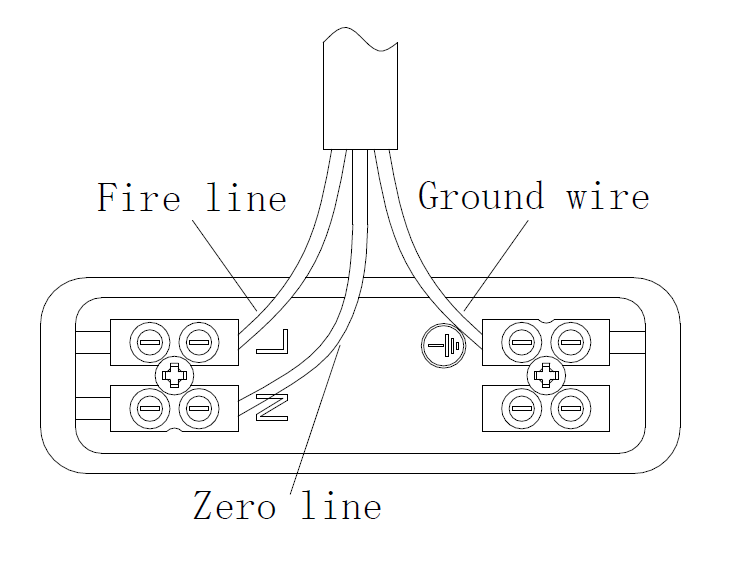

1. Open the waterproof box cover.
2. Thread the wire through the cover.
3. Screw the wire into the terminal.
4. Reassemble the waterproof cover.

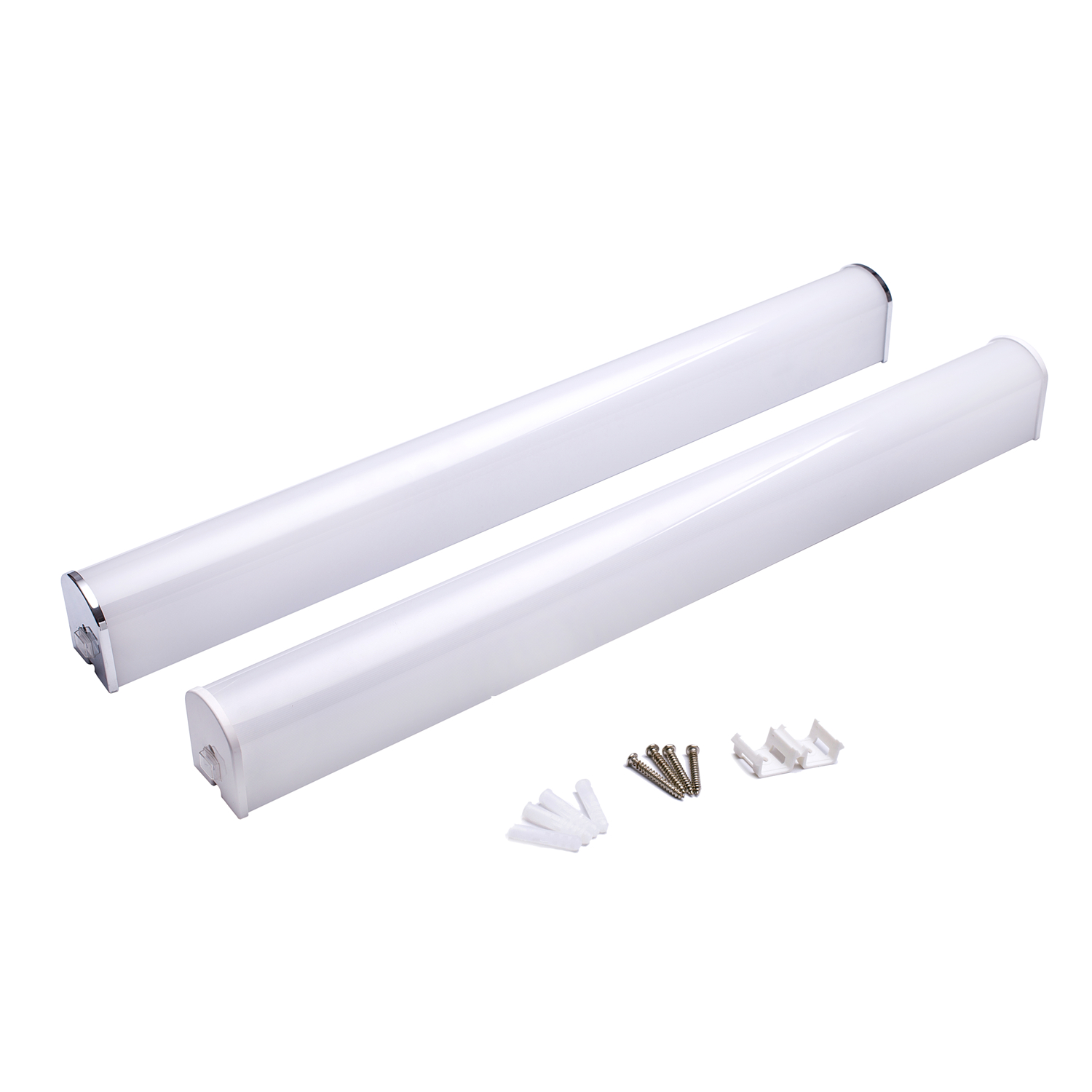

5. Mount using M4 screws.

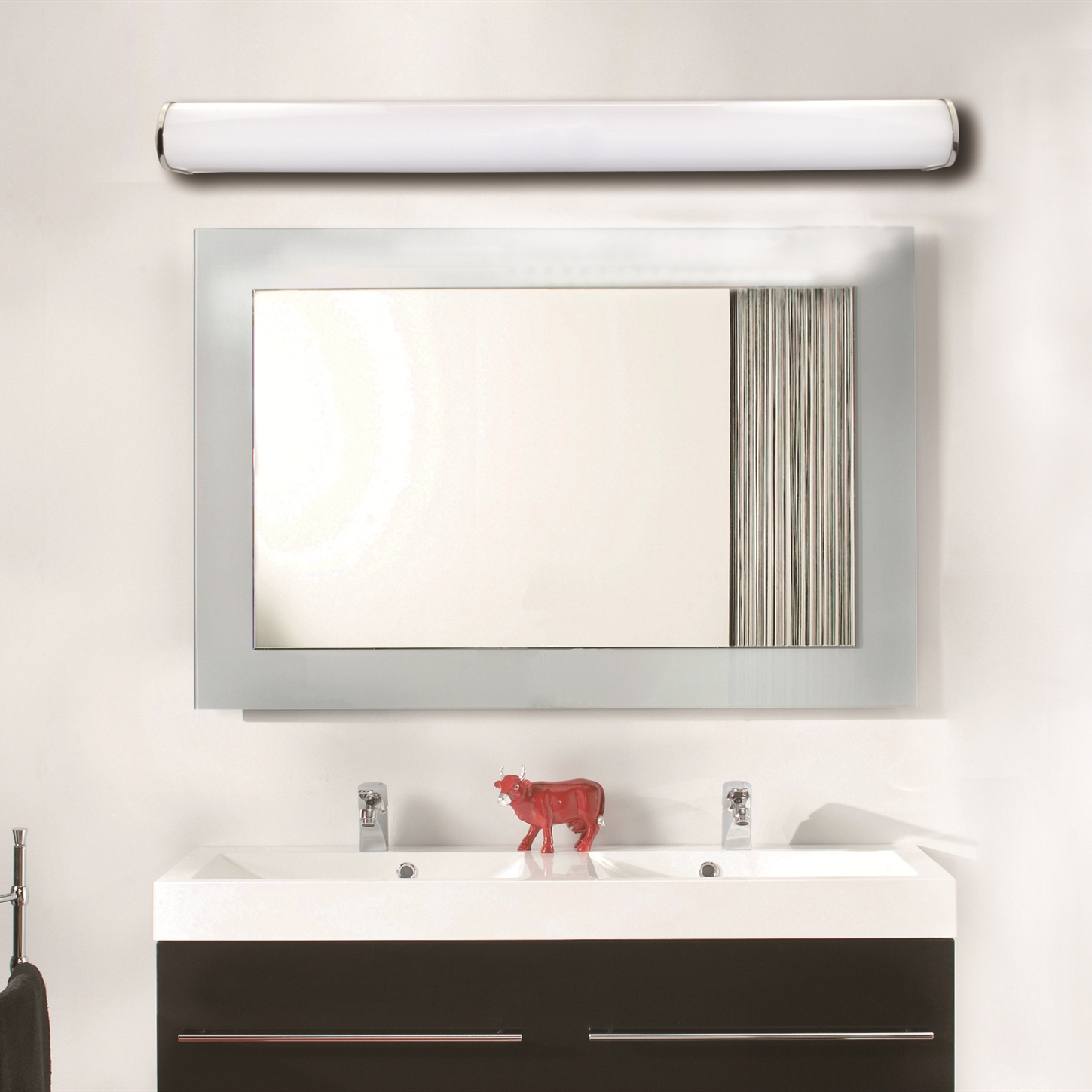

Can be mounted vertically, horizontally, or at an angle. Includes a decorative plate to cover standard 4-inch junction boxes.

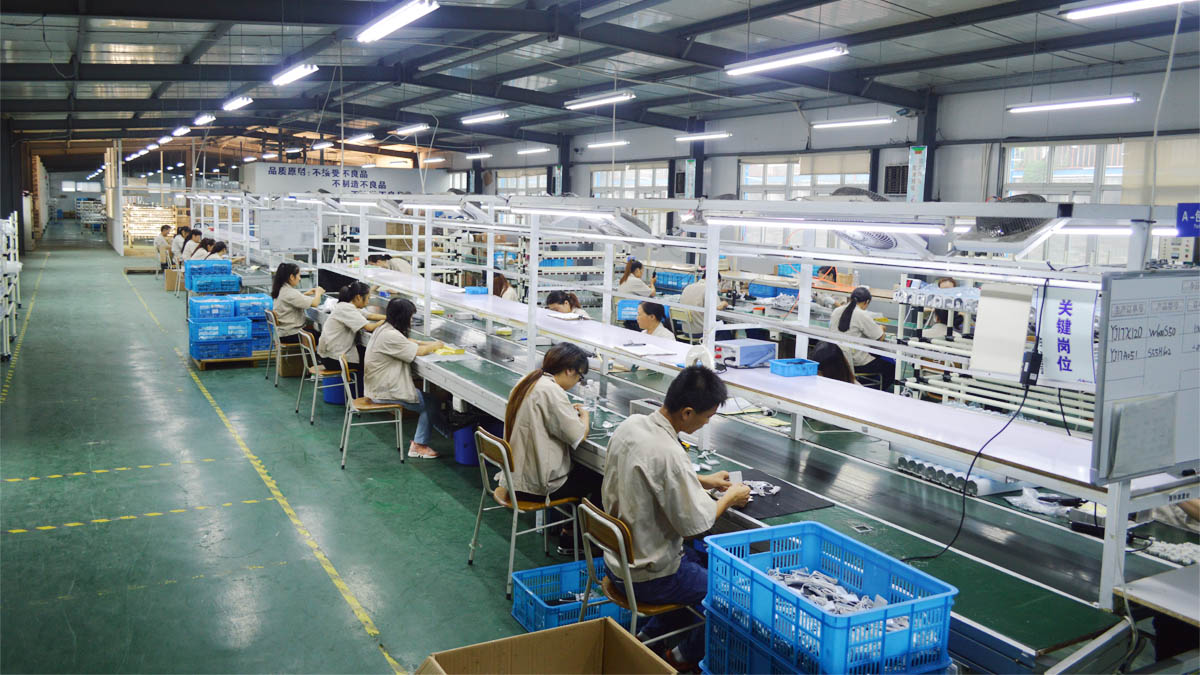

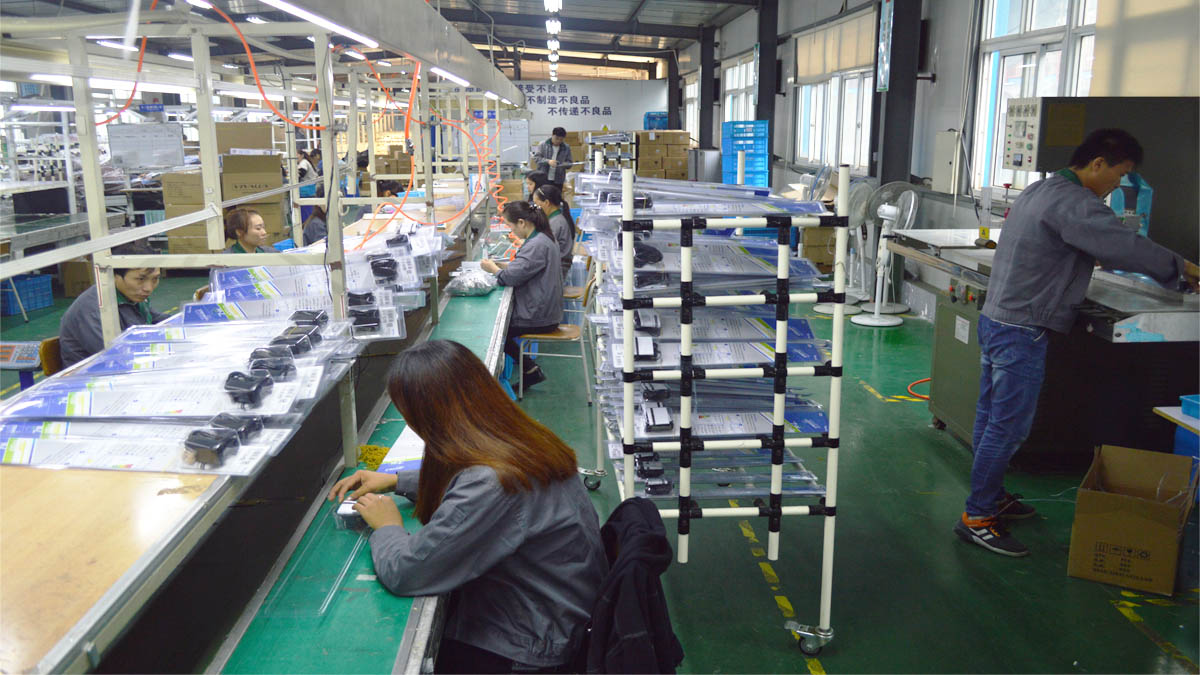

Products are certified and in compliance with international regulations such as CE, ROHS, and GS by TUV/SGS. The production process follows ISO9001 standards with strict quality control from raw materials to finished goods.
