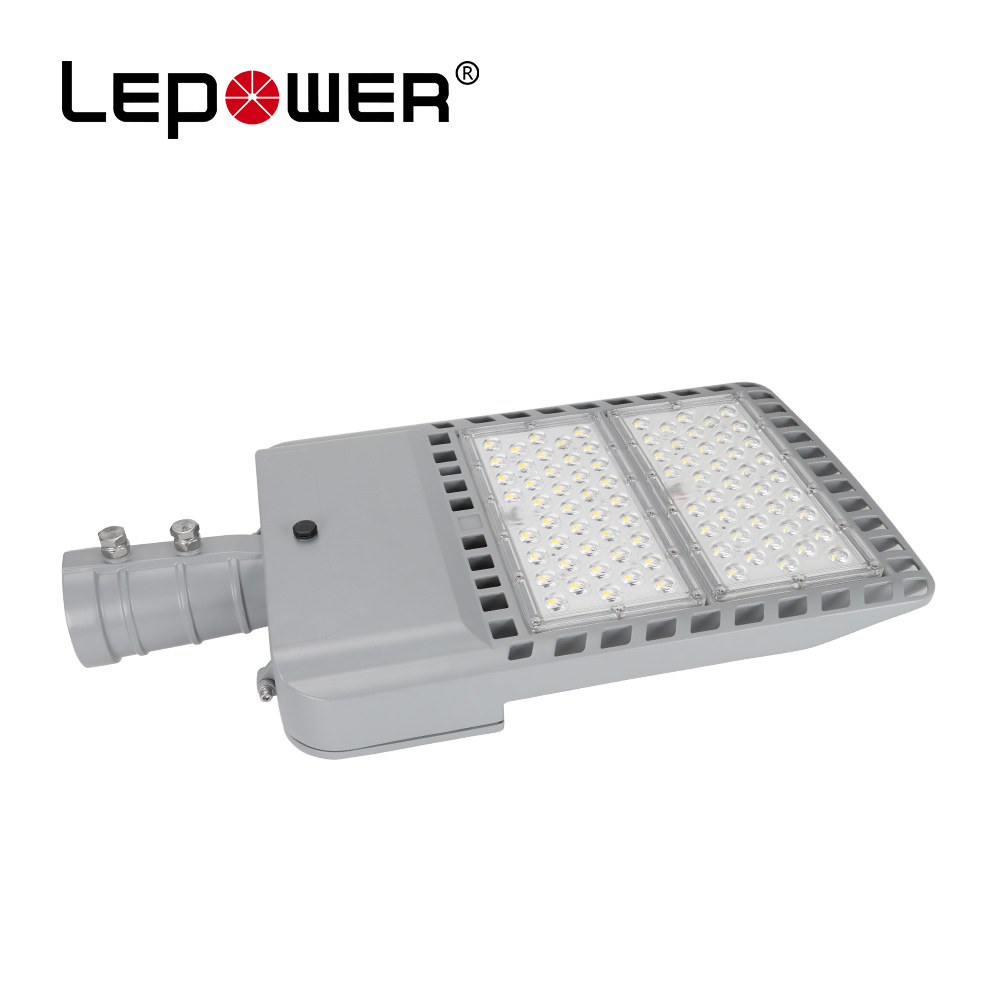

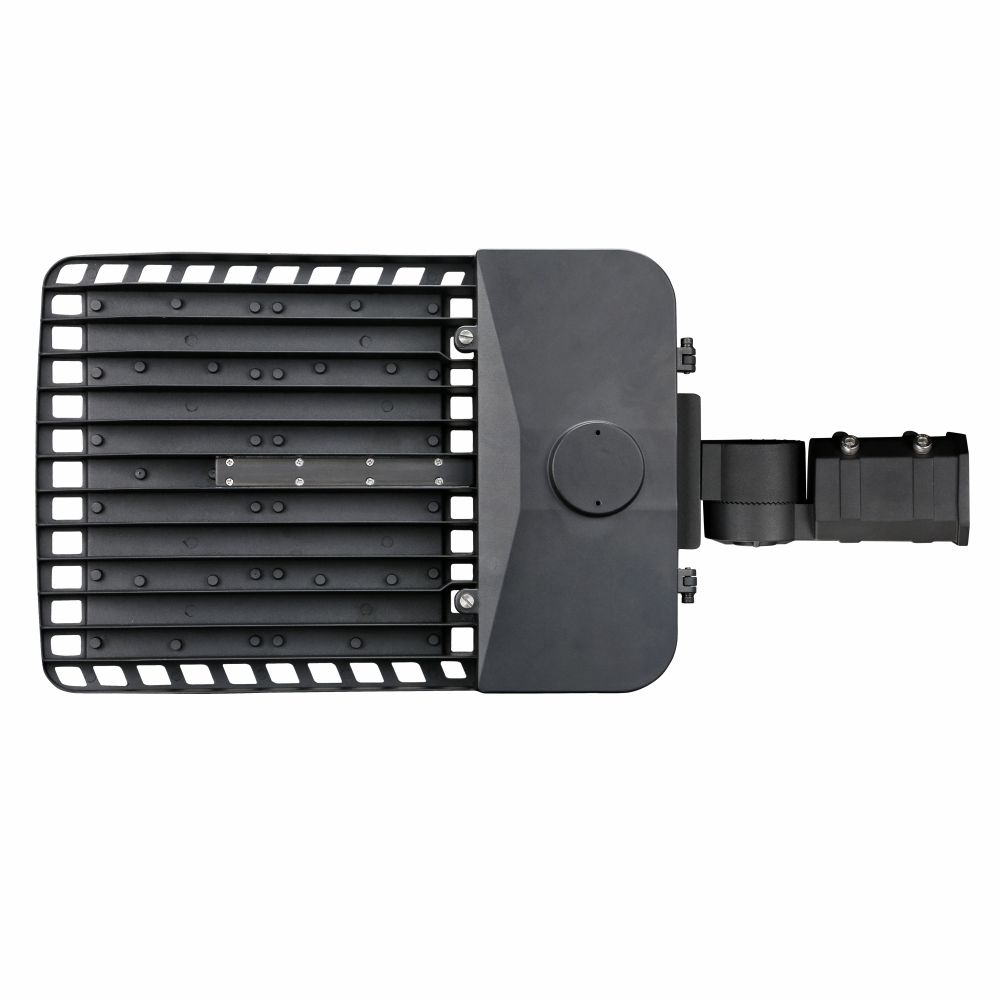

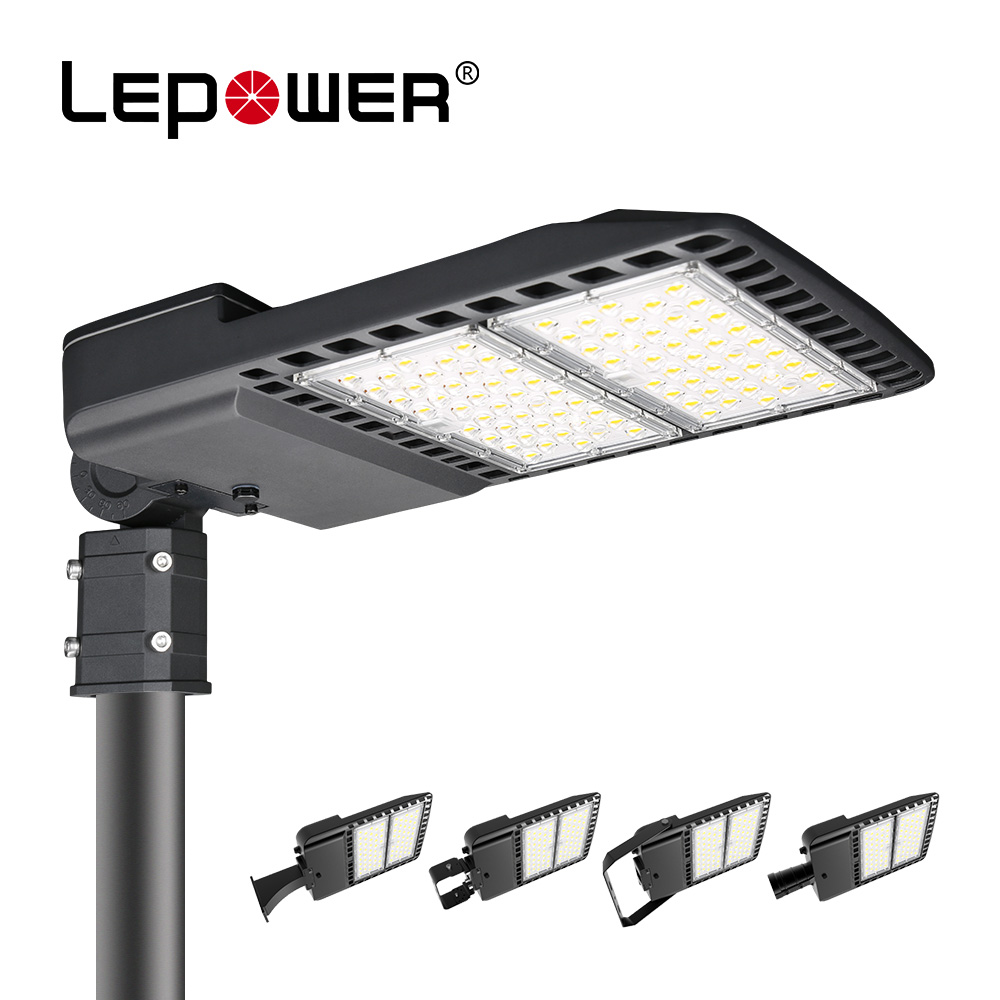

ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
1 / 5
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light
ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light

ETL Listed 150w Shoebox Light North America LED Shoebox Light 150W 170lm/w IP66 LED Shoebox Wall Pack Light

Send Inquiry

Product Description

ETL DLC 100W 150W 300W LED Shoebox Street Light
🚀 160-170LM/W High Efficiency Design
LED Shoebox Light High Efficiency
  • High pressure diecast aluminium alloy housing from 60W to 240W.
  • Anti-corrosion with electrophoresis process.

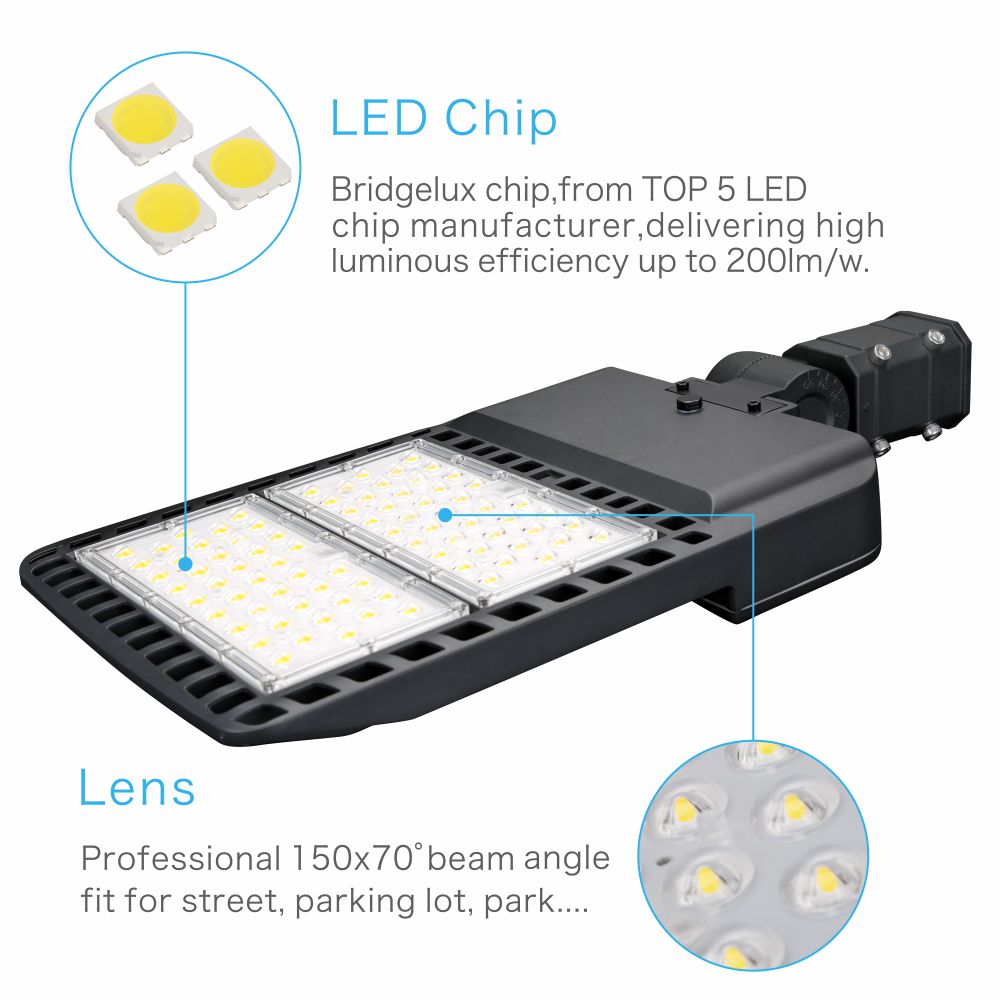

  • Adopt multi-chips package 5050 LED source. Stable performance, low light failure and NO dead lights.
  • The light transmittance of lens up to 98%. System efficacy up to 170lm/w.

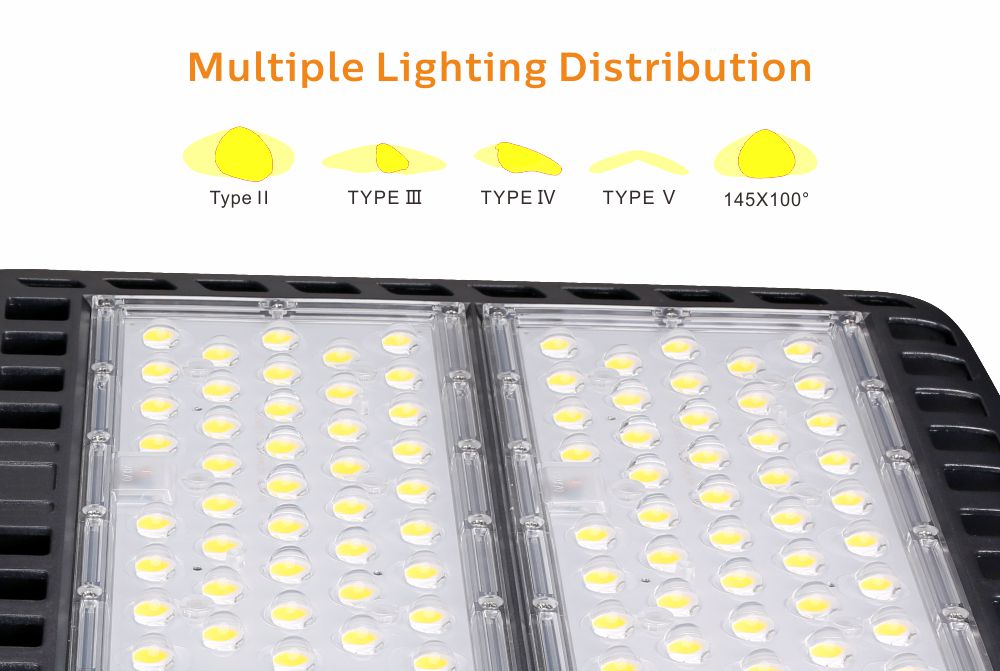

  • Type II, III, IV, V, 145x100° optional for different lighting projects.

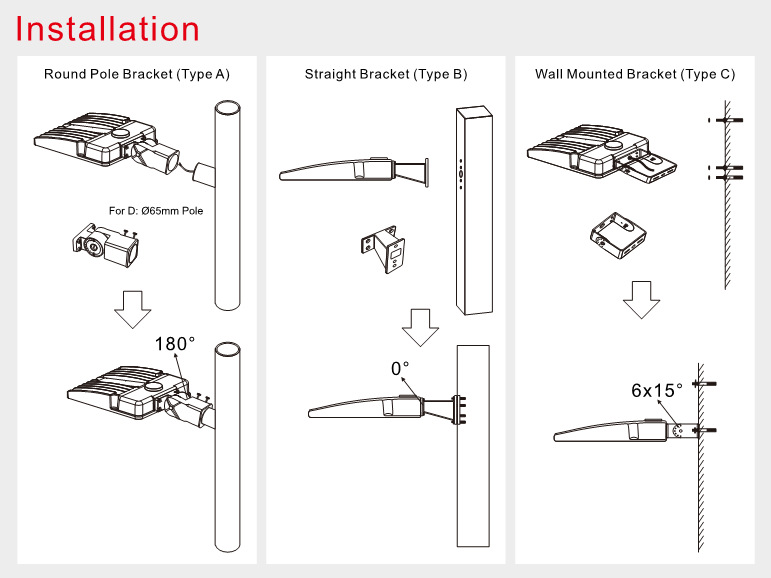

  • Type A, B, C, D, E brackets optional to meet all installation environments.
  • Excellent operating temperature: -40°C ~ 50°C.

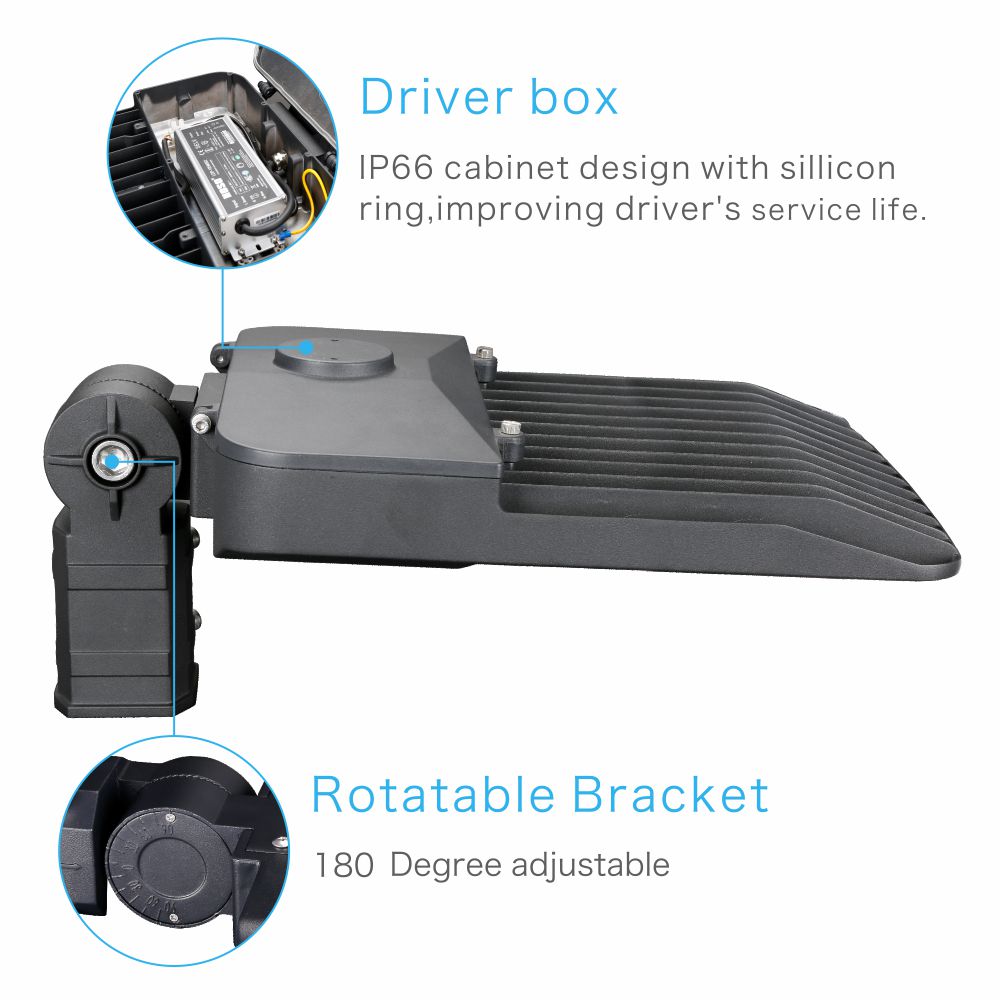

  • Replaceable and upgradable modular design for easy assembly and maintenance.
  • Green product: no UV, IR radiation or mercury pollution. Passed IEC62471.
  • Robust housing design reaches IP66/IK10 rating.
  • Dimming and smart lighting system available upon request.
  • ETL DLC CE ROHS IP66 IK10 LM80 approved.
  • Life-span over 50,000 hours with a 5-year warranty.
Technical Specifications
No. Name Feature 1 Feature 2 Feature 3
1 Type LY-XH0101 LY-XH0102 LY-XH0103
2 Power 40W-80W 100-150W 180W-240W
3 CCT 3000K / 4000K / 5000K / 6500K
4 Beam Angle 150*70° 145*100° / Type III, IV, V
5 Brand of Chips 5050 LED
6 LED Qty 42pcs 84pcs 126pcs
7 CRI >70 / >80
8 System Efficiency 150-170Lm/W 150-170Lm/W 150-170Lm/W
10 IP Rate IP66
11 Voltage AC 90-305V
12 Working Env. -20℃~50℃, 20%~90% H.R
14 Driver Efficacy 90%
15 PF >0.95
16 Lifetime >50,000 Hours
17 Size of Lamp 494*310*84mm 621*310*84mm 769*320*93mm
19 N.W. 4.5KG 5.5KG 6.5KG
Product Detail Showcase

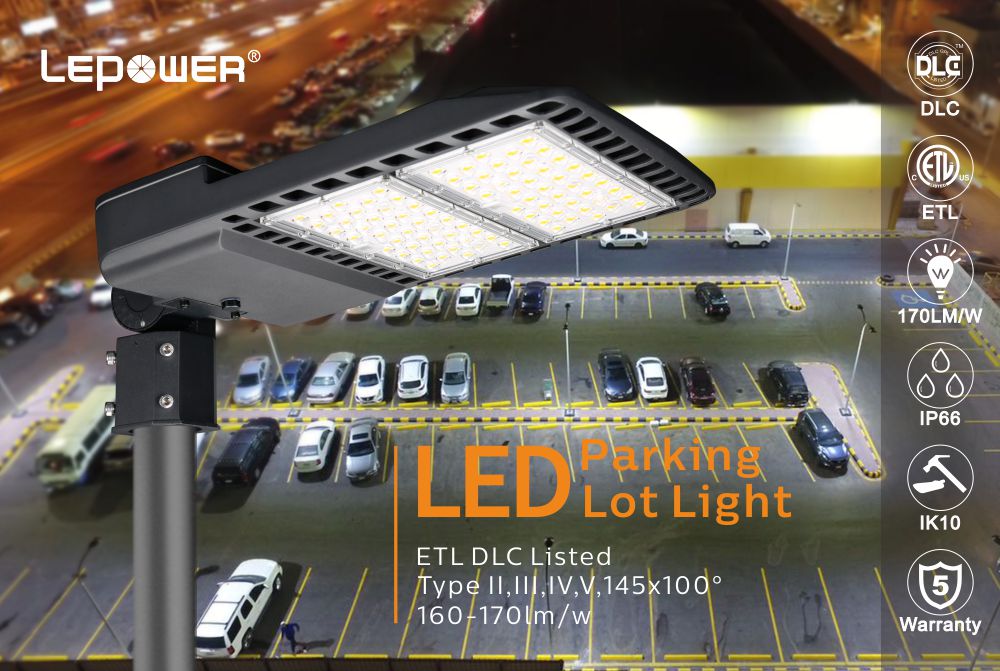

Detail 1

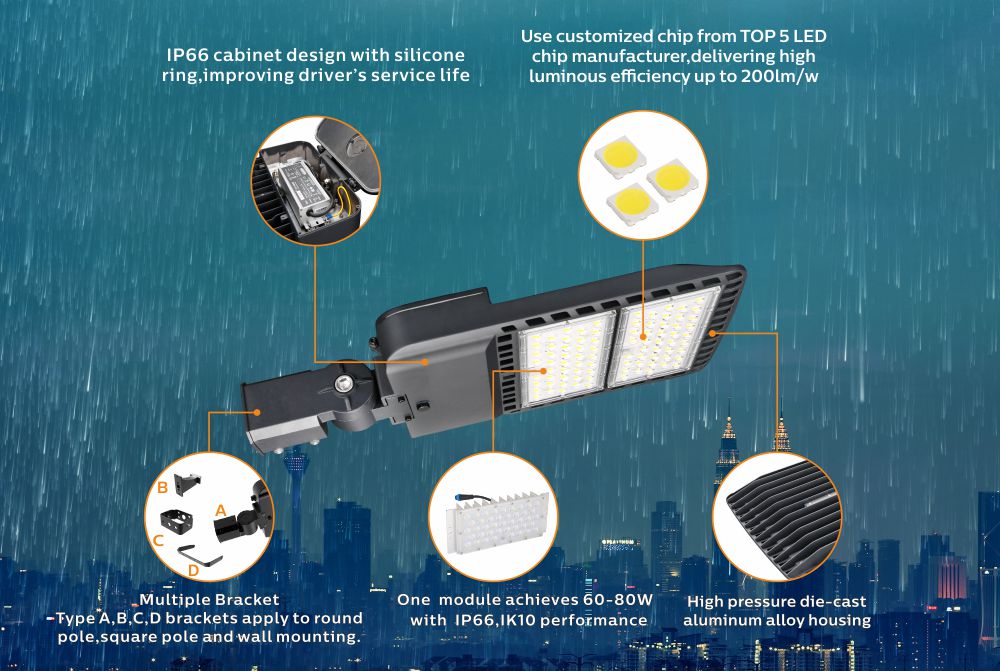

Detail 2

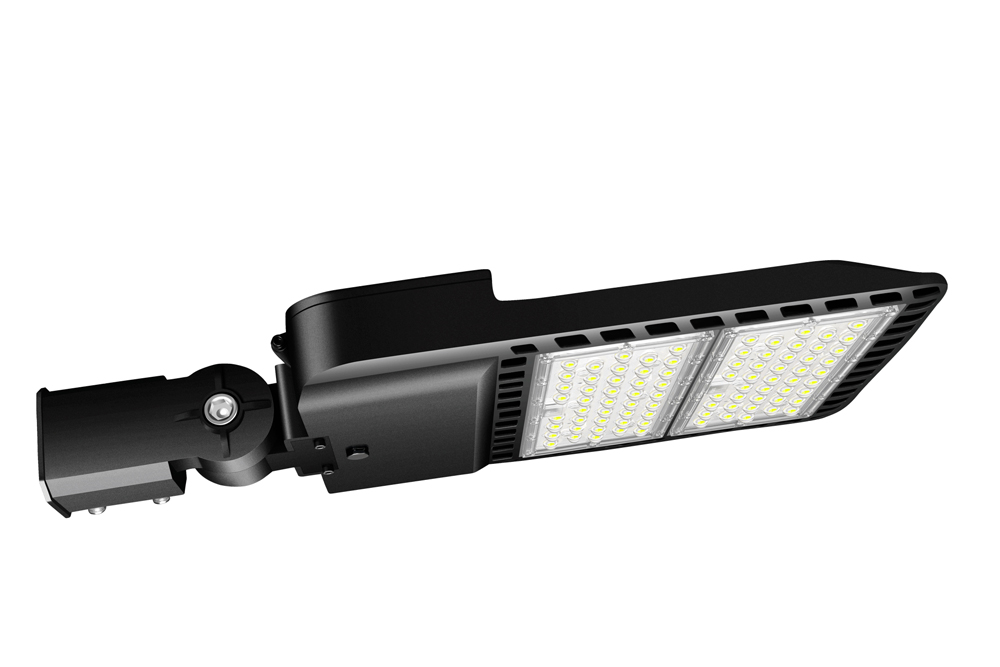

Detail 3

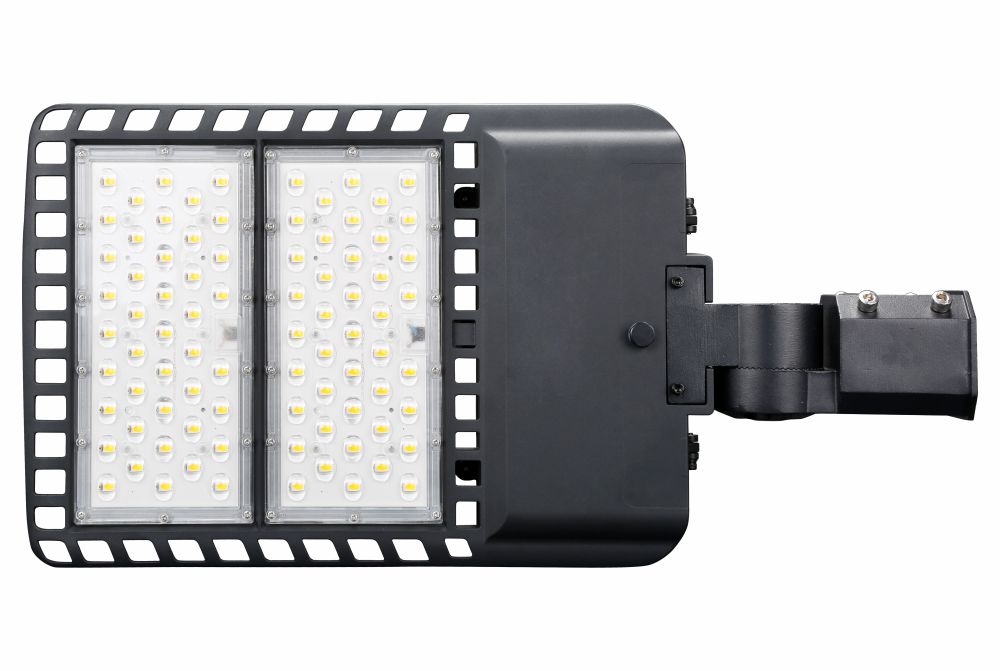

Detail 4

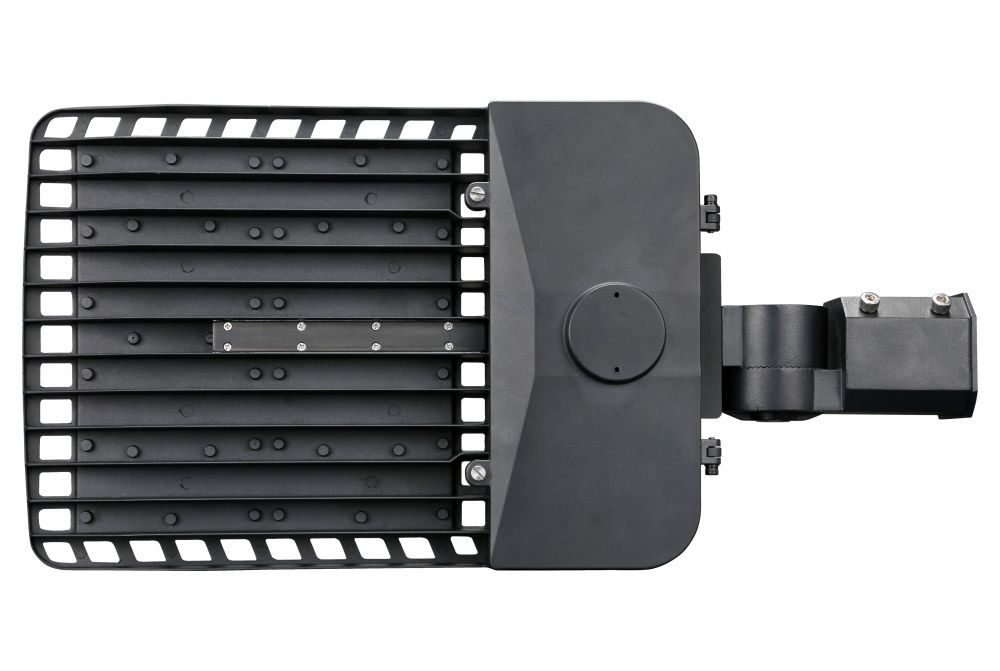

Detail 5

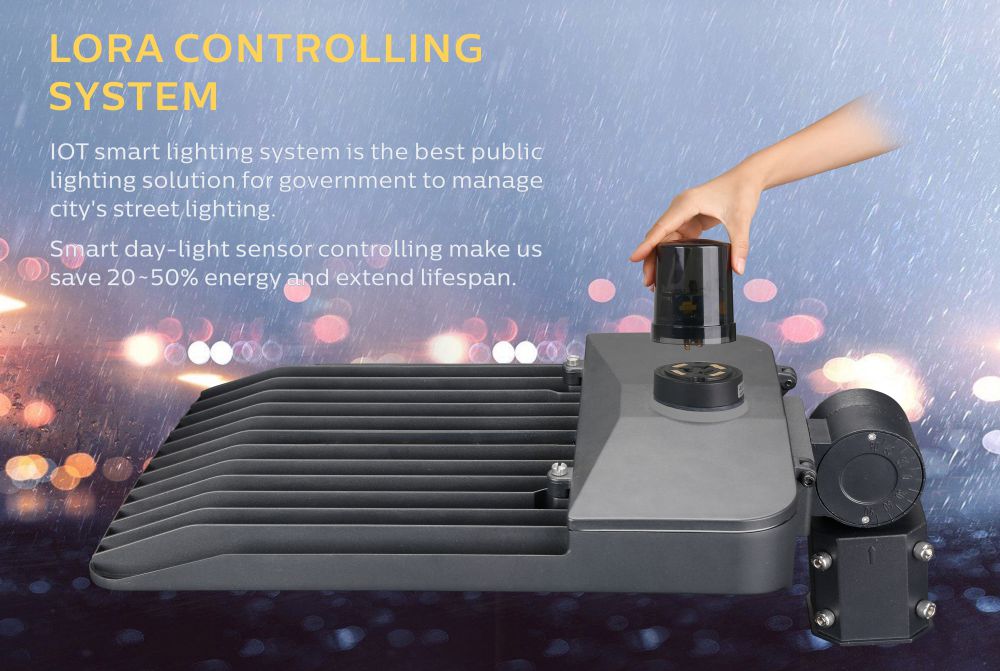

Detail 6
Detail 7
Dimensions
Versatile Applications
🏟️ Outdoor basketball courts, tennis courts, badminton courts, and football fields.
🏫 School playgrounds and stadiums.
🛣️ Community leisure plazas and road lighting.
🅿️ Exterior LED lighting for shoebox lighting, parking lot fixtures, and flood lighting.

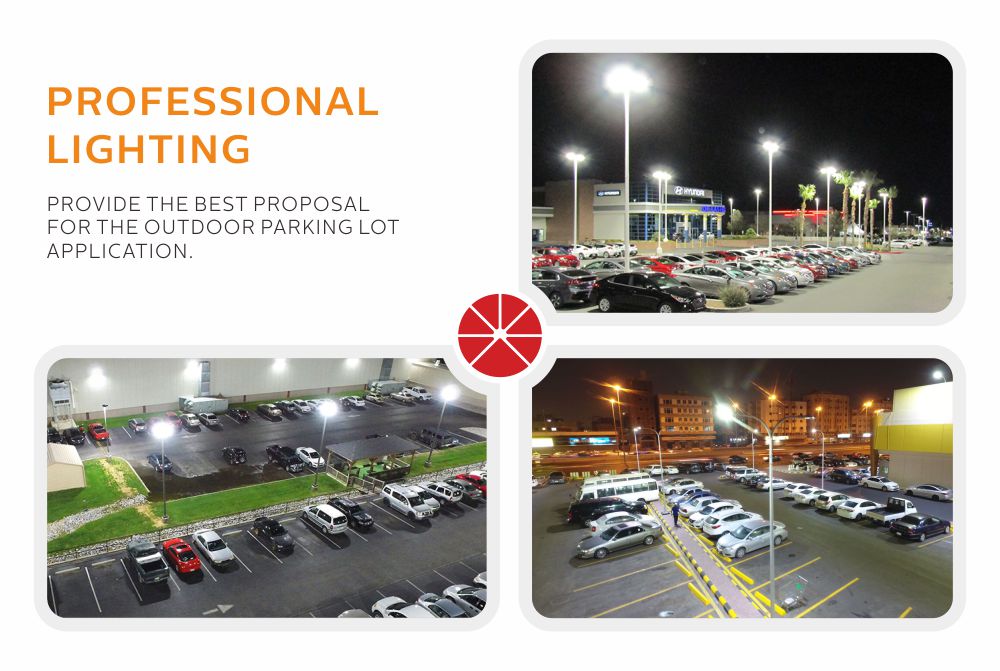

Application Case
Why Our Lights Reach 160lm/w?
  • Exclusive Light Source: Luminous efficiency rises 8% and light transmittance up to 98% with ZAG Lens.
  • High-End Chips: Individual LED chips reach 200lm/w.
  • Superior Heat Dissipation: Durable heat sink ensures junction temperature rise stays under 10°C.
  • Stable Performance: Multi-chip packaging ensures high lumen output and zero dead lights.
Production & Quality Control

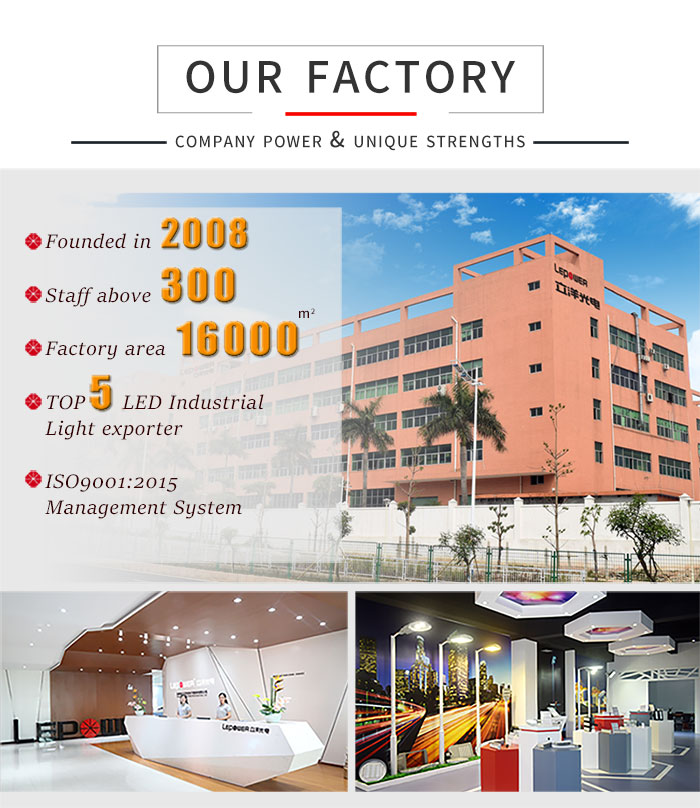

Factory 1

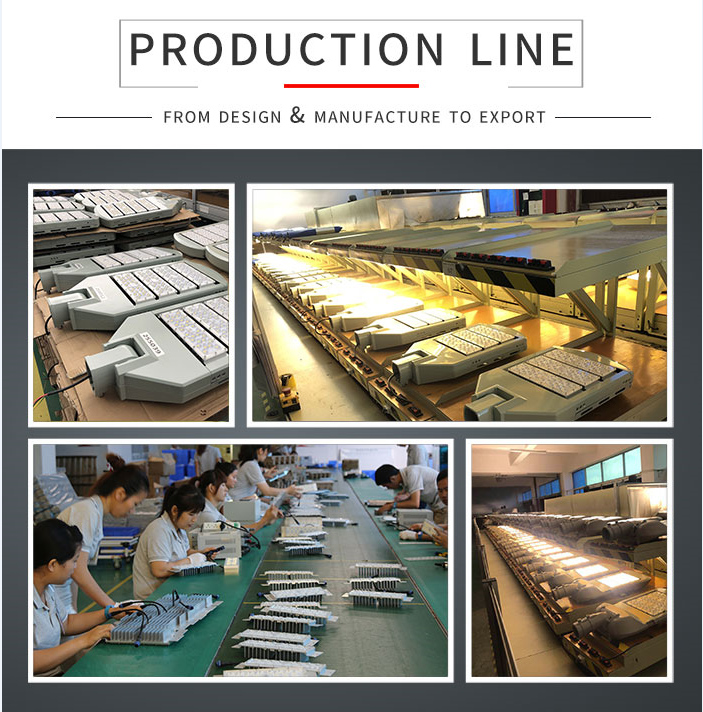

Factory 2
Factory 3
Trading Conditions:

1. Payment: 30% deposit; 70% before delivery. | 2. Delivery: 10-25 days depending on quantity. | 3. Samples: 5 days. | 4. Shipping: FOB Port.

Quality Assurance:

We trace every production phase. Every light is cleaned and quality-checked before packing. Third-party inspections are welcome.

Warranty:

3/5 years warranty. We provide free replacements or reworks for failures under normal usage within the warranty period.

Frequently Asked Questions
Q1. Can we make our own label on the sample lights? Yes, we support custom labeling as well as OEM & ODM services for all lighting products.
Q2. How do your lights handle corrosion in seaside projects? Our lights use metal with high corrosion resistance, treated with electrostatic spraying and electrophoresis to effectively protect against salt water corrosion.
Q3. Is it possible to try a sample first? Absolutely. Our MOQ is only 1 piece, allowing you to test the quality before committing to a long-term cooperation.
Q4. Can you help with outdoor lighting design for projects? Yes, our design team can provide the best solutions and IES files if you prefer to handle the design yourself.
Q5. What information is needed for a parking lot or street lighting suggestion? Please provide: A. The width of the street; B. The arrangement and height of the light poles; C. Your specific illumination requirements.
Q6. What certifications do your LED shoebox lights have? Our products are ETL, DLC, SAA, CE, RoHS, TUV, and UL approved, ensuring compliance with international standards.
