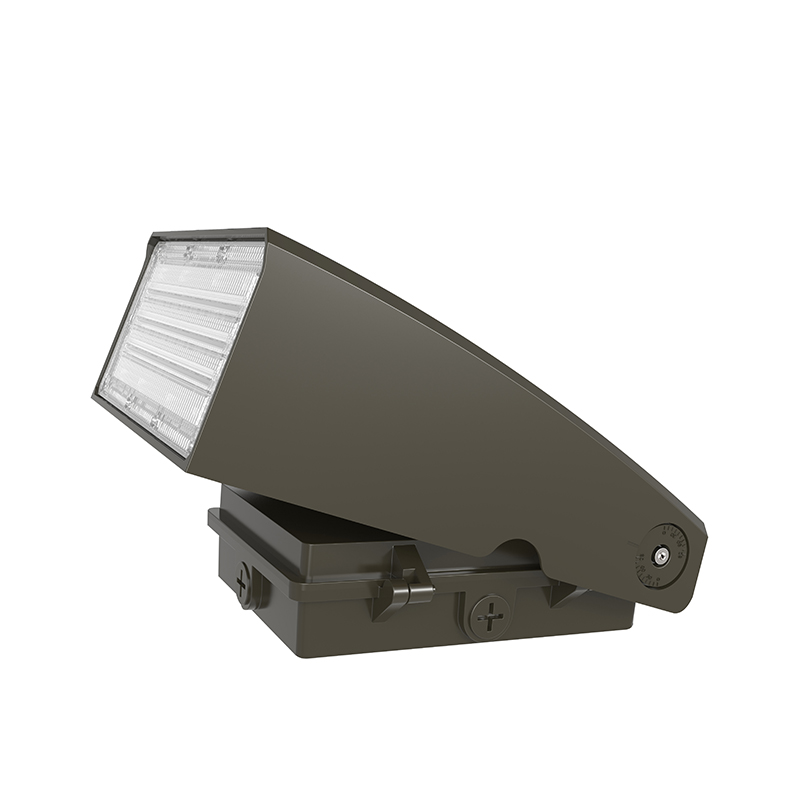

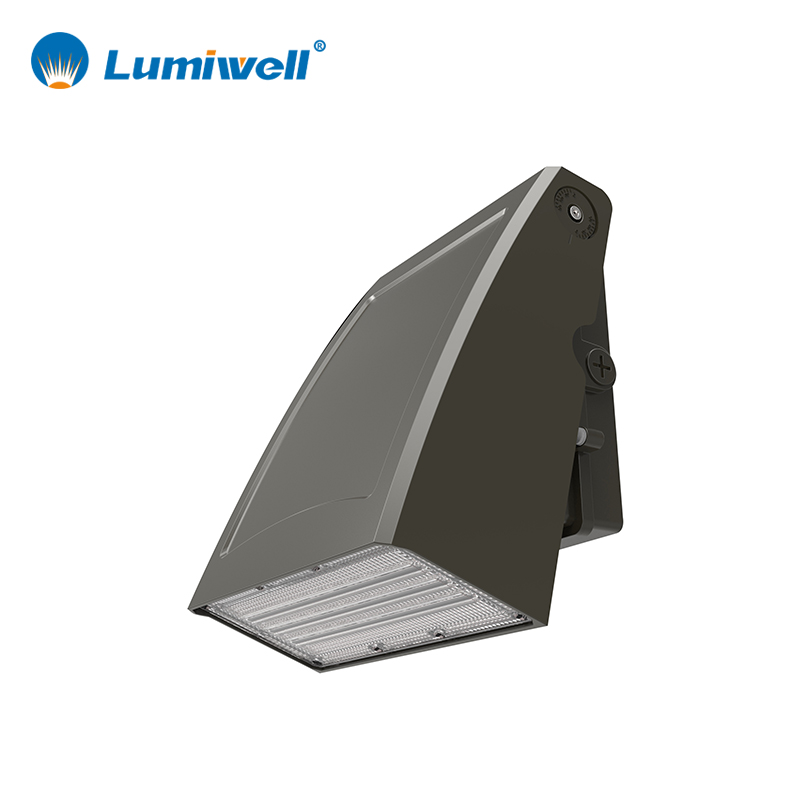

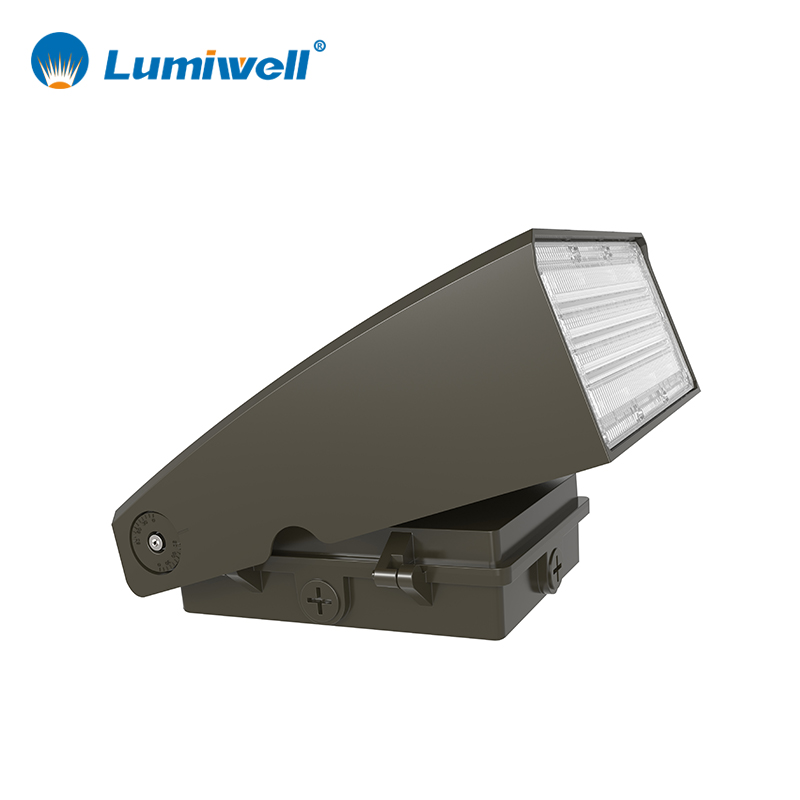

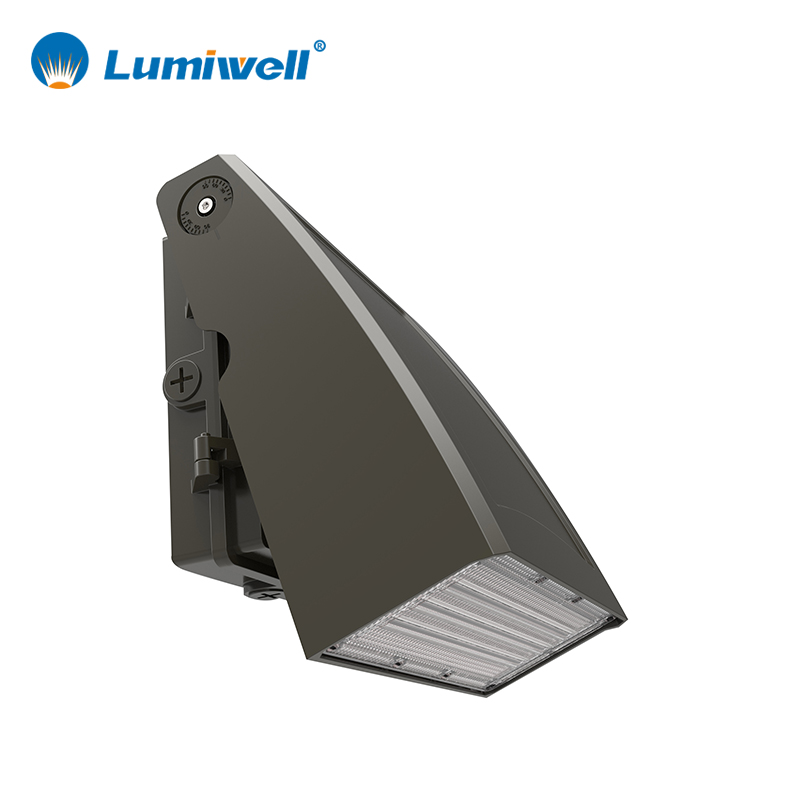

ETL Listed AC100-277V 5 Years Warranty IP65 Waterproof 20W-120W LED Wall Pack Light with Photocell

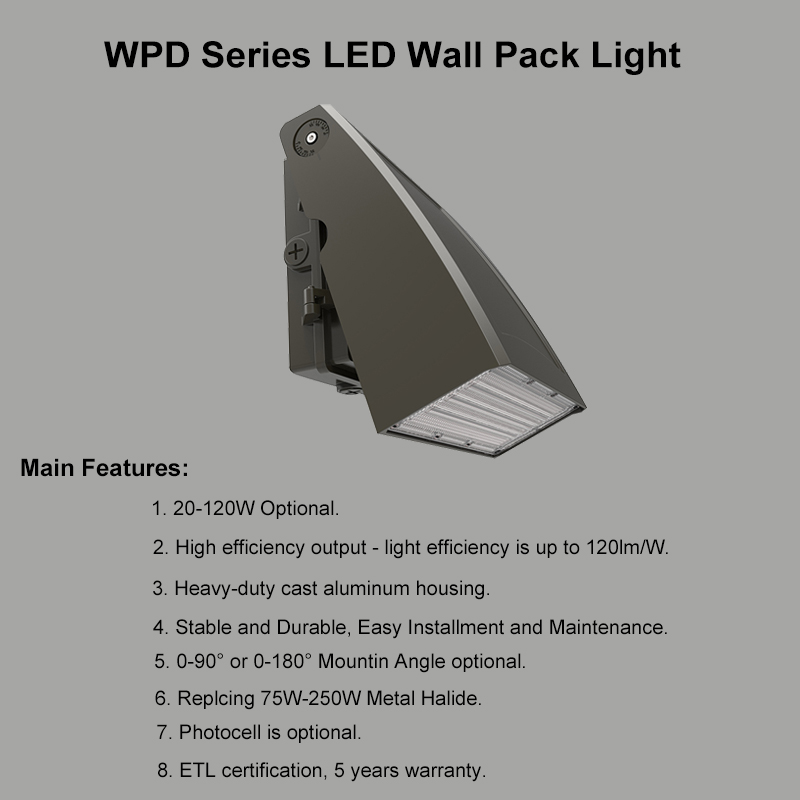

💡 Main Features
- Power range from 20W to 120W optional.

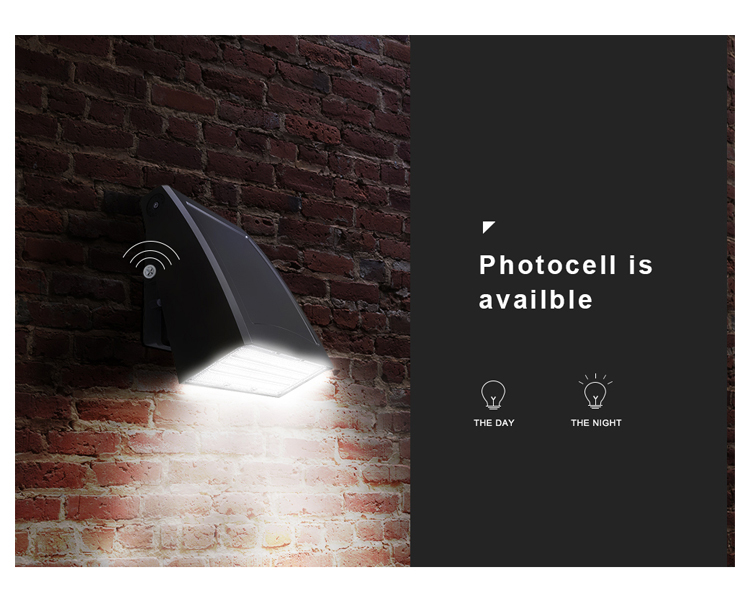

- Dusk-to-Dawn photocell available - Auto turn on at dusk and off at dawn.
- Unique private slim shape design with uniform lighting distribution via PC lens.
- Easy and fast installation - Direct mounting on wall or with J-Box.
- High efficiency output up to 120LPW.

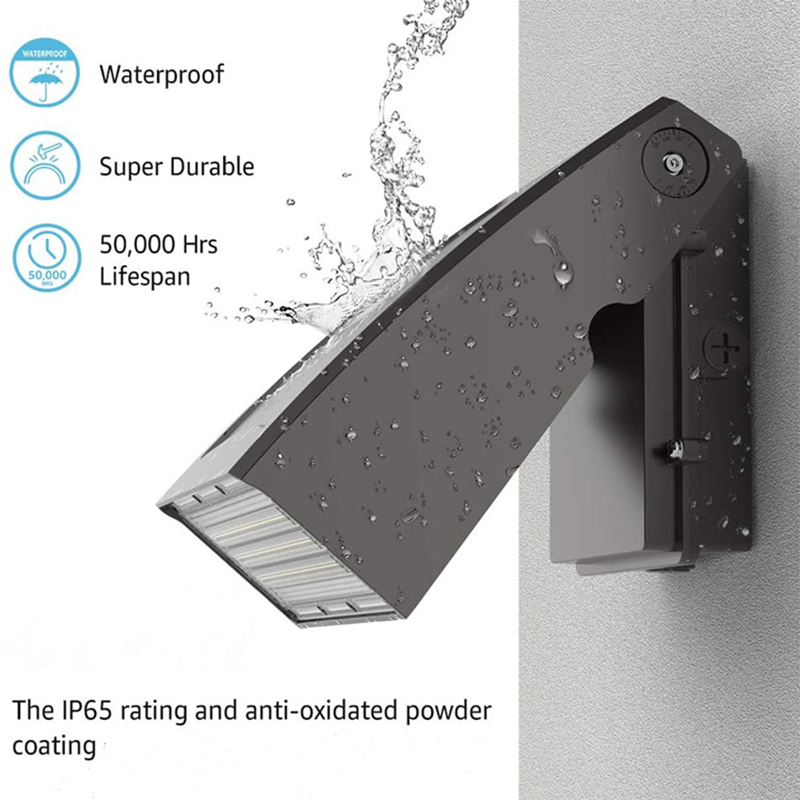

- IP65 Waterproof rating - suitable for all kinds of weather.
- Energy saving - save up to 80% electricity cost.

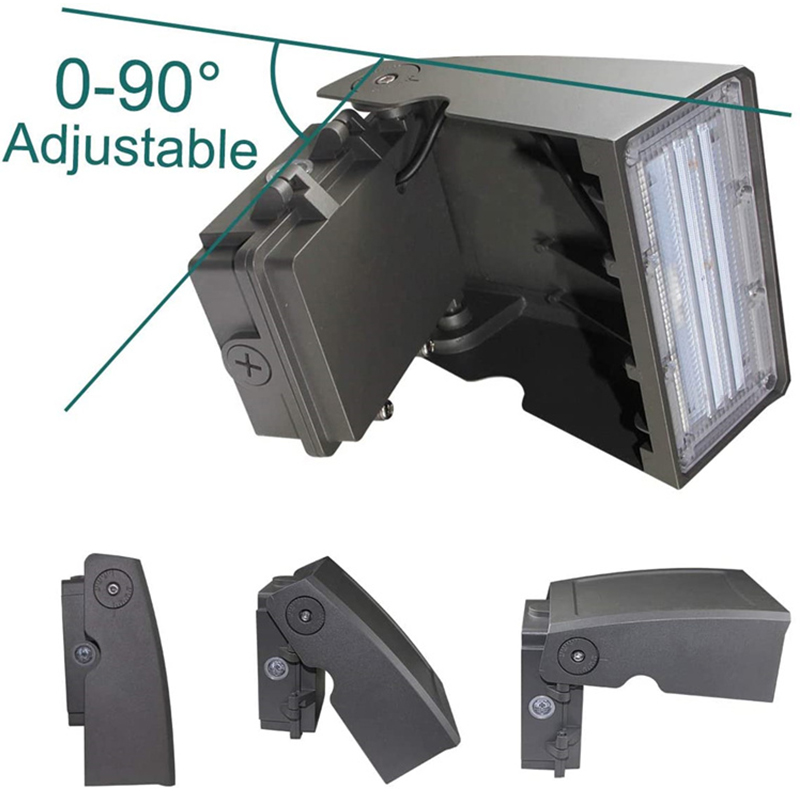

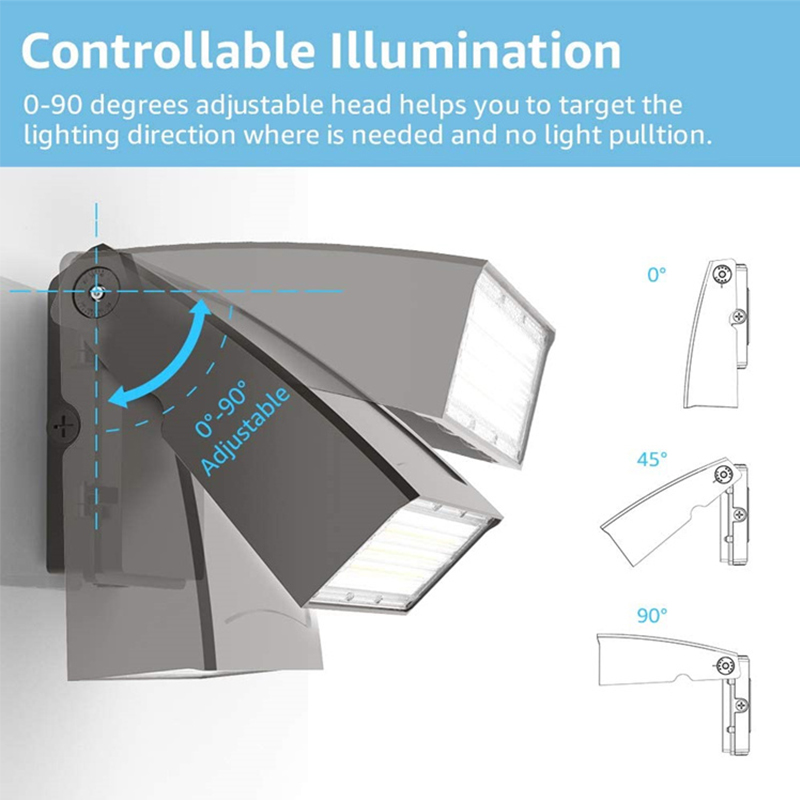

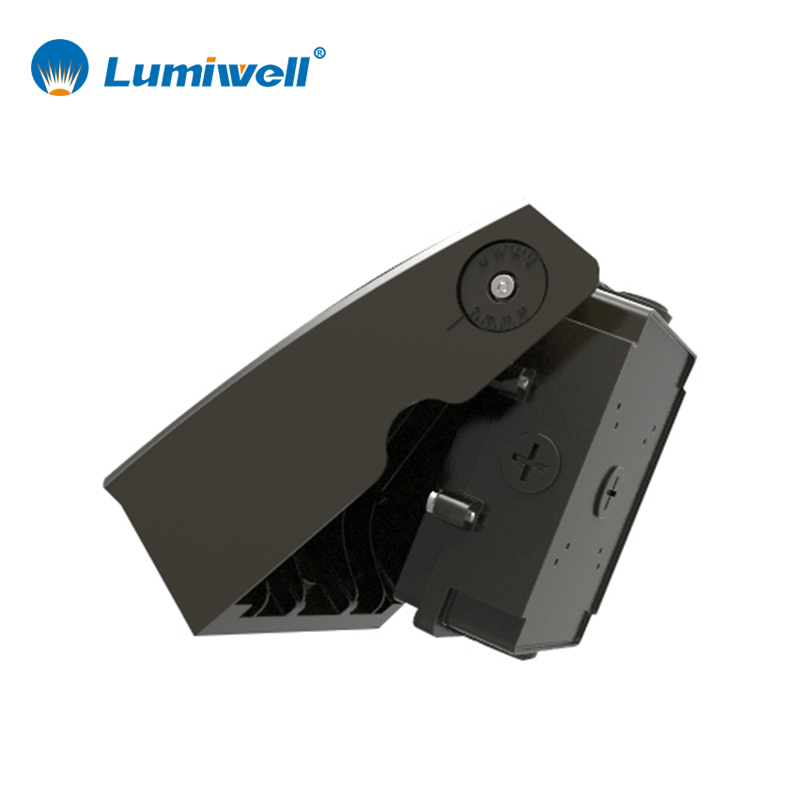

- 0-90° or 0-180° Mounting Angle optional.
- 5 Years Warranty for whole fixture and power supply.
📊 Specifications
| Model No. |
LW-WPD20W |
LW-WPD30W |
LW-WPD40W |
LW-WPD60W |
LW-WPD80W |
LW-WPD100W |
LW-WPD120W |
| Power |
20W |
30W |
40W |
60W |
80W |
100W |
120W |
| Lumens |
2400lm |
3600lm |
4800lm |
7200m |
9600lm |
12000lm |
14400lm |
| Voltage |
AC100V-277V |
| Size |
8.1''*L6.5''*H3.9'' |
11.1''*8.5''*4.3'' |
13''*10.5''*4.9'' |
| Material |
Aluminum + Tempered Glass |
| CCT |
3000K/4000K/5000K/5700K |
| CRI |
>70Ra |
| Lifespan |
50000hrs |
| Certificate |
ETL, cETL |
| Warranty |
5 Years |

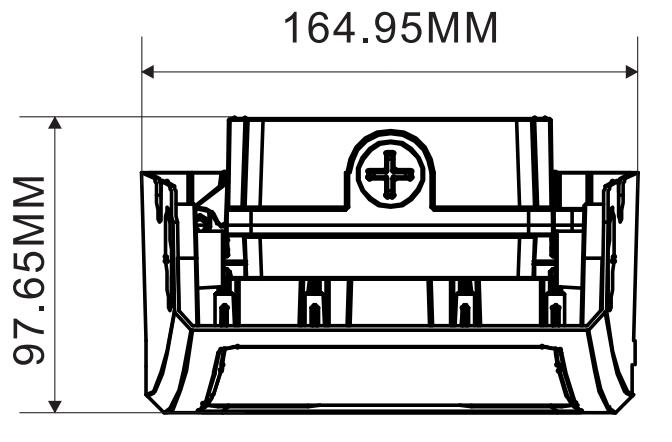

📏 Dimension Details

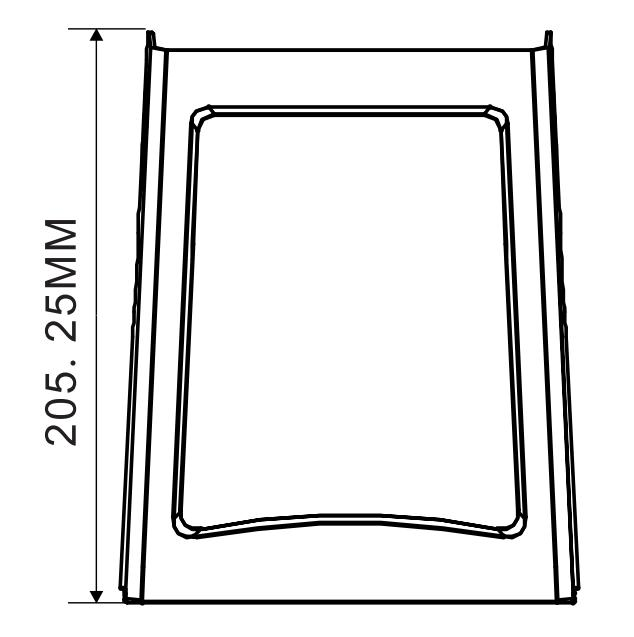

20W, 30W, 40W

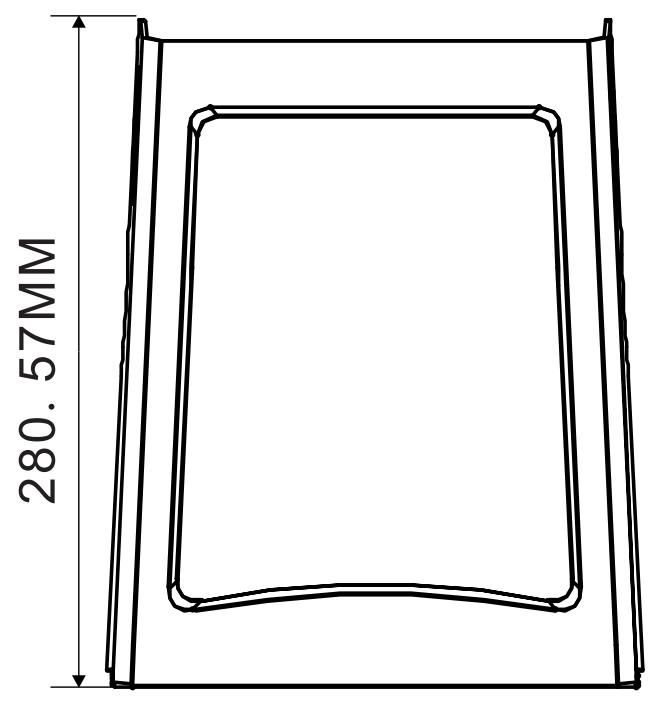

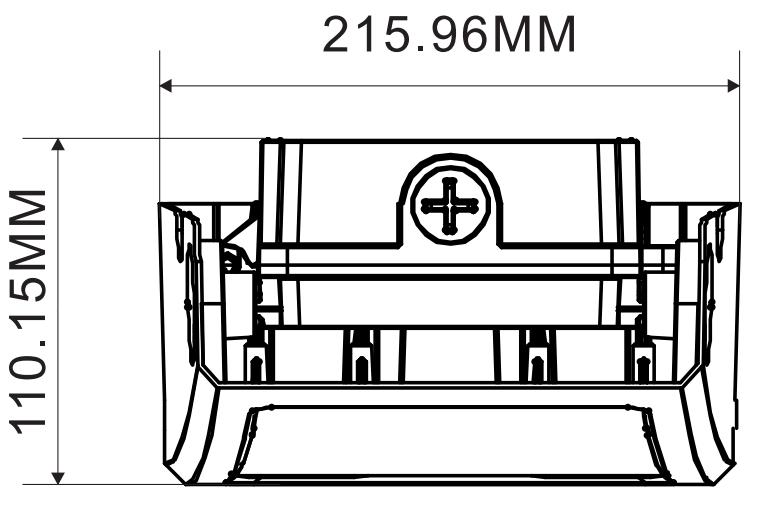

60W, 80W

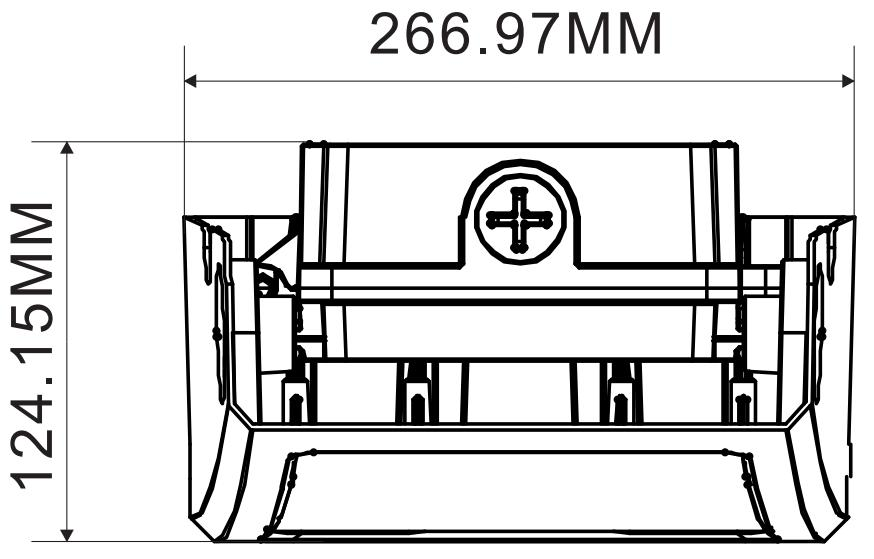

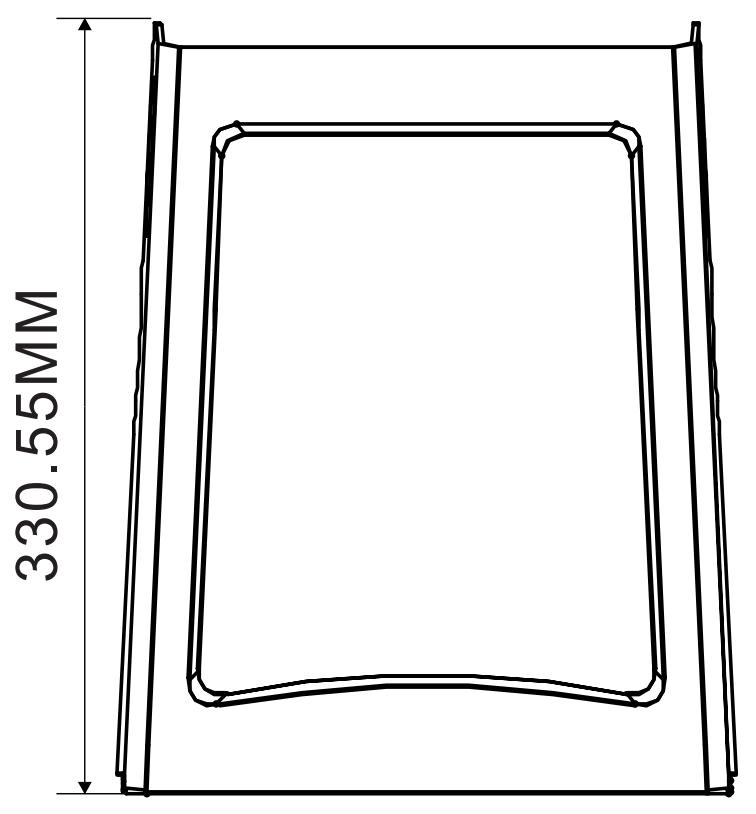

100W, 120W

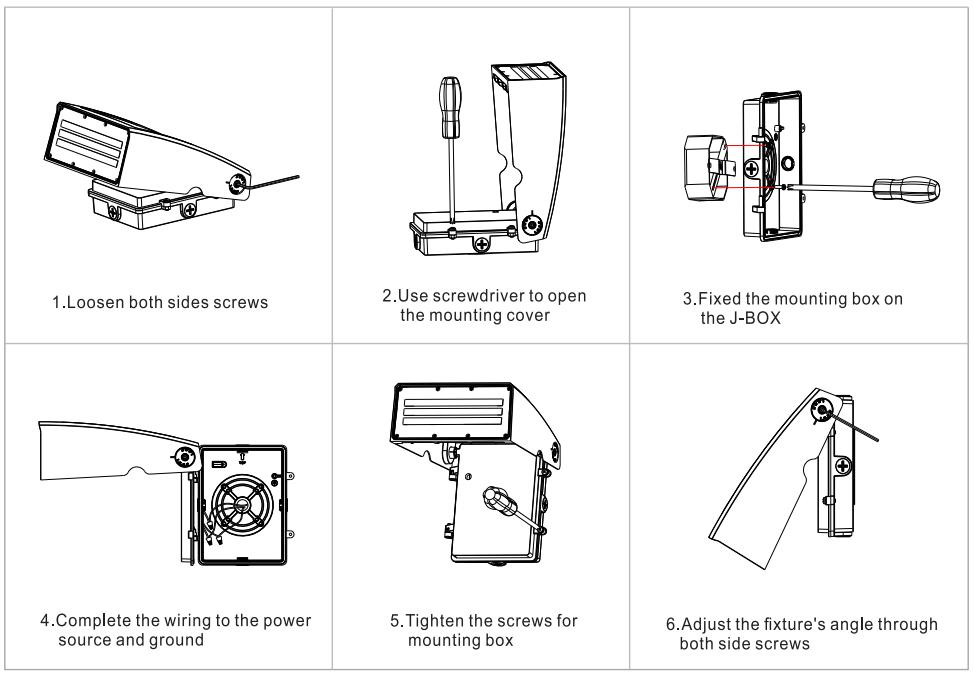

🛠 Installation Process
🏡 Applications

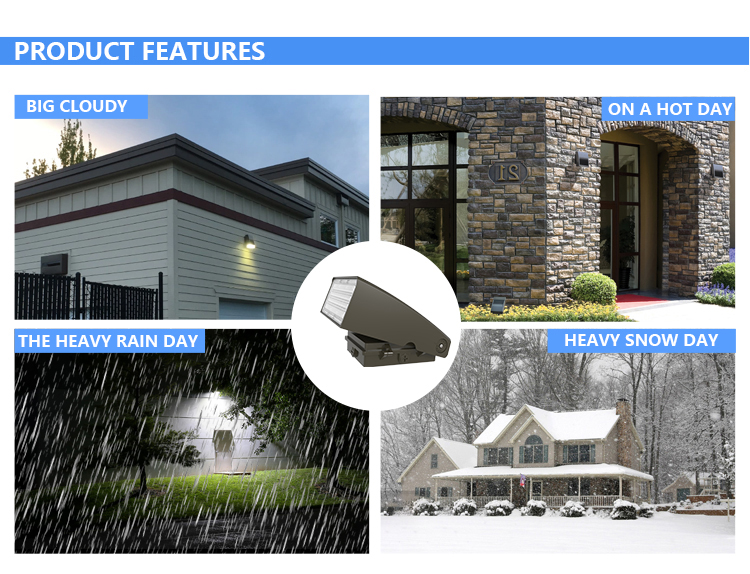

Widely used at pathway, hallway, perimeter, patio, entrance, stairway, house, garden, garage, yard, warehouse, factory, store, street, porch.
❓ Frequently Asked Questions
Q1: What is the warranty period for this LED wall pack light?
A1: We provide a full 5-year warranty for the entire fixture, including the light source and the power supply.
Q2: Can this light be used in rainy or wet outdoor conditions?
A2: Yes, the light is IP65 waterproof rated, making it durable and suitable for all types of harsh outdoor weather environments.
Q3: Does the photocell function automatically?
A3: Yes, the dusk-to-dawn photocell automatically turns the light on at sunset and off at sunrise, providing effortless energy management.
Q4: What input voltage does this wall pack light support?
A4: It supports a wide range of AC100-277V, making it compatible with most commercial and residential electrical systems.
Q5: What is the expected lifespan of the LED fixture?
A5: The fixture is designed for long-term use with a rated lifespan of up to 50,000 hours.
Q6: Is it easy to install on a standard wall?
A6: Absolutely. It supports direct wall mounting or can be installed via a standard J-Box for a fast and secure setup.
