Products Description

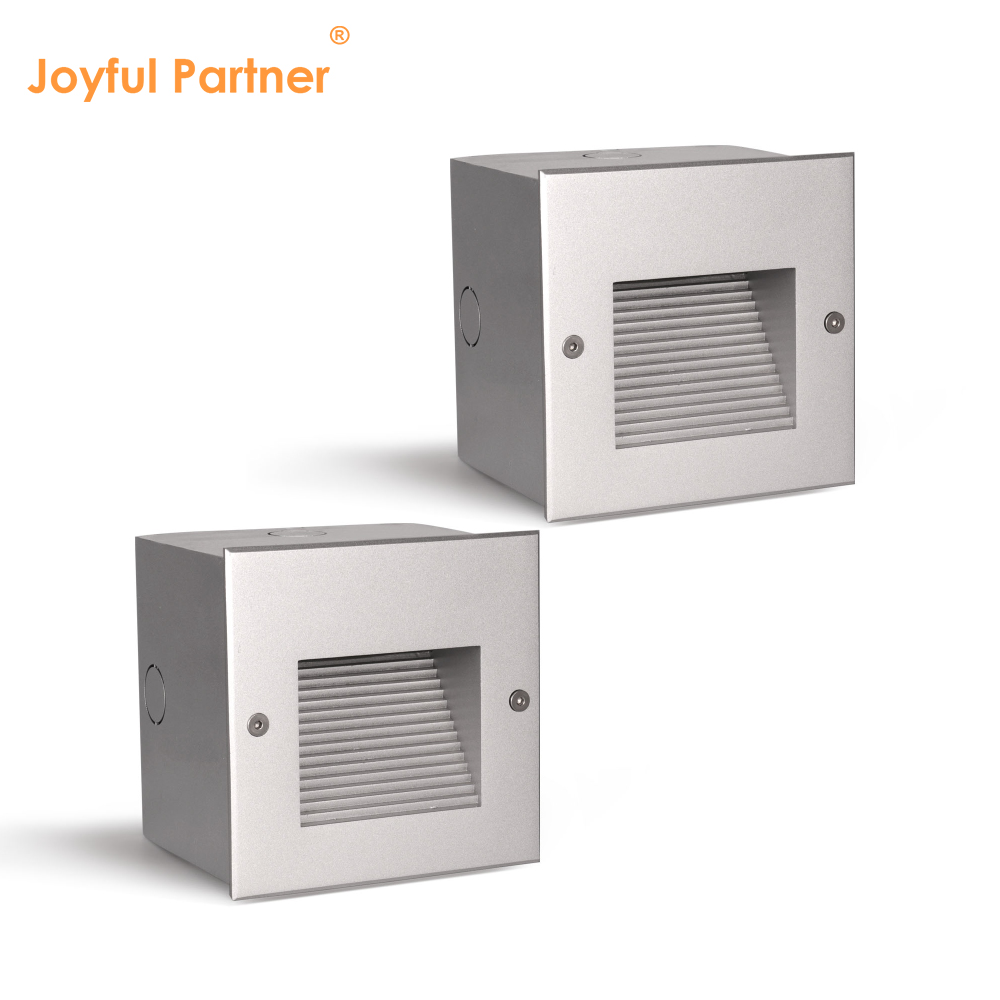

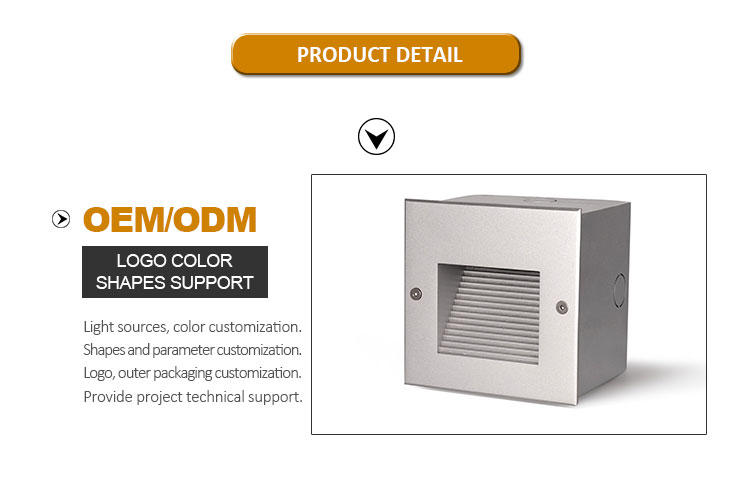

IP65 12V 24V Recessed Path Stair Step Fence Way LED Deck Light Outdoor Wall Lamp
| Item No. |
Light source |

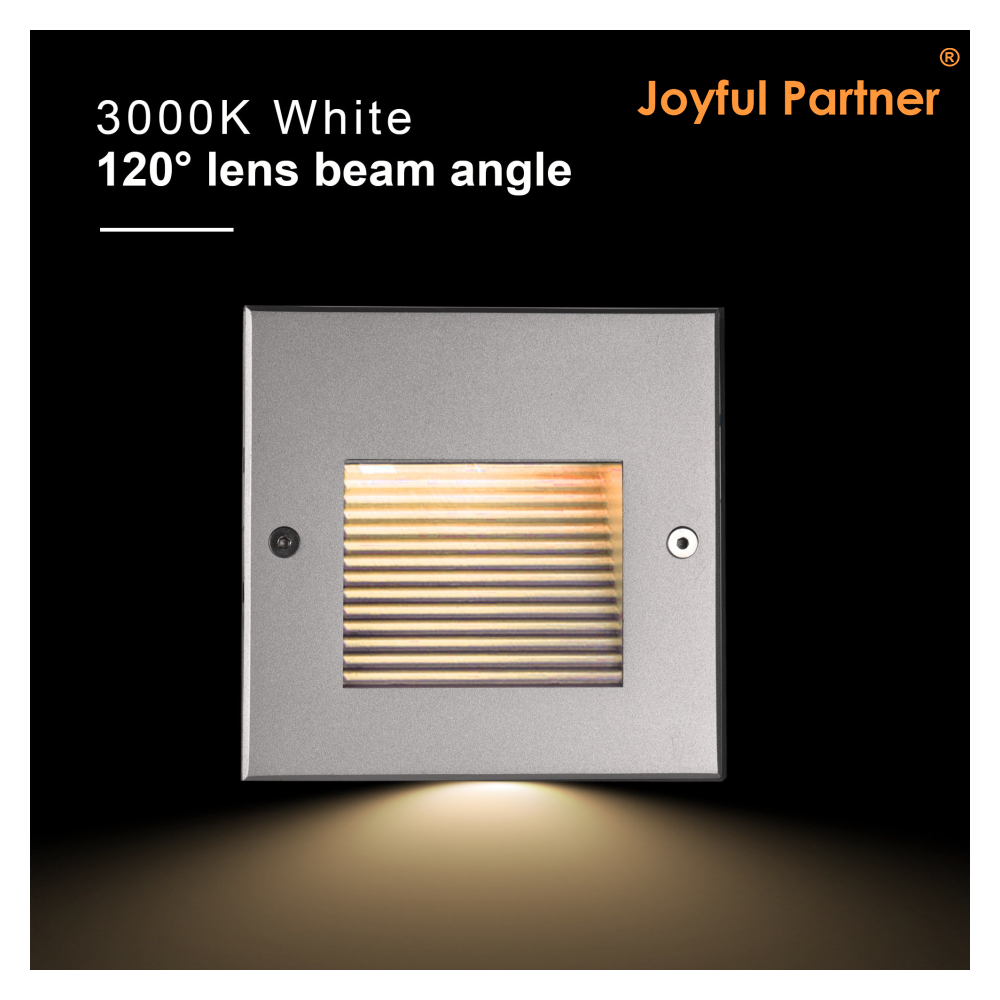

Lens beam angle(°) |
Consumption(watt) |
Input Voltage(V) |
Ik rate |
| 817187 |
SMD3528*18 |
N/A |
2.5 |
DC12V/DC24V AC100-240V |
10 |
| 817068 |
1*6W LED |
N/A |
6 |
DC12V/DC24V AC100-240V |
10 |
| 817037 |
SMD5050*3 |
N/A |
1.8 |
DC12V/DC24V AC100-240V |
10 |
| 817058 |
1*5W LED |
N/A |
5.5 |
DC12V/DC24V AC100-240V |
10 |
🛠️

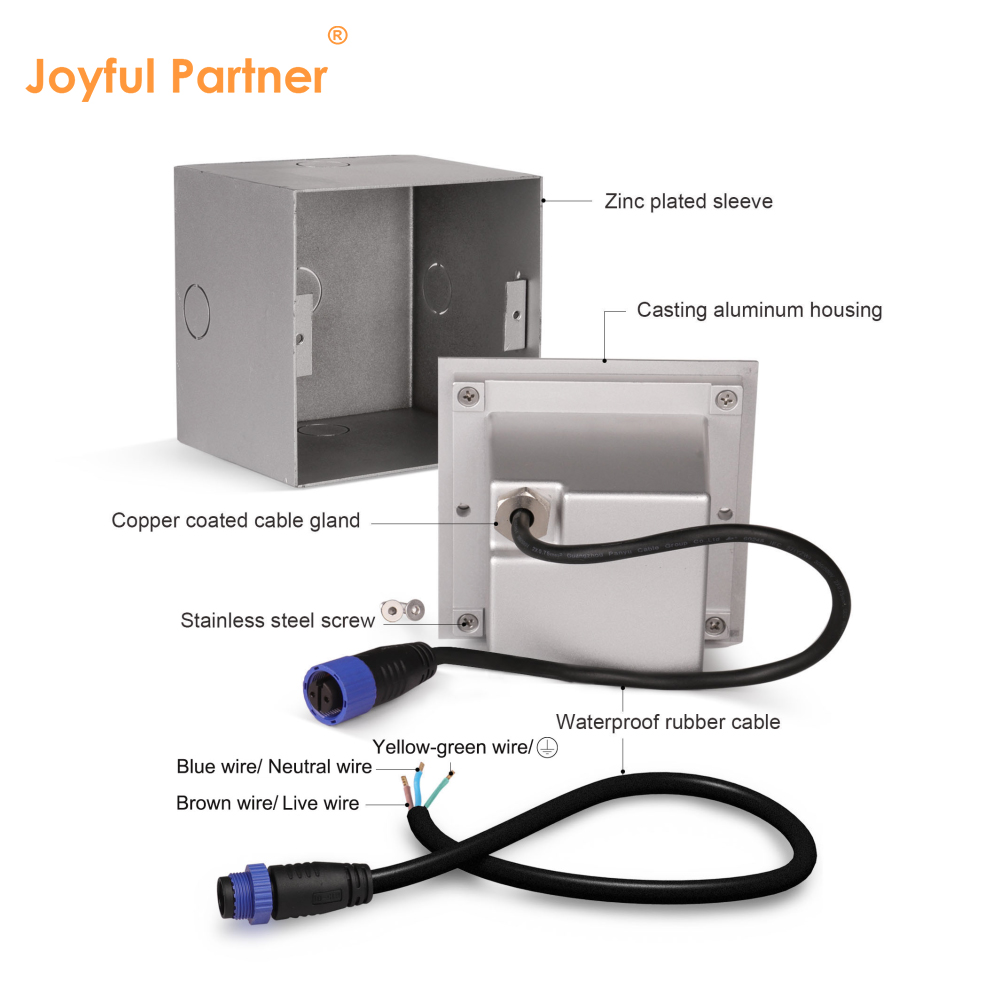

Material Specifications
| Housing | Made of ADC12# Die-casting outdoor powder coated aluminum |
| Front cover | Made of ADC12# Die-casting outdoor powder coated aluminum |
| Glass | Tempered glass, T=3mm |
| Cable gland | IP67 Copper and nickel coated |
| Gasket | Tooling shaped seal |
| LED | SMD LED or COB LED, Ra>80 |
| PCB | Excellent heat conductivity aluminum, ≥2.0w/mk |
| Driver | Constant current output |
| Operating temperature | -20℃ ~ 40℃ |
| Power cable | H05RN-F2*0.75mm² L=0.3m (low voltage) / H05RN-F3*0.75mm² L=0.3m (high voltage) |
✨

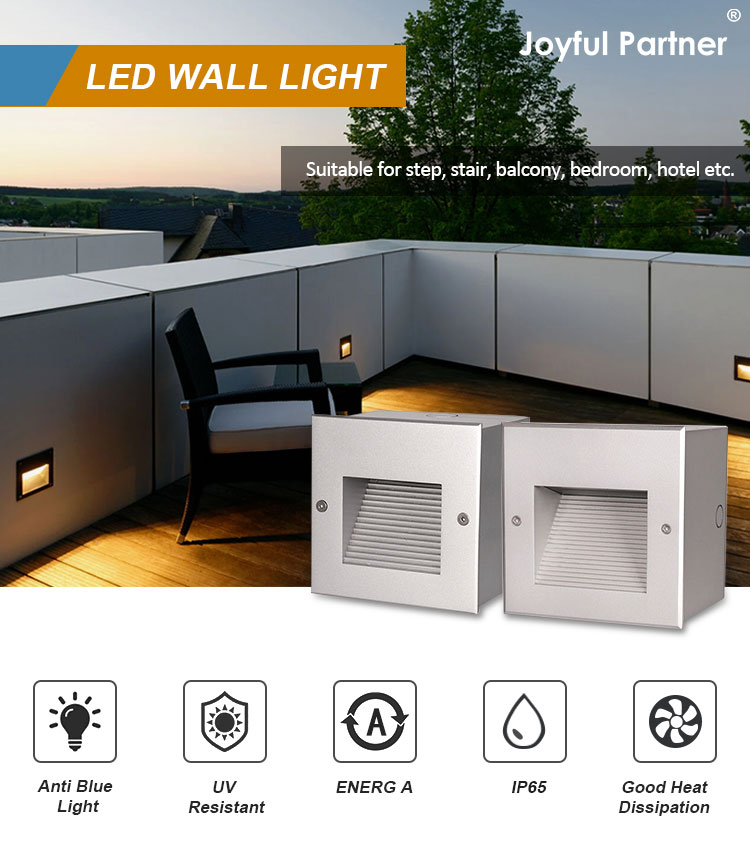

Key Features
- Brand LED high lumen, energy saving, soft light.
- Anti-oxidation all-aluminum housing.
- CE & RoHS proved.
- IP65 Waterproof rating.
- Support DMX512, Dali, 0-10V dimmable options.
- Square, Round, linear shapes meet various engineering needs.

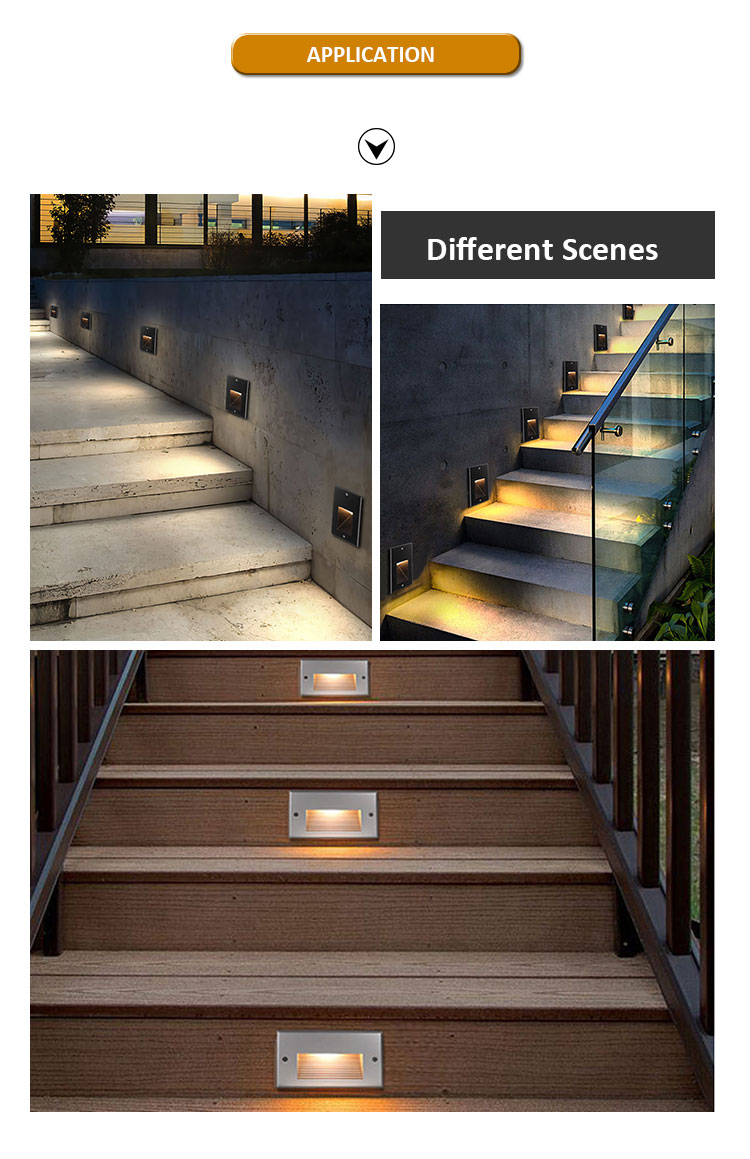

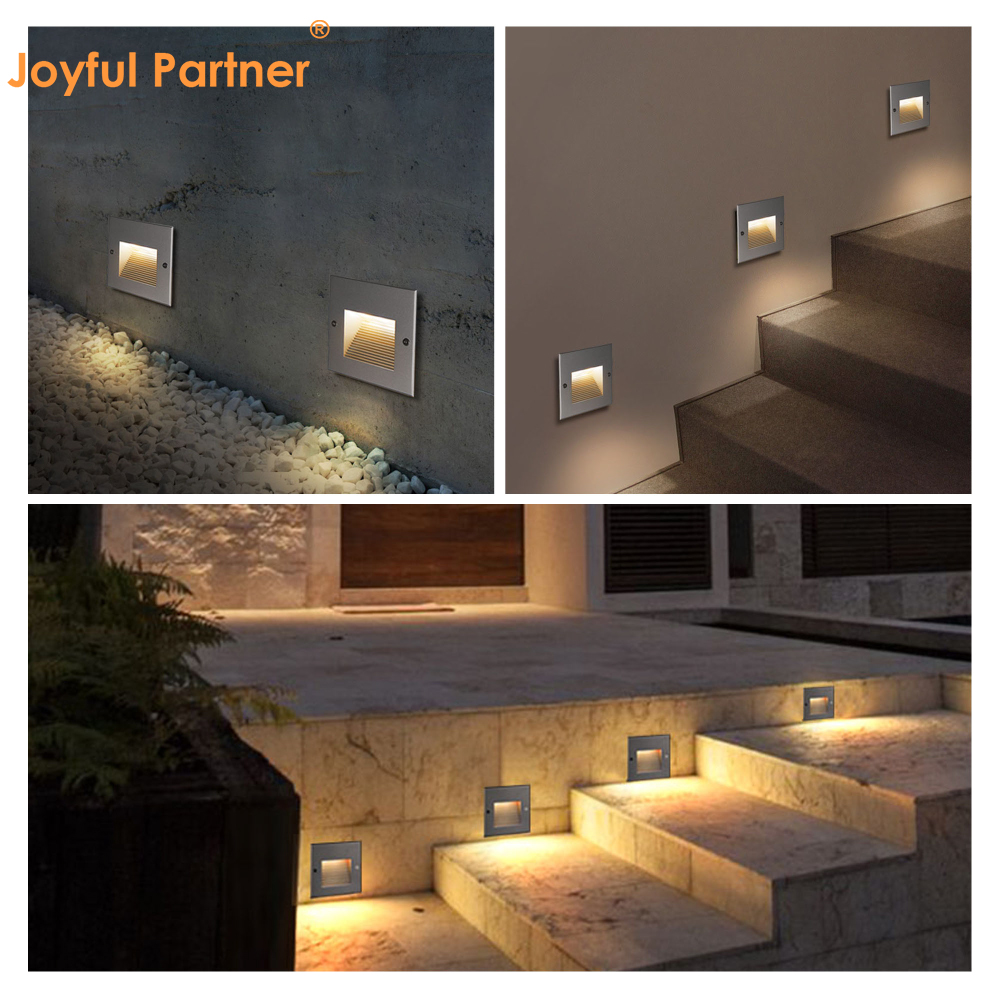

- Suitable for Outdoor and Indoor Step/Stair/corridor use.
🏢

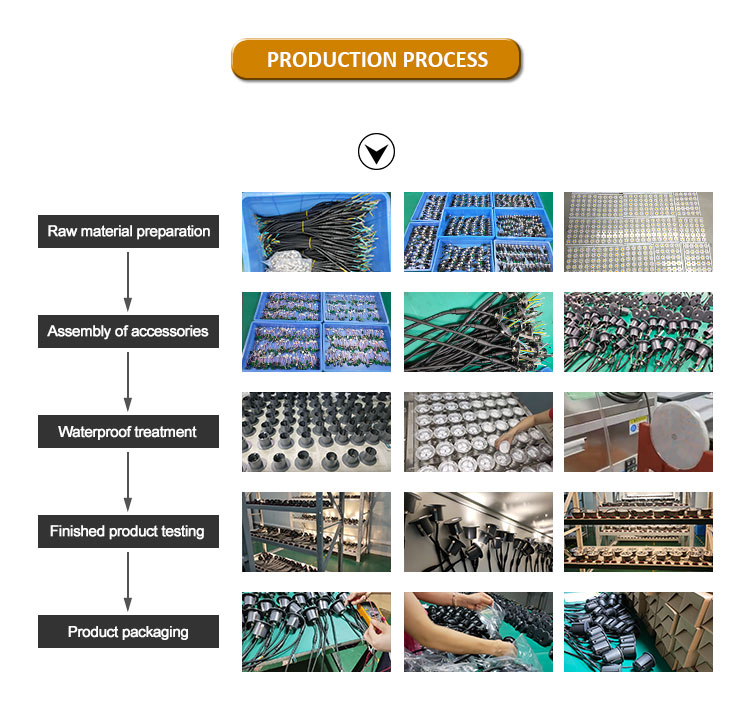

Production Overview
❓
Frequently Asked Questions

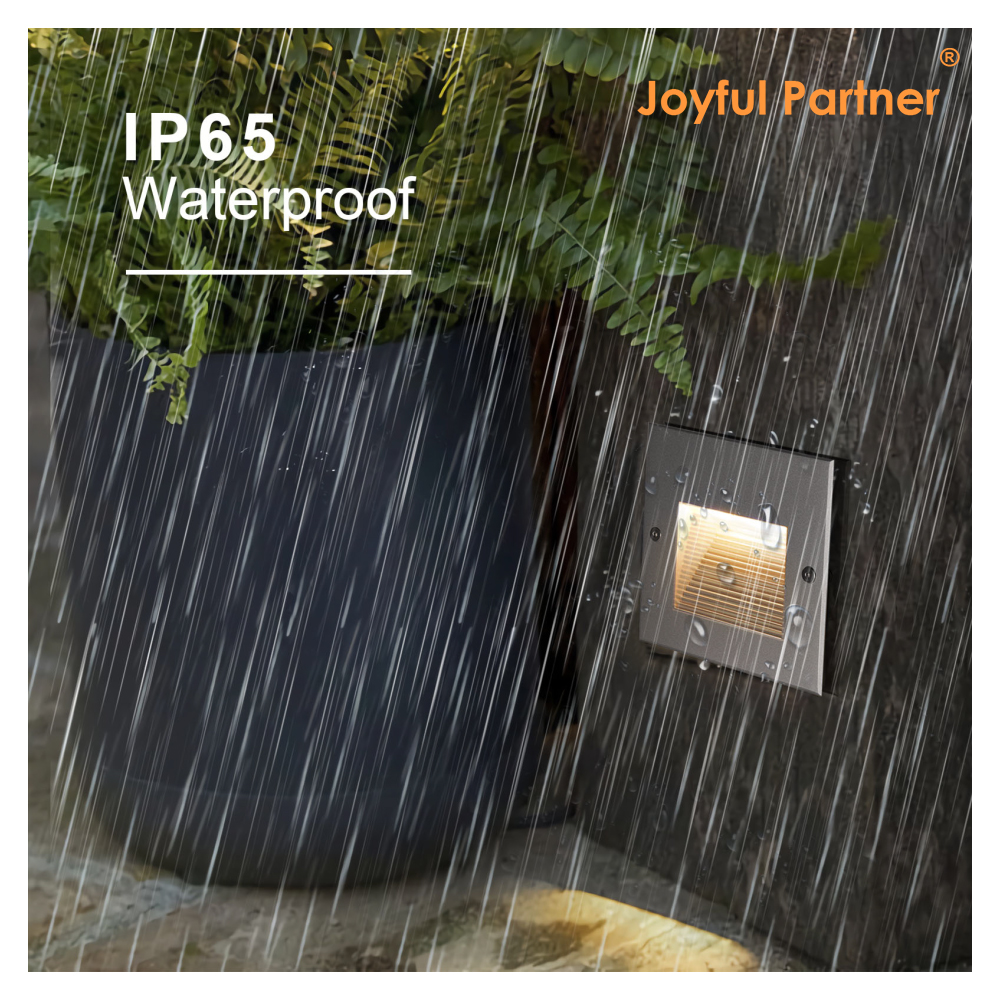

Q: What is the waterproof rating of these LED deck lights?
A: These lights are rated IP65, making them suitable for outdoor use in various weather conditions, including rain and moisture.
Q: What materials are used in the construction of the housing?
A: The housing and front cover are made of ADC12# Die-casting outdoor powder coated aluminum for superior durability and anti-oxidation.
Q: Are these stair lights dimmable?
A: Yes, these lights support various dimming protocols including DMX512, Dali, and 0-10V dimmable systems.
Q: What power input do these lights require?
A: They are versatile and can operate on low voltage DC12V/DC24V or high voltage AC100-240V depending on the specific model chosen.
Q: Can these be used for indoor applications?
A: Absolutely. They are designed for both outdoor and indoor applications such as steps, stairs, corridors, and fence ways.
Q: What is the operating temperature range?
A: The lights are designed to function reliably in temperatures ranging from -20℃ to 40℃.
