ONN-M9T Cold White DC LED Work Light For CNC Machines & Workshop Use IP67 Rated Multiple Length Options

Product Description

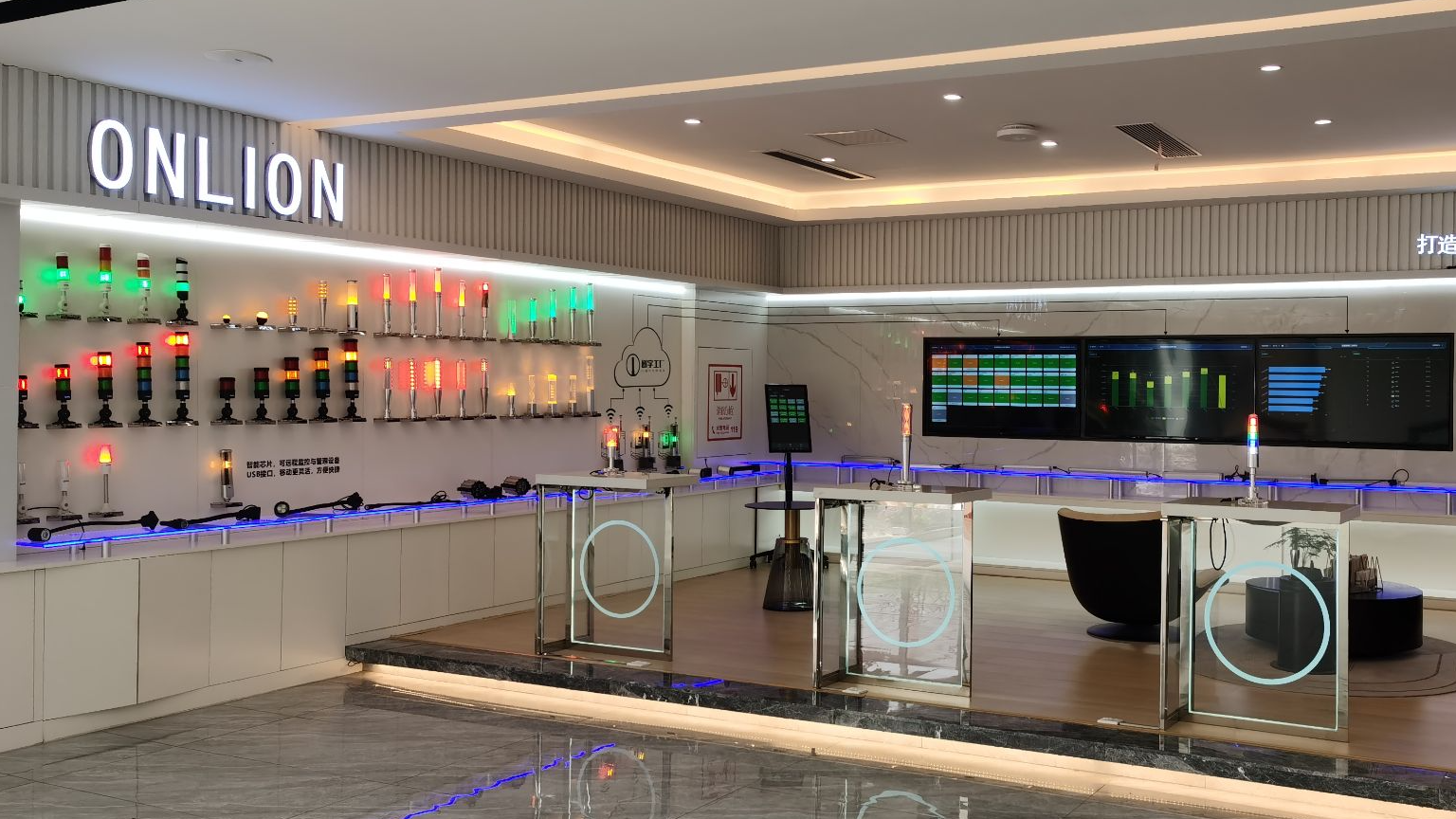

🏭 Click the below VR showroom to visit our factory.
VR Showroom

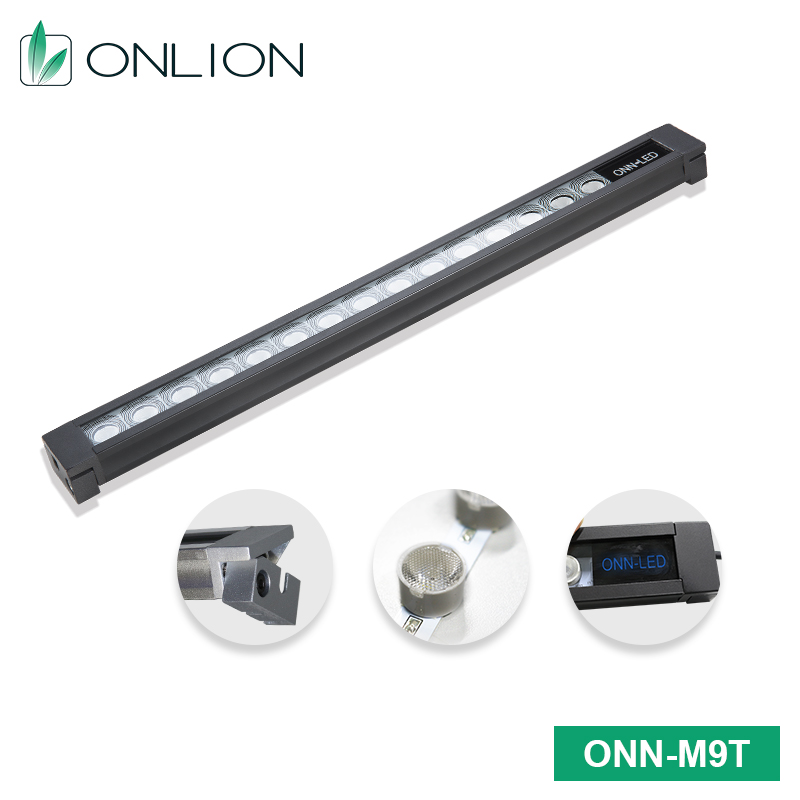

ONN-M9T IP67 LED Machine Tool Working Lamp DC24V Bar Lights For CNC Machine

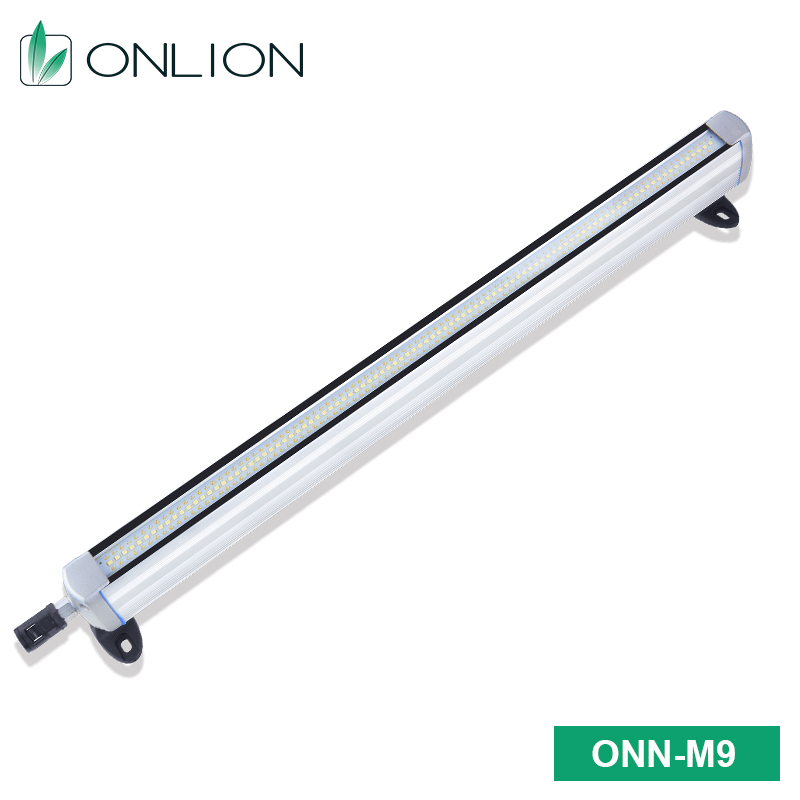

Product Image
📝 Product Description

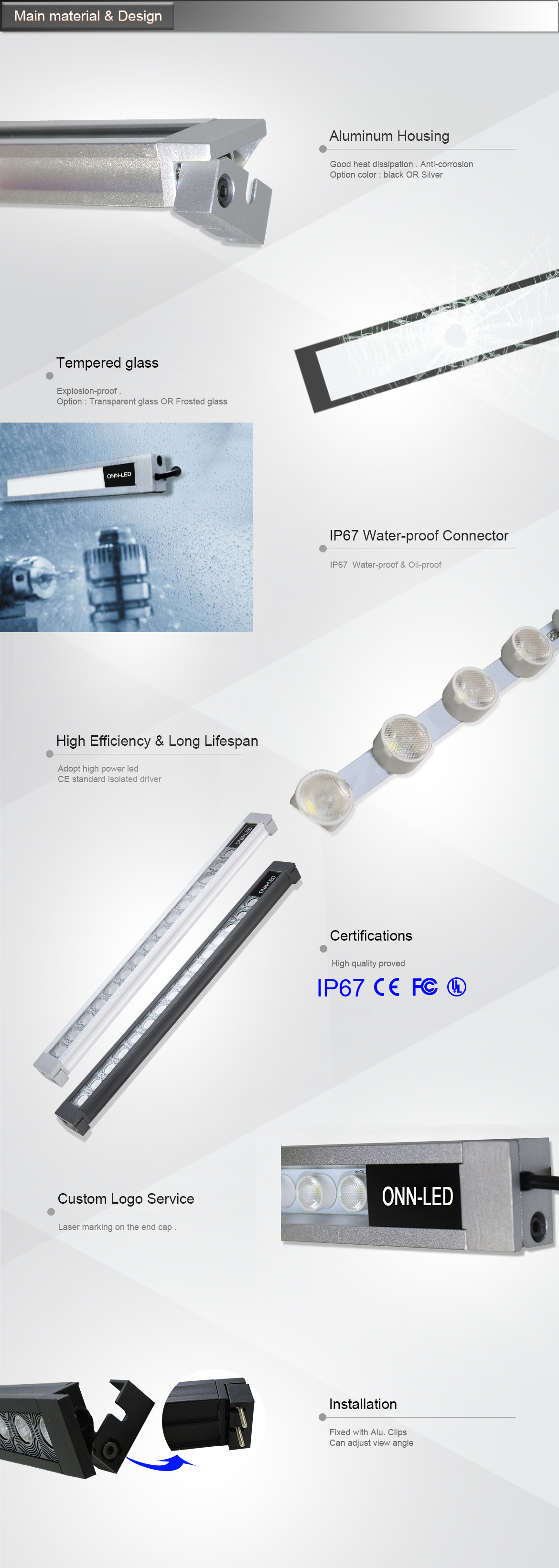

Description Image
Features
  • Designed for harsh environments.
  • Very slim and thin to meet special request on product’s size.
  • Using anodized aluminum lamp body and tempered glass.
  • IP67 rating, resistant to high pressure wash, coolants and detergents.
  • High brightness SMD3030 LED chip, 85lm/w.
  • 90 degree rotatable to control lighting direction.
  • Easy to install, magnet installation optional.
📊 Specifications
Power 8W/12W/16W/18W Color temperature 2800-3200K, 4000-4500K, 6000-6500K
Input voltage DC24V Material Aluminum housing, Tempered glass cover, AL base
Lumen efficiency 770lm/1000lm/1400lm/1600lm (85lm/w) Lifetime 50,000 hours
CRI >76 Working temperature -20~45℃ / 10%-90%
IP rating IP67 Storage temperature -20~60℃ / 10%-90%
Beam angle 35 degree Installation Fixed by Screw
🆔 Ordering Code
ONN M9T - B - 1 - 280mm-8W
1. ModelM9T
2. Input VoltageB: DC24V
3. CCT.1: 6000-6500K, 2: 4000-4500K, 3: 2800-3200K
4. Length(Power)280mm(8W), 380mm(12W), 480mm(16W), 580mm(18W)

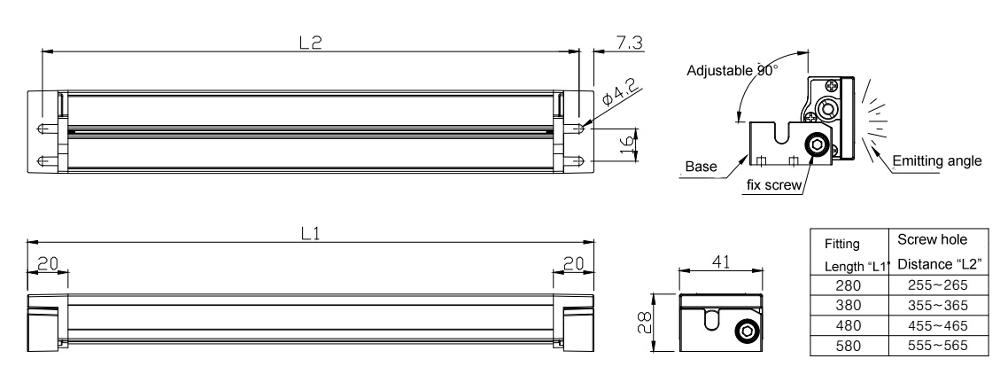

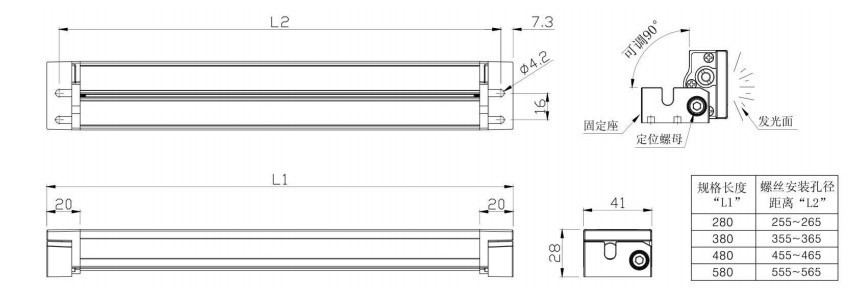

📏 Product Size Drawing
Size Drawing

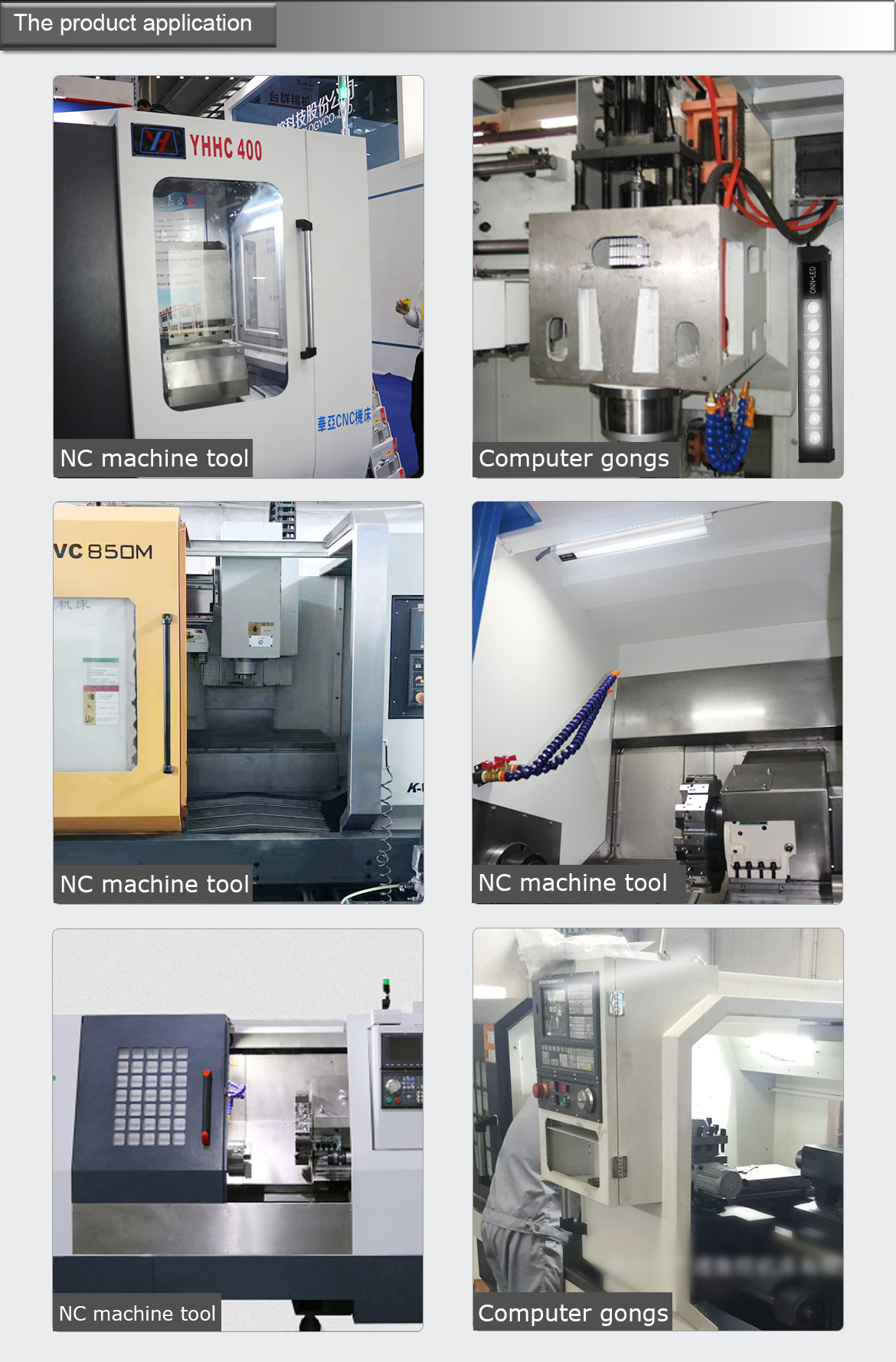

🛠️ Application
CNC machine work: engraving machine, EDM machine etc.
Assembly and repair work.
Point lighting.
Laboratories.
Application Image
🔗 Related Products
🏢 Manufacturer Information
Established in August 2005, the manufacturer is focusing on LED Industrial Lighting (especially "machine lights", "warning lights"), LED Cleanroom Lights, and LED Freezer Lights.

With nearly 16 years of market experience, the company has created 8 utility model patents, 22 appearance design patents, and holds certifications like CE, RoHS, and ISO9001. It is identified as a National High-tech Enterprise with a professional R&D team.
Exhibition Fairs & Certifications
Global Customers
Customers
⚙️ Our Service
1. High-quality led industrial lights production, including machine work lights, signal tower lights, and freezer lights.
2. Professional after-sale service with 18-36 months warranty.
3. 16 years of experience in OEM and ODM services for industrial lighting.
Service Flow
FAQ
Is the ONN-M9T lamp waterproof?
Yes, it has an IP67 rating, making it resistant to high-pressure wash, coolants, and detergents commonly found in CNC environments.
What is the input voltage requirement?
The lamp operates on DC24V, which is standard for most industrial machinery.
Can I adjust the lighting direction after installation?
Yes, the design allows for 90-degree rotation to precisely control the lighting direction.
What materials are used in the construction?
The lamp features an anodized aluminum body for heat dissipation and a tempered glass cover for durability and protection.
What are the available power options?
The M9T series comes in 8W, 12W, 16W, and 18W options depending on the length of the bar.
What is the lifespan of the LEDs?
The high-quality SMD3030 LED chips have a rated lifetime of approximately 50,000 hours.
