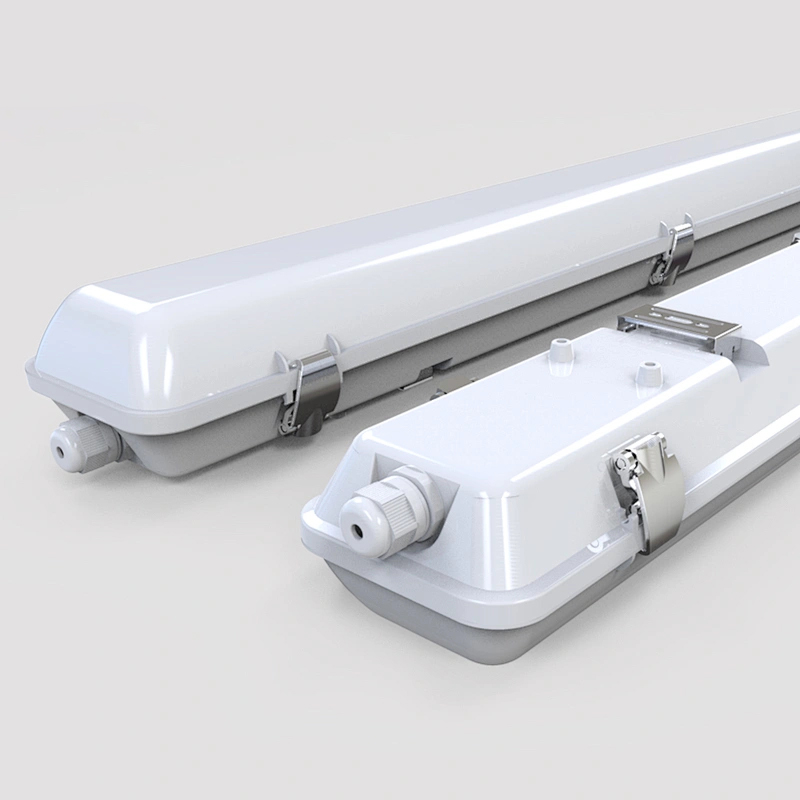

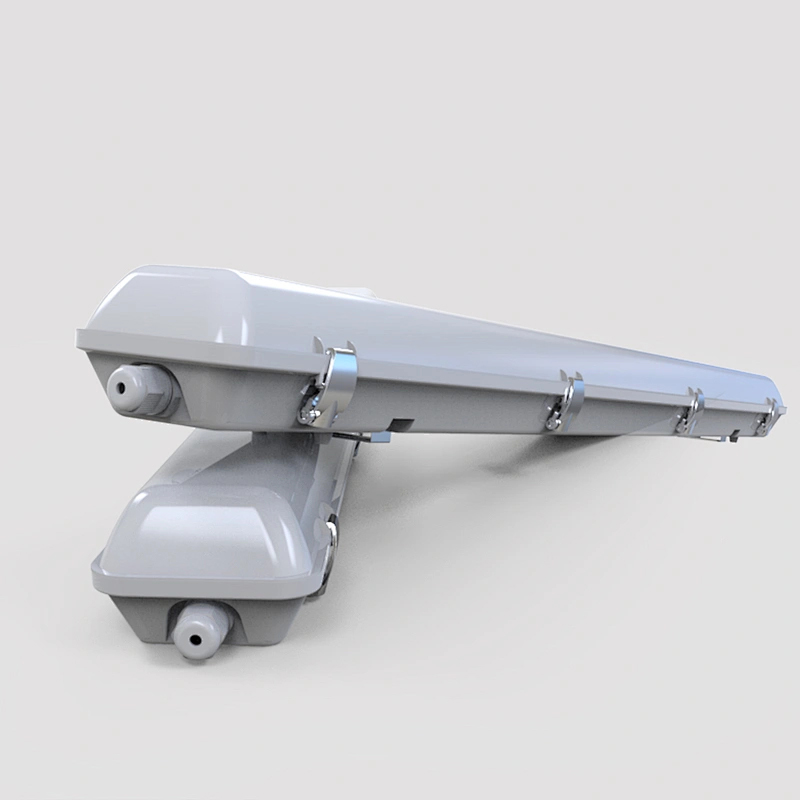

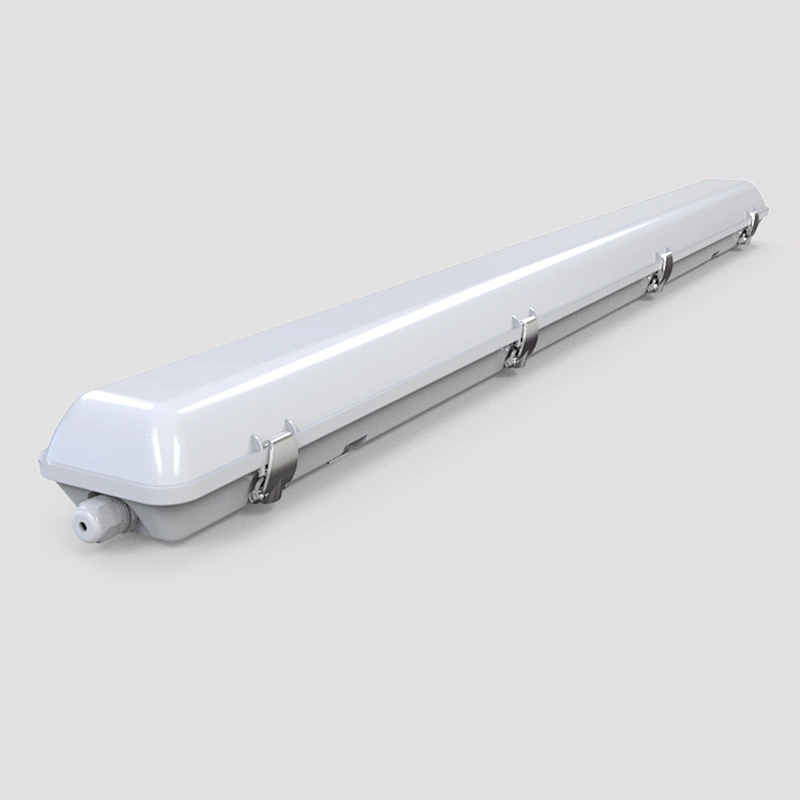

Warehouse Batten Tri Proof Light Anti Glare Solid Ip66 Waterproof Slats Led Linear Tri-proof Light Lamp Fixture for Corridor

1 / 5

Warehouse Batten Tri Proof Light Anti Glare Solid Ip66 Waterproof Slats Led Linear Tri-proof Light Lamp Fixture for Corridor

Send Inquiry

Product Description

⭐ Quick Detail

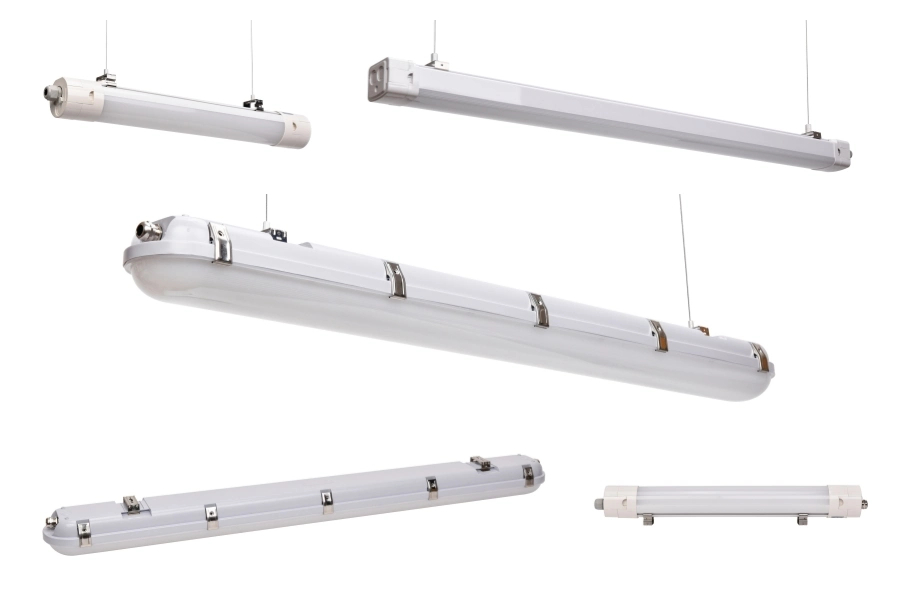

Led Tri-proof Light

IP66 Tri-proof LED Light Fixture
Input: AC 100-277V, 50/60Hz
Luminous Flux: 140lm/w±10%
CRI: >85 / PF: >0.95
Lifespan: >=50000Hrs
IP rate: IP66 / IK rate: IK08
Motion Sensor Support
Emergency Time: 90min

📊 Specifications

Model No	IP66(MT-F263) / IP65(F-210 to F-215)
Input voltage	AC100-277Vac 50hz/60hz
Power (watt)	20W / 40W / 60W / 80W
Product size (mm)	2ft(600mm) / 4ft(1200mm) / 5ft(1500mm) / 6ft(1800mm) / Custom
Color temperature	Warm White (3000K-4500K), Pure White (5000K-5500K), Cold White (6000K-6500K)
RGB	RGB Optional/Custom
Luminous Flux (lm)	140LM/W±10%
CRI(Ra)	>85
Lifespan	≥50000hrs
IP Rating	IP66 / IP65 / Custom
IK Rating	IK08 / Custom
Material	Aluminum + PC / Custom
Sensor	Motion Sensor / Custom

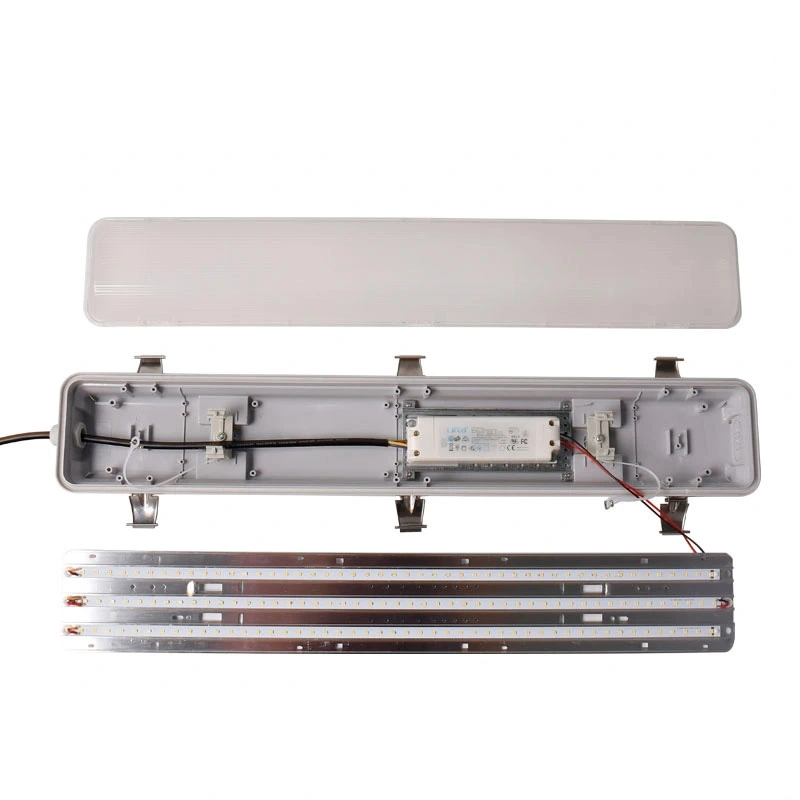

🛠️ Core Features

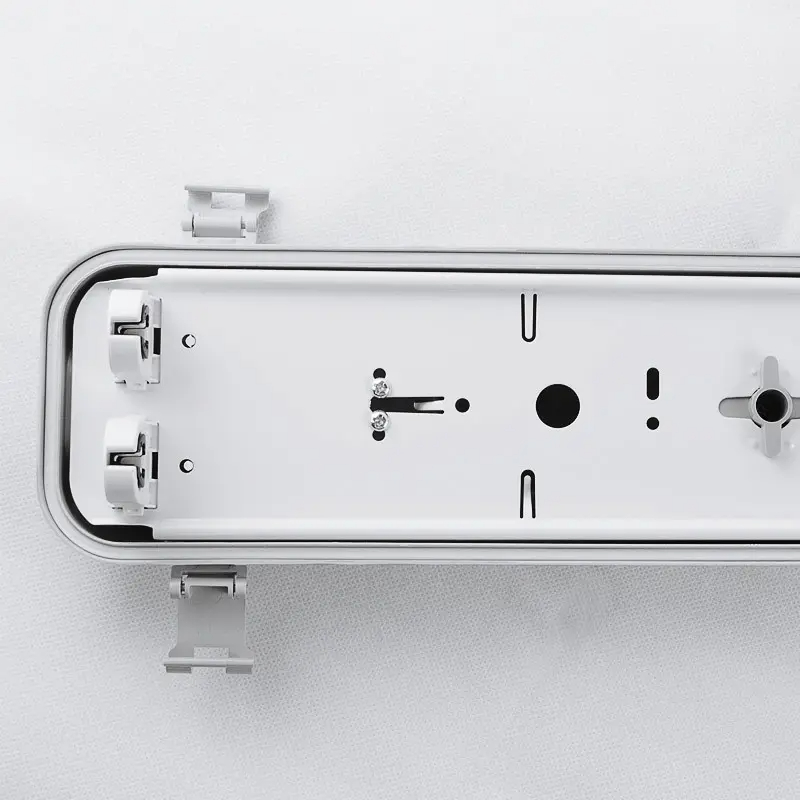

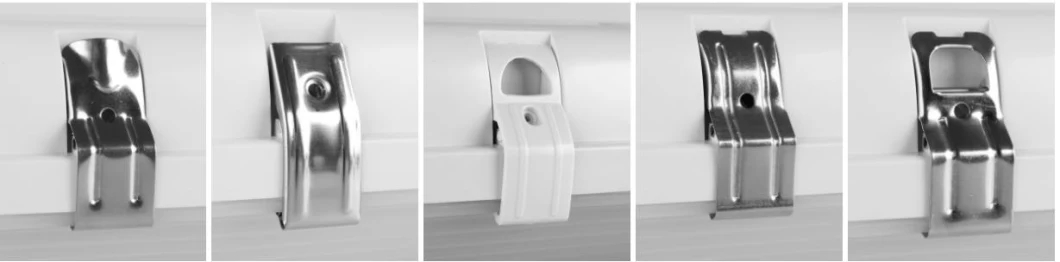

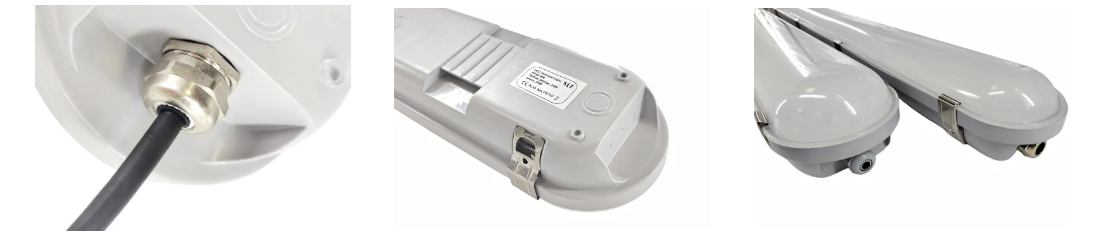

🔹 Clasp Type Design

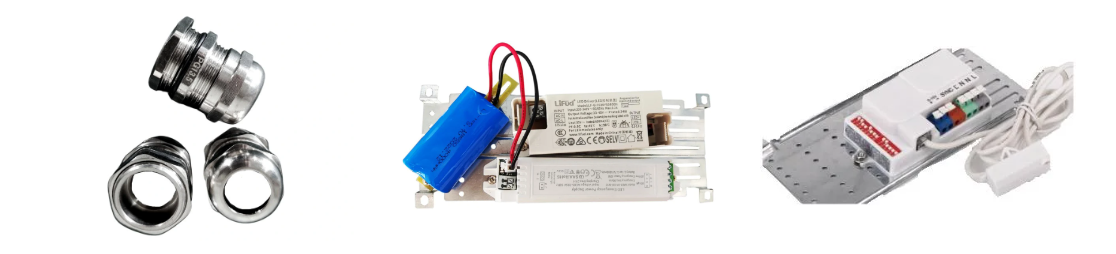

🔹 M20/M22 Waterproof Connector | LED Emergency Kit (90 Mins) | Motion Sensor Kit Connectors and Sensors

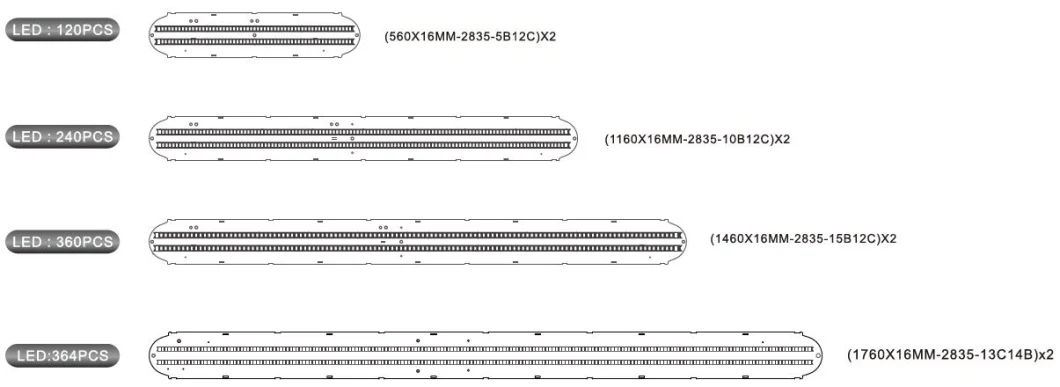

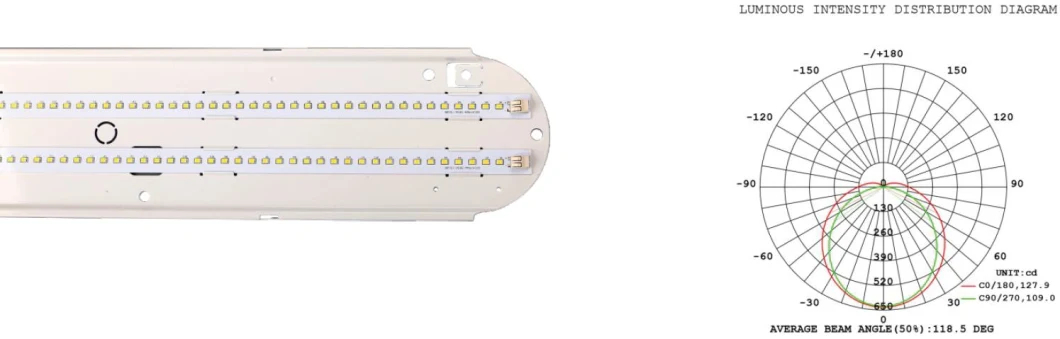

🔹 High Efficiency: 2 strips / SMD2835 120° Beam Angle

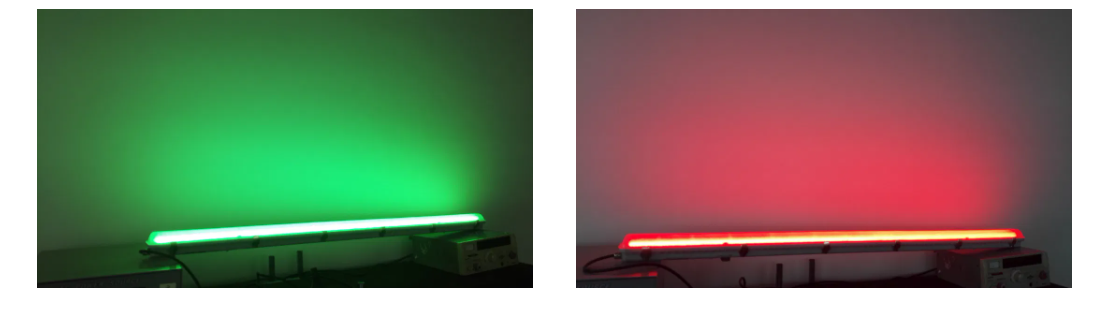

🔹 RGB Optional Customization RGB Light Option

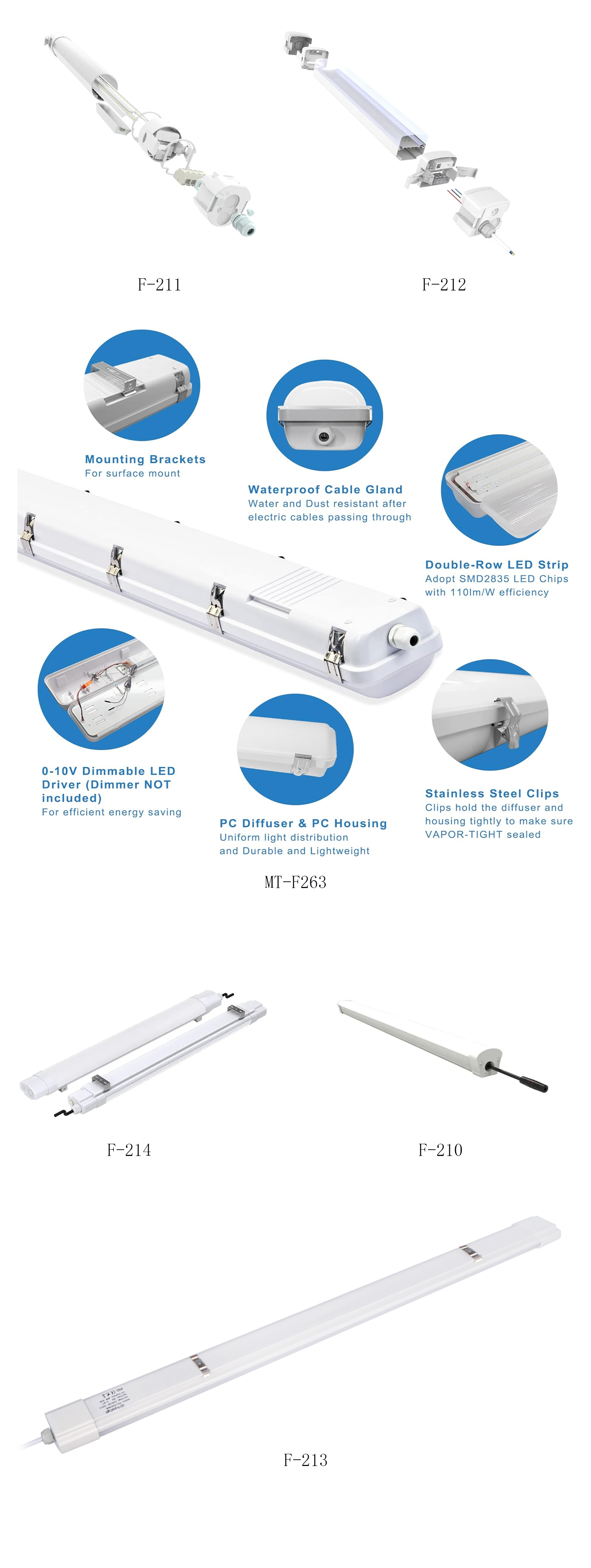

📐 Dimension & Showcase

❓ Frequently Asked Questions

Q1: What does "Tri-proof" mean for this LED light?

A: Tri-proof stands for waterproof, dustproof, and corrosion-proof. With an IP66 rating, this fixture is designed to withstand harsh environments, including heavy moisture and dust.

Q2: How long does the emergency mode last?

A: The integrated LED emergency kit provides up to 90 minutes of illumination during a power outage, ensuring safety and visibility in commercial or industrial spaces.

Q3: Is the motion sensor adjustable?

A: Yes, our motion sensor kit can be customized to detect movement and automatically adjust brightness, helping to maximize energy savings when areas are unoccupied.

Q4: What are the available sizes and wattages?

A: We offer standard lengths of 2ft (20W), 4ft (40W), 5ft (60W), and 6ft (80W). Custom sizes and wattages can also be manufactured based on your specific project requirements.

Q5: What is the benefit of the SMD2835 LED chips used?

A: The SMD2835 chips provide high luminous efficiency (140lm/w) and excellent heat dissipation, which contributes to the long lifespan of over 50,000 hours.

Q6: Can these lights be used in car washes or food processing plants?

A: Absolutely. The IP66 rating and IK08 impact resistance make them ideal for high-humidity areas like car washes and environments that require frequent cleaning.
