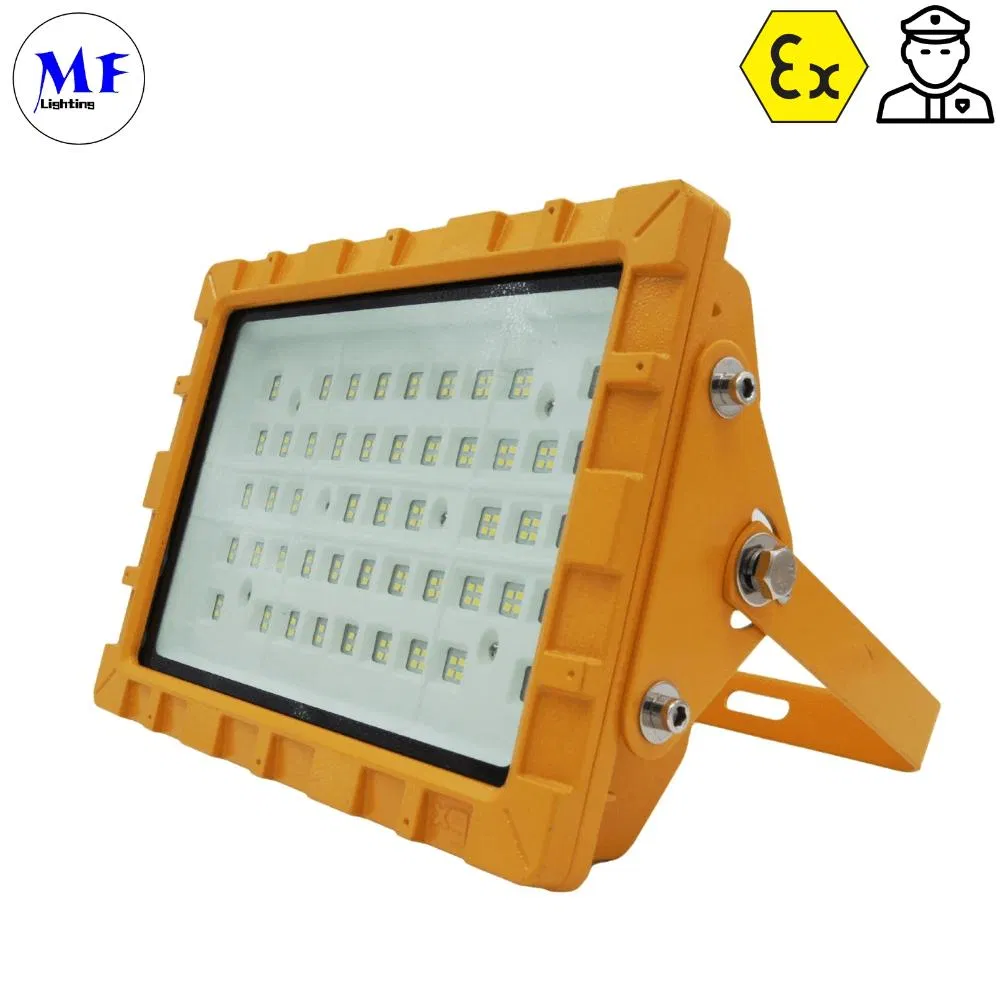

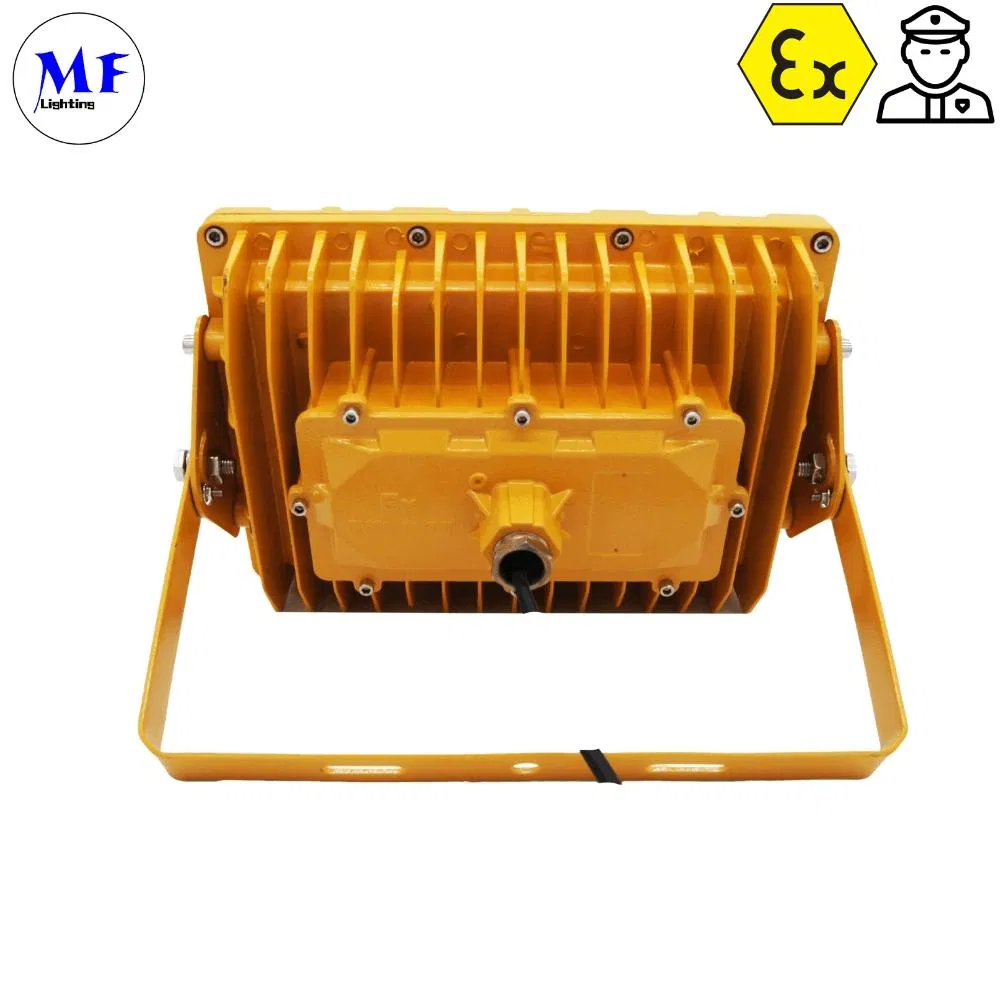

200W 300W 400W Anti Explosion Floodlight Ceiling Mounted for Oil Gas Hazardous Area Safety Hanging Wall Mounted Work Light Explosion Proof Light

1 / 5

200W 300W 400W Anti Explosion Floodlight Ceiling Mounted for Oil Gas Hazardous Area Safety Hanging Wall Mounted Work Light Explosion Proof Light

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📊

Basic Product Information

Model NO.

EX-300WFL3YZDA

Input Voltage

AC100-277V 50/60Hz

Power

30W to 240W Range

Color Temp

2000K-7000K

LED Chips

SMT LED

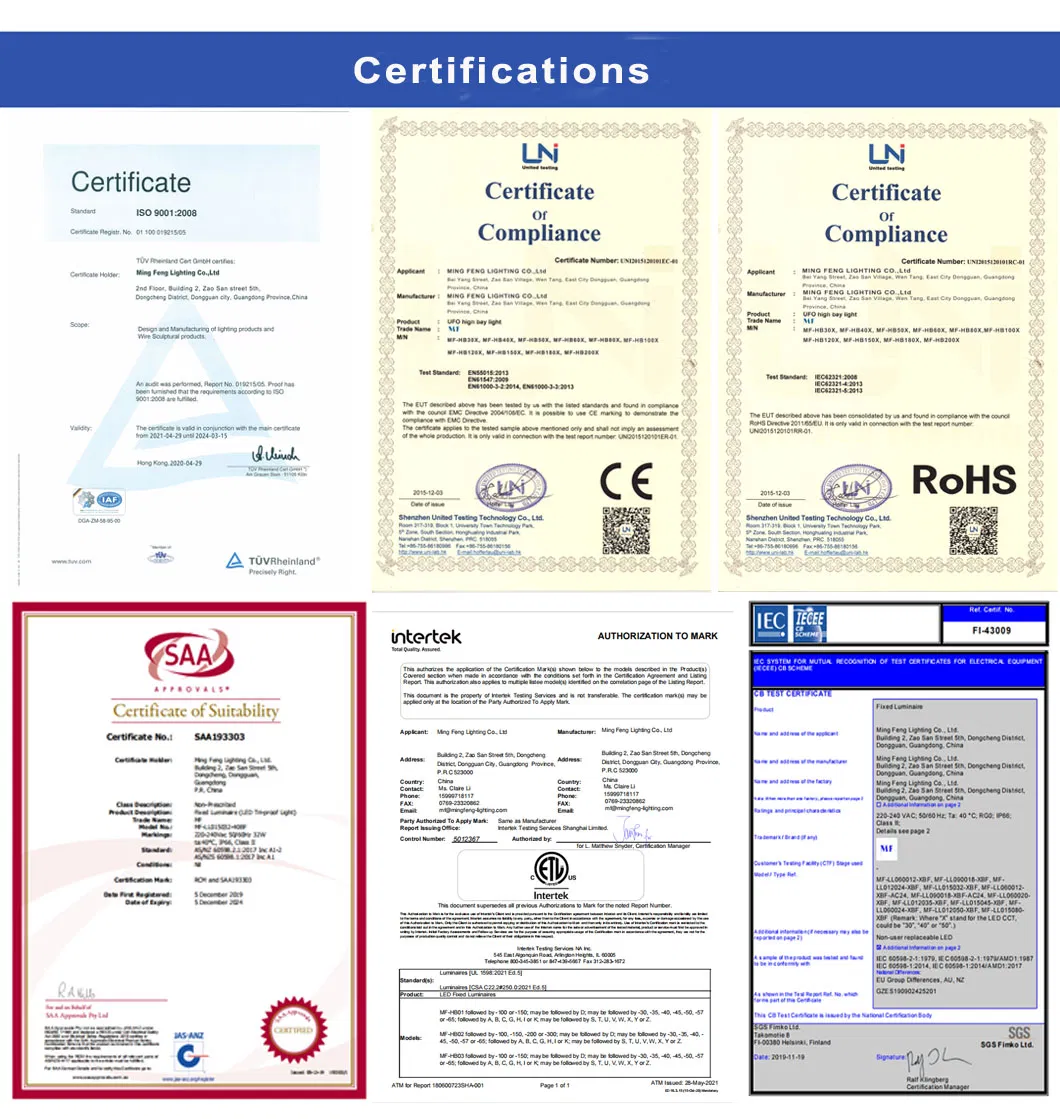

Certification

ATEX, IECEx, CE, RoHS, UL844

Luminous Flux

140lm/W

Beam Angle

120°

IP Rating

IP66

IK Rating

IK10

Warranty

5 Years

Operating Temp

-40°~+60°

🛡️

Product Overview

Anti-Explosion Floodlight Ceiling Mounted designed for Oil, Gas, and Hazardous Area safety. This LED fixture is the ideal choice for marine and hazardous applications. It is engineered for locations where moisture, dirt, dust, corrosion, and vibration are present, or areas where wind, water, snow, or high ambient temperatures are expected.

⚙️

Quick Technical Details

EXPLOSION PROTECTION

Marking ATEX:
II 2 G Ex eb mb IIC T6...T4 Gb
II 2 D Ex tb IIIC T80°C...T100°C Db IP66

Marking IECEx:
Ex eb mb IIC T6...T4 Gb
Ex tb IIIC T80°C...T100°C Db IP66

UL844 (North American):
Class I, Division 2, Groups A, B, C, D
Class II, Division 1, Groups E, F, G

Materials:
• Housing: Copper-free aluminum
• Lens: Tempered glass
• Hardware/Bracket: Stainless steel

📋

Specifications & Model Range

Product Number	Wattage	CCT	Voltage	Lumens	CRI	Emergency
EX-30W/50W/60WFL3	30W-60W	2200K-7000K	AC200-250V	4200-8400	70	3 Hours
EX-80W/100WFL3	80W-100W	2200K-7000K	AC200-250V	11200-14000	70	3 Hours
EX-150W/180W/200WFL3	150W-200W	2200K-7000K	AC200-250V	21000-28000	70	3 Hours
EX-240WFL3	240W	2200K-7000K	AC200-250V	33600	70	3 Hours

Code Definitions: Y=Dimmable/Non-Dimmable | Z=CCT (22-70) | D=Beam Angle (40°-120°) | A=Glass Type (Flat/Spherical)

📸

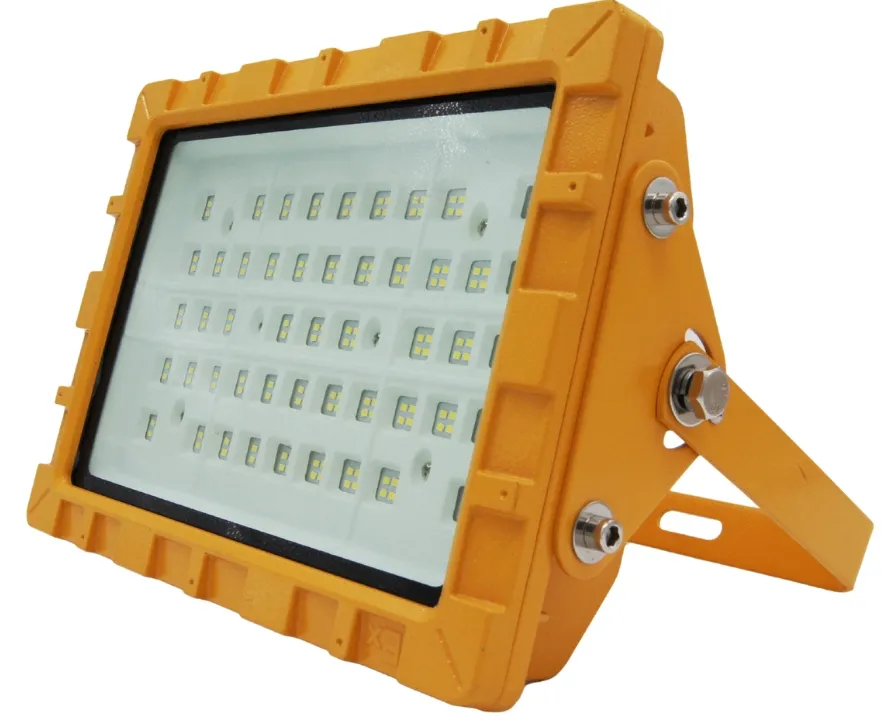

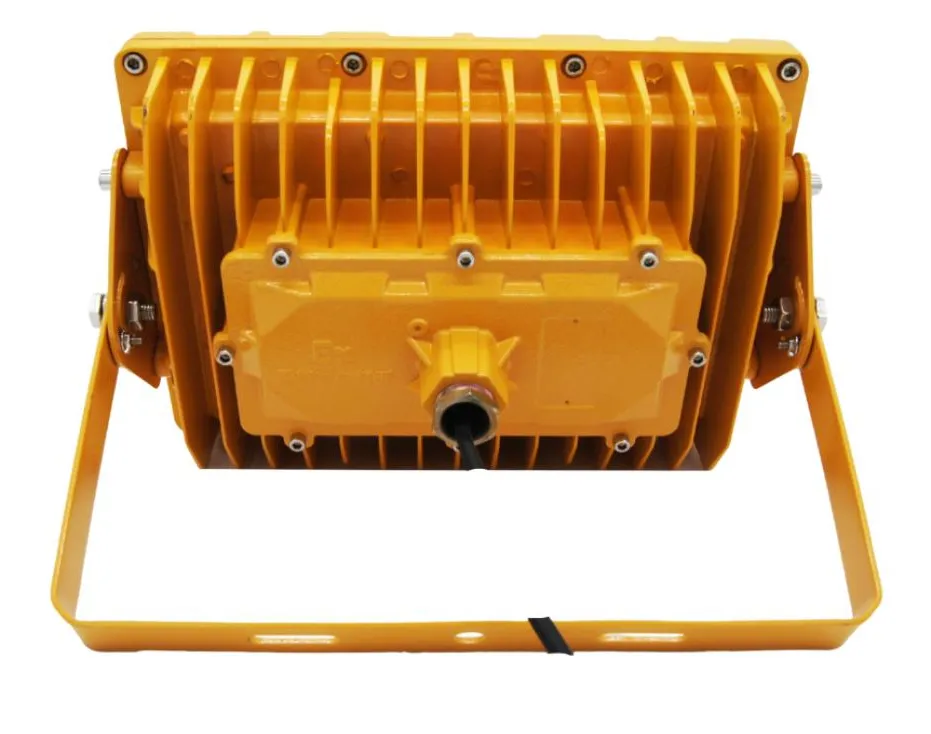

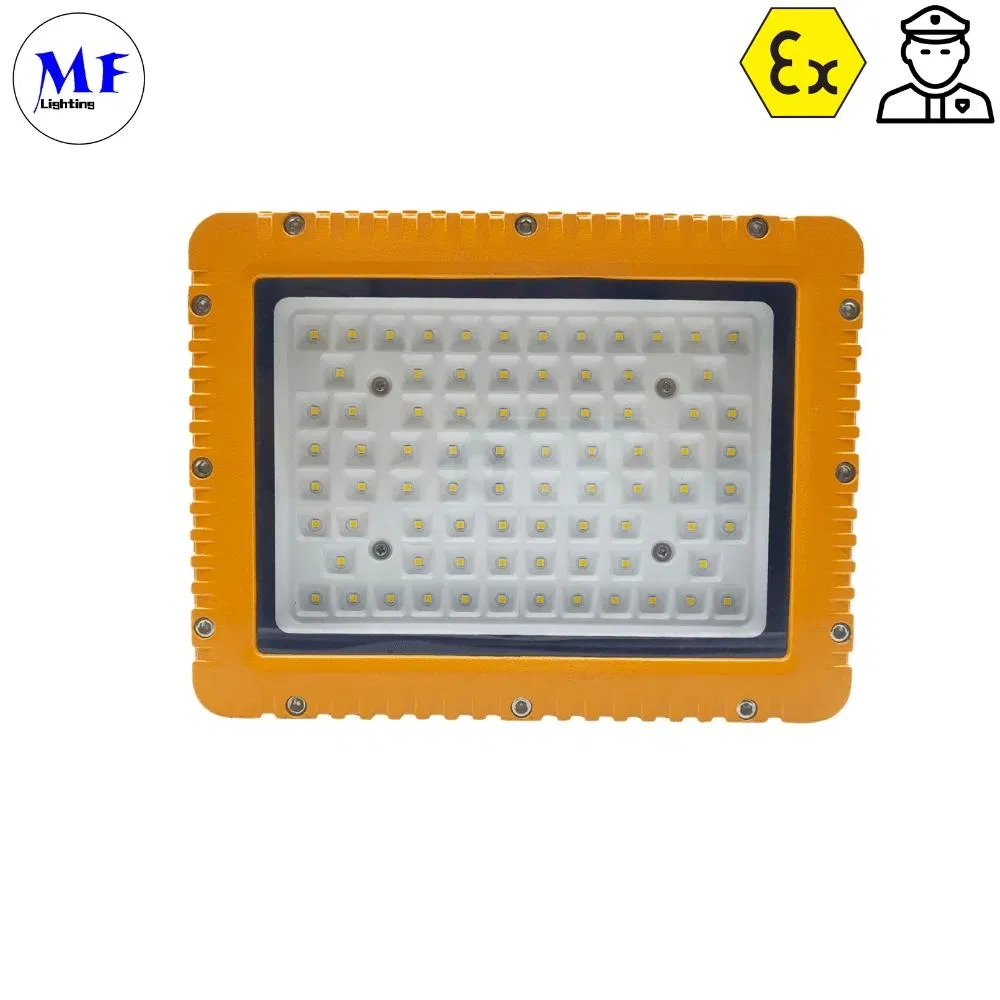

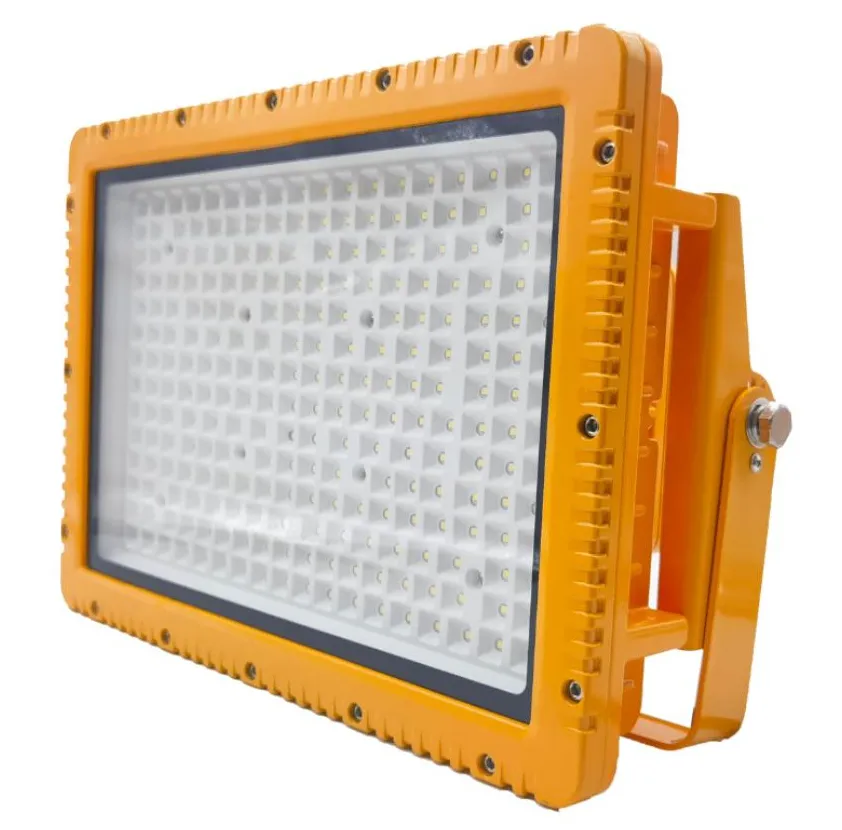

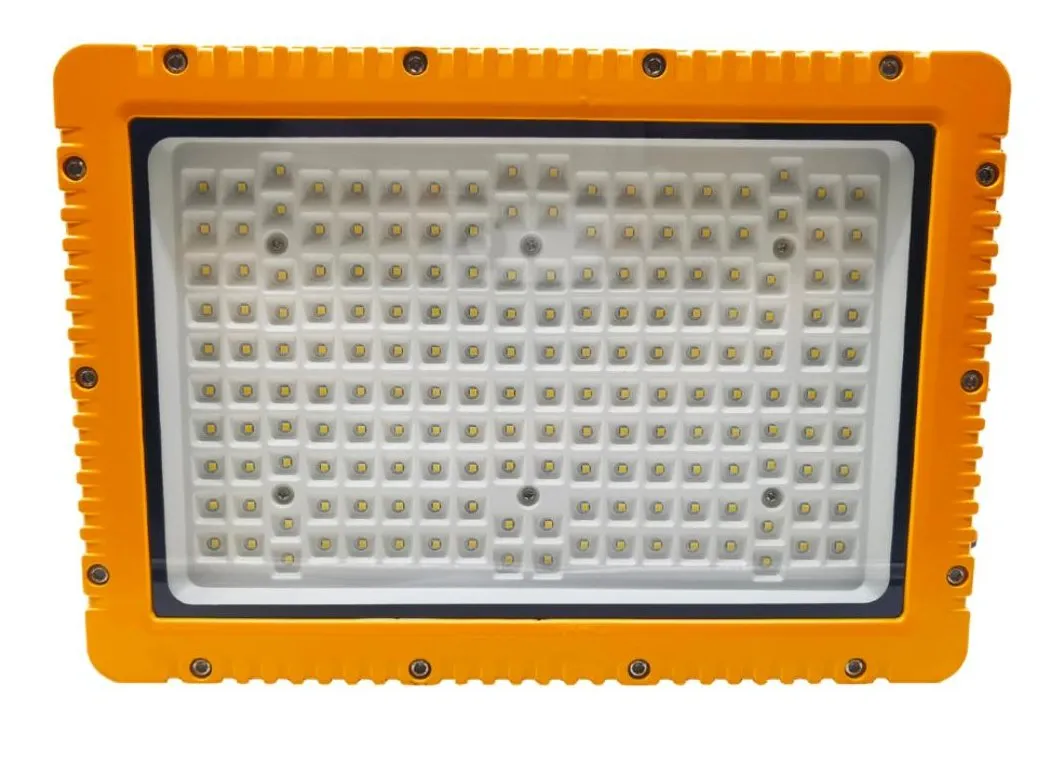

Detailed Photos

📐

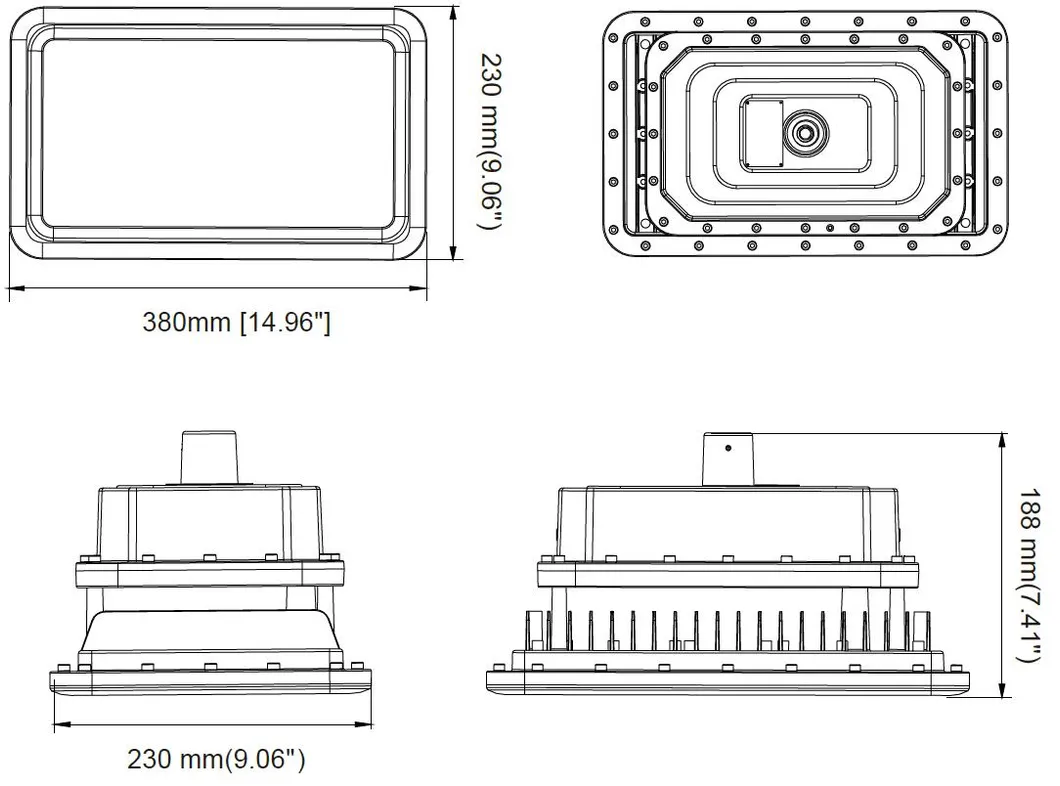

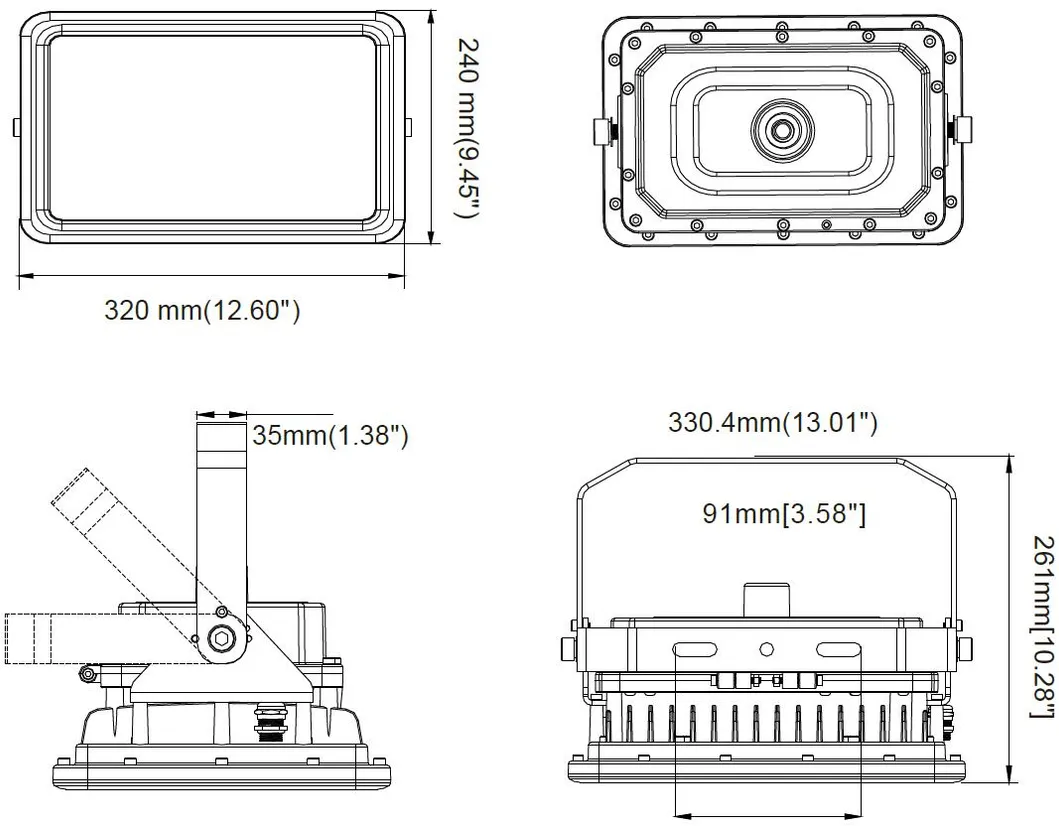

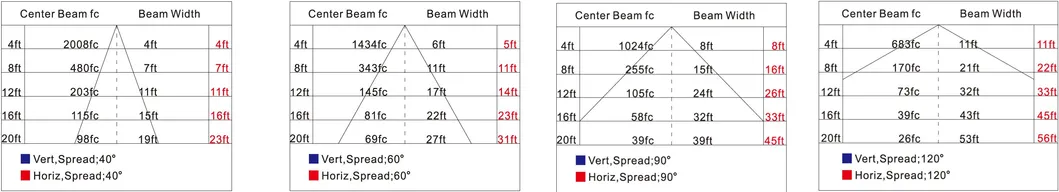

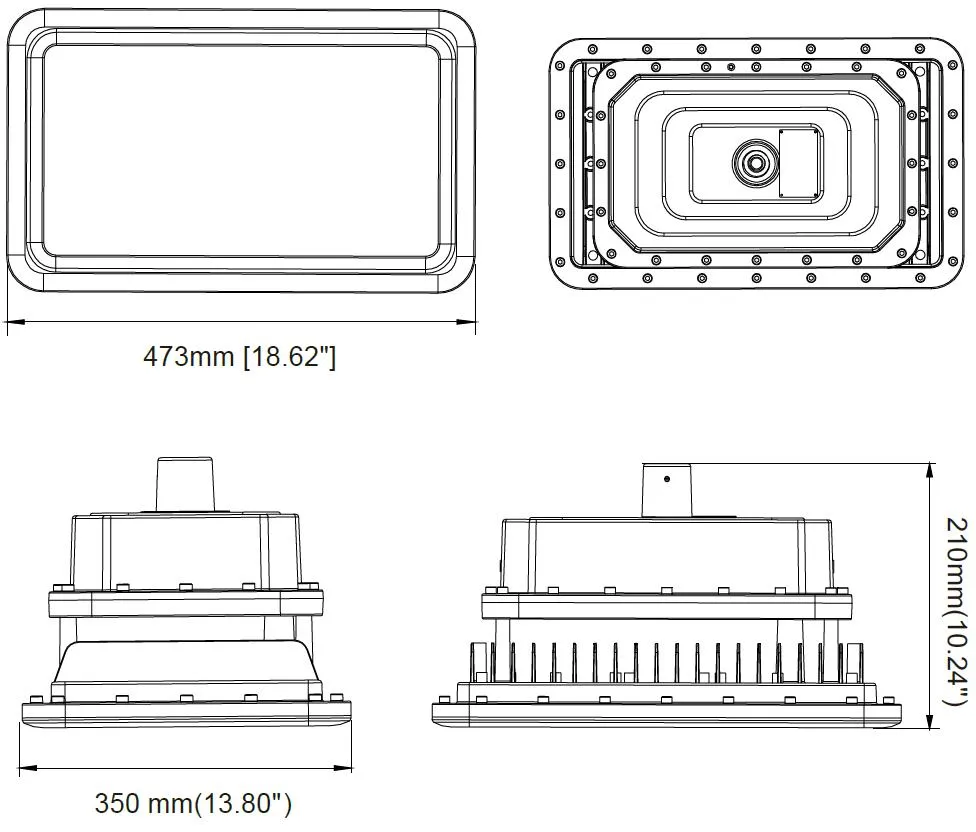

Dimensions & Photometry

🔧

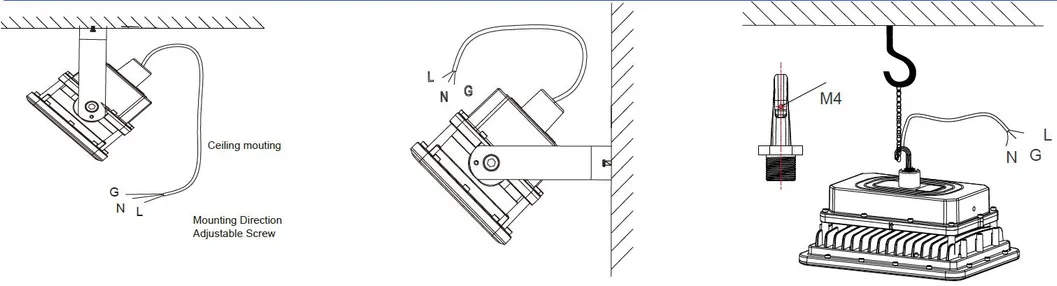

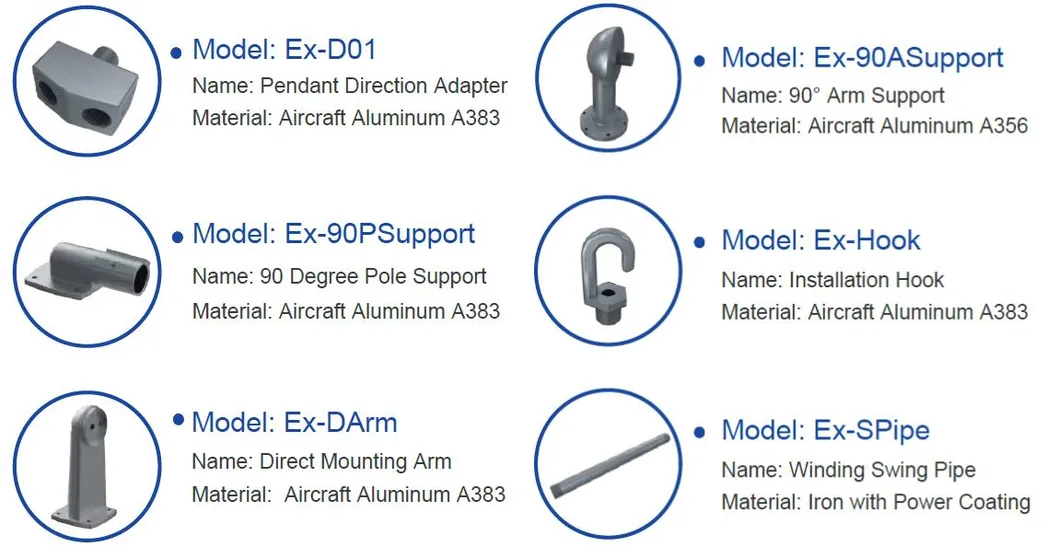

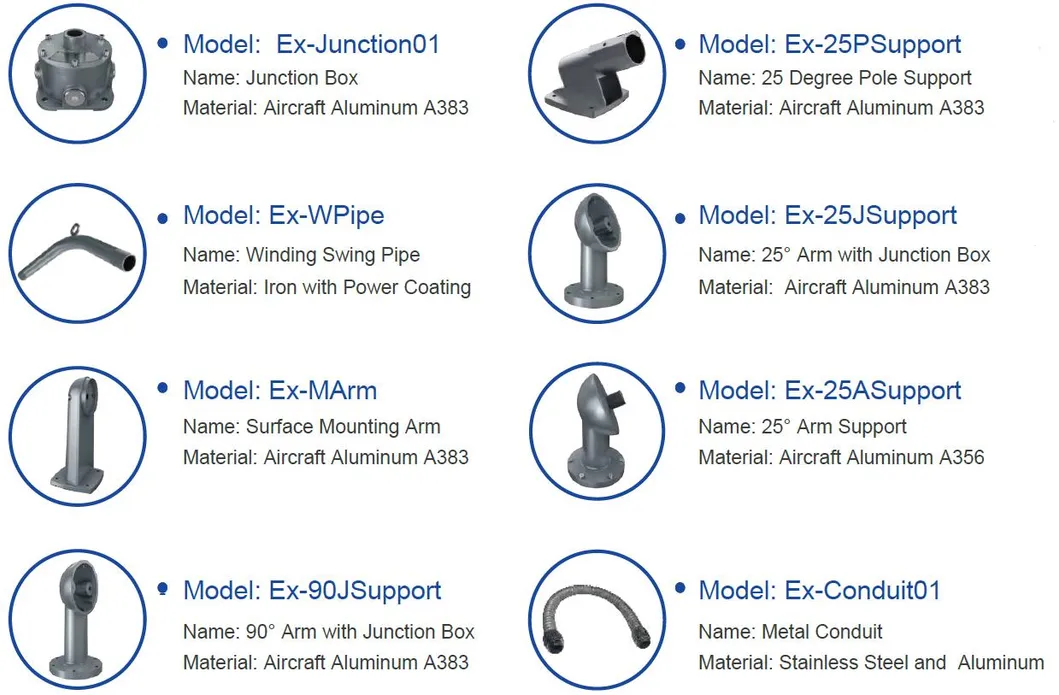

Installation Methods

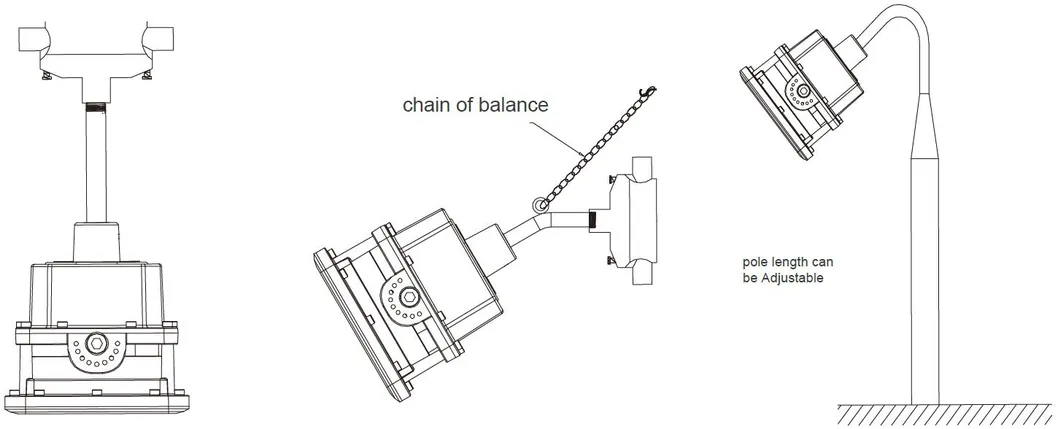

1-Ceiling Mounting | 2-Wall Mounting | 3-Hook Pendant

4-Pole Mounting

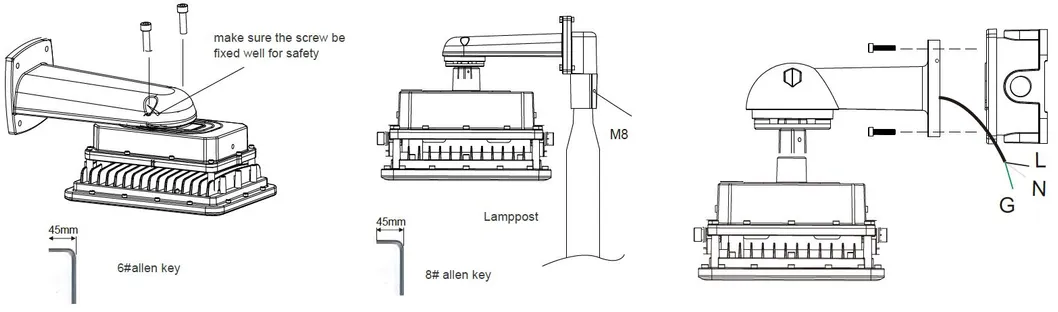

5-Arm Mounting | 6-Stanchion Mounting | 7-Wall Mounting with Junction Box

🏭

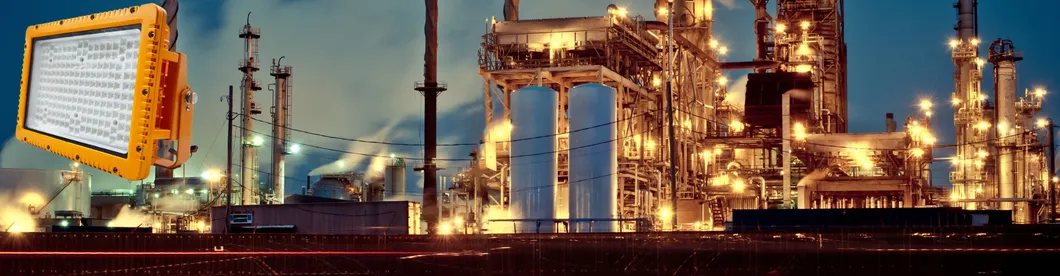

Industry Applications

🔹 Oil and Gas: Refining, loading, transportation, and LNG industry.
🔹 Chemical Industry: Paint facilities, chemical production, and storage.
🔹 Marine & Aerospace: Ocean platforms, vessels, and aerospace clean rooms.
🔹 Metal Treatment: Steel/aluminum factories and metal smelting.
🔹 Food & Alcohol: Flour production, distilling, and alcohol industry.

💡

Frequently Asked Questions

What is the primary function of explosion-proof lights?

The main function is to prevent electric arcs, sparks, and high temperatures inside the lamp from igniting flammable gases and dust in the surrounding environment.

Where are these lights typically used?

They are essential in hazardous areas like petrochemical plants, coal mines, offshore platforms, ports, and pharmaceutical factories where explosive mixtures exist.

Are these lights suitable for marine environments?

Yes, they are UL 1598A marine rated and feature a powder-coated finish and stainless steel hardware to resist saline and coastal corrosion.

What is the warranty period for this product?

This series comes with a standard 5-year warranty, ensuring long-term reliability in industrial settings.

Can the LED components be replaced?

Yes, the LED boards and drivers are replaceable, which simplifies maintenance and extends the life of the fixture.

What mounting options are available?

We offer various installation methods including ceiling, wall, hook pendant, pole, arm, and stanchion mounting to suit different industrial layouts.
