Basic Specifications
ModelEX-XXWQ1ZDA
Input VoltageAC100-277V 50/60Hz
Power60W-200W Range
Color Temp3000K/4000K/5000K/5700K
Luminous Flux140lm/W

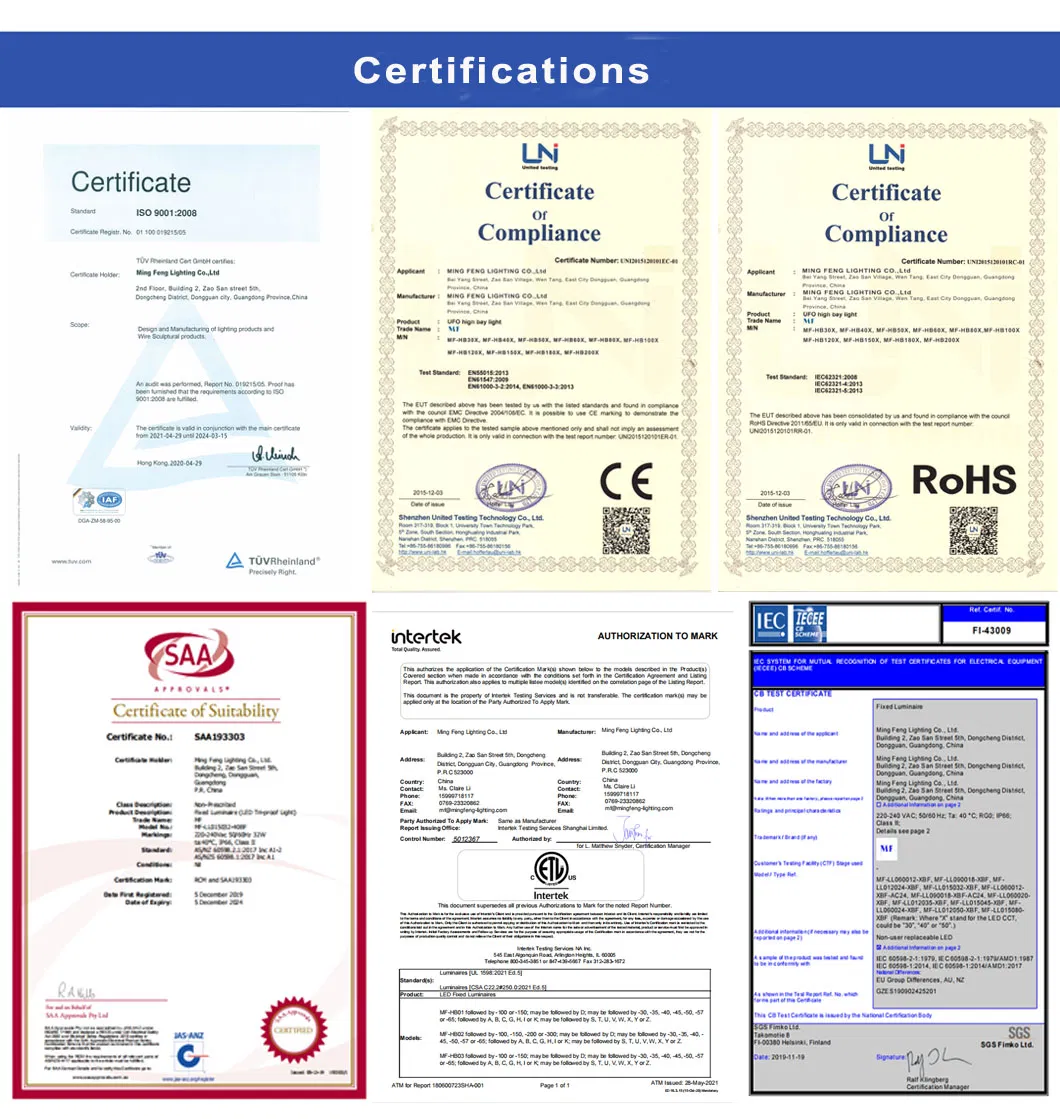

CertificationATEX, IECEx, CE, RoHS, ETL
ProtectionIP66 / IK10
Warranty5 Years
Operating Temp-30~50ºC
Beam Angle120°

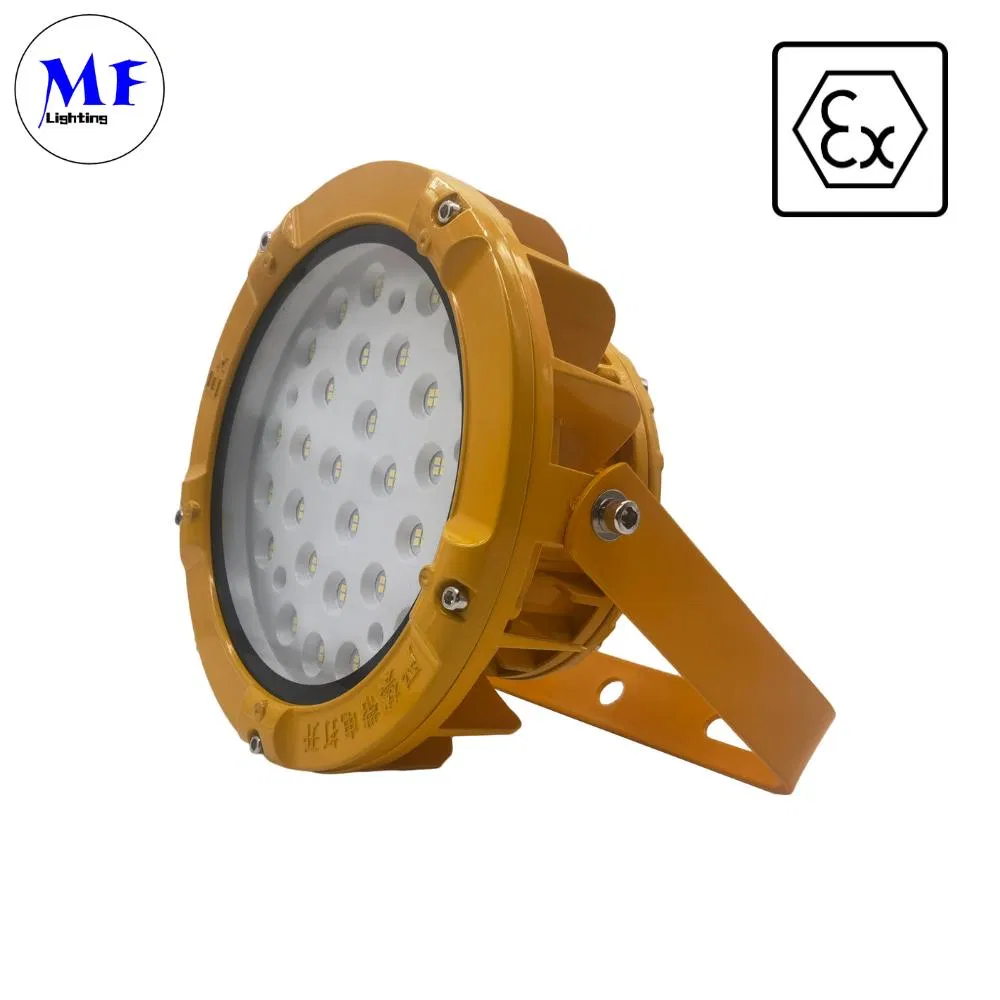

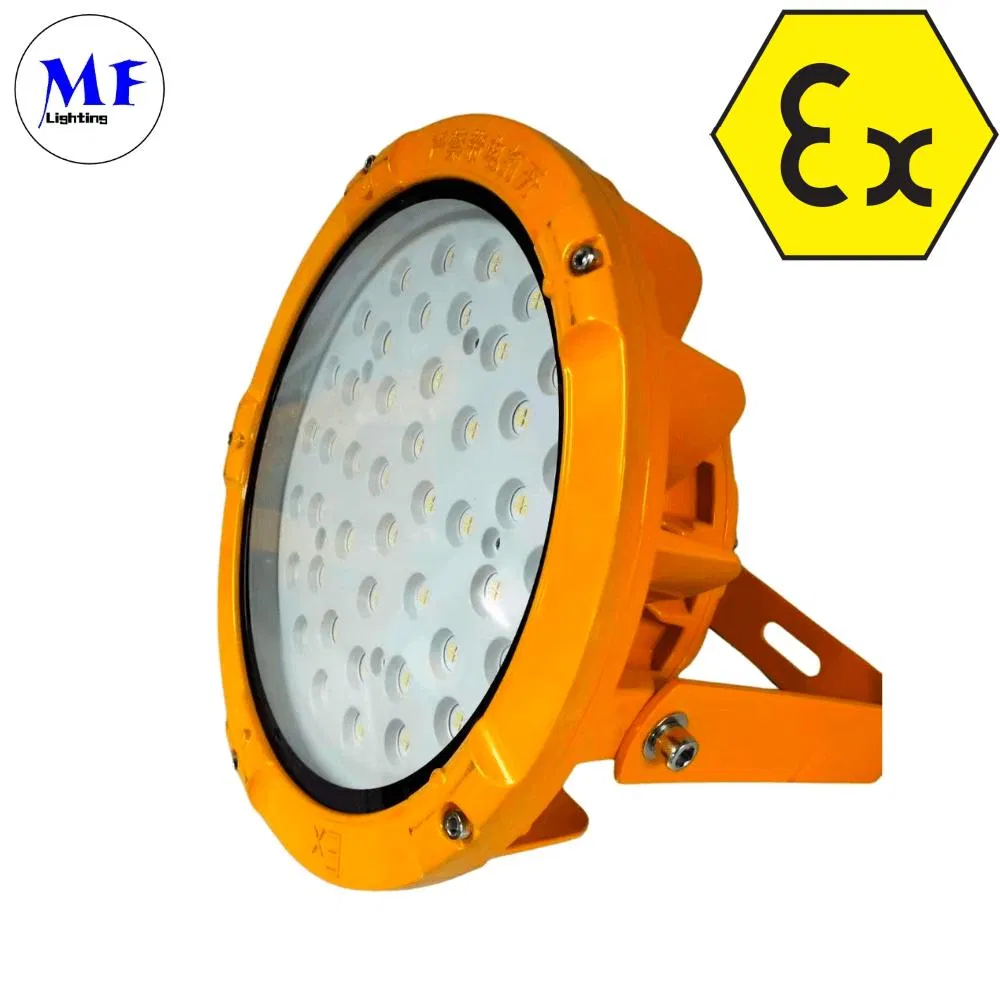

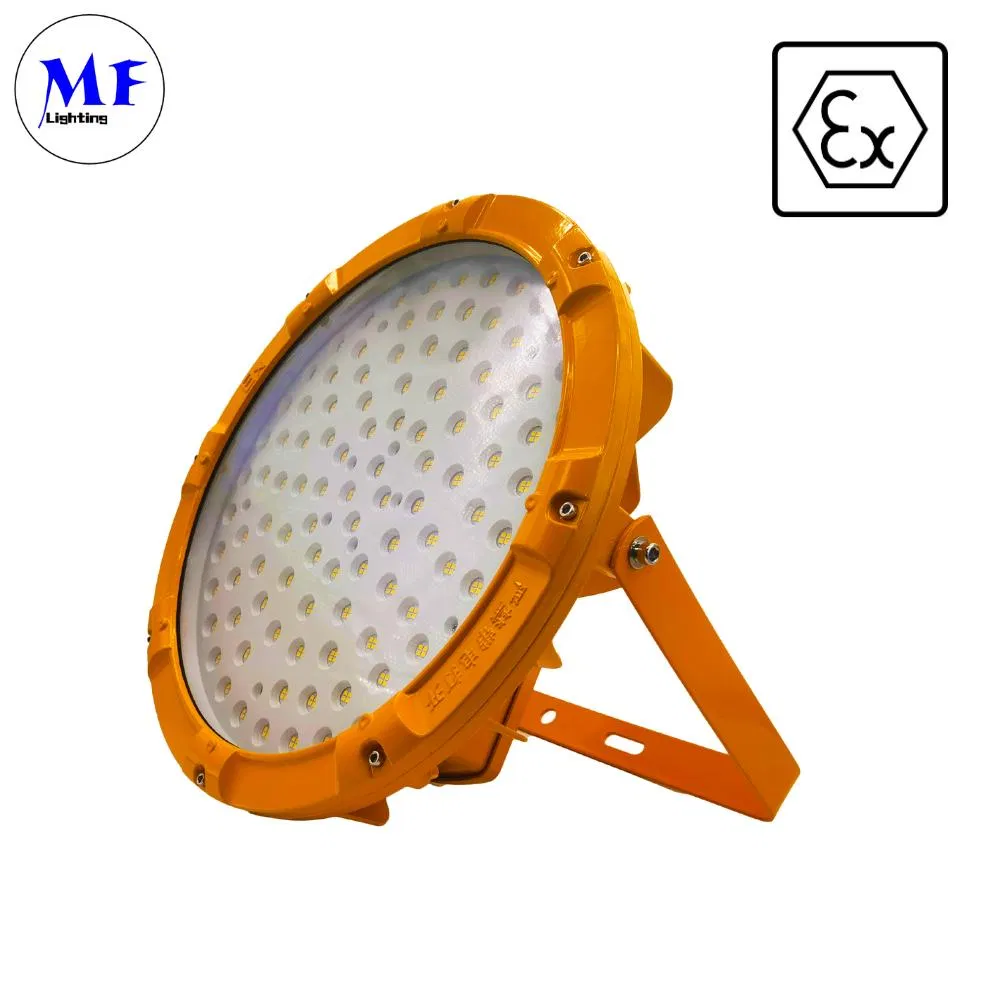

ATEX Approved LED Explosion-Proof Light for Industrial Applications
Marking ATEX: II 2 G Ex nr IIC T6 GC / Il 2 D Ex tb IIIC T80 Db Ip66
Marking IECEX: Ex nr IIC T6 GC / Ex tb IIIC T80 Db Ip66
Model Selection & Parameters
| Item |
Power |
Voltage |
Lumens |
CRI |
Warranty |
| EX-50W Q1YZDA | 50W | AC100-277V | 7,000 | 80+ | 5 Years |
| EX-100W Q1YZDA | 100W | 14,000 |
| EX-150W G1 | 150W | 21,000 |
| EX-200W Q1YZDA | 200W | 28,000 |
| EX-300W Q1YZDA | 300W | 42,000 |
* Q1, Q2: Product Code | Y: Dimmable/Non-dimmable | Z: CCT (2200-7000K) | D: Beam Angle (40°/60°/90°/120°)
Installation Instructions

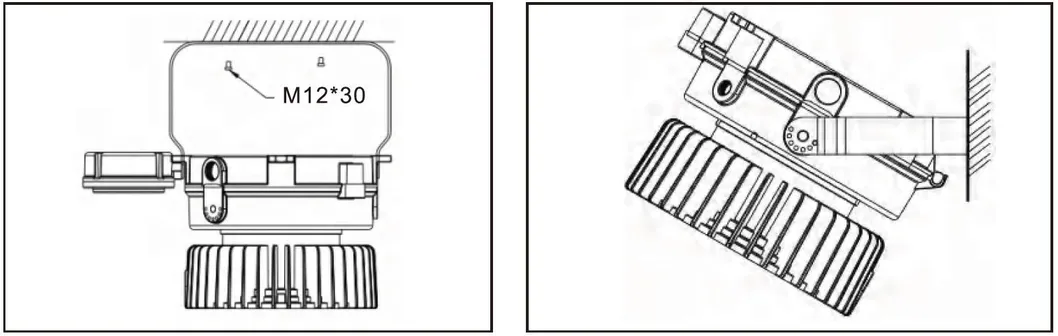

No.1 Bracket Ceiling & No.2 Wall Mounting

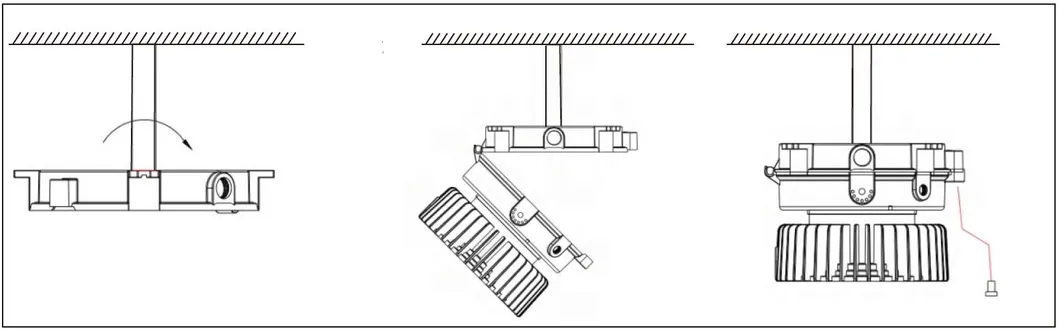

No.3 Pole Mounting

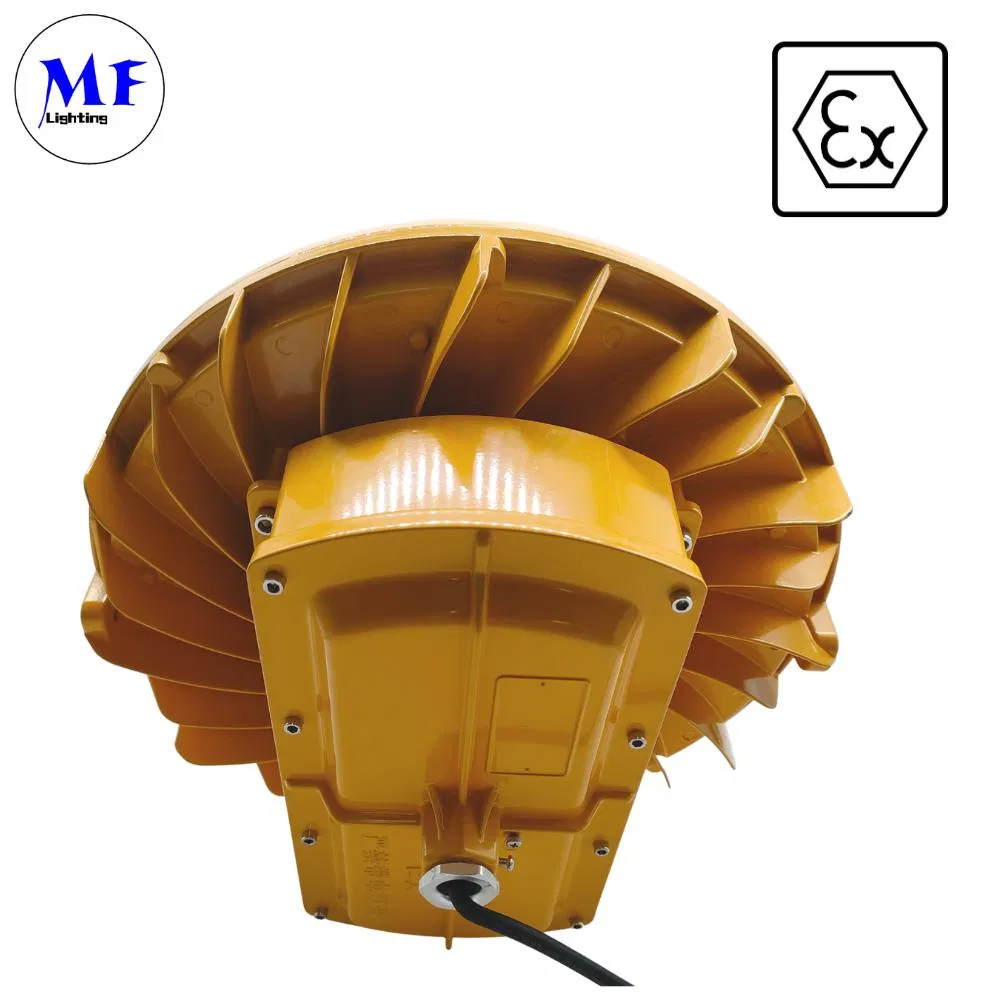

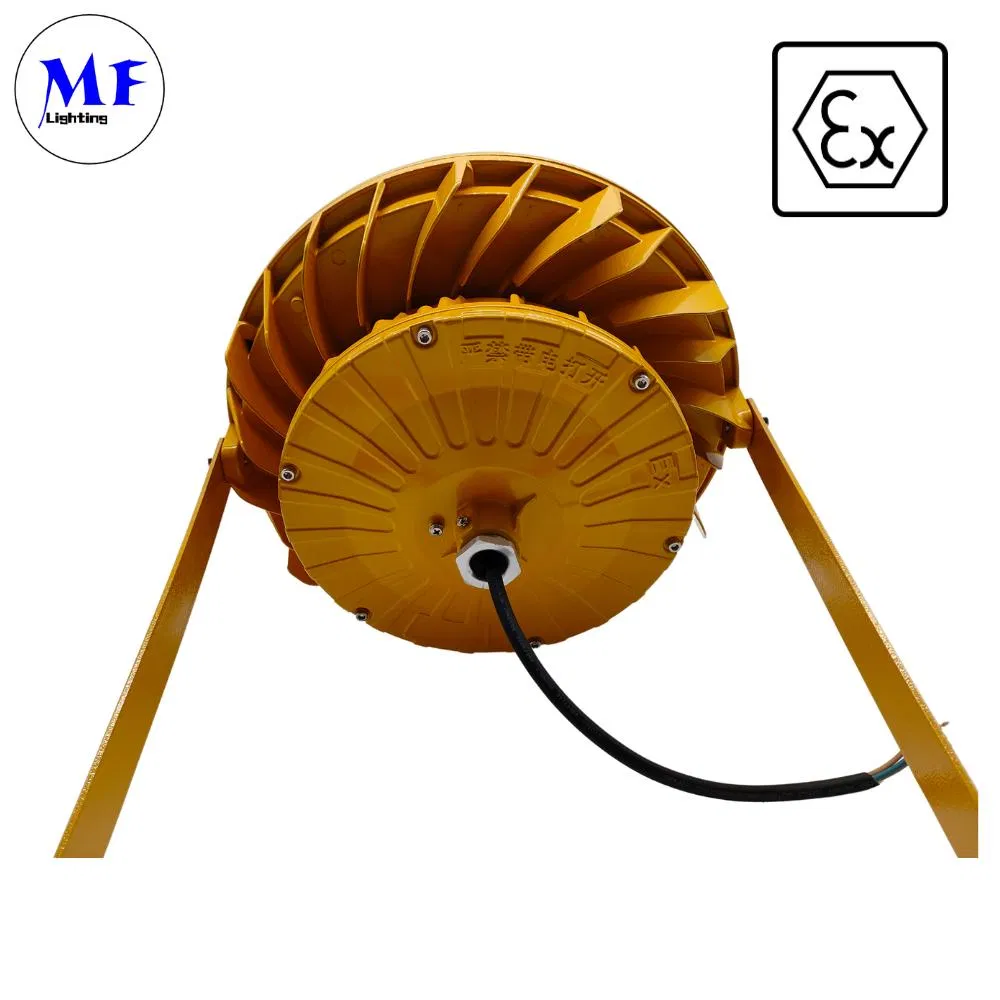

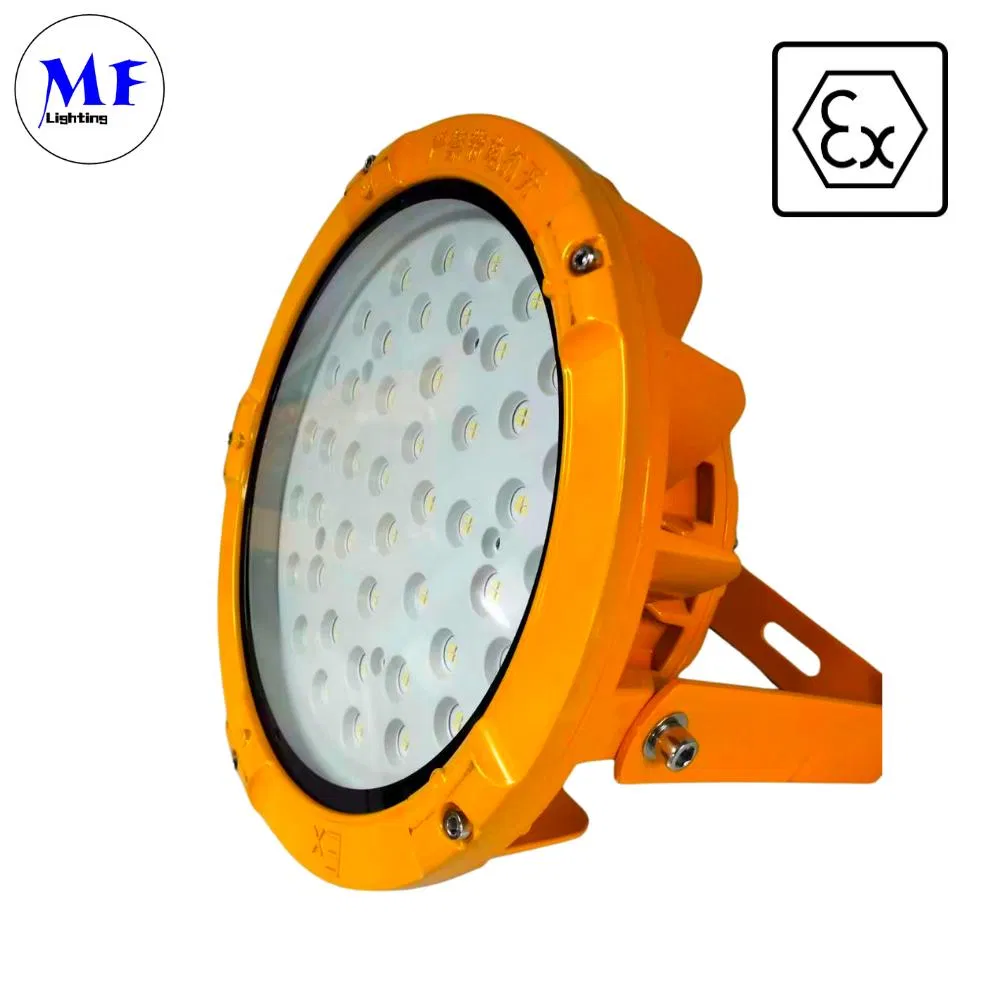

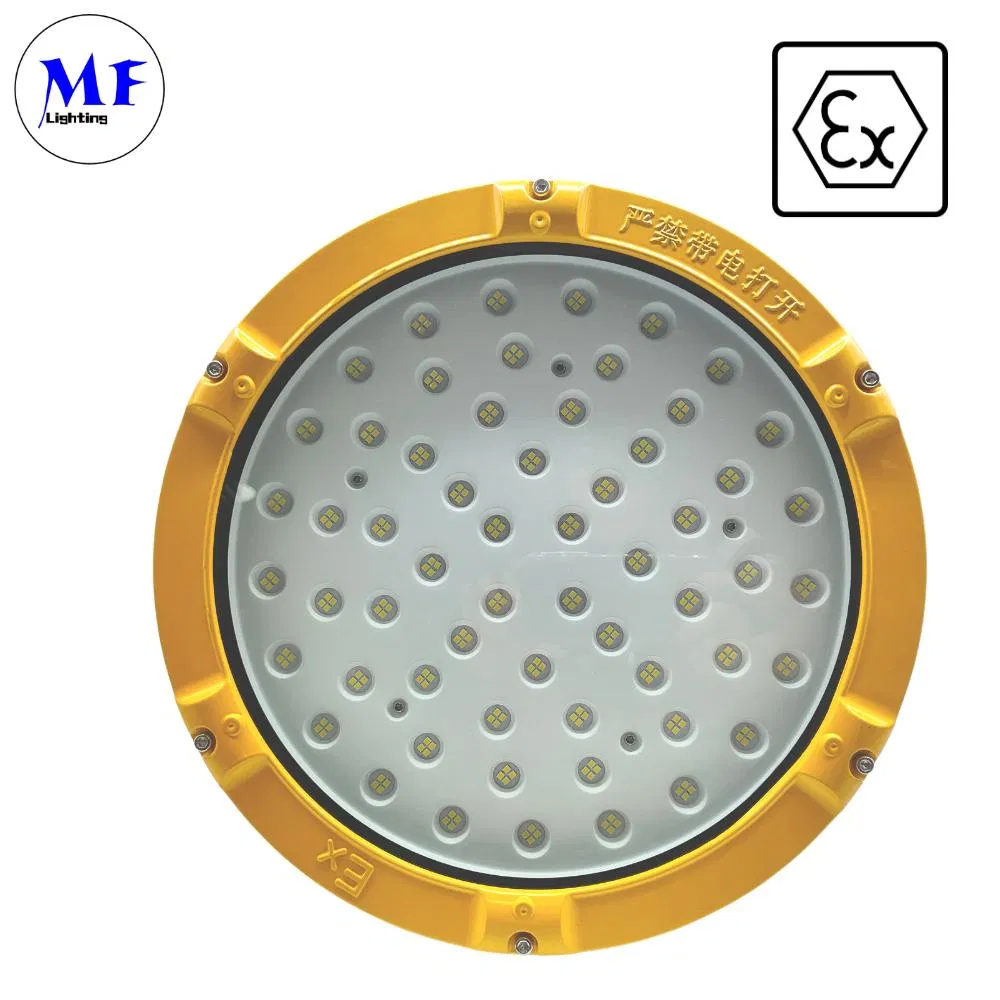

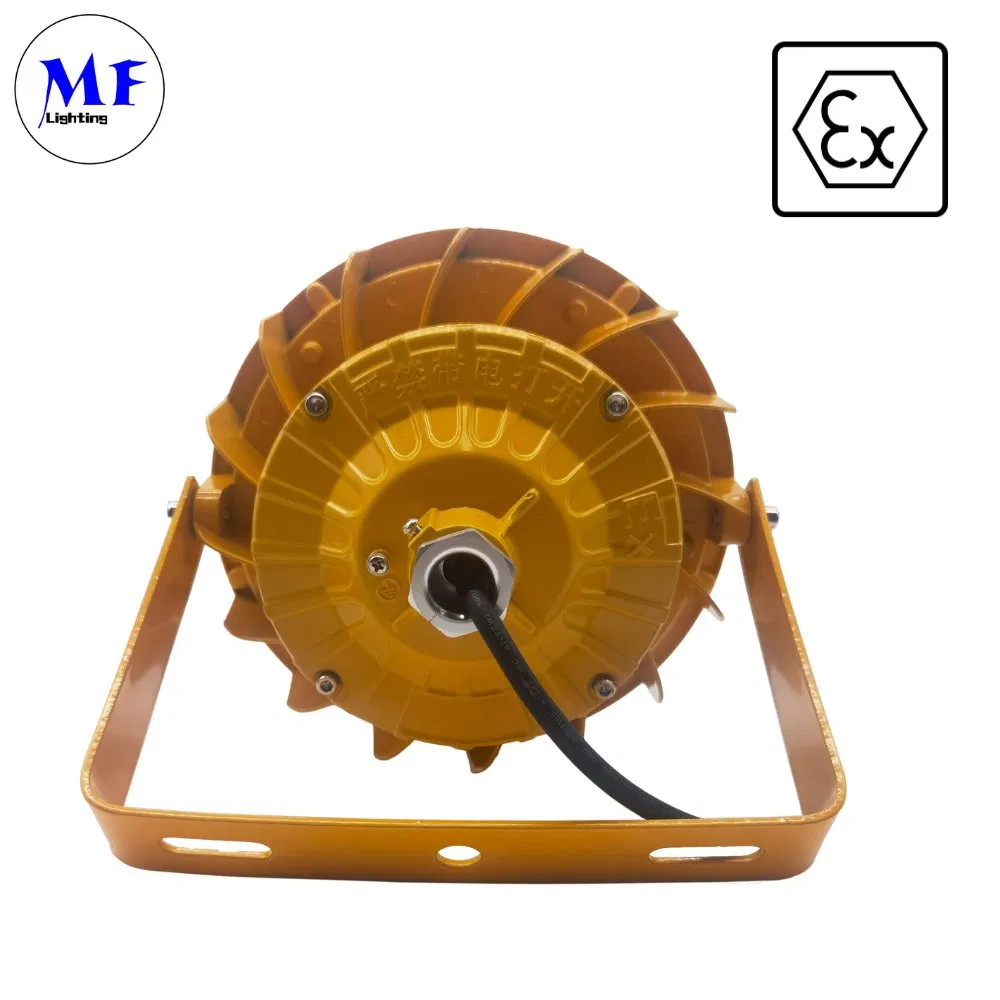

Product Details & Accessories

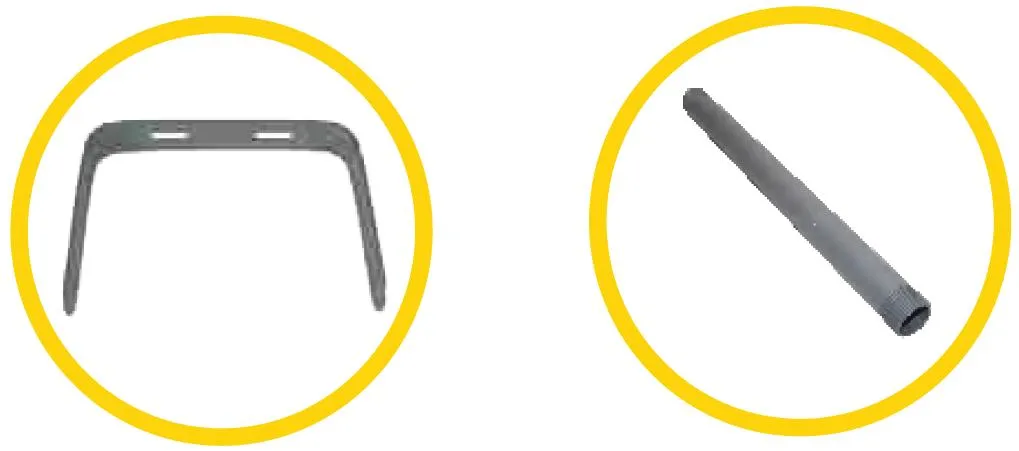

Accessories: Bracket & Straight Pipe

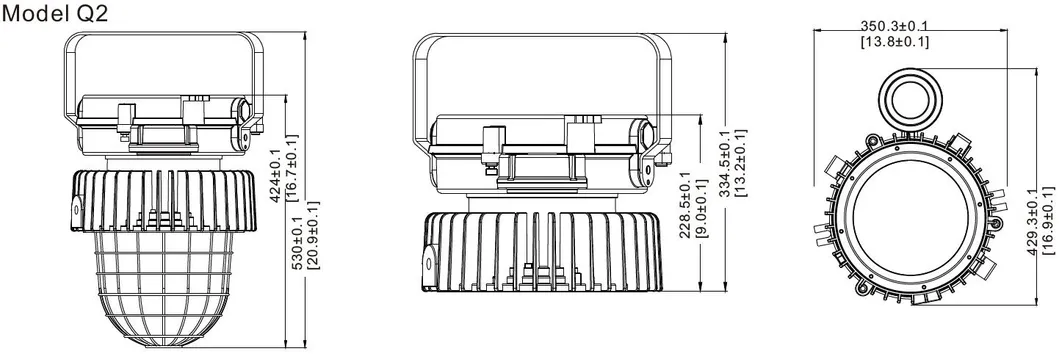

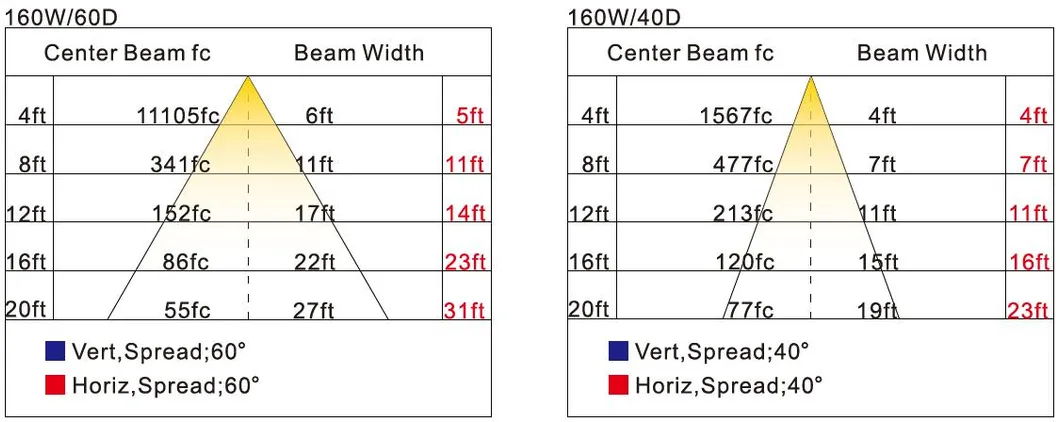

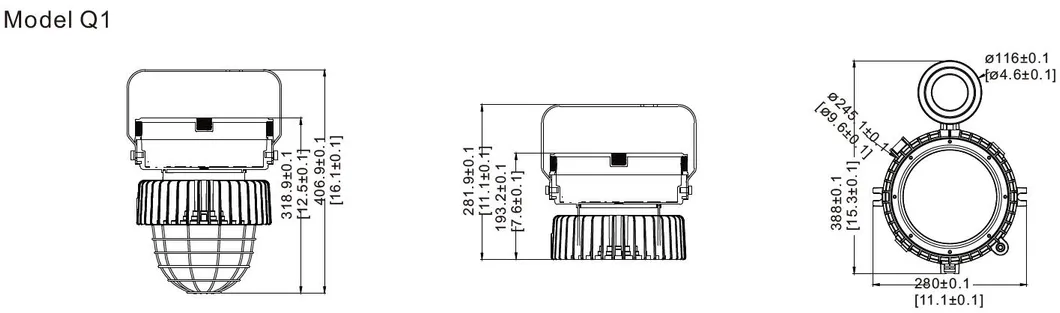

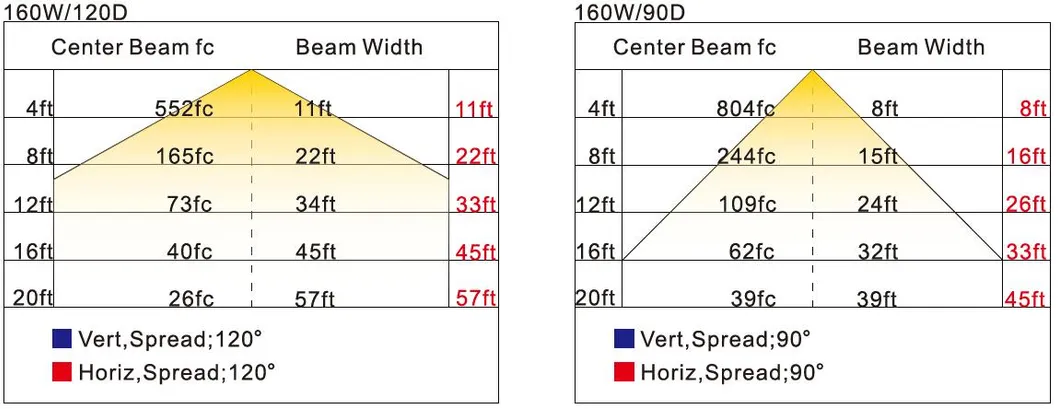

Technical Data & Dimensions

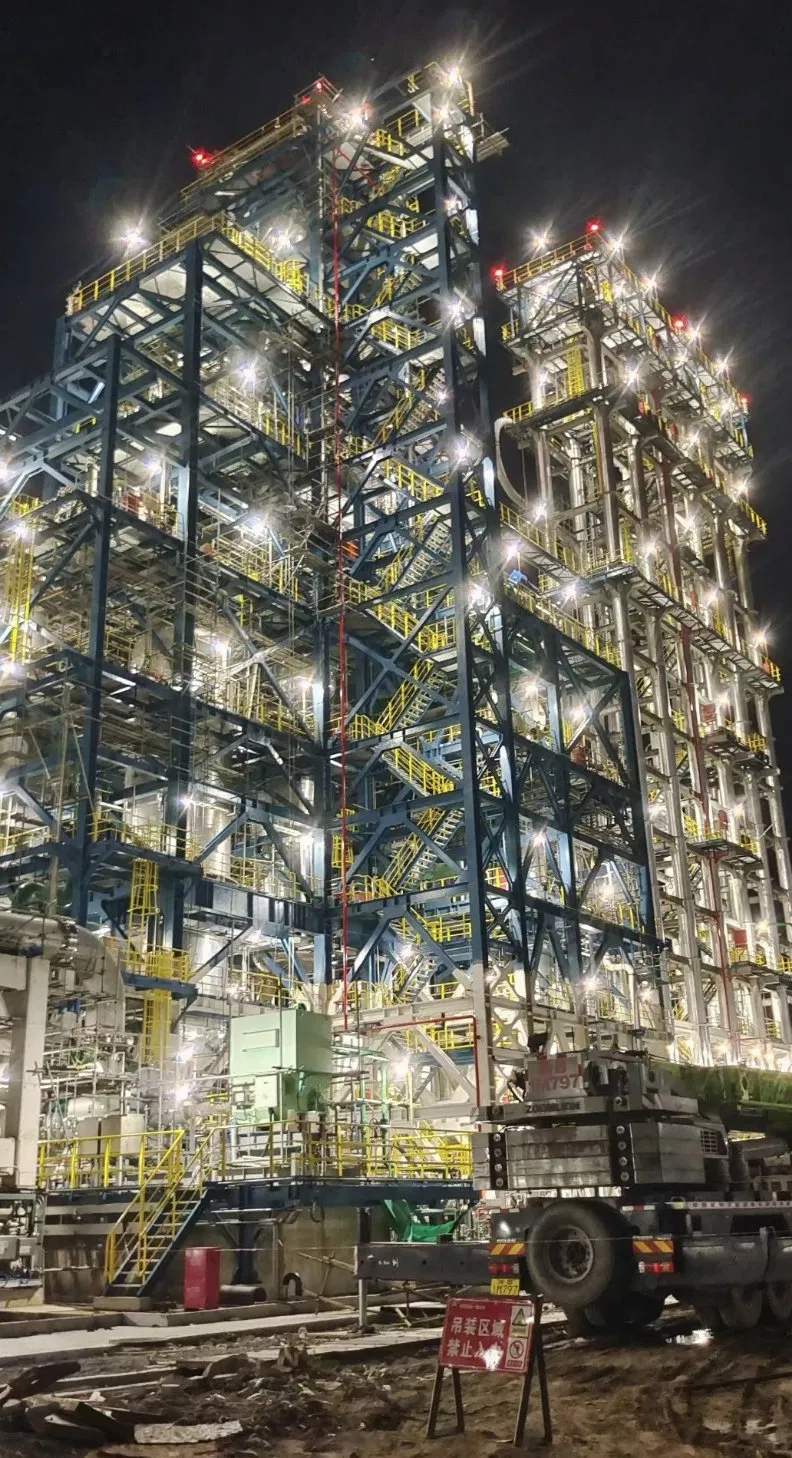

Wide Range Applications
- Refineries & Fuel Depots: High resistance to flammable gases and vapors.
- Marine Vessels: Durable against harsh salt-spray and marine environments.
- Chemical Processing: Resistant to corrosive chemicals and high temperatures.
- Food Processing: Moisture-resistant and stands up to high-pressure washdowns.
- Mining Operations: Robust construction for underground safety and durability.
- Other Harsh Areas: Ideal for high humidity, dusty, or high-temperature settings.
Packaging & Shipping
| Item |
Qty/Carton |
Size (mm) |
N.W (KG) |
G.W (KG) |
| Q1 | 1 | 530*520*380 | 10.5 | 12.5 |
| Q2 | 1 | 512*432*345 | 12.6 | 15.0 |
Sea transportation / Air transportation / Rail transportation / International Express
Frequently Asked Questions
1. What explosion-proof certifications do these lights hold?
These lights are fully certified with ATEX and IECEx, specifically marked for Zone 1 & 2 (Gas) and Zone 21 & 22 (Dust) environments.
2. Can these lights be used in offshore or marine environments?
Yes, the IP66 rating and corrosion-resistant housing make them ideal for marine vessels and offshore platforms.
3. What is the standard warranty for this product?
We provide a comprehensive 5-year warranty on our LED explosion-proof lighting series.
4. What are the available mounting options?
The lights support multiple installation methods, including ceiling bracket mounting, wall mounting, and pole mounting.
5. What is the luminous efficiency of these LEDs?
The system delivers a high luminous efficacy of approximately 140 lumens per watt (lm/W).
6. Are there different beam angle options?
Yes, depending on your needs, you can choose from 40°, 60°, 90°, or the standard 120° beam angles.
