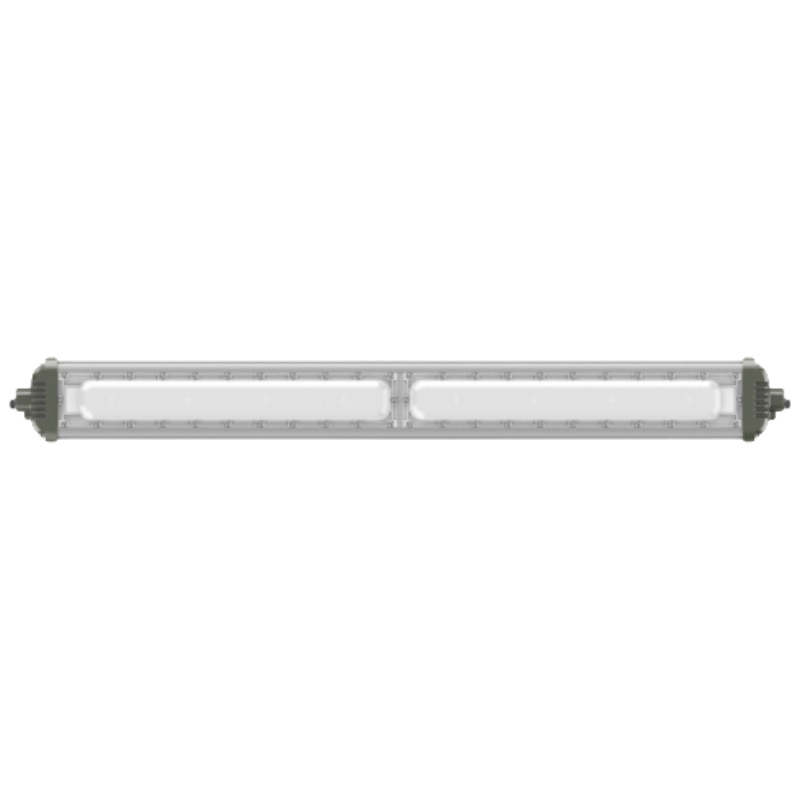

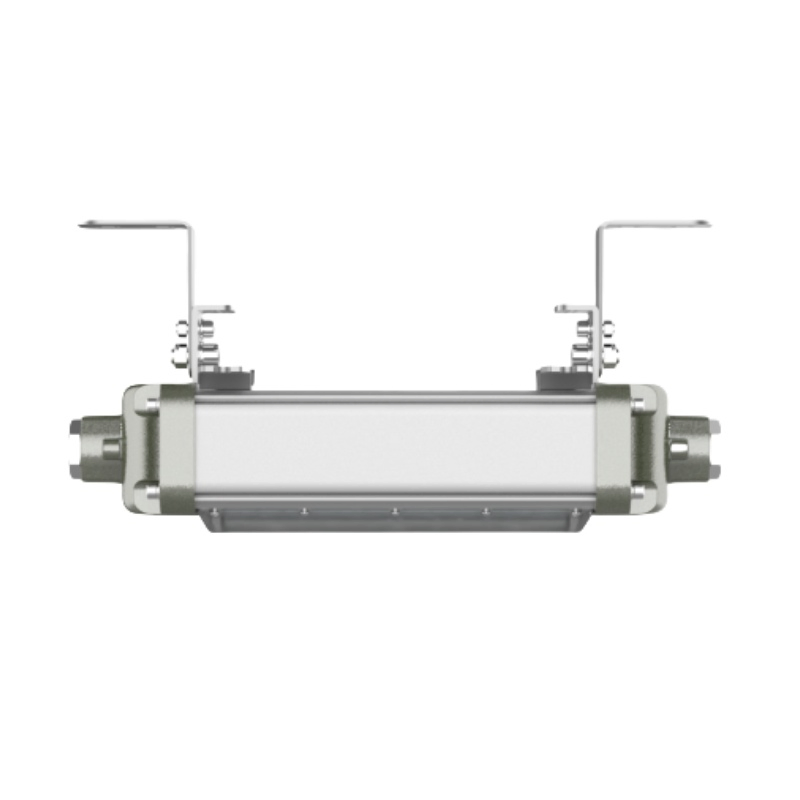

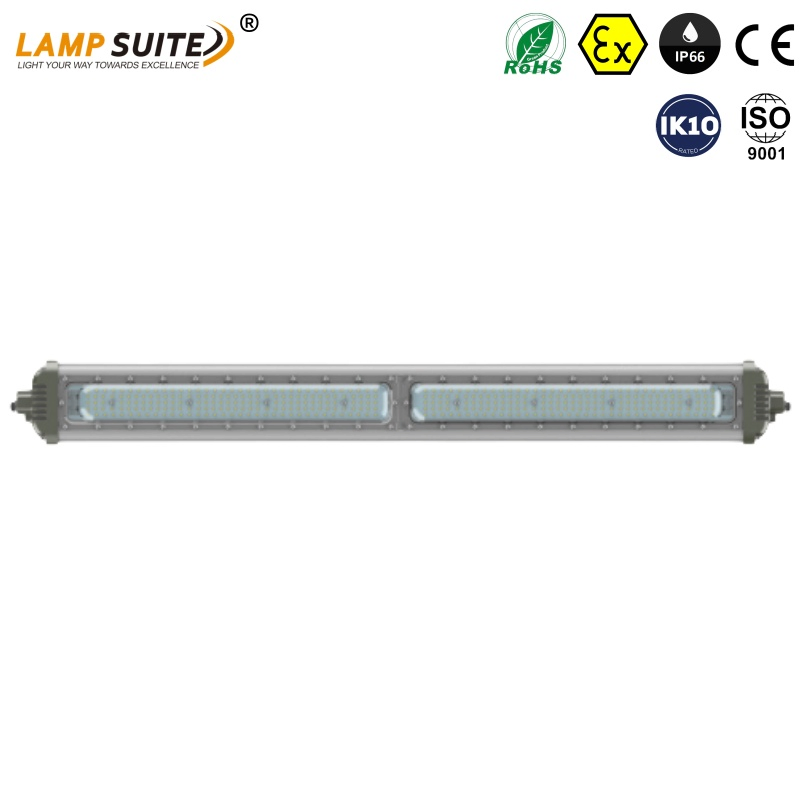

ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light
ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light
ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light
ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light
ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light
1 / 5
ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light
ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light
ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light
ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light
ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light

ATEX Heavy-Duty 60min 90min Emergency 0.3m 0.6m 1.2m LED Explosion Proof Batten Light

Send Inquiry

Product Description

ATEX Heavy-Duty 60min 90min Emergency LED Explosion Proof Batten Light
LED Explosion Proof Light
📊

Product Parameters

MODEL RATED POWER LED QTY SIZE WEIGHT
MXEL-8192-300 20-30W 70pcs 335 x 125 x 77mm 1.7Kg
MXEL-8192-600 40-60W 120pcs 635 x 125 x 77mm 3.2Kg
MXEL-8192-1200 70-120W 240pcs 1143 x 125 x 77mm 6.2Kg
ITEM WATT LUMEN CCT LENGTH
MXEL-8192 Series 20W-30W 2400lm 3000K, 4000K,
5000K, 6500K
Dimmable		 0.3M, 0.6M,
1.2M Optional
40W-60W 4800lm - 7200lm
70W-80W 8400lm - 9600lm
100W-120W 12000lm - 14400lm
💡

Key Features & Technical Advantages

🛡️ Explosion-Proof Structure Complies with national standard GB3836, offering reliable explosion-proof performance for hazardous zones.
💎 Optical Cover Made of 5mm thick borosilicate tempered glass with 95%-98% light transmittance. Impact-resistant and anti-glare.
🌡️ Heat Dissipation One-piece extruded aluminum radiator ensures superior thermal conductivity and longer lifespan.
⚡ High Efficiency Uses top-tier LED chips (CREE) with efficiency >120 lm/W and up to 100,000 hours service life.
🛠️

Mounting & Applications

Our explosion-proof lights support versatile installation: ceiling, wall, bent-pole, pendant, and U-bracket. Ideal for high-vibration and hazardous environments.

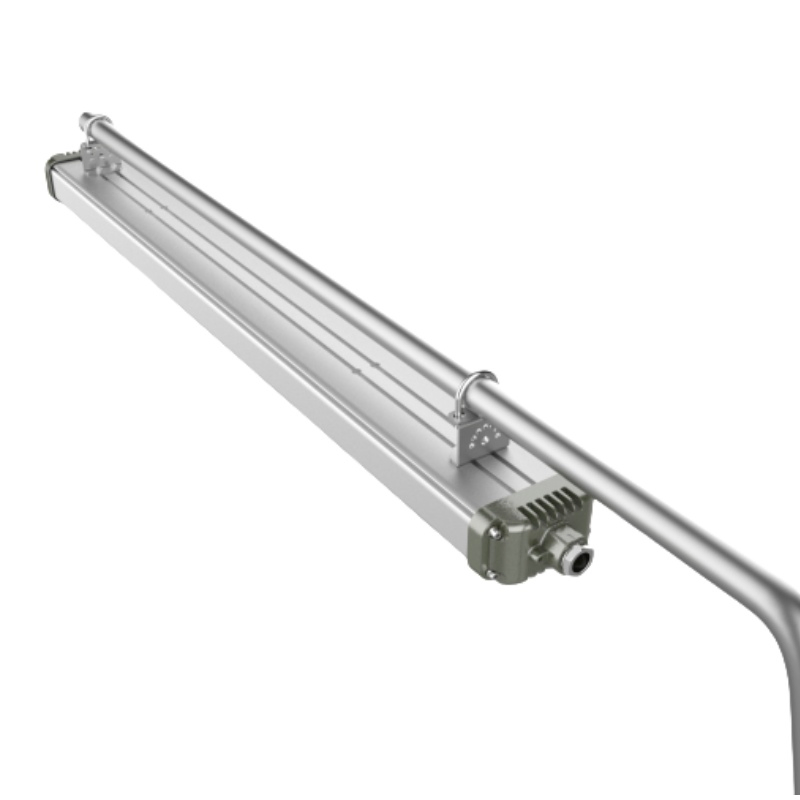

Mounting Option 1

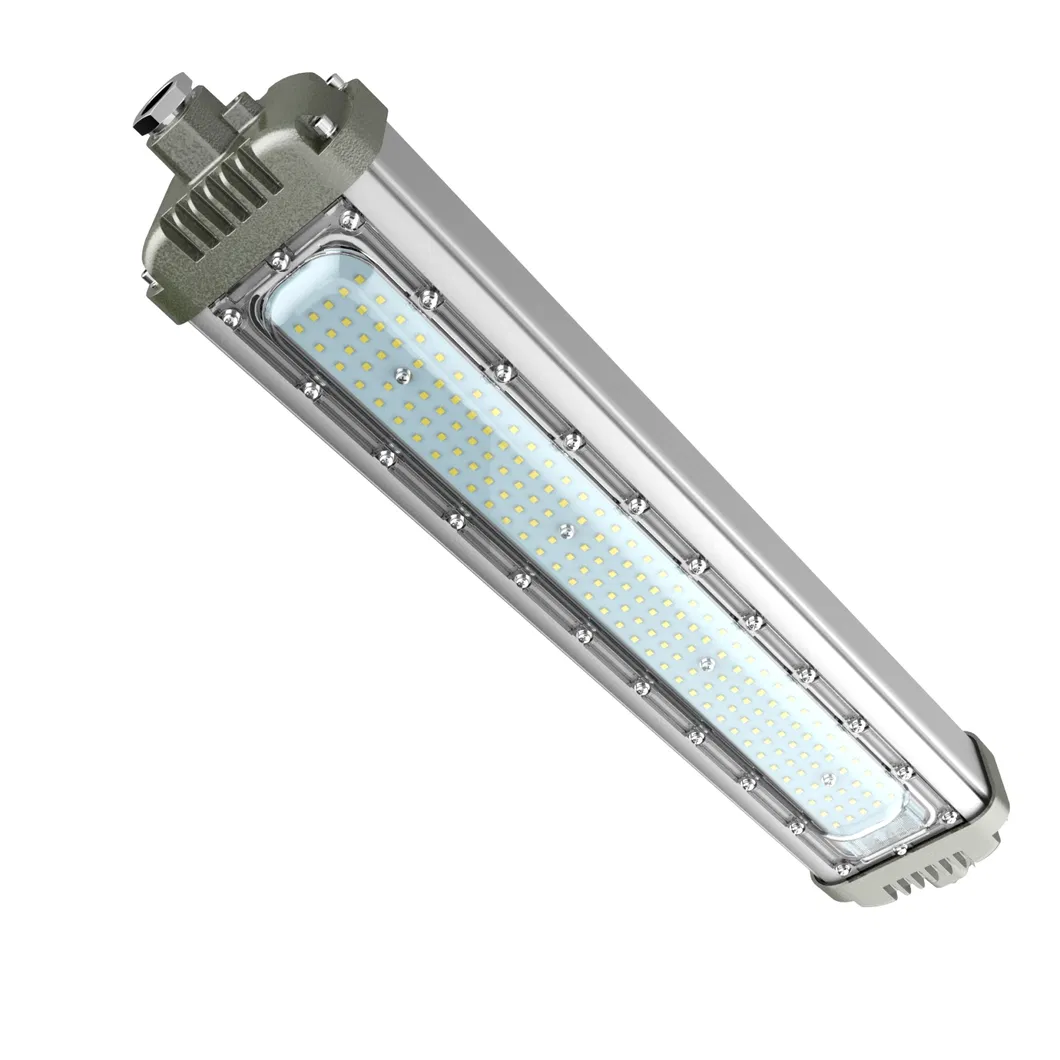

Tempered Glass Detail

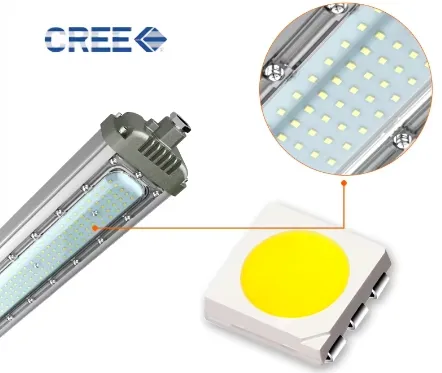

LED Chip Detail

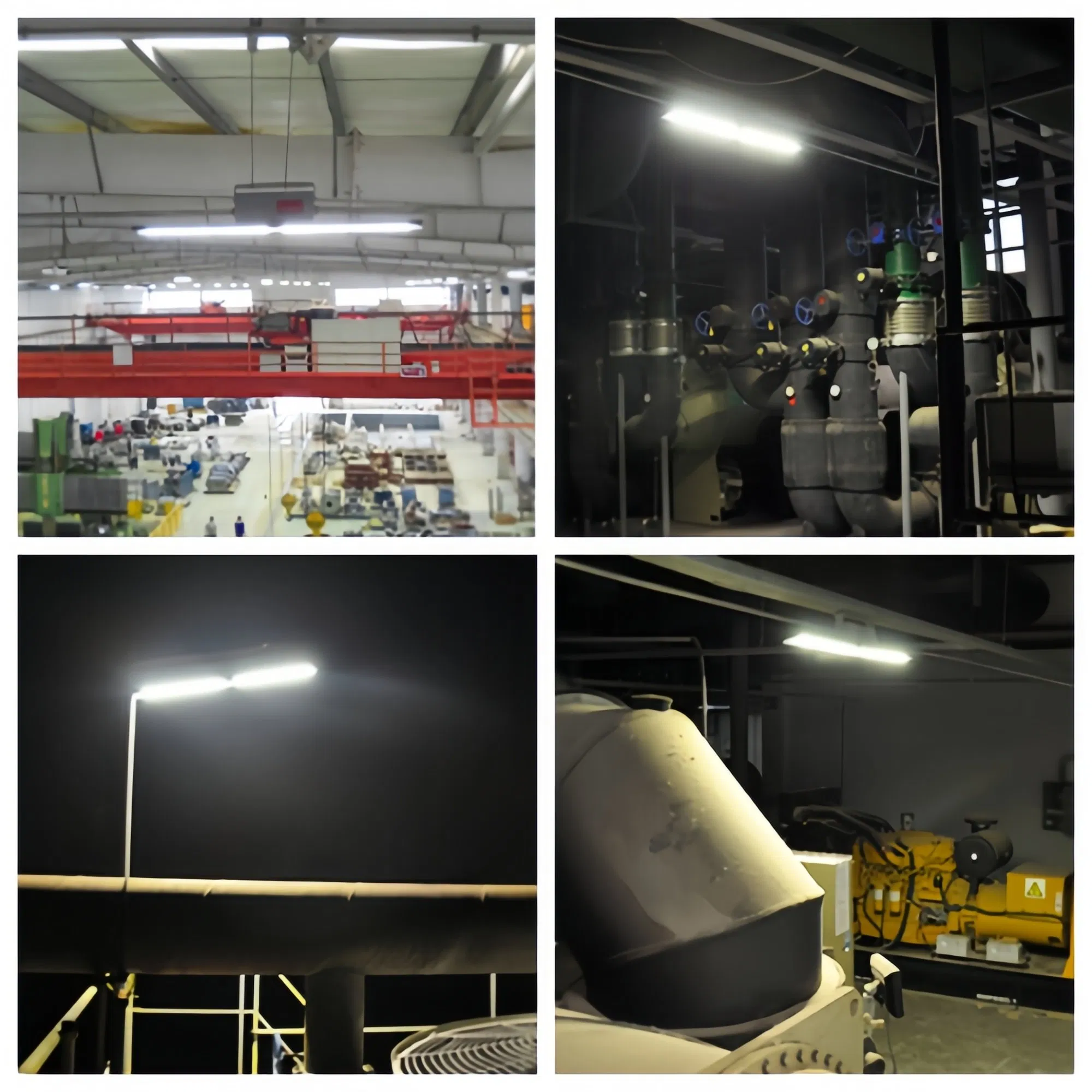

📍 Recommended Applications: Gas Stations, Chemical Plants, Oil Platforms, Warehouses, Marine Environments, and Explosive Workshops.
📐

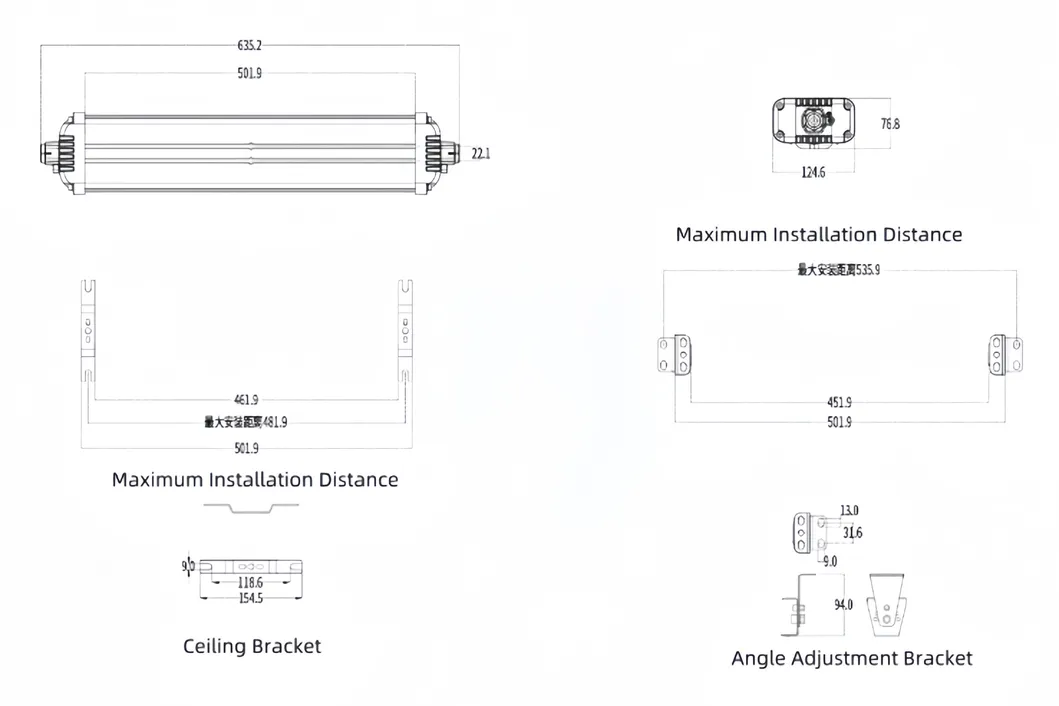

Technical Dimensions

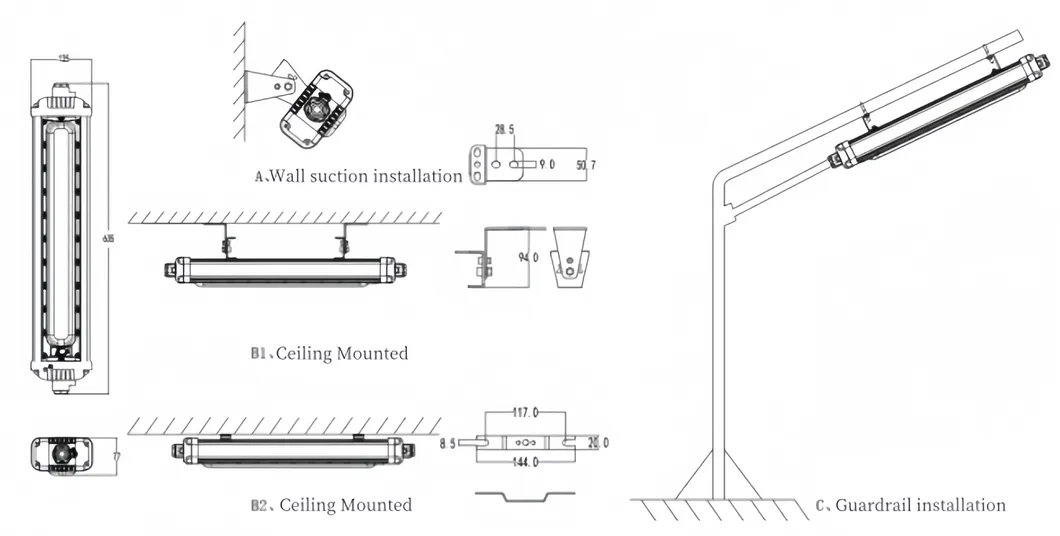

Dimensions

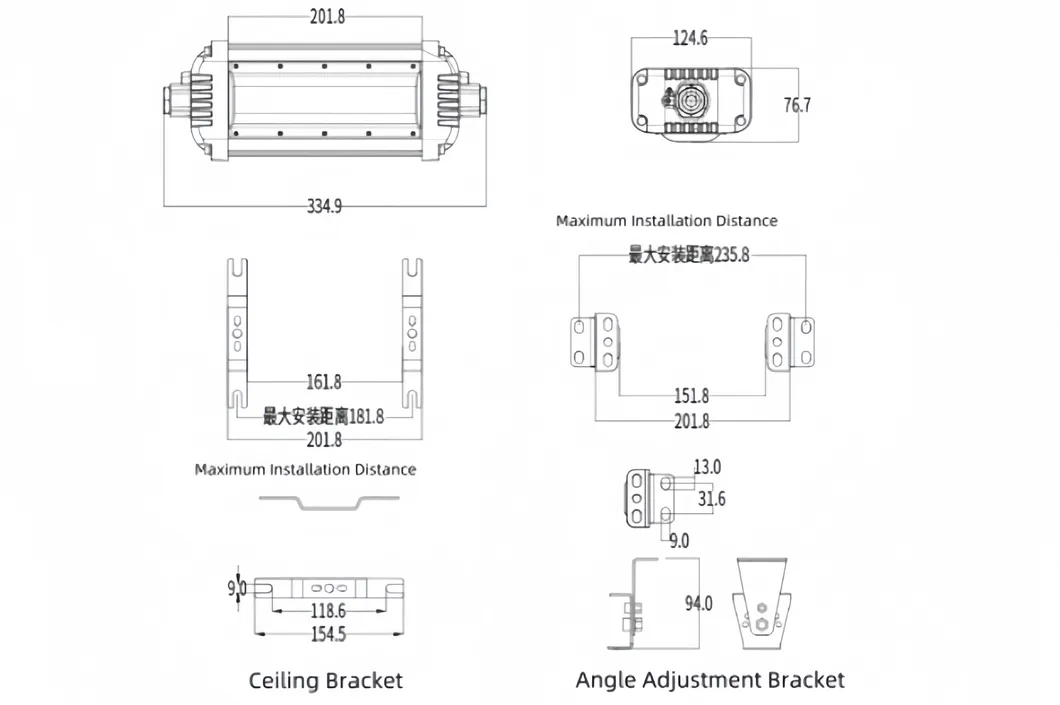

Installation 1

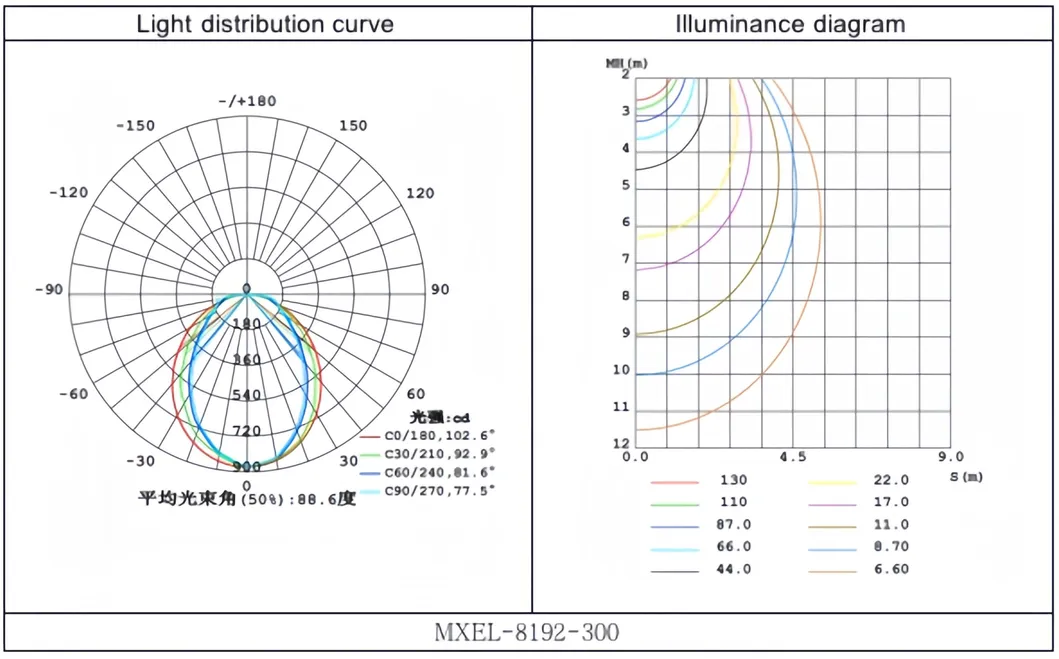

Installation 2
Installation 3
🏭

Production Excellence

We are a high-tech enterprise integrating R&D, production, and service, committed to industrial lighting solutions. With advanced automated testing equipment and high-precision machining, we ensure every fixture meets global standards (ATEX, CE, ROHS, ISO9001).

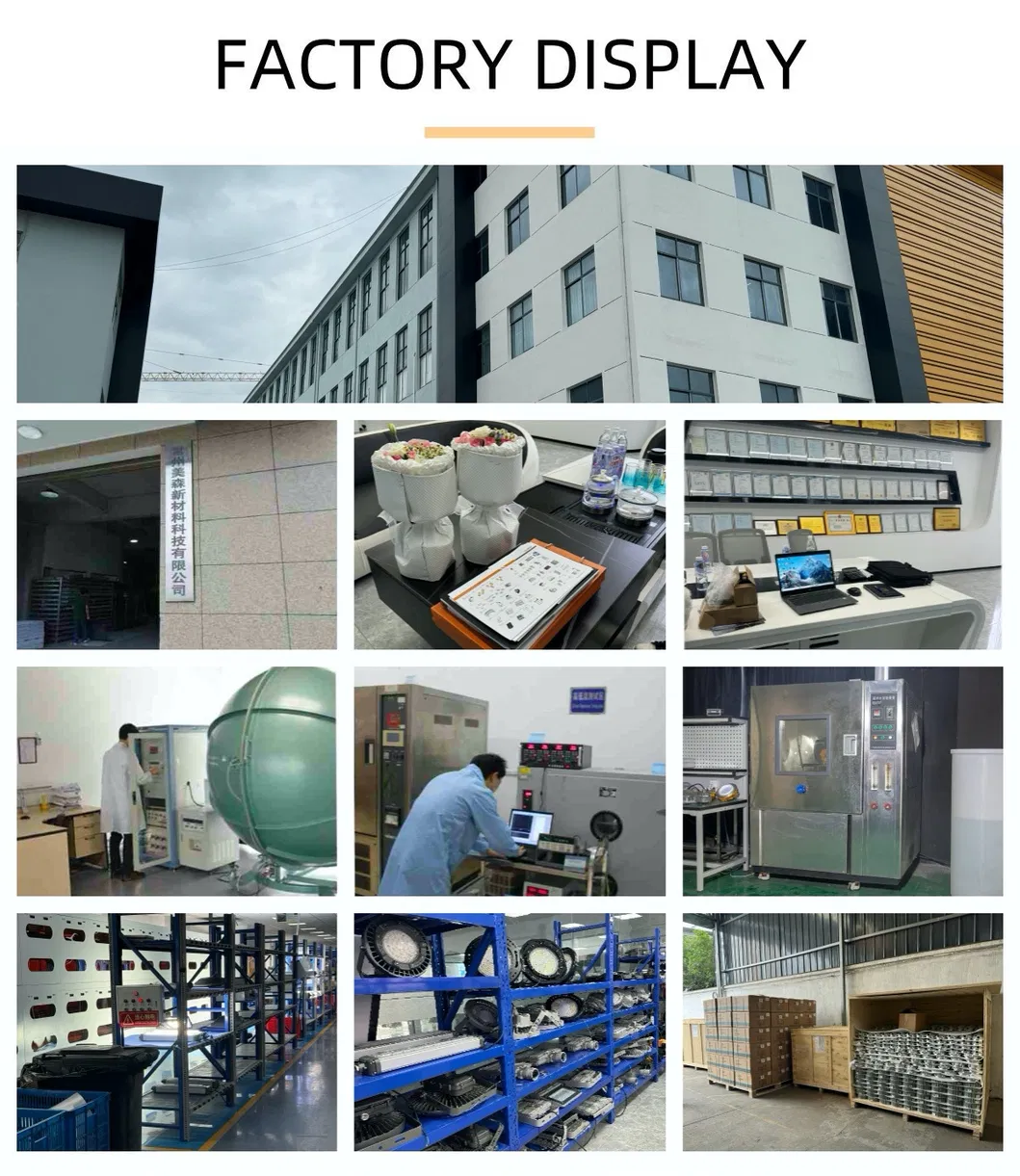

Factory Overview
Production Line
Shipping
❓

Frequently Asked Questions

Can I have a sample order for LED light?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
What is the typical delivery time?
Samples typically require 5-7 days, while mass production time usually takes 7-12 days depending on order volume.
How are the goods shipped?
We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 4-7 days to arrive at your destination.
What is the warranty period for these products?
We offer a 2-5 year warranty on our industrial lighting products to ensure long-term reliability.
How do you handle faulty products?
Our products are produced under strict quality control (defective rate < 0.2%). During the guarantee period, we will send new lights or repair the defective units according to the actual situation.
Is there a minimum order quantity (MOQ)?
We offer flexibility for our clients; 1pc for sample checking is available.
