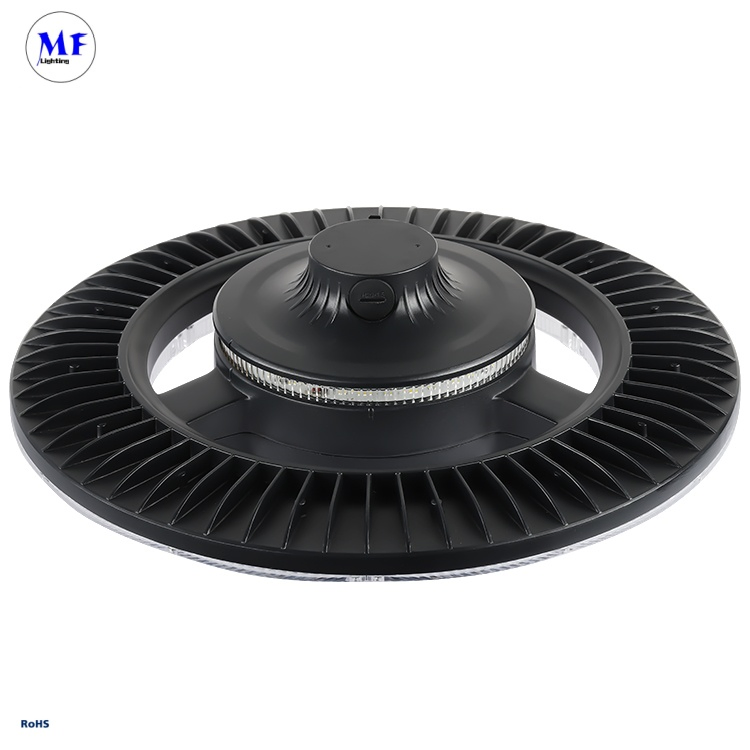

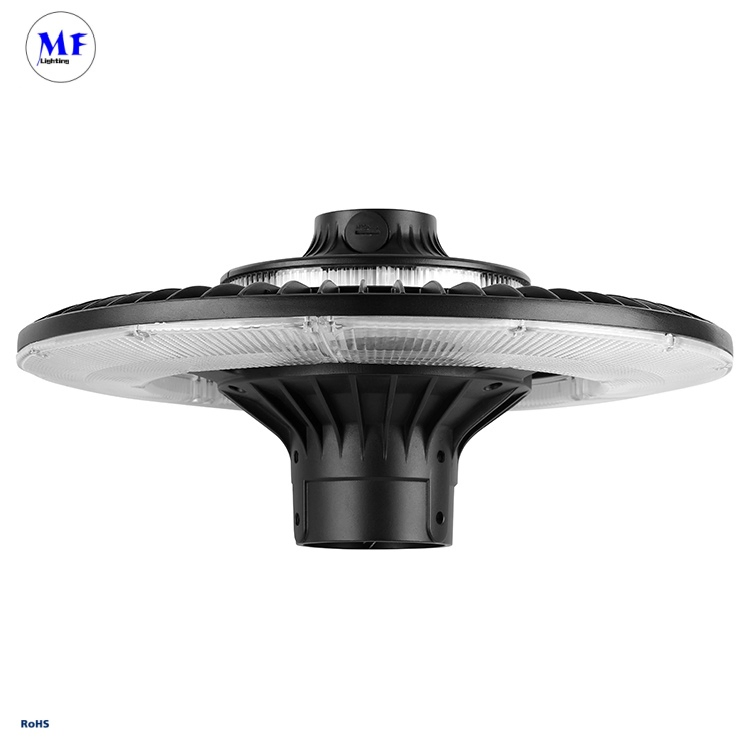

Factoory Price CCT & Wattage Tunable 120W Built-in Photocell Aluminum Housing Garden Light Post Top Light Landscape Yard Light for Garden

Still deciding? Get samples of $ !
Request Sample

Product Description

CCT & Wattage Tunable 120W Built-in Photocell Aluminum Housing Garden Light Post Top Light

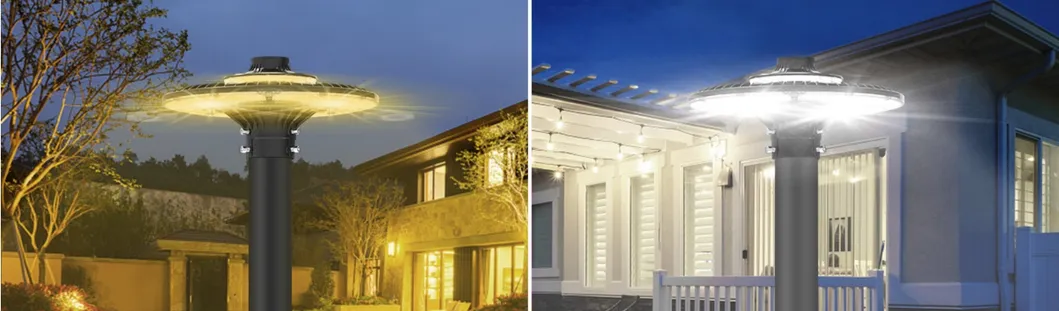

Garden Post Top Light Overview
Basic Info
ModelMF-AL-120W
MaterialAluminum
Power60W/80W/100W/120W/150W/200W
Warranty5 Years
IP RatingIP65/IP66
Voltage100-277V
Luminous Flux14600lm
Light Effi.130lm/W
LED TypeSMD 2835
Beam Angle120 Degree
Technical Specifications
SpecificationDetails
Frequency Range50Hz--60Hz
Light QualityBright, Intensity
Lumen Output14600LM
CCT Options3000K, 4000K, 5000K Selectable (4500~5700K range)
Life Time50,000 Hours
CertificationsCE, RoHS, UL, cUL, DLC
Key Features
Feature Image 1 Feature Image 2

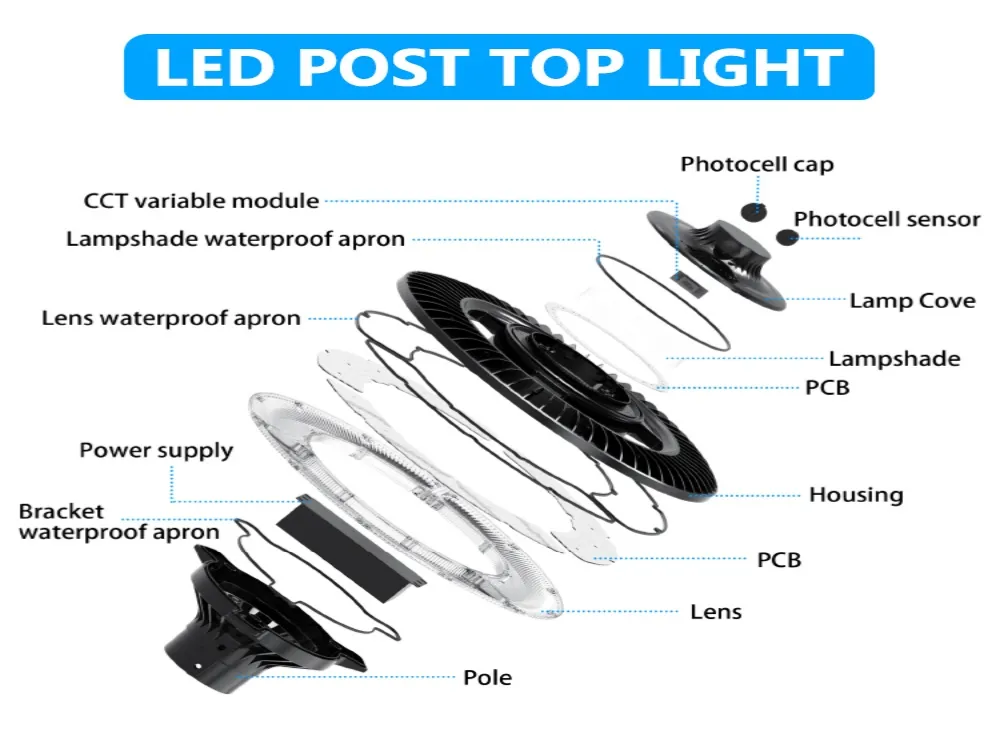

Dual-Light Design: Combines ambient top lighting with functional bottom illumination.
Smart Control: Built-in photocell for automatic dusk-to-dawn operation.
CCT Selectable: Easy switch between Warm, Neutral, and Cool White.
Surge Protection: 6kV internal and 10kV external surge protection.
Durability: Corrosion-resistant die-cast aluminum housing.
High Efficiency: 130Lm/W efficiency reducing energy consumption by up to 70%.
Our Advantages
Advantage Image 1 Advantage Image 2
Eligible for energy rebates with UL/DLC certifications.
Tool-free assembly for easy installation on 2 3/8" poles.
UV stabilized vandal-resistant polycarbonate lens.
Slim profile (11mm thickness) to minimize wind load.
High CRI ≥80 for excellent color rendering and safety.
Modular maintenance with replaceable drivers.
Wide Applications

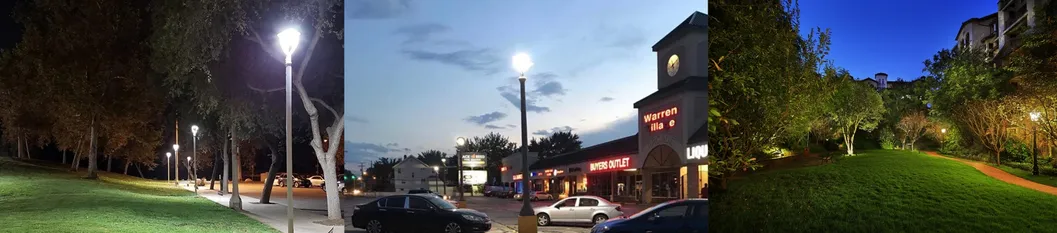

Applications Banner
Application 1 Application 2 Application 3
Urban Parks: Even lighting for pathways and green spaces.
Commercial Districts: Enhances nighttime ambiance for retail.
Residential Areas: Safe and cozy outdoor lighting.
Educational Campuses: Flicker-free lighting for safety.
Industrial Zones: Durable design for harsh environments.
Transport Hubs: High visibility in critical areas.
Installation Instructions
Installation 1 Installation 2 Installation 3

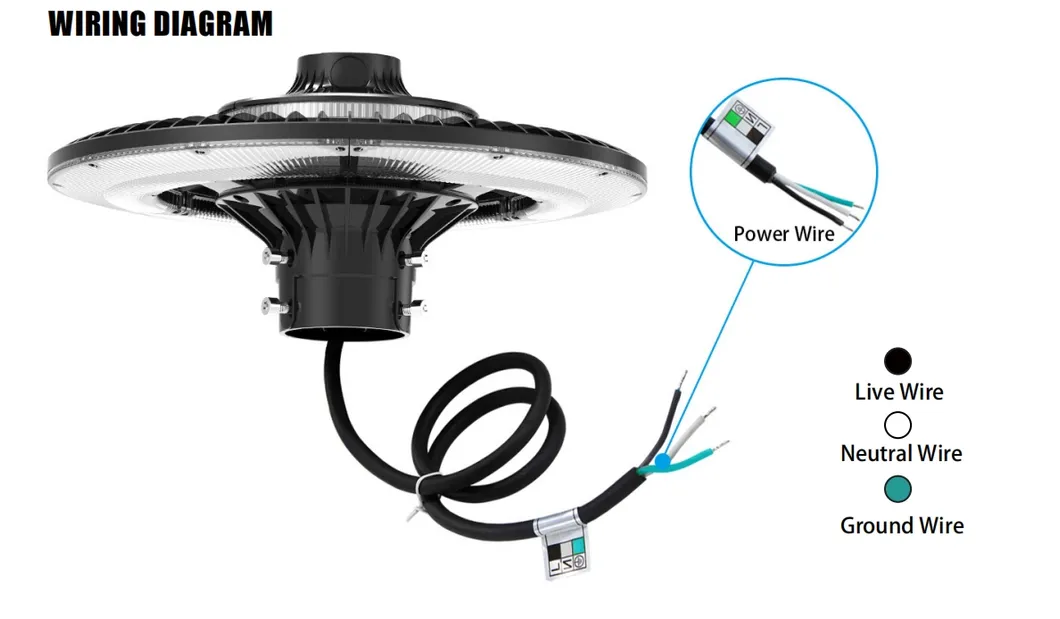

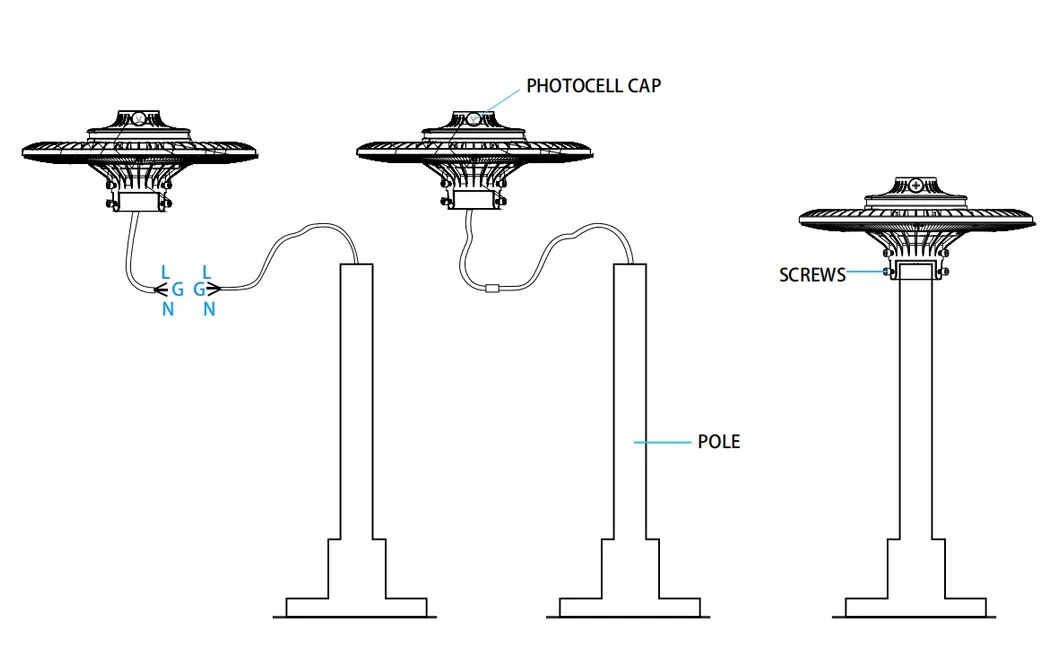

Wiring: Connect Black (Live), White (Neutral), and Green (Ground).
Pole Fitment: Secure using 6 screws on standard 2 3/8" tenon adapters.

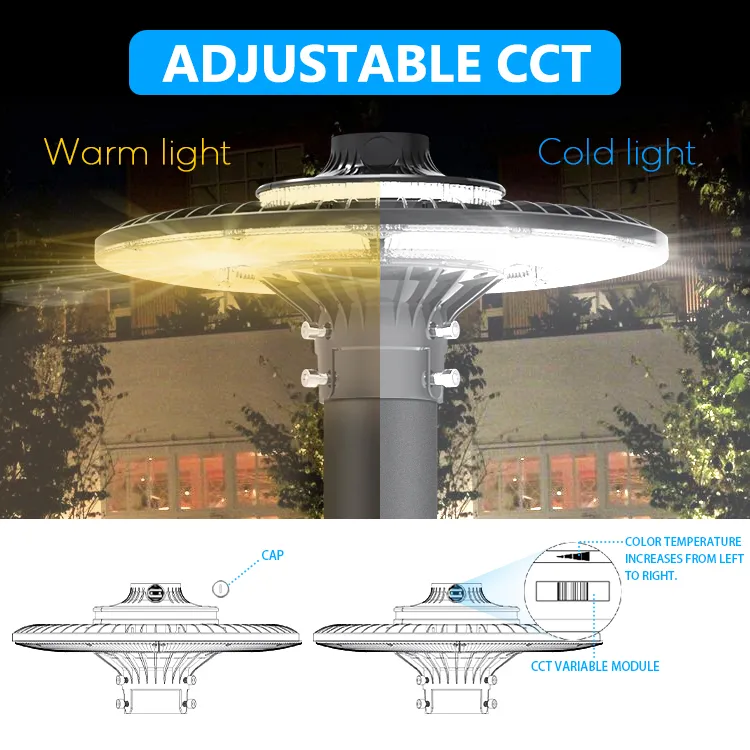

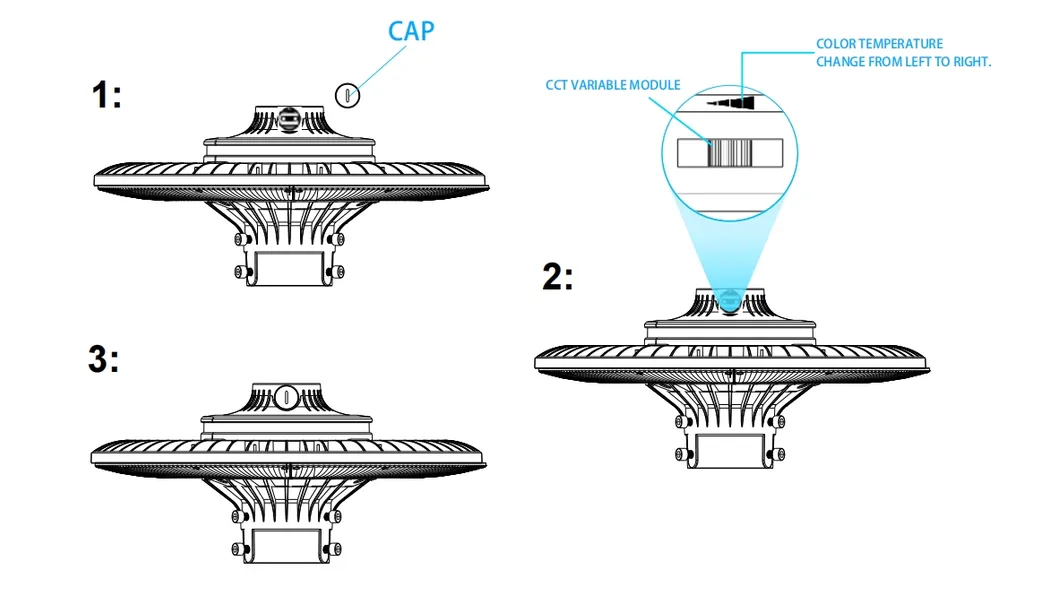

CCT Adjustment: Power off, rotate the cap to select the desired color temperature.
Sensor: Ensure the photocell is clear of obstructions for dusk-to-dawn function.

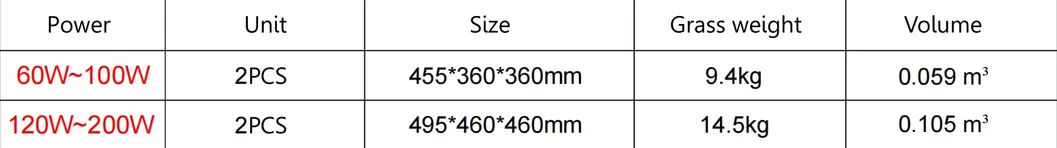

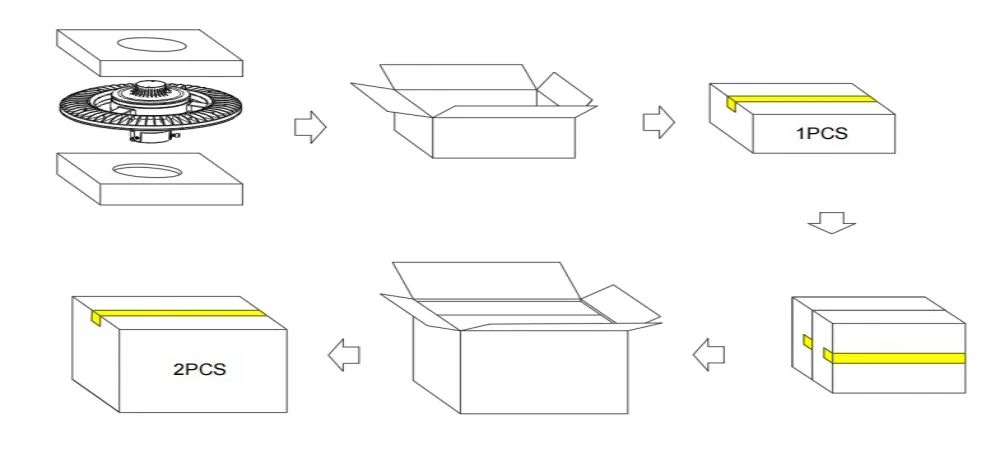

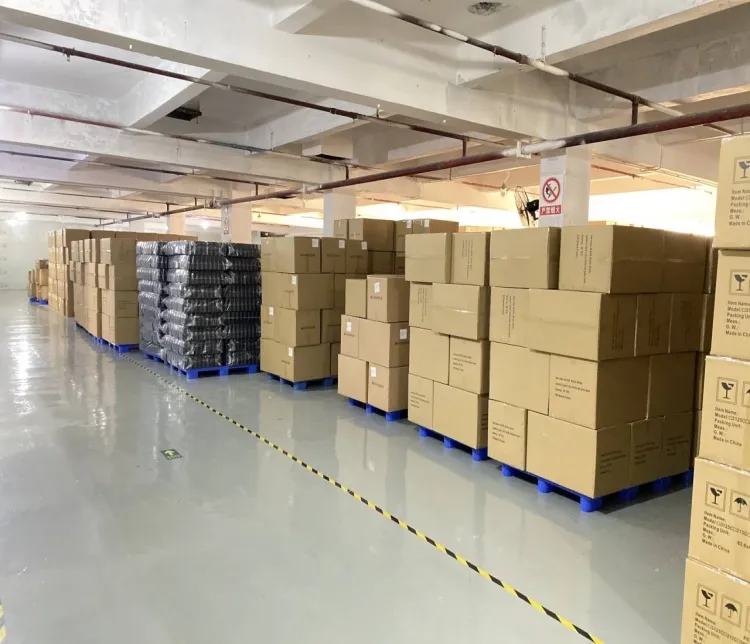

Packaging & Shipping
Packaging 1 Packaging 2

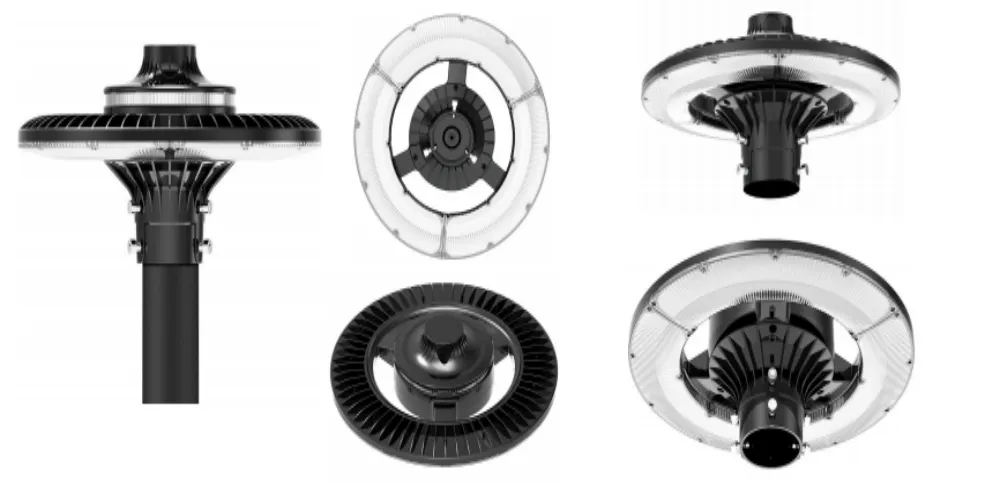

Product Gallery
Gallery 1 Gallery 2
Detailed Dimensions
Frequently Asked Questions
Q: What is the energy efficiency of this garden light?

A: This light offers high efficiency at 130lm/W using SMD 2835 chips, helping reduce energy consumption by up to 70% compared to traditional lighting.

Q: Can I adjust the brightness and color?

A: Yes, it is CCT selectable (3000K, 4000K, 5000K) and available in multiple wattage options from 60W up to 200W.

Q: Is it suitable for outdoor use in rainy areas?

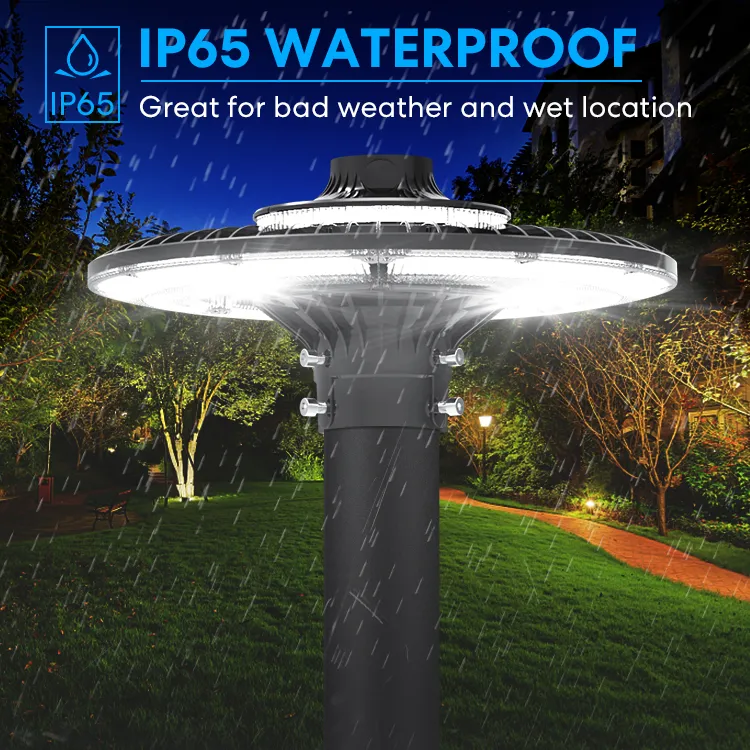

A: Absolutely. It is IP65/IP66 rated, making it waterproof and dust-free, ideal for gardens, parks, and residential areas.

Q: How does the automatic dusk-to-dawn feature work?

A: The light includes an optional built-in photocell sensor that detects ambient light levels to turn the fixture on at sunset and off at sunrise automatically.

Q: What kind of pole is required for installation?

A: It is designed with a slip-fitter mounting that fits standard 2 3/8" tenon poles, making it compatible with most area light poles.

Q: What is the warranty period for this product?

A: We provide a 5-year warranty on this aluminum housing garden light, ensuring long-term reliability and performance.
