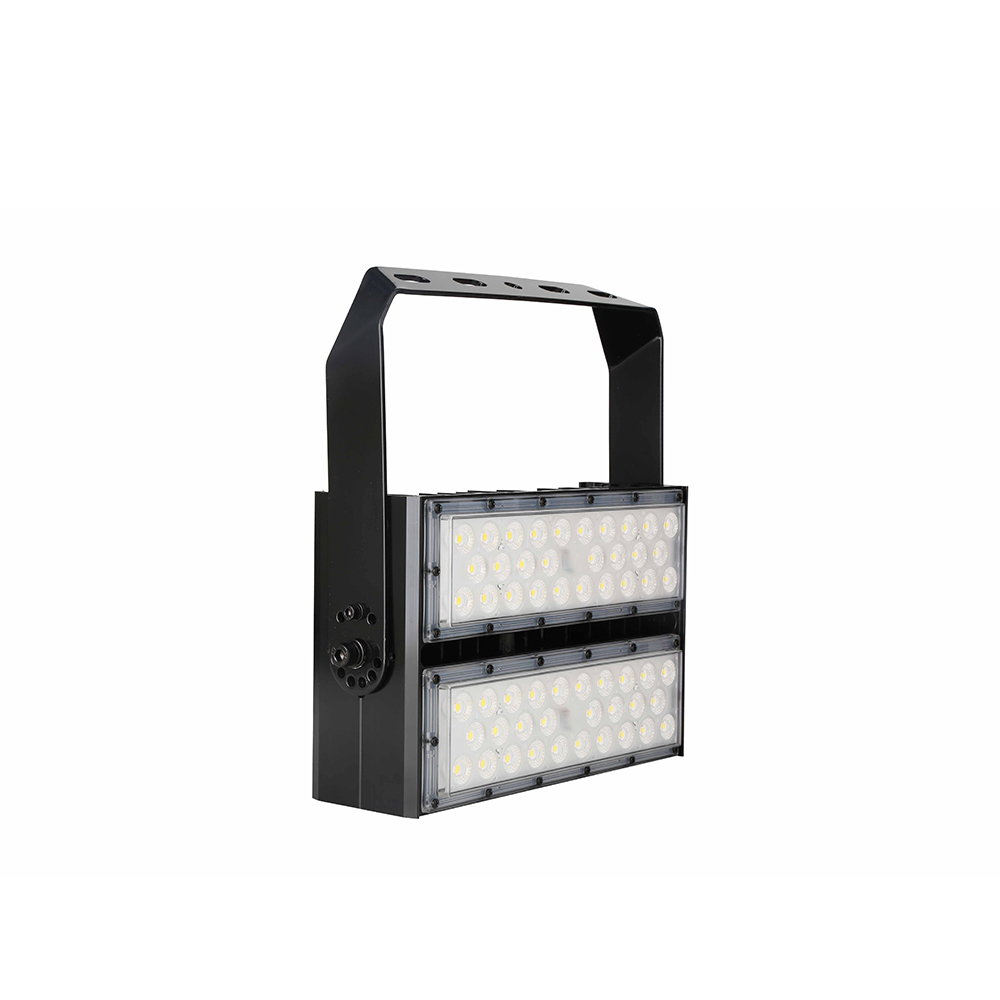

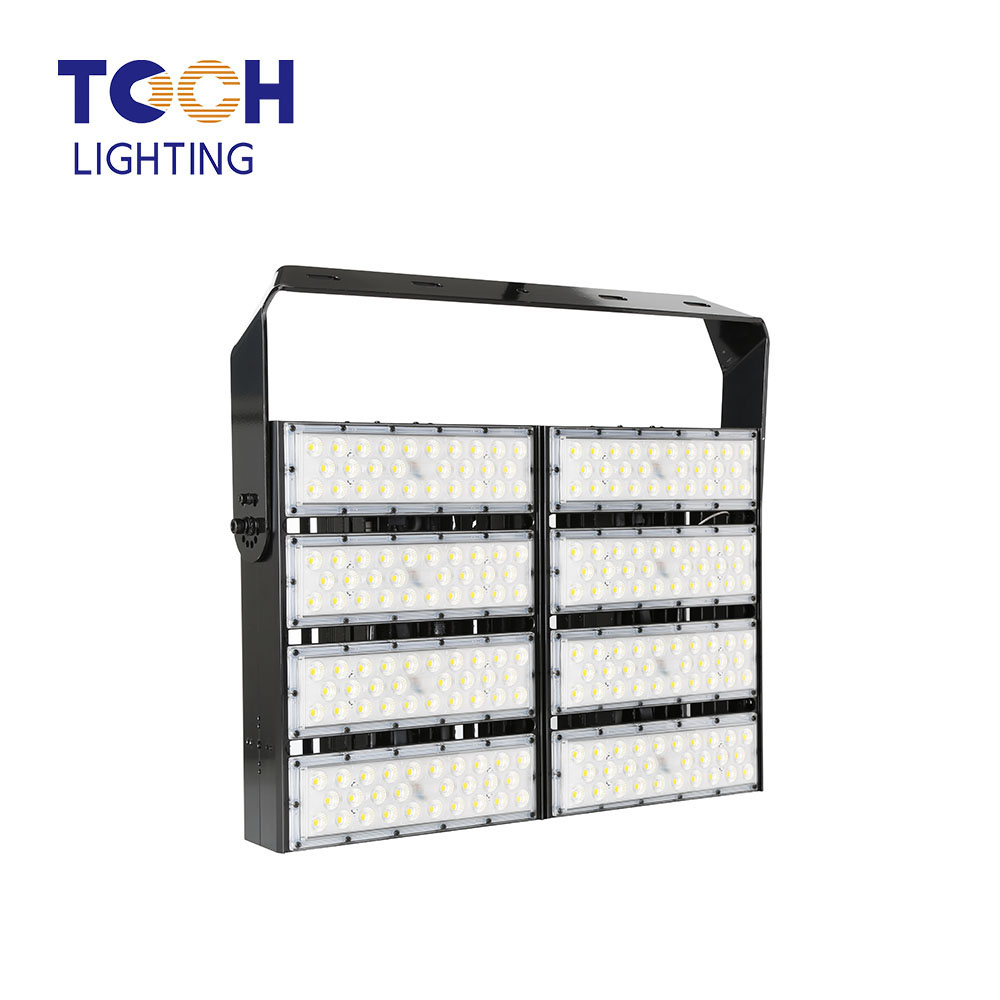

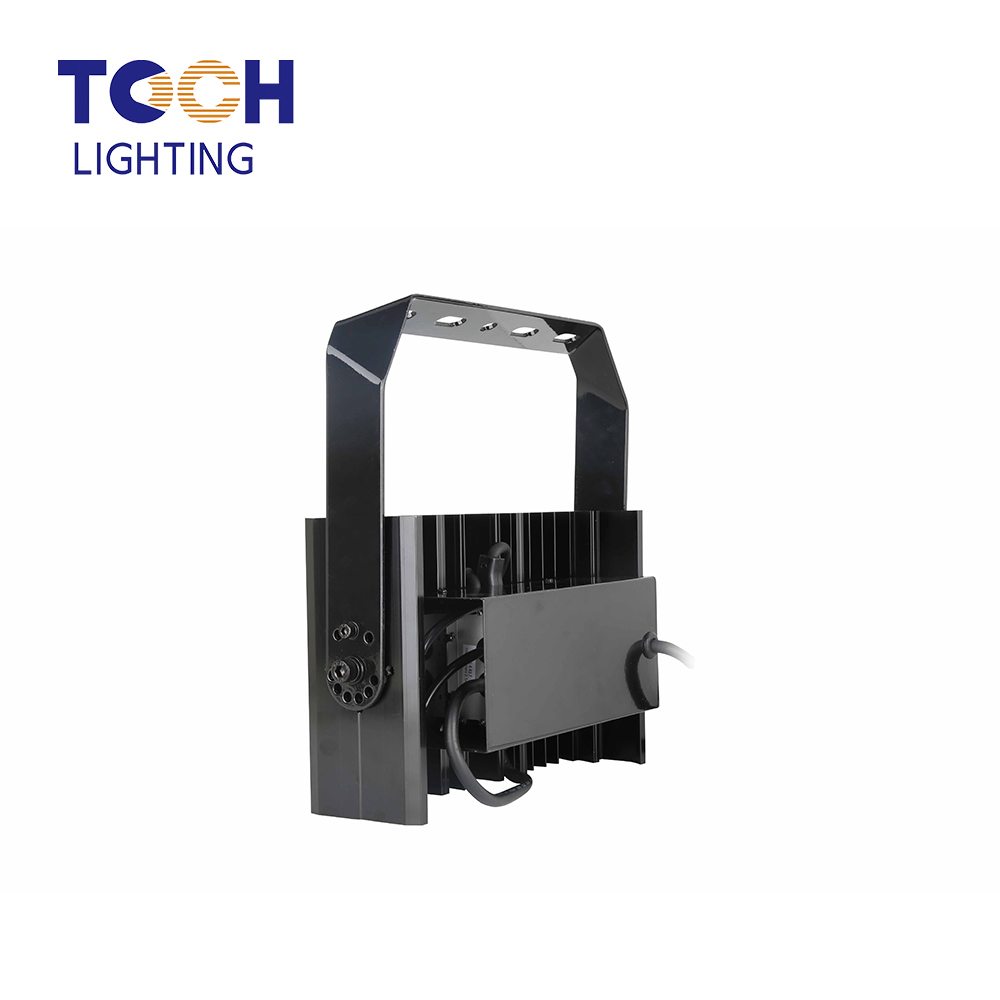

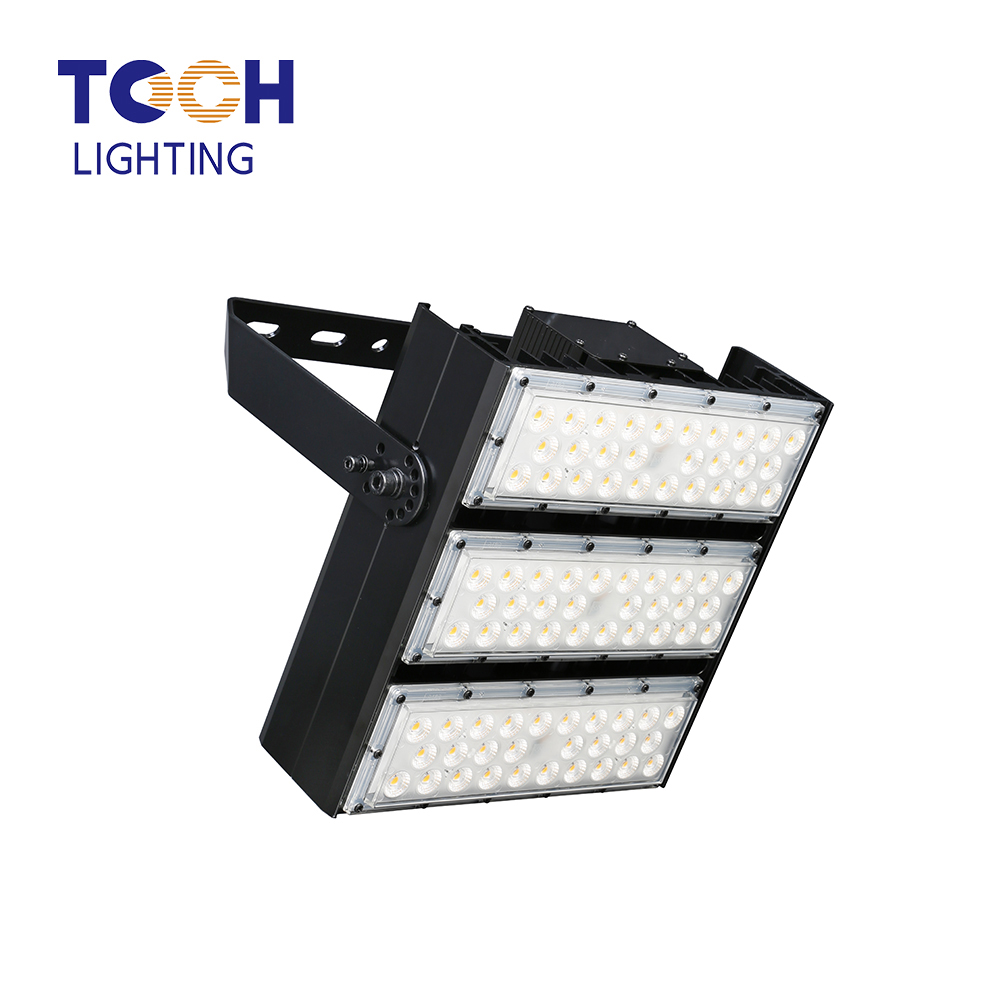

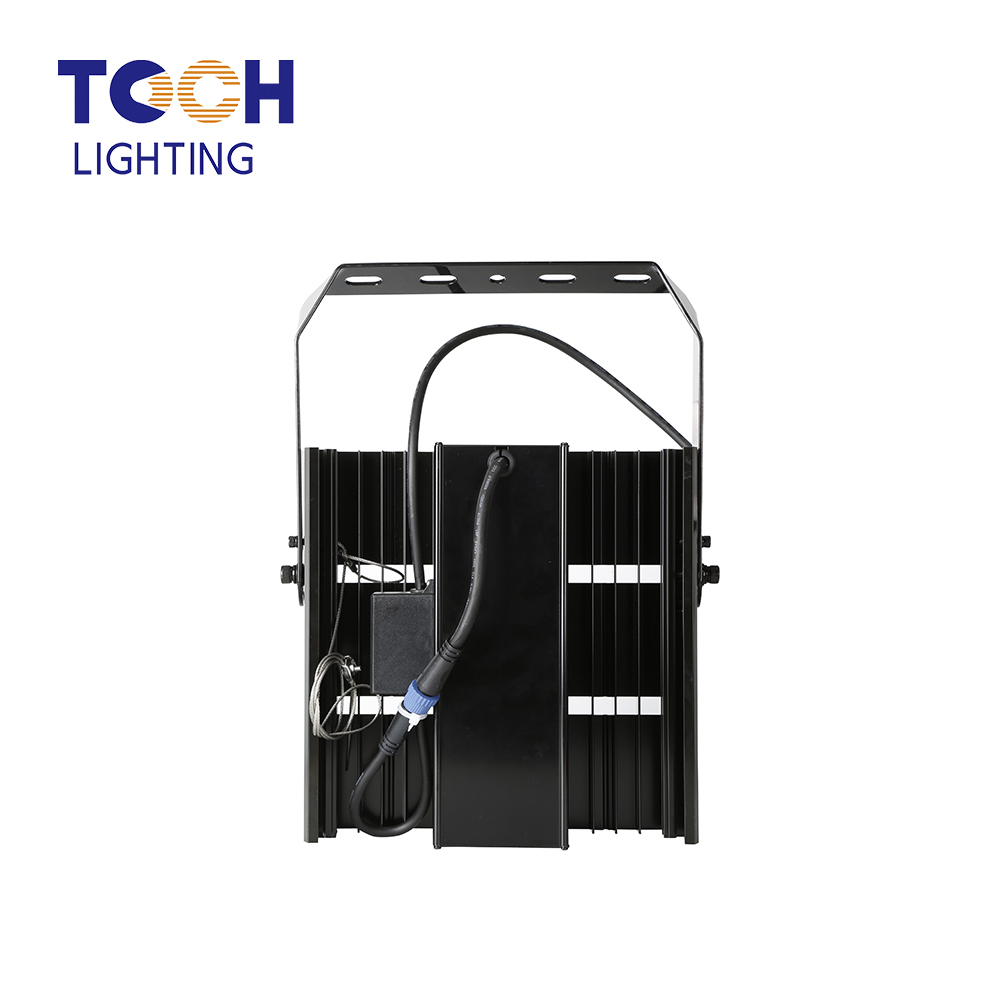

CE ROHS High Power 100W 300W 500W Flood Light Stadium Projector Lamp High Mast Led Flood Light
Features of LED flood light
High performance design with multi-chip package 5050 LED source.

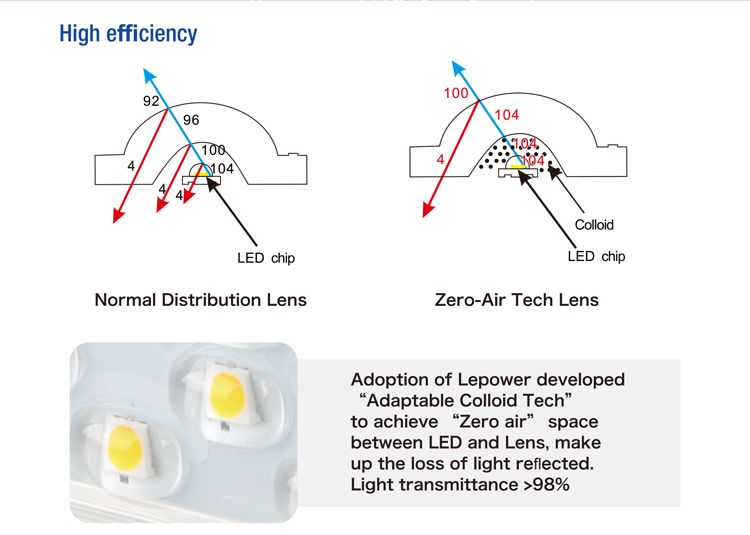

The light transmittance up to 98%. Luminous efficacy up to 180lm/w.

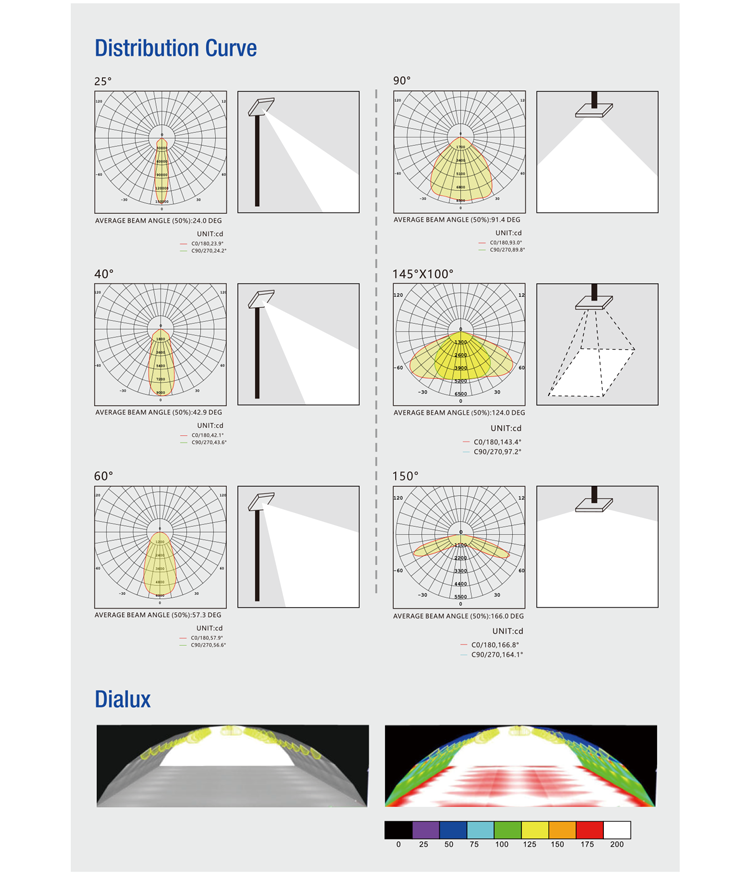

25°/45°/60°/90°/145x90°/Type V lens optional.

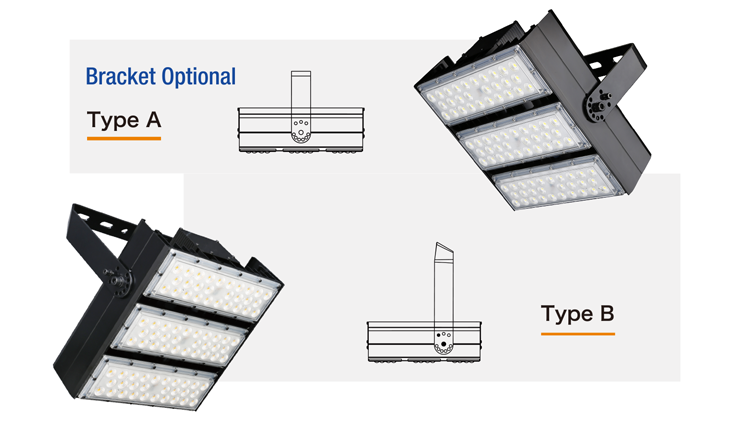

100° adjustable bracket available for outdoor & indoor lighting application.

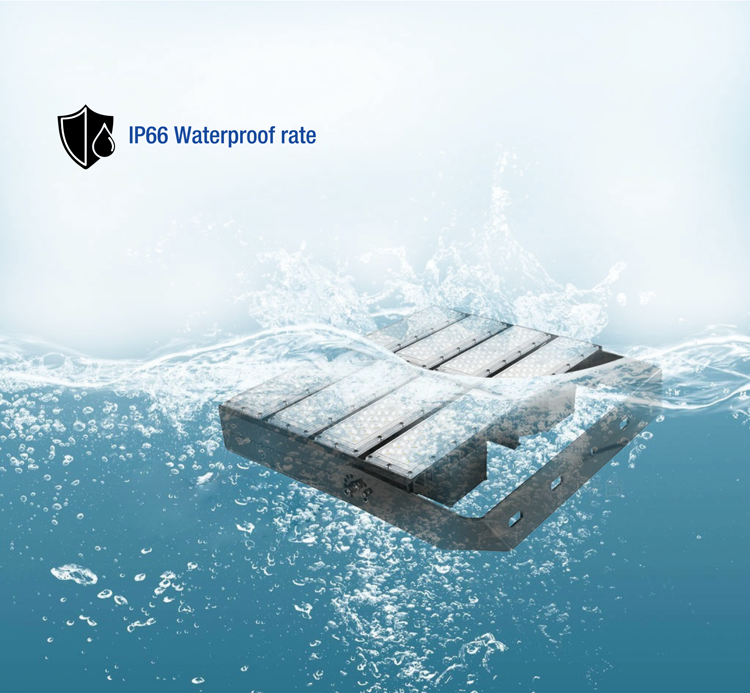

With excellent housing design reach IP66/IK10 rating.
Lifespan over 50,000 hours, 5 years warranty.

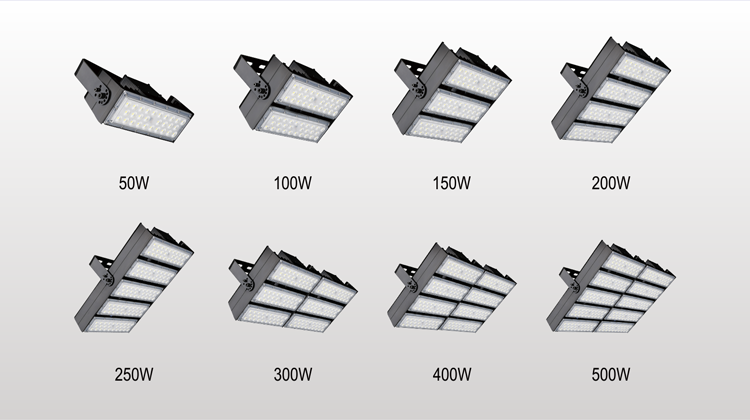

Technical Specifications (50W-200W Series)
| Part Number |
TFL-HB0601 |
TFL-LHB0602 |
TFL-HB0603 |
TFL-HB0604 |
| Wattage |
50W |
100W |
150W |
200W |
| Luminous Efficacy |
170-180lm/W |
| Beam Angle |
25°/45°/60°/90°/145x90°/Type V |
| CCT / CRI |
2800~6500K / ≥70 or ≥80 |
| IP & IK Rating |
IP66 & IK10 |
| Working Temp. |
-40℃~50℃ 20%~90% RH |
| Housing Material |
AL6063-T5 Black |
| Lifespan |
>50,000 Hrs |
Technical Specifications (250W-500W Series)
| Part Number |
TFL-HB0605 |
TFL-HB0606 |
TFL-HB0608 |
TFL-HB0610 |
| Wattage |
250W |
300W |
400W |
500W |
| Luminous Efficacy |
170-180lm/W |
| Beam Angle |
25°/45°/60°/90°/145x90°/Type V |
| IP & IK Rating |
IP66 & IK10 |
| Housing Material |
AL6063-T5 Black |

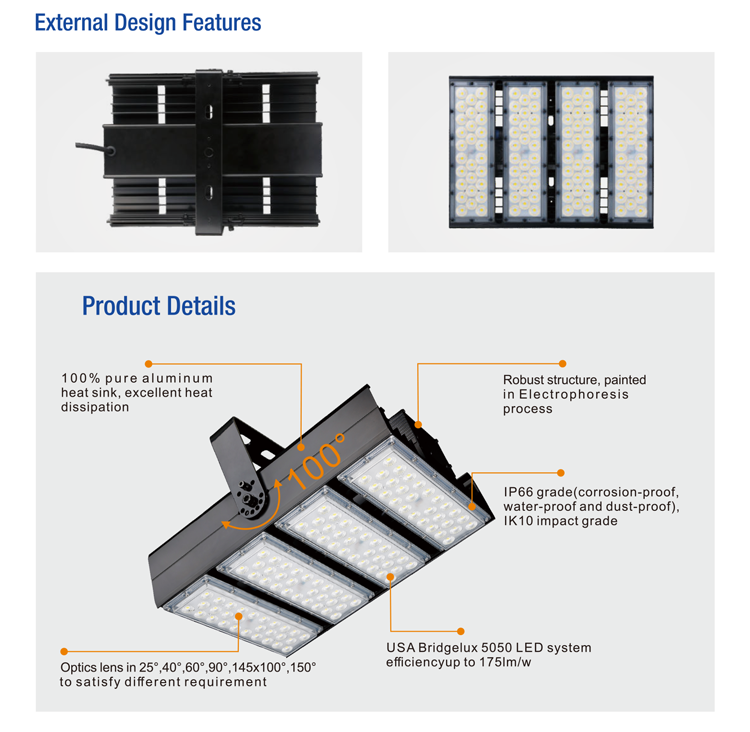

Design & Structure Showcase

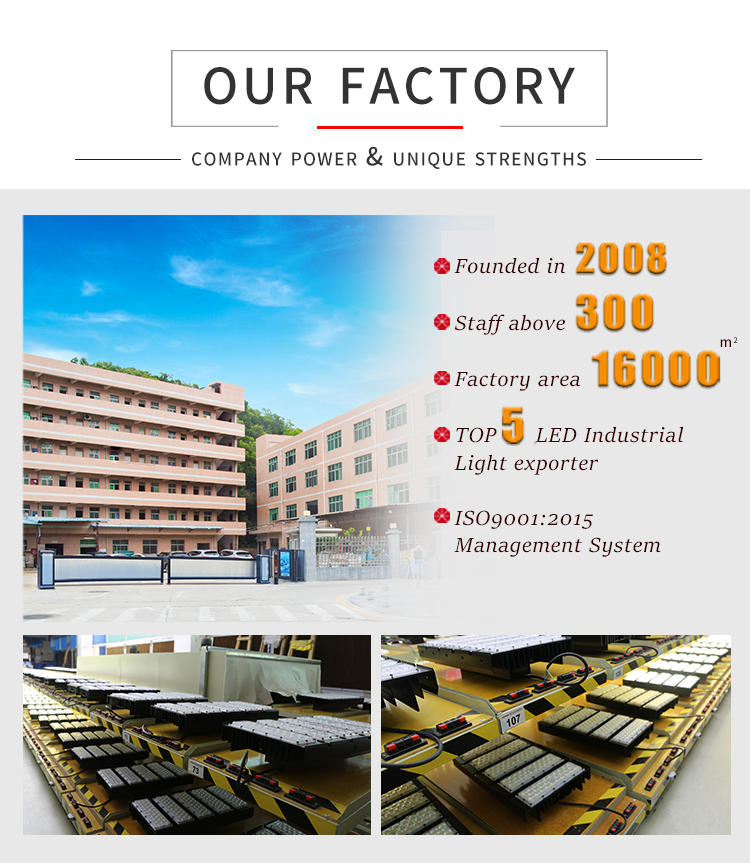

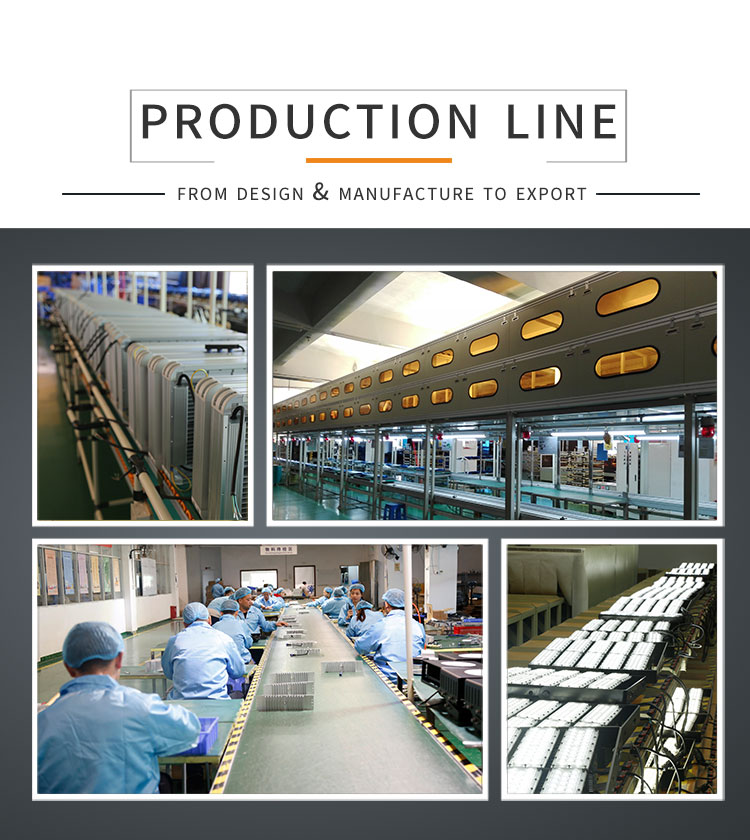

Production Line & Quality Control
Frequently Asked Questions
Q1. Can we customize labels or request OEM/ODM services?
Yes, we support both OEM and ODM services. We can use labels provided by you or design specific solutions based on your requirements.
Q2. How do these lights perform in seaside or high-salinity environments?
Our lights are built with high corrosion-resistant metals. The surface treatments, including electrostatic spraying and electrophoresis, effectively protect the fixtures from salt water corrosion.
Q3. Is it possible to order a single sample for testing?
Absolutely. Our Minimum Order Quantity (MOQ) is only 1 piece. We encourage sample testing to build confidence for long-term win-win cooperation.

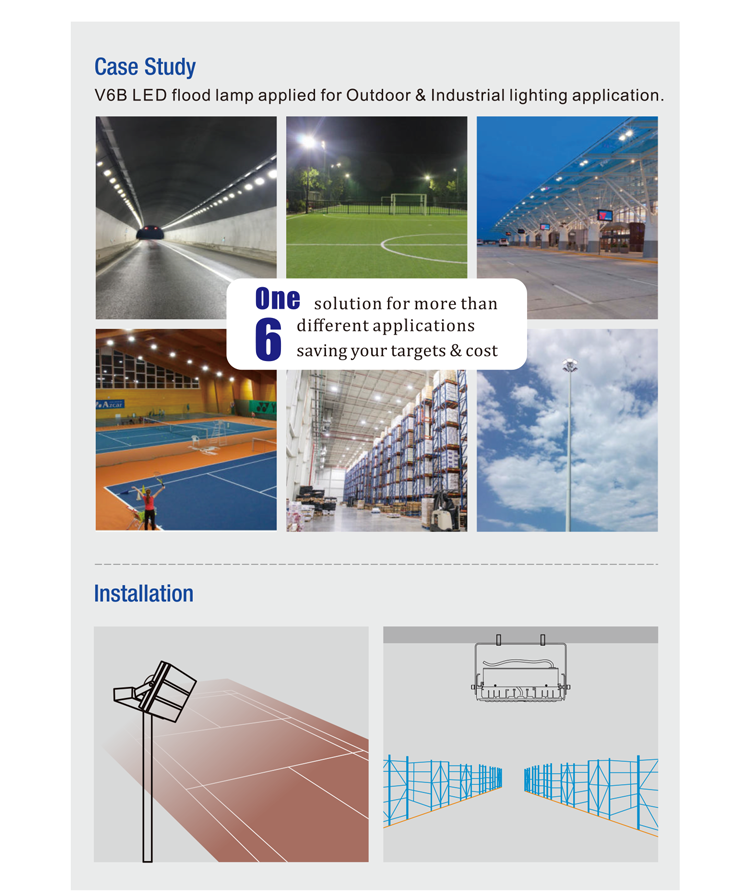

Q4. Can you assist with lighting design for stadium projects?
Yes, we are experts in outdoor high-power LED lighting. Our design team can provide complete solutions, and we can also provide IES files if you prefer to design the layout yourself.
Q5. What information is needed for a tennis or football court simulation?
To provide an accurate simulation, please provide: A) The area dimensions of the field; B) The location and height of the light poles; C) Your specific illumination (lux) requirements.
Q6. What is the expected lifespan and warranty of these flood lights?
These LED flood lights are designed for high durability with a lifespan exceeding 50,000 hours and come with a standard 5-year warranty.
