MARINE GRADE LIGHTING

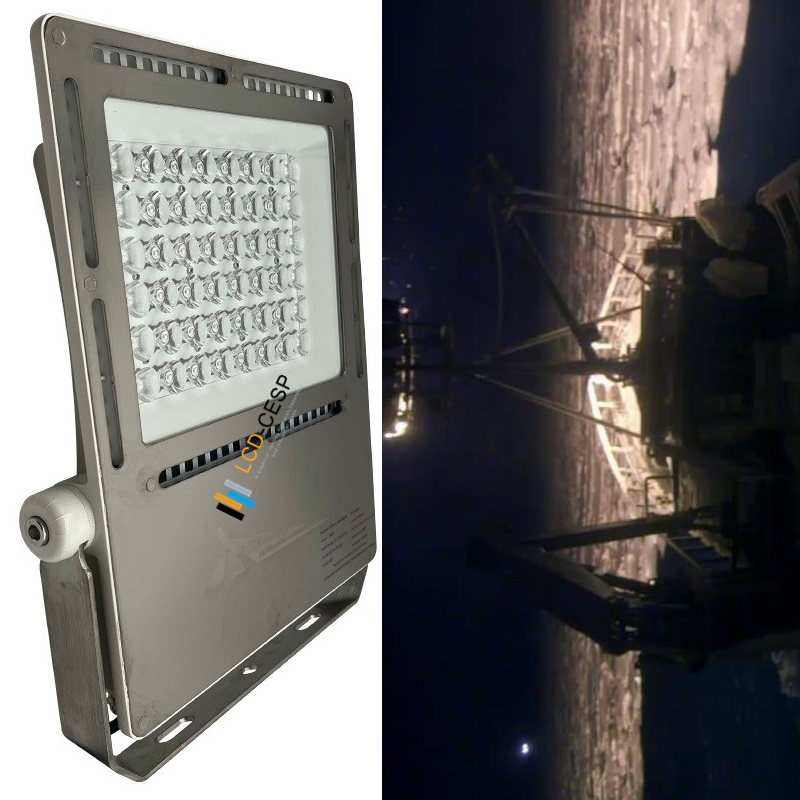

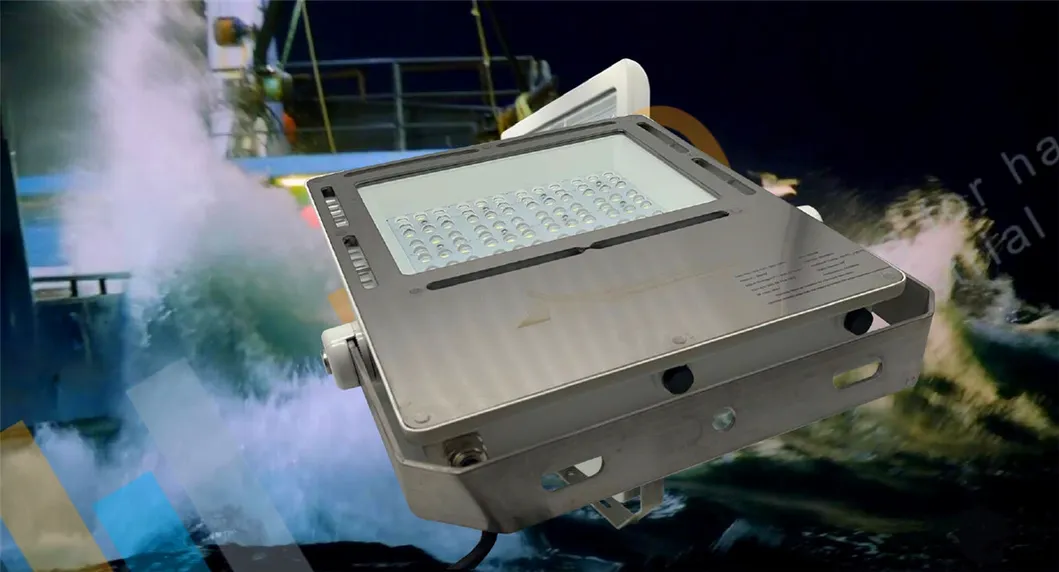

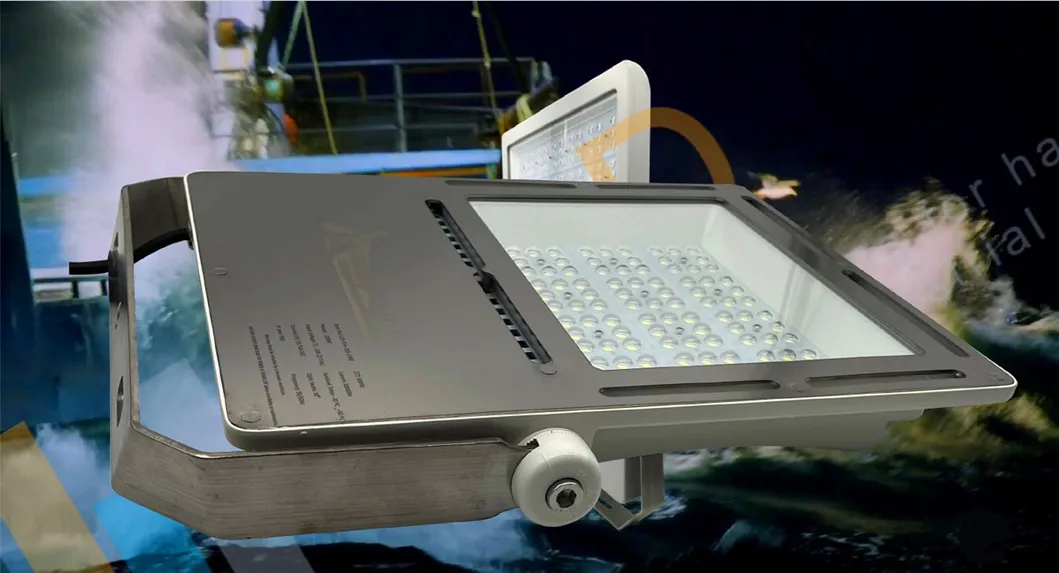

30x70 Degree IP67 3000K Warm White Marine LED Floodlights

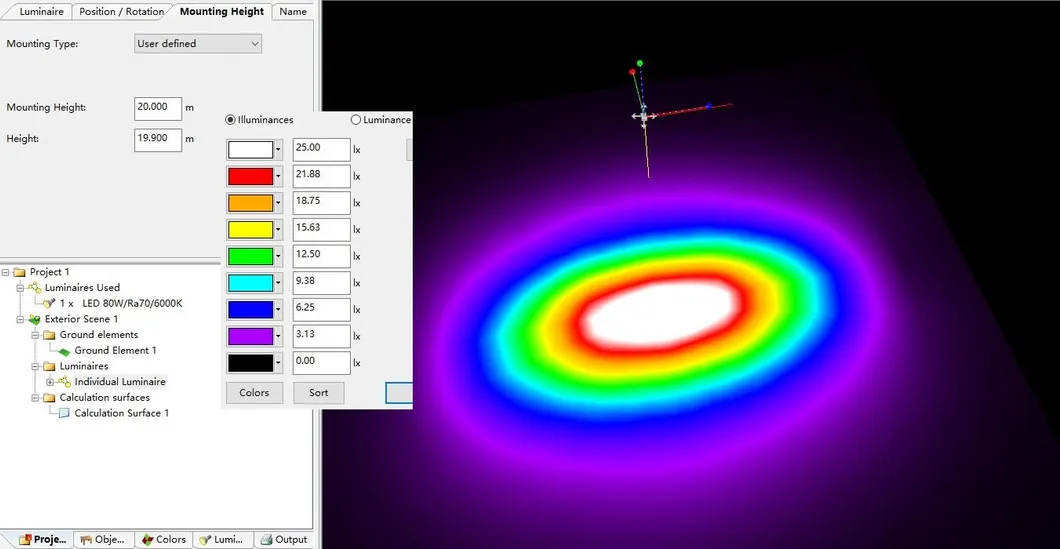

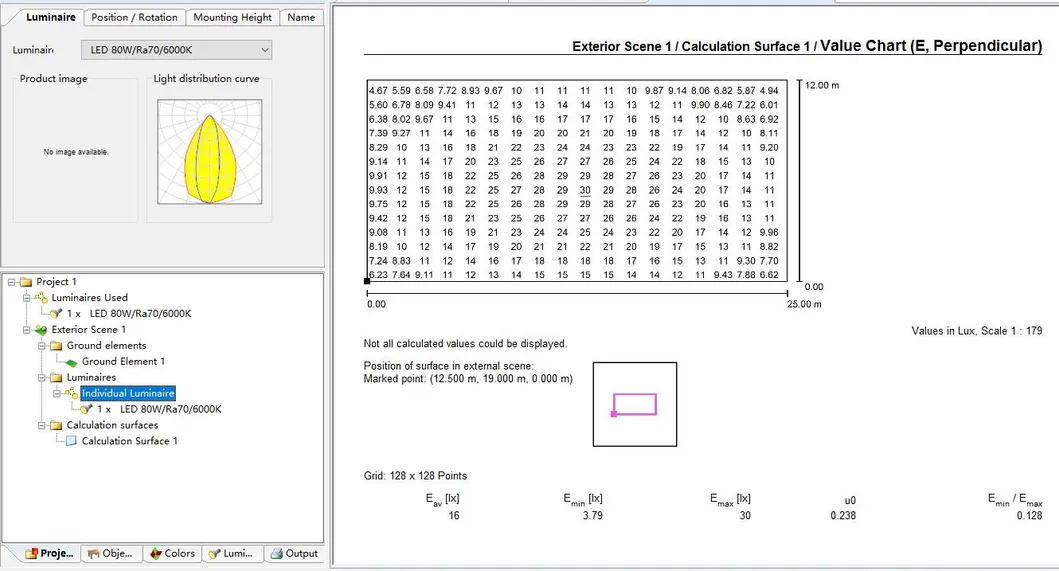

Led marine flood lights 80 watt optic beam 30x7 degree 100-277VAC 11600lm IP67 for a 20 meter long distance lighting solution.
Technical Specifications
| Optics Information |
Mounting Options |
- LED colour temperature: 3000K / 4000K / 6500K
- Colour rendering index (CRI): >80
- Upward Light Output Ratio (ULOR): 0%
- Luminous efficacy: Up to 155 lumen/w
|
- Adjustable stirrup & Bracket
- Weight: 3.4kg - 7.5kg
- Recommended height: 5-20 m
- Operating temp: -30°C to +55°C
|
Electrical Information
- Input voltage: 100-277VAC, 50-60Hz or 12-24VAC
- Power factor >0.95
- Surge protection: 2-4KV (Up to 20KV on request)
- Control protocol: 1-10V, DALI, or PLC dimmer
- EMC compatibility: EN 55015, EN 61547, EN 62493

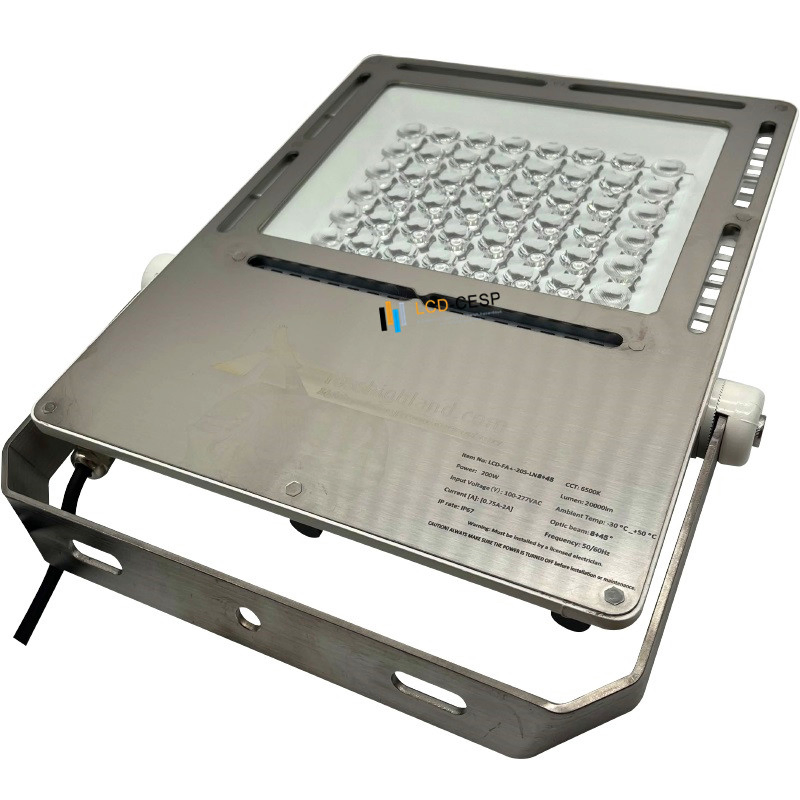

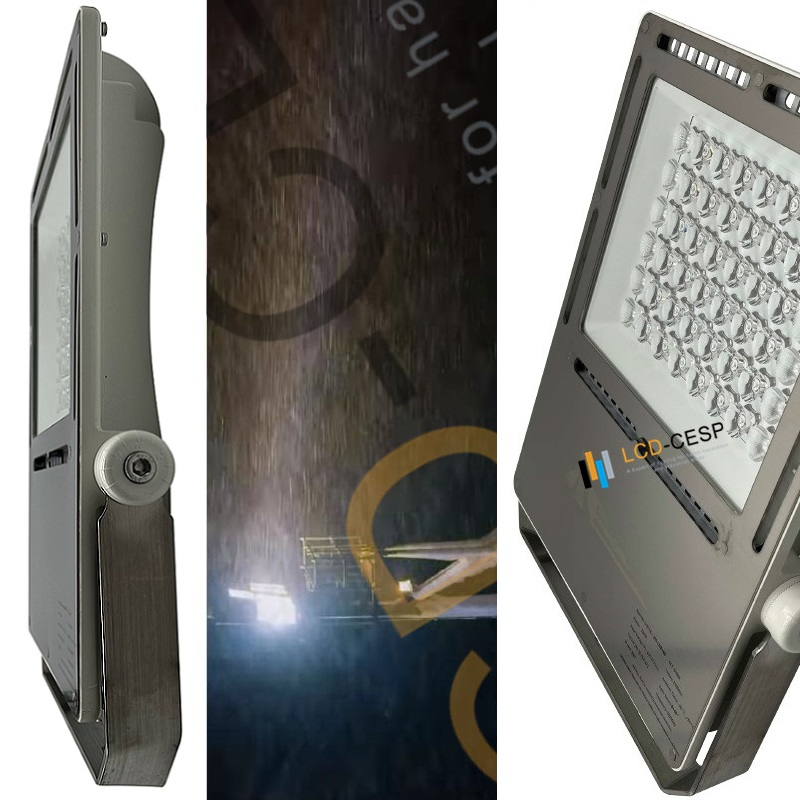

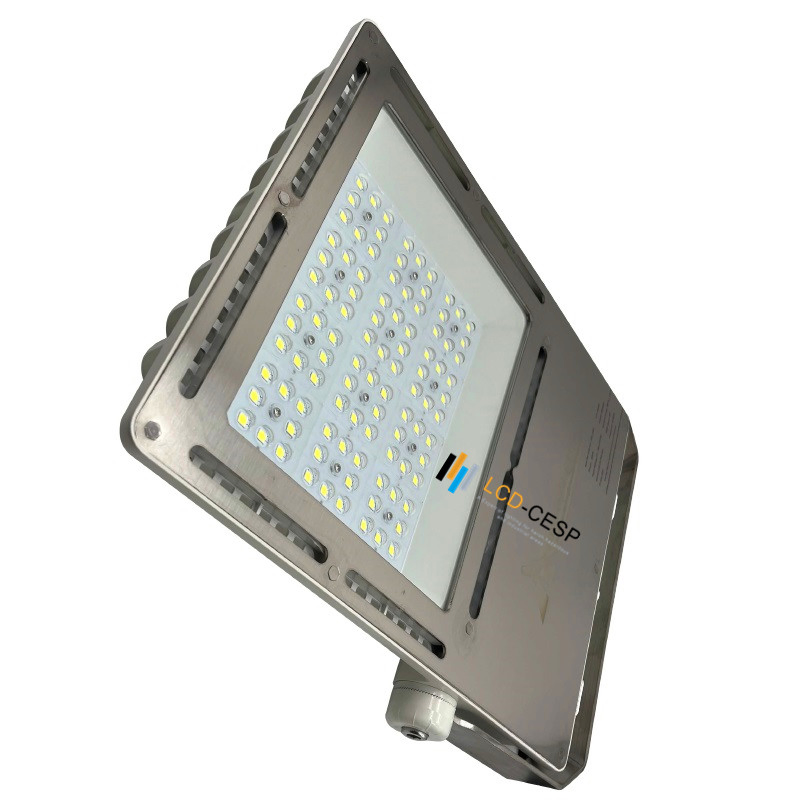

Product Construction & Features

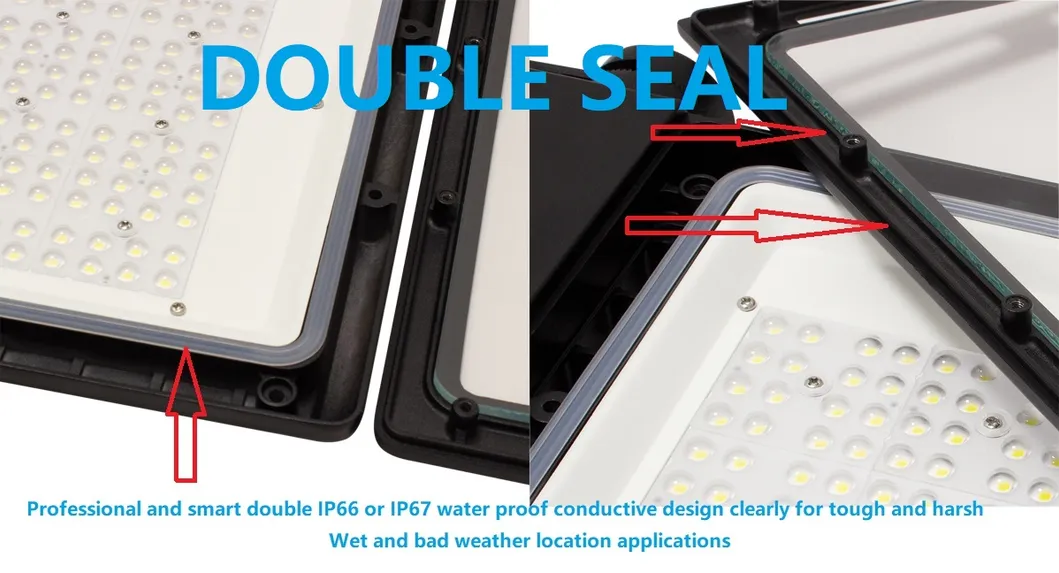

Specifically designed with the extra protections required to survive life on the open ocean. Featuring stainless-steel #316 brackets, copper circuit boards, tinned extra-long sheathed cables, and marine-grade gloss coating to protect the fixture from corrosion.

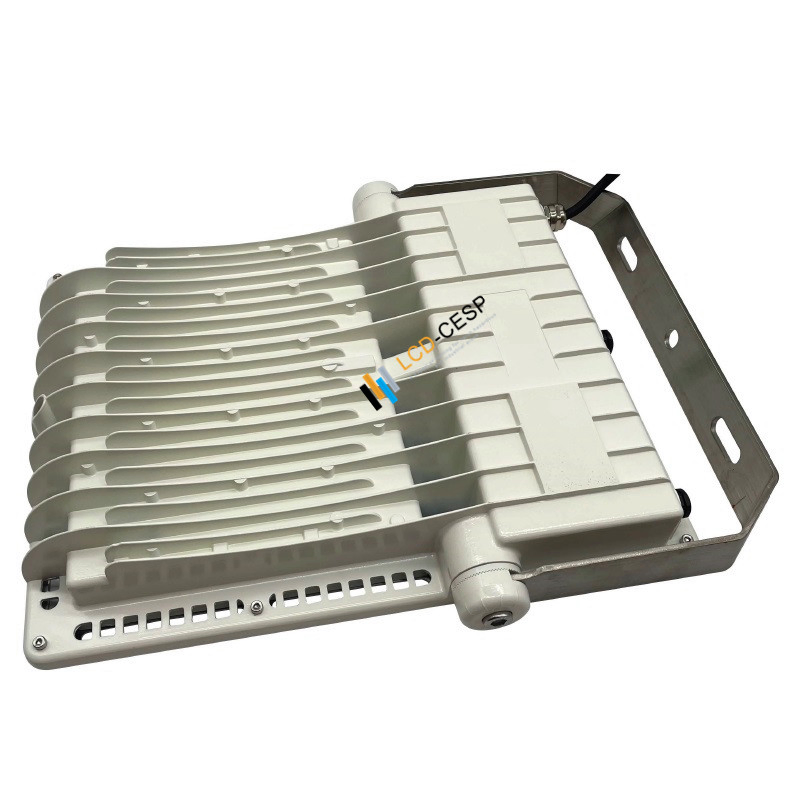

- Anodized low copper die-cast aluminum housing
- Marine grade hydrophobic gloss powder coating
- Impact & UV resistant PCB lens (IK08)
- Electronic thermal management system
- Vibration dampened & shock proof: 50-65 Grams
- Upgraded 316 trunnion bracket with aiming marks
Dimensional & Weight Data
| Item Name |
Dimensions (AxBxC MM) |
Weight (KG) |
| FA-085/105/153 IP67 Flood Light |
389.2x296.7x57 |
3.4 |
| FA-205 IP67 Flood Light |
436.6x345.7x57 |
4.8 |
| FA-255 IP67 Flood Light |
436.6x345.7x57 |
7.2 |
| FA-305/353 IP67 Flood Light |
582x385x60 |
7.5 |
Ideal Applications

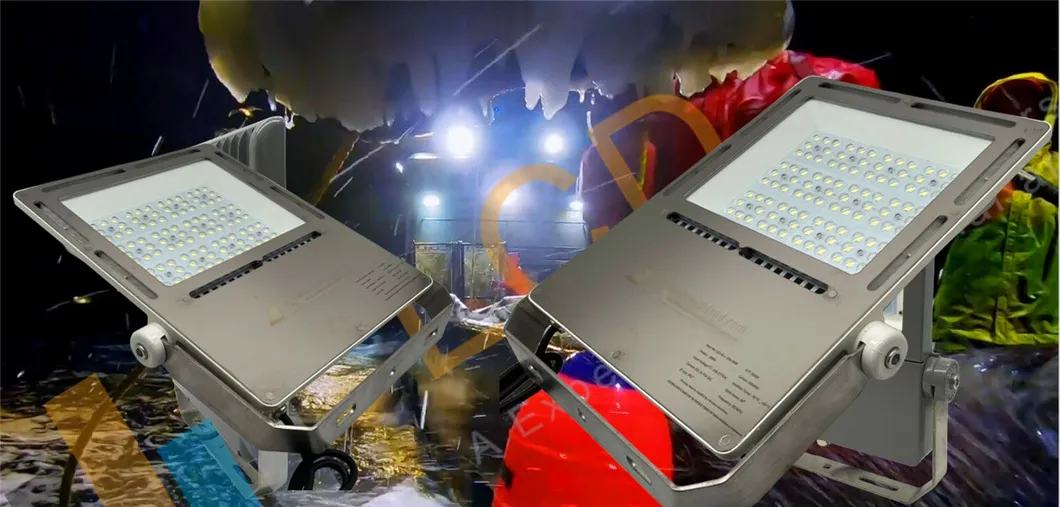

1. Maritime & Fishing: Fish processing, crabbing boats, seiners, trawlers, and deck lighting.
2. Professional Industrial: Sea ports, airports, bridges, gas & chemical industrial facilities, and stadium high mast lighting.
Module Specification (SCH-Module Series)
| Model Range |
50W - 500W Modules |
Lamp Body |
Aluminum Alloy |
| IP Rating |
IP65 / IP66 / IP67 |
Input Voltage |
90-360VAC |
| Beam Angles |
15°, 20°, 60°, 120°, 140° |
CRI |
≥Ra75 (Ra90 on request) |
| Working Life |
≥50,000 Hours |
Warranty |
5-7 Years |
Frequently Asked Questions
Q1: Are these floodlights suitable for saltwater environments?
Yes, these lights are specifically designed for offshore and maritime applications, featuring stainless steel 316 brackets and a marine-grade hydrophobic gloss powder coating to resist salt corrosion.
Q2: What is the typical lead time for bulk orders?
Samples are usually ready in 3-5 days, while bulk orders typically take 7-15 days depending on the quantity and customization requirements.
Q3: Do you offer dimmable options for marine lighting?
Yes, we provide several control protocols including 1-10V, DALI, and PLC dimming systems to suit different vessel and industrial requirements.
Q4: How is the quality of the LEDs ensured?
All products undergo a 100% inspection before shipping, including raw material tests, waterproof tests, functional tests, and a comprehensive burn-in test.
Q5: What is the warranty period for the FA Series?
We offer a 5 to 7-year warranty on the LED modules and drivers, and a 10-year warranty on the aluminum alloy housing.
Q6: Can the beam angle be customized for specific vessel layouts?
Absolutely. We offer 16 different optic beam configurations ranging from narrow spot (4-8 degrees) to extra wide flood and elliptical beams for side deck applications.
