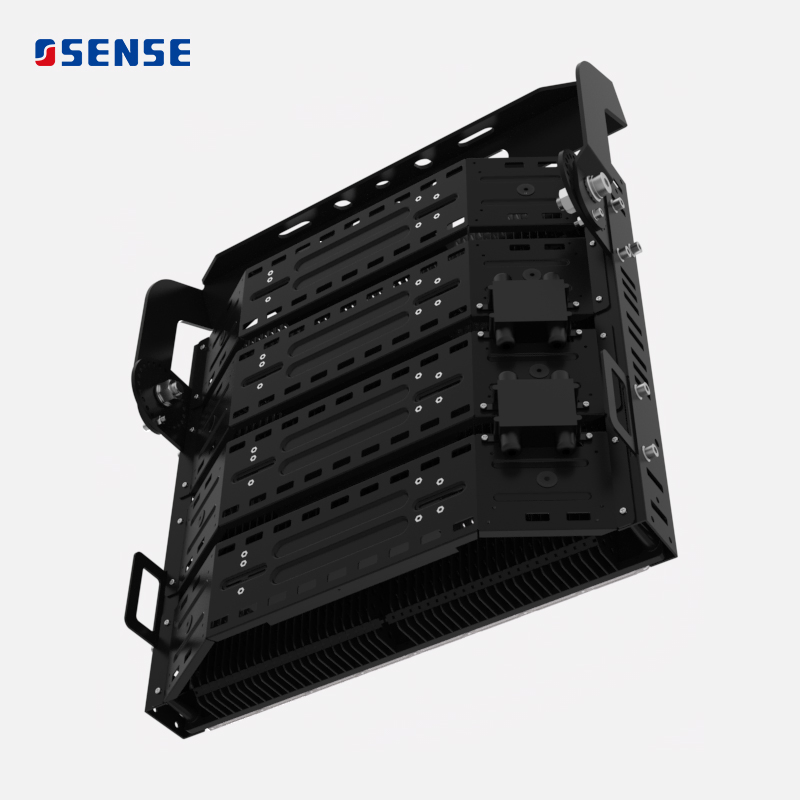

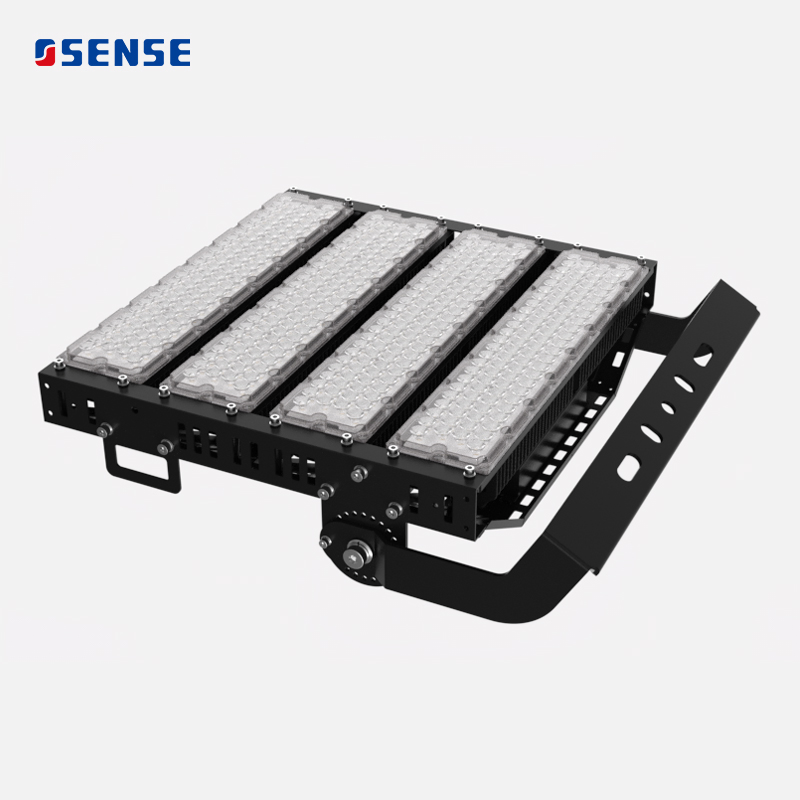

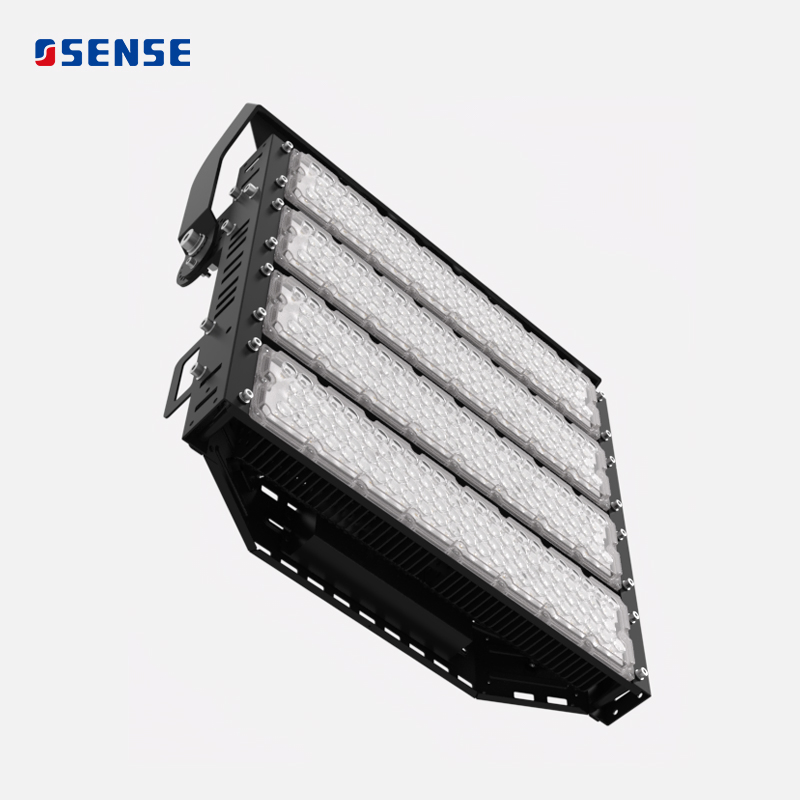

Outdoor Sport Lighting High Mast Floodlight 1000 Watt LED Flood Light Asymmetric

📋

Overview

Basic Info.

Model NO.SWT-MS 1000W

Projection Distance>35m

ApplicationPark, Square, Factory, Garden

IP RatingIP65

CertificationCCC, CE, EMC, RoHS

Operating Voltage110-240V

LED Chips BrandCREE

LED TypeSMD 5050r@24V / SMD 7070r@54V

CCT4000K/5000K/5700K

CRI>70

Sdcm7

Ik GradeIk08

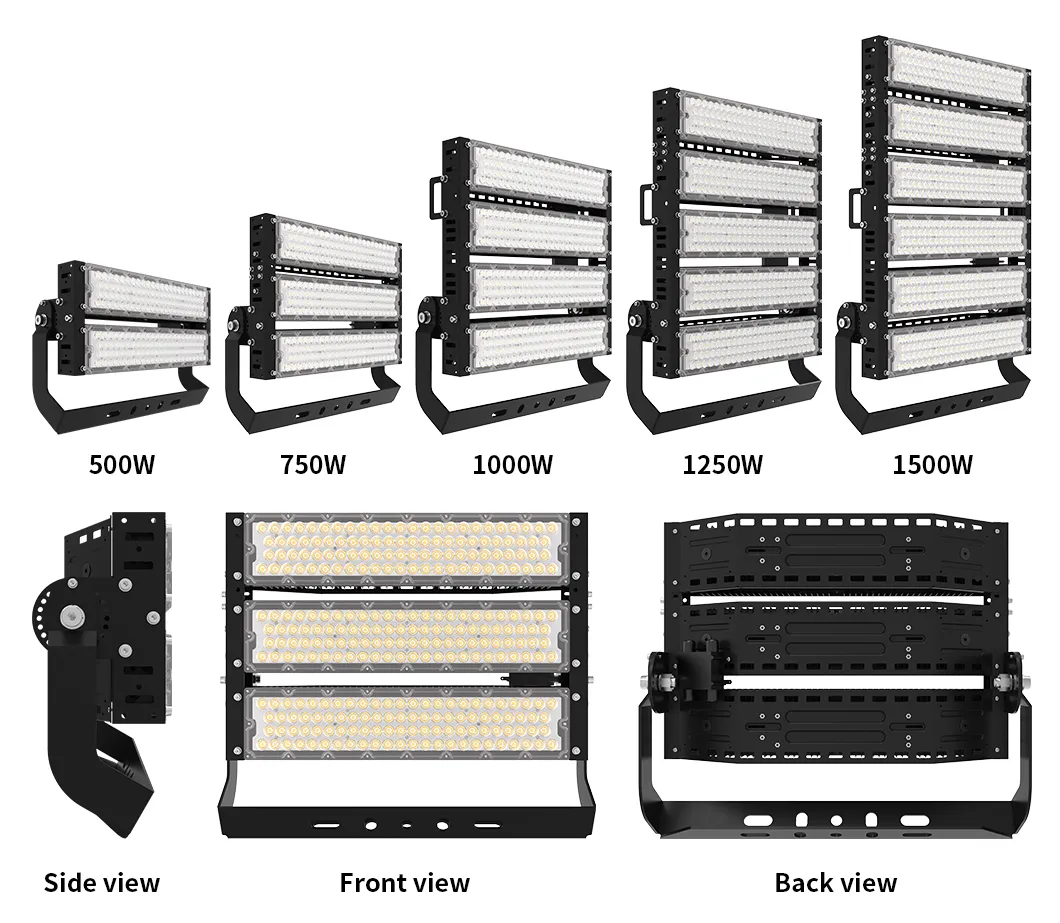

Power Range500W/750W/1000W/1250W/1500W

Input Frequency50/60Hz

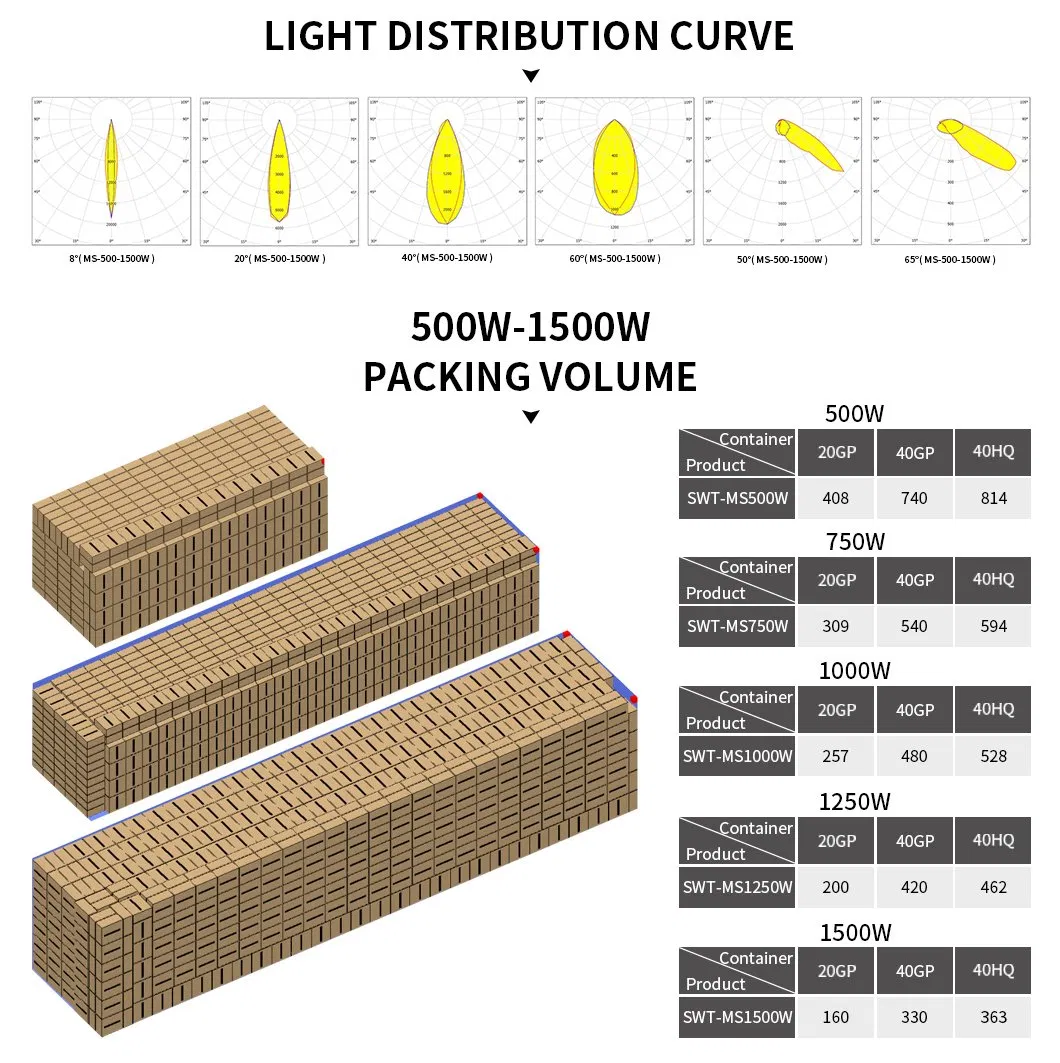

Beam Angle8°/20°/40°/60°/P50/P65

Power SurgeL-N 4kv, L/N-PE 6kv

Driver TypeMeanwell/Sosen/Moso/Inventronics

Thd<25%

Installation Method4 Types

Luminous Efficiency140lm/W(5050)&150lm/W(7070)

Housing ColorBlack or OEM

Material FeaturesLight Weight, Stable and Reliable Heat Dissipation

Transport PackageCartons

SpecificationADC12 die-casting

OriginChina

HS Code9405499000

Production Capacity20000PCS/Month

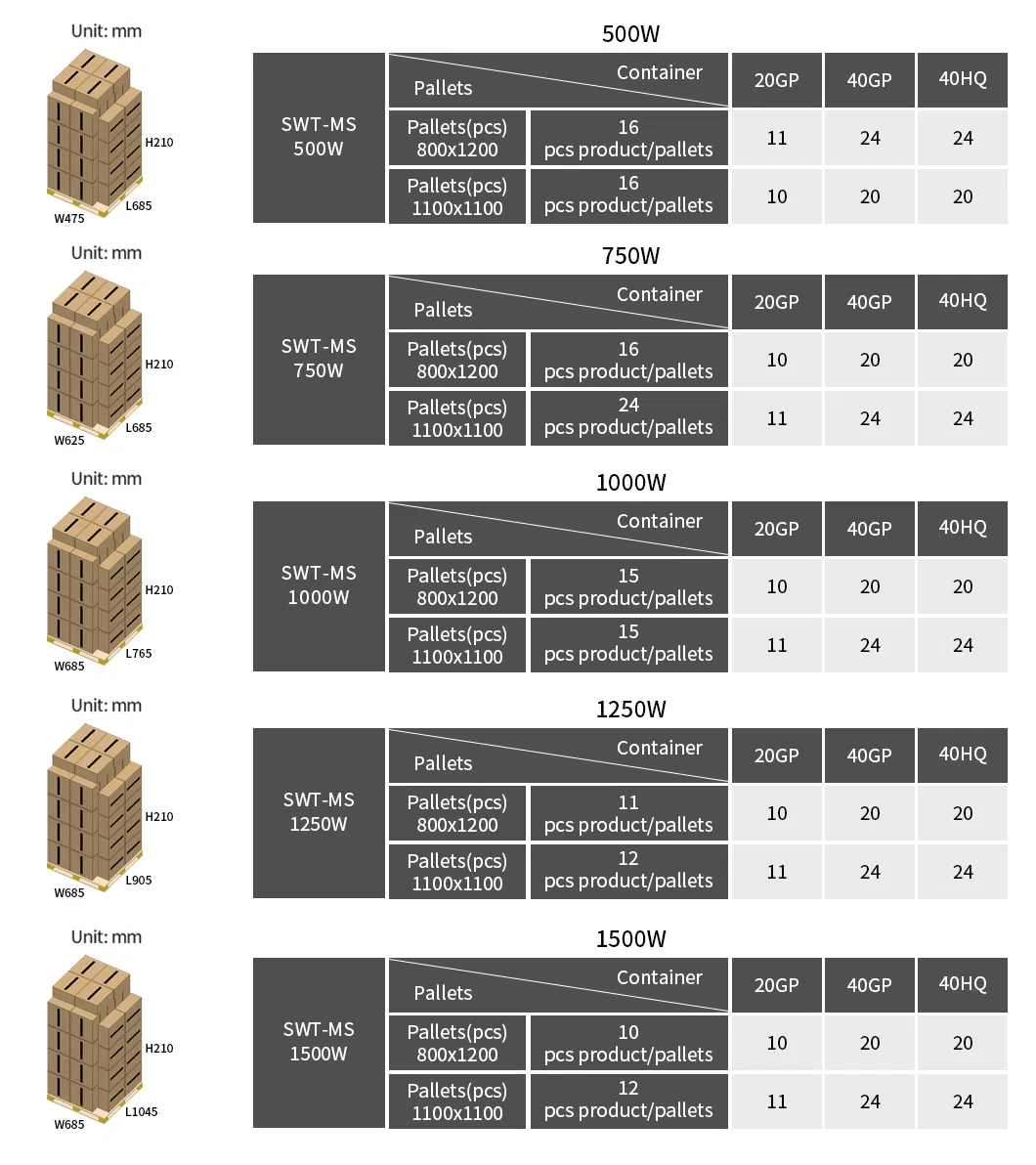

Packaging & Delivery

Package Size76.50cm * 67.50cm * 21.00cm

Package Gross Weight24.700kg

💡

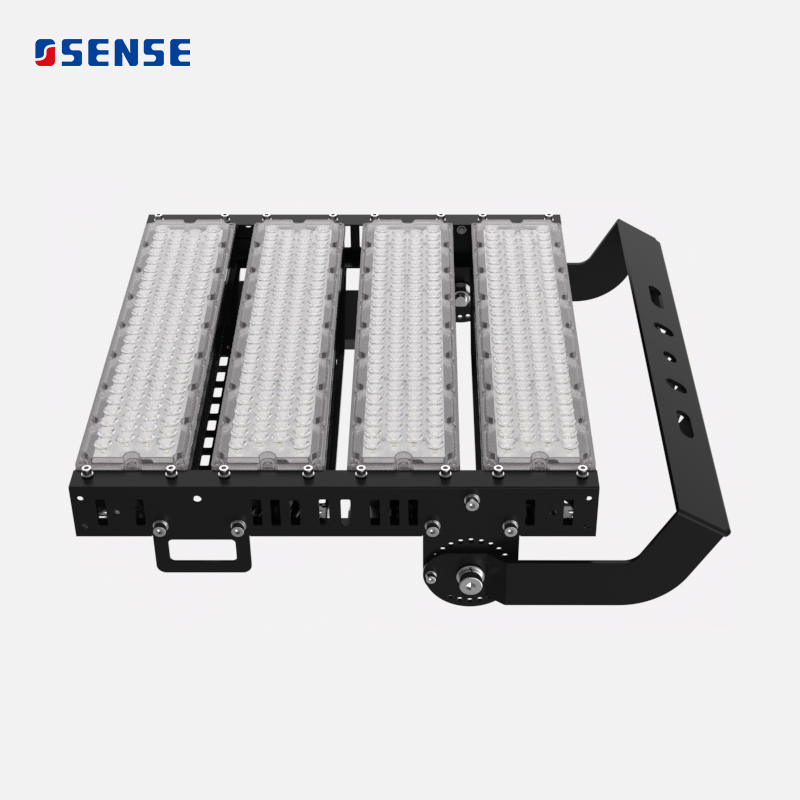

LED MS Stadium Light Features

Patent private mold, integrated Die-casting

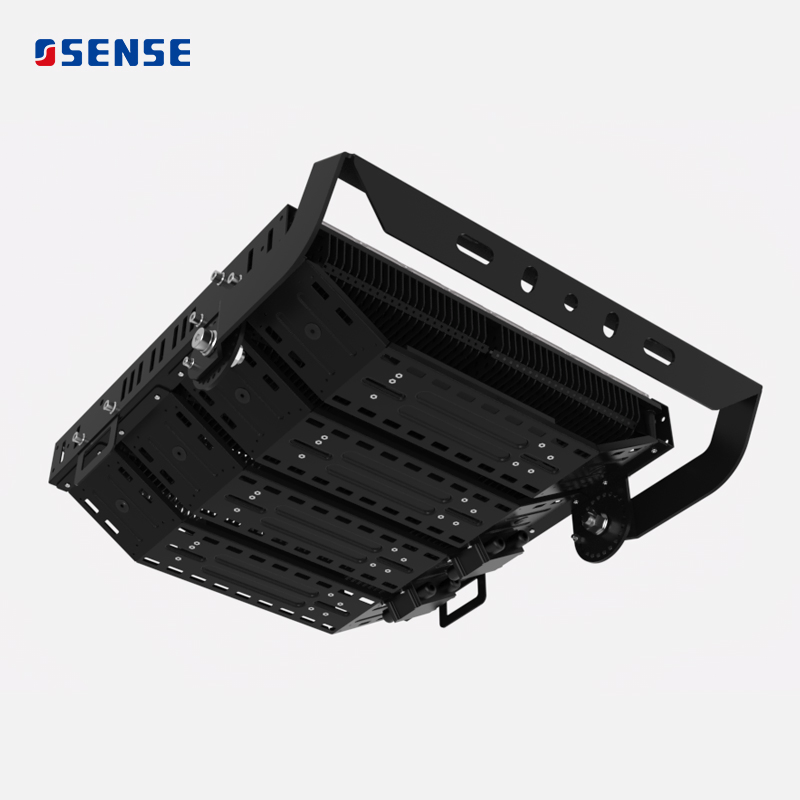

Die-casting + fin designed stadium lights are 20%-30% lighter than die-casting products of the same power
IP65 rated for external illumination
LED Chips and Driver can be changed according to the requirement
Equipped with High efficiency and power factor-led driver
Dimming optional, 0-10V / DALI / Time control available
Lifetime of LED'S : Tq =45°, >50000h - L70B50
96-in-1 LED5050 solution design, high luminous efficiency, long life, up to 150lm/w
Unique polarized 50°/65° optical design meets 0° elevation angle installation requirements, low UGR

⚙️

GENERAL INFORMATION		ELECTRIC INFORMATION
Mounting Module	Bracket system	Electrical Class	Class I
Operating Temperature	-30ºC/+45ºC	Nominal Voltage	100-240VAC/100-277VAC/180-528VAC 50Hz/60Hz
Storage Temperature	-30ºC/+80ºC	LED Current	SMD5050 160mA@24V SMD7070 160mA@54V SMD3535 350mA@3V
Lens Options	8°;20°;40°;60°;90°;P50;P65	LED Lamp Power	500W(70000Lm) 750W(105000Lm) 1000W(140000Lm) 1250W(175000Lm) 1500W(210000Lm)
Main Reference Standard	EN 60598-1; EN60598-2-1; EN62493; EN55015; EN 61000-3-2; EN61000-3-3; EN61547; EN62471 IEC 60598-1:2003;IEC 60598-1:2008; IEC 60598-2-1:1987;IEC 60598-2-3:2002; IEC 60838-1:2004;IEC 60838-2-2:2006; IEC/PR 61341:2010;IEC 61347-1:2007; IEC 61347-2-13:2006;IEC 62031-2008; GB 7000.1; GB 7000.201; GB17743; GB17625.1	Power Factor	≥0.95(at full load)
		Flickering Percentage	≤8%;≤3% (optional)
		THD	≤20%
		Driver Brand	Meanwell/Moso/Sosen/INVENTRONICS
		Surge protection options (kV)	L-N 4KV,L/N-PE 6KV@Meanwell L-N 6KV,L/N-PE 10KV@Moso/Sosen/INVENTRONICS 10kV (optional) with LED signal and thermo fuse to disconnect load at the end of life 20kV (optional) with LED signal and thermo fuse to disconnect load at the end of life
		Control system	DALI/1-10v/0-10v/DMX512 dimming, optional microwave induction function
		Mains connection	For cable max section 2.5mm2 Outgoing cable H05RN-F 2/3/5 × 1.5mm2 Length on request (optional)

HOUSING AND MATERIALS		OPTICAL INFORMATION
Housing	ADC 12 die-casting +AL 1070 pure aluminum	Led color temperature	4000K , 5000K ,5700K,
Optic	PC	CRI	CRI≥70; CRI≥80(optional); CRI≥90(optional); TLCI is an option available upon request
Housing Finish	Powder spraying surface treatment, corrosion resistance	CRI
Refractor	PC UV0	LED Brand	CREE;Nichia
Standard Colour	RAL9017 Black;RAL9007 Gray(optional)	Upward light output ratio	0%
IP	IP65	Photobiological safety class	IEC 62471, EN 62778 EXEMPT GROUP
Impact Housing Resistance	IK08 (5 J) IK09 (optional) (10 J), IK10 (optional) (20 J)	Testing standard	LM 79-19, EN 13032-1 (all measurements in ISO17025 accredited laboratory)
Impact Lens Resistance	IK08 (5 J)	Lifetime of the LED's	Tq =45°,>50000h - L70B50
Vibration Test	Compliant with modified IEC 68-2-6 (0.5G), ANSI C136.31 (3G)	Lifetime of the LED's	Tq =45°,>50000h - L70B50
