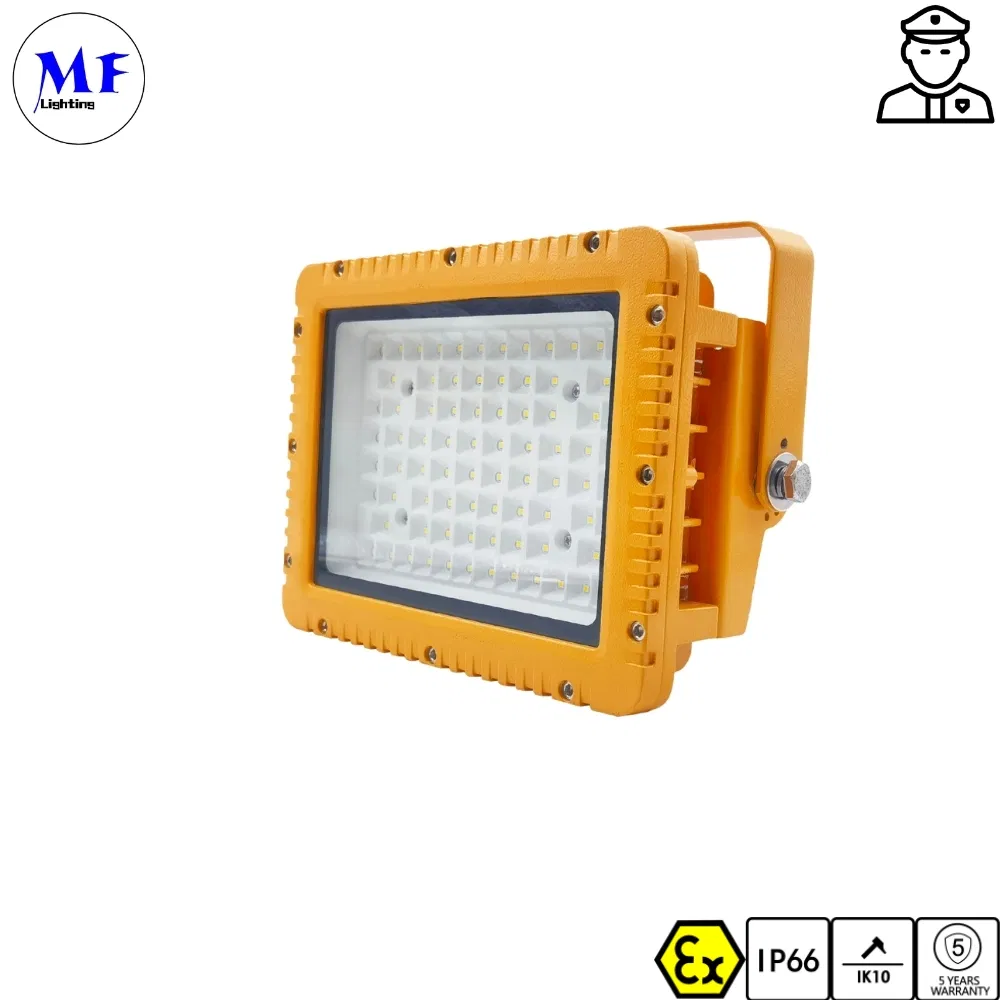

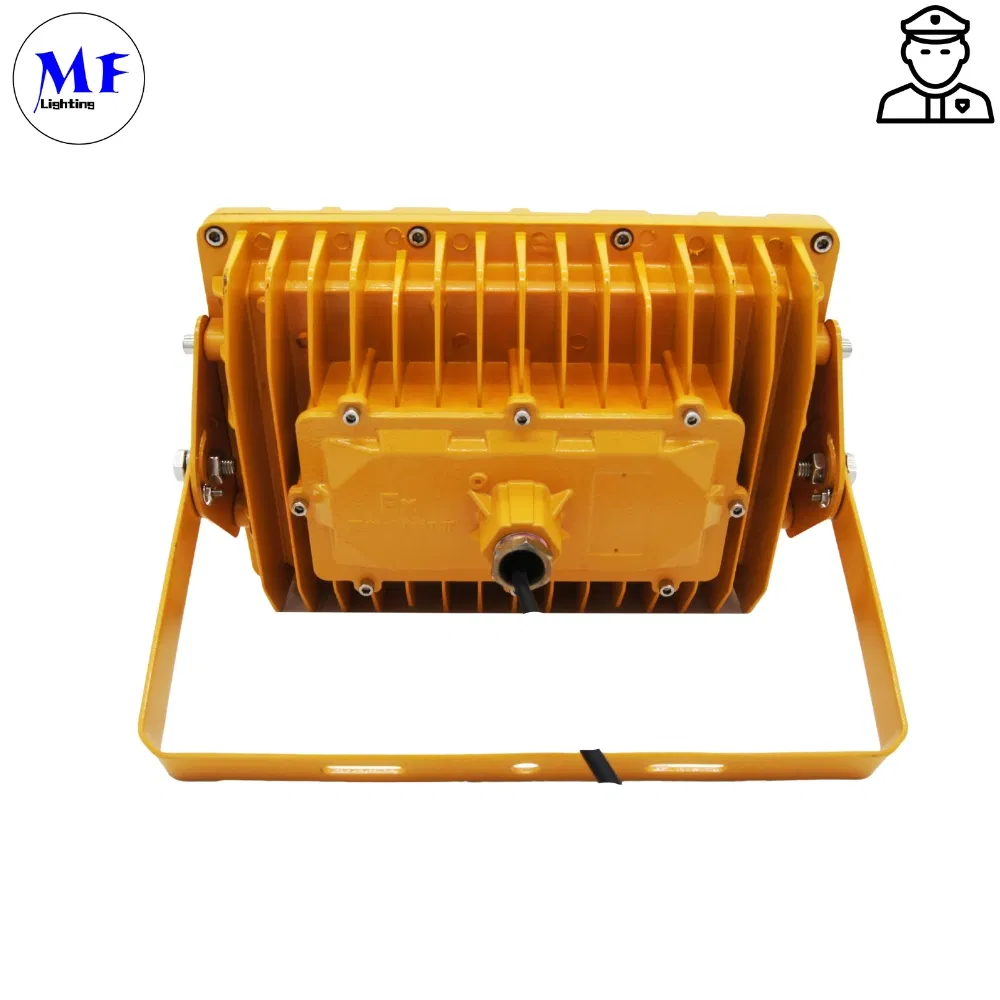

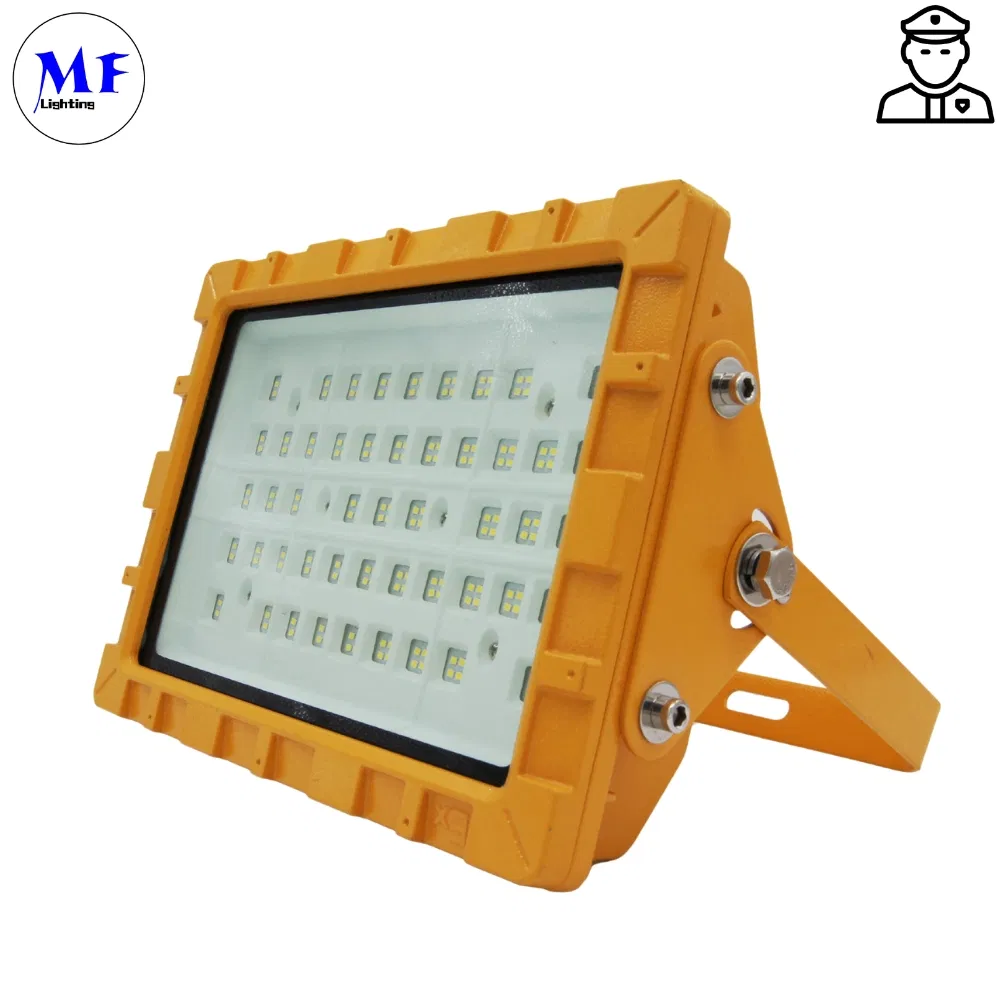

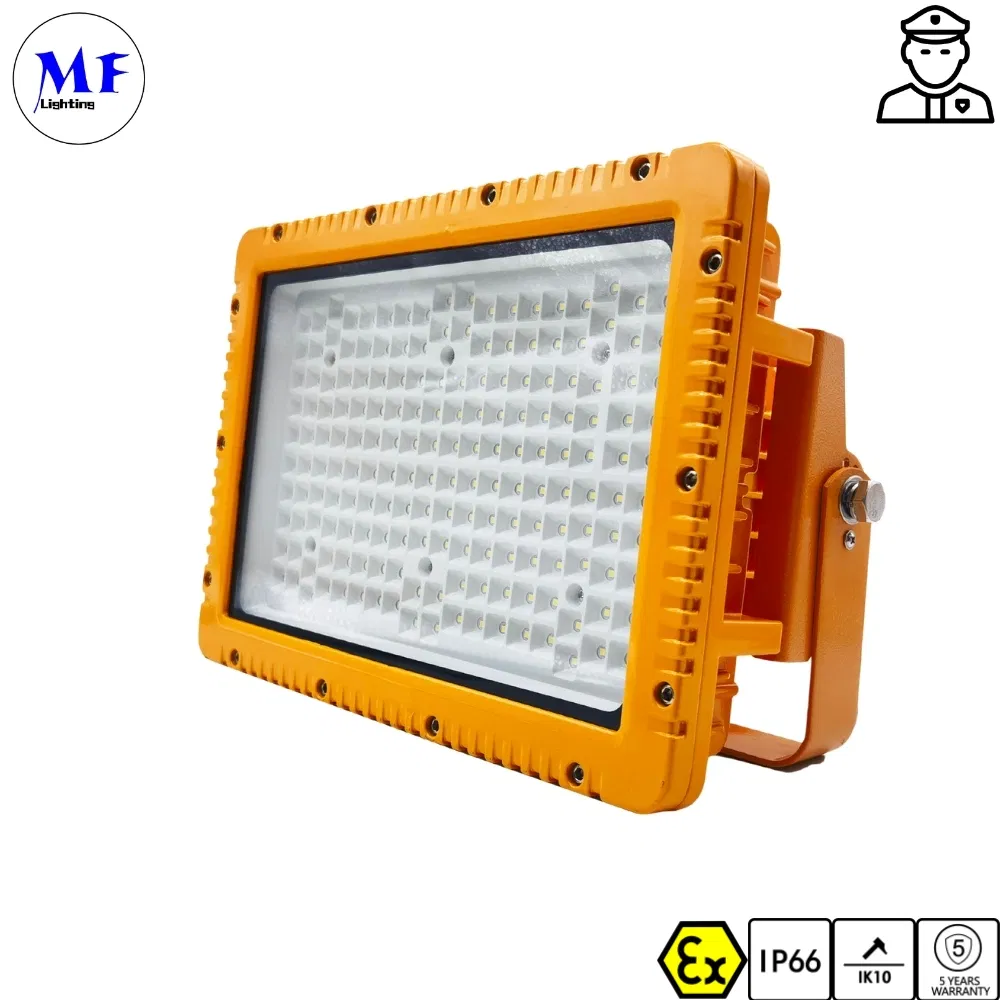

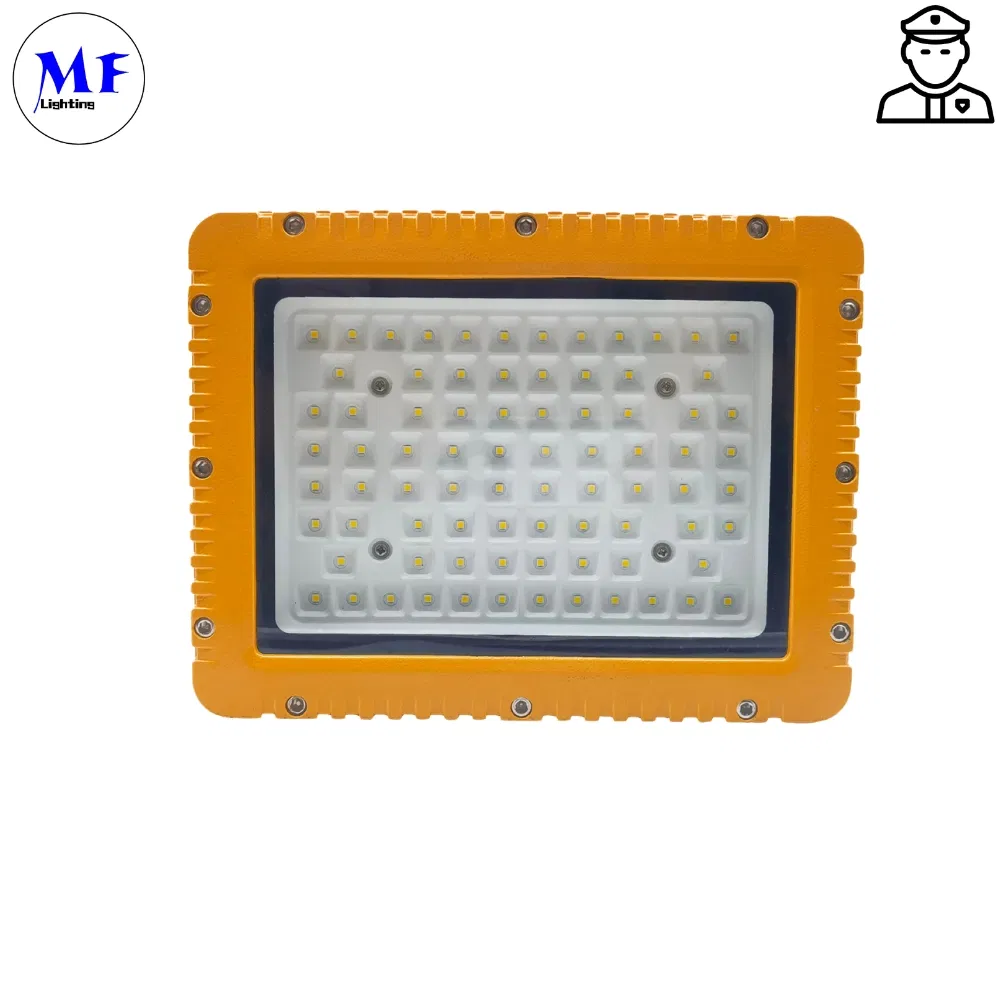

Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
1 / 5
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard
Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard

Factory Price IP66 Ik10 ATEX Explosion-Proof LED Flood Light 50W 100W 200W 240W Explosion Proof Flood Light LED Professional Lighting for Marine Offshore Yard

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
MF Security Man 5
Base Type
E26
Irradiated Area
≥30m²
Input Voltage
AC200-250V / DC12-48V
Power
30W - 240W Options
Color Temp
2000K-7000K
LED Chips
CREE/Lumen/Atmospherics
Certification
ATEX, IECEx, CE, RoHS, UL844
CRI
>80ra
Material
Aluminum+Stainless Steel+Tempered Glass
Luminous Flux
140lm/W
IP Rate
IP66 / IK10
Warranty
5 Years
Lifespan
>50,000 hours
Origin
China

Product Description

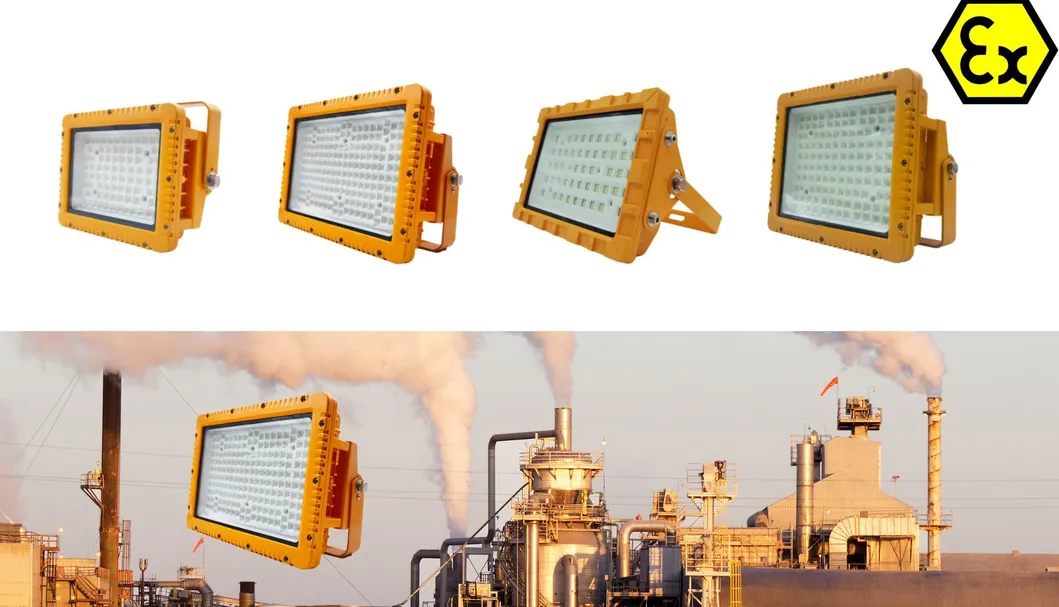

Explosion-Proof LED Flood Light

Atex EX IECEx IK10 IP66 Dustproof Explosion Proof LED Flood Light (50W-240W) for Marine Offshore and Storage Yard

Key Features

⚡ Working Temperature: -40°C ~ +55°C
💎 High quality SMT LED & High impact resistance
🔧 Replaceable LED board and drivers
🔋 Dimmable and battery back up function available
🌊 Marine rating powder coated finish
🛡️ Up to 5 years warranty

Certifications & Markings

  • ⭐ ATEX: II 2 G Ex eb mb IIC T6...T4 Gb
  • ⭐ IECEx: Ex eb mb IIC T6...T4 Gb
  • ⭐ UL844: Class I, Div 2; Class II, Div 1&2; Class III
  • ⭐ Marine: UL 1598, UL1598A, ABS
  • ⭐ Protection: IP66 & IK10

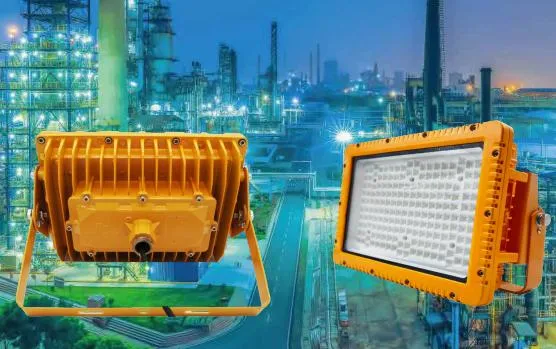

Marking Detail

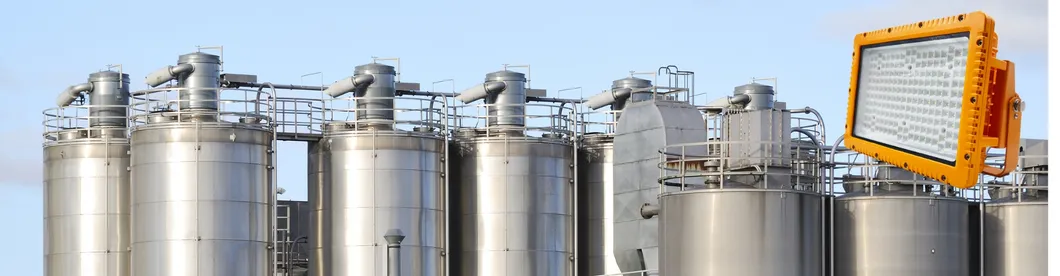

Certification Banner

Technical Specifications

Product Number Wattage CCT Voltage Lumens Warranty CRI
EX-30W/50W/60W 30W-60W 2200-7000K AC200-250V 4200-8400 5 Years 70/80
EX-80W/100W 80W-100W 2200-7000K AC200-250V 11200-14000 5 Years 70/80
EX-150W/180W/200W 150W-200W 2200-7000K AC200-250V 21000-28000 5 Years 70/80
EX-240W 240W 2200-7000K AC200-250V 33600 5 Years 70/80

Dimensions & Light Distribution

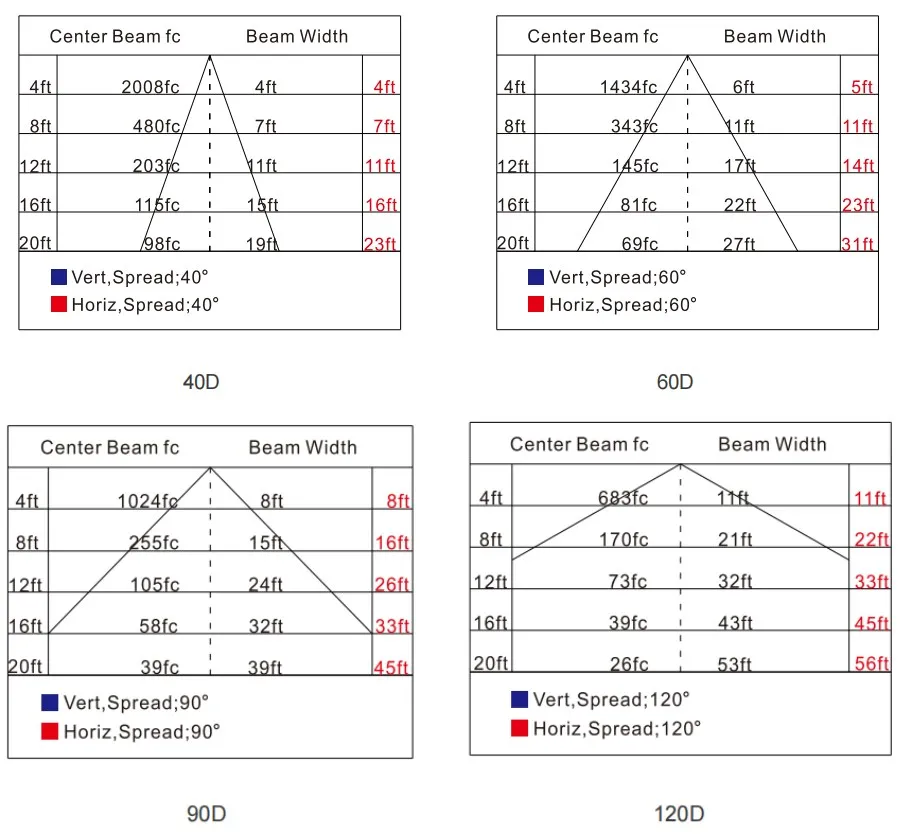

Light Distribution

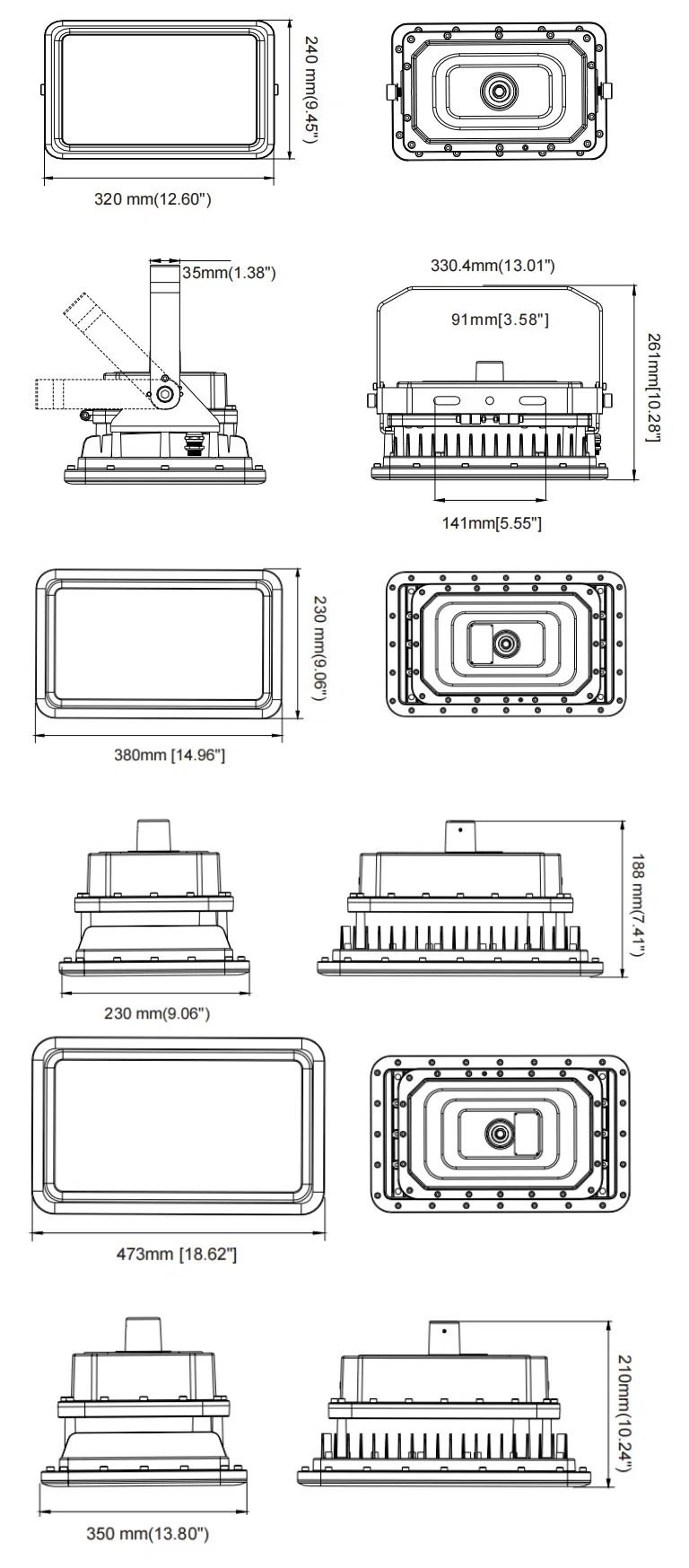

Dimensions

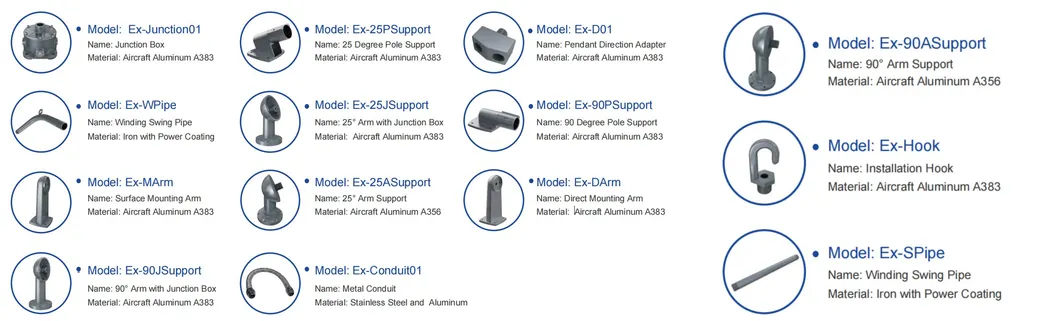

Mounting Options

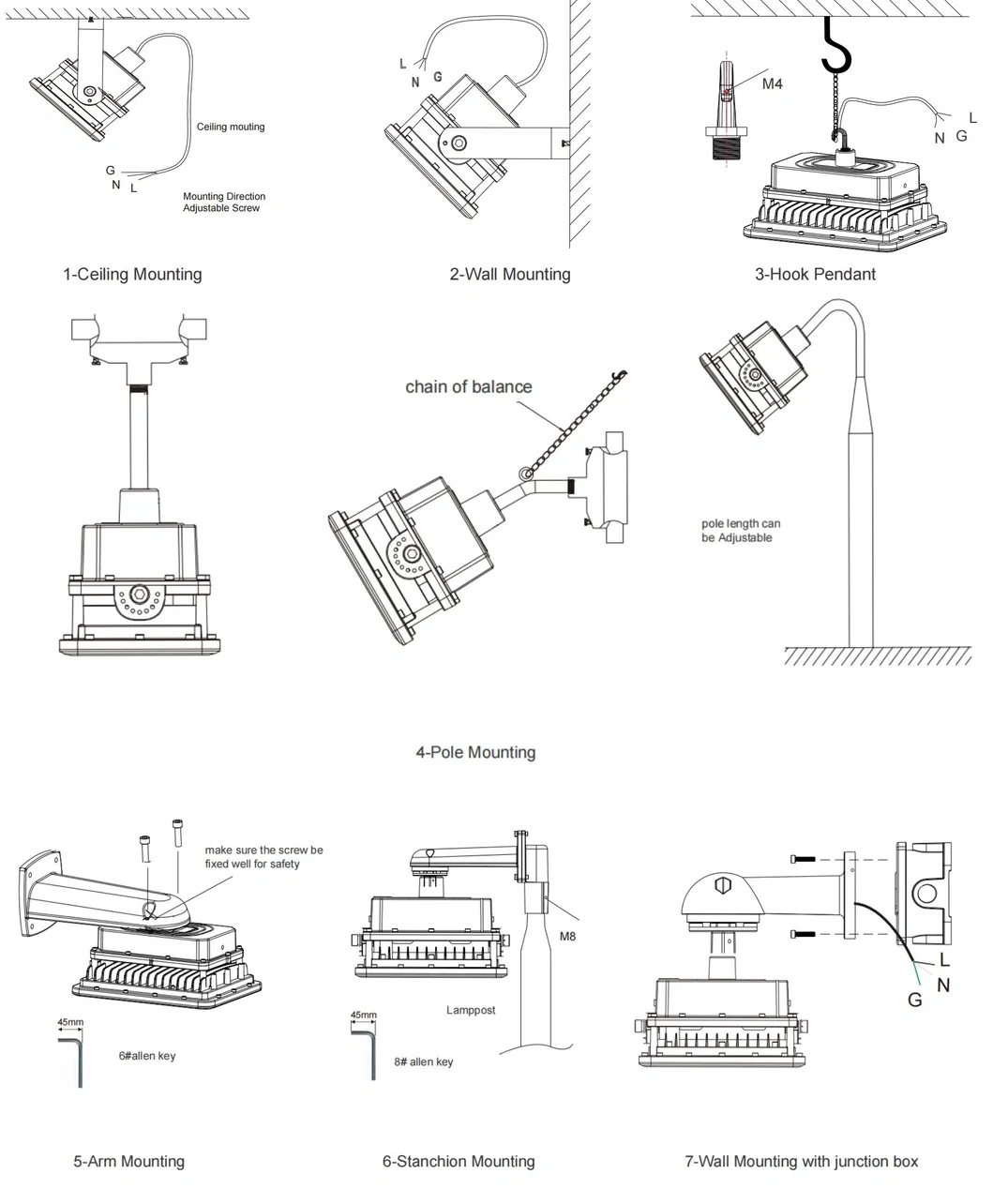

Mounting Methods

Industrial Applications

Application 1

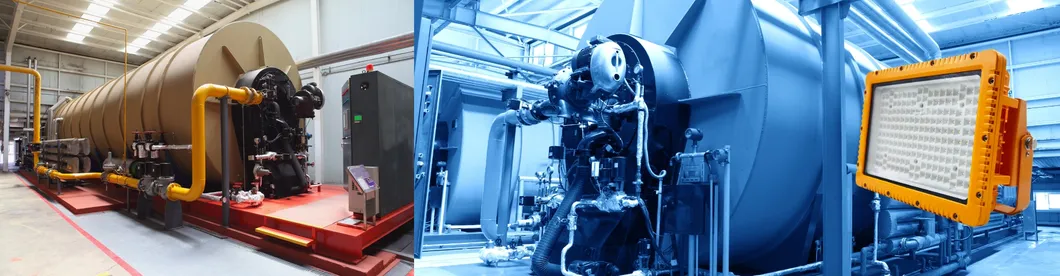

Application 2

🔥 Oil & Gas: Refining, loading, transportation, and LNG industry.

🧪 Chemical: Paint facilities, chemical production, and storage.

🏗️ Metal Treatment: Steel factories, smelting, and foundry operations.

🚢 Marine & Aerospace: Ocean platforms, vessels, and clean room facilities.

🌾 Food & Alcohol: Flour production, distilling, and high-dust environments.

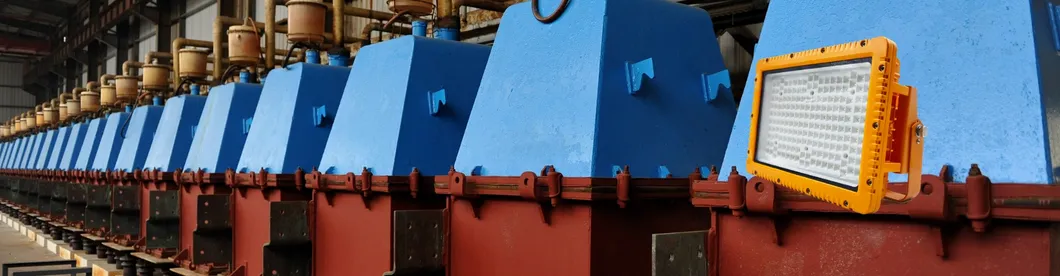

Application 3
Application 4

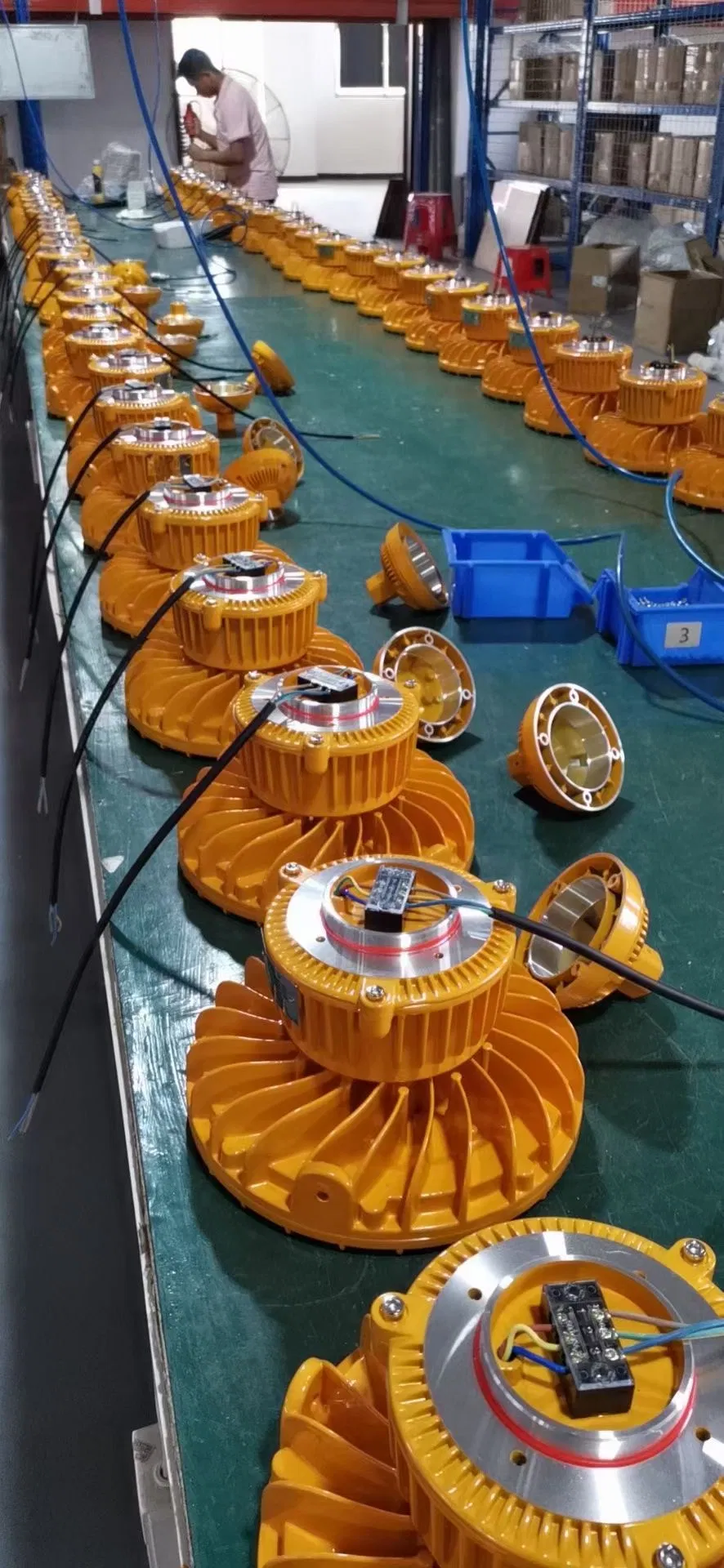

Live Application

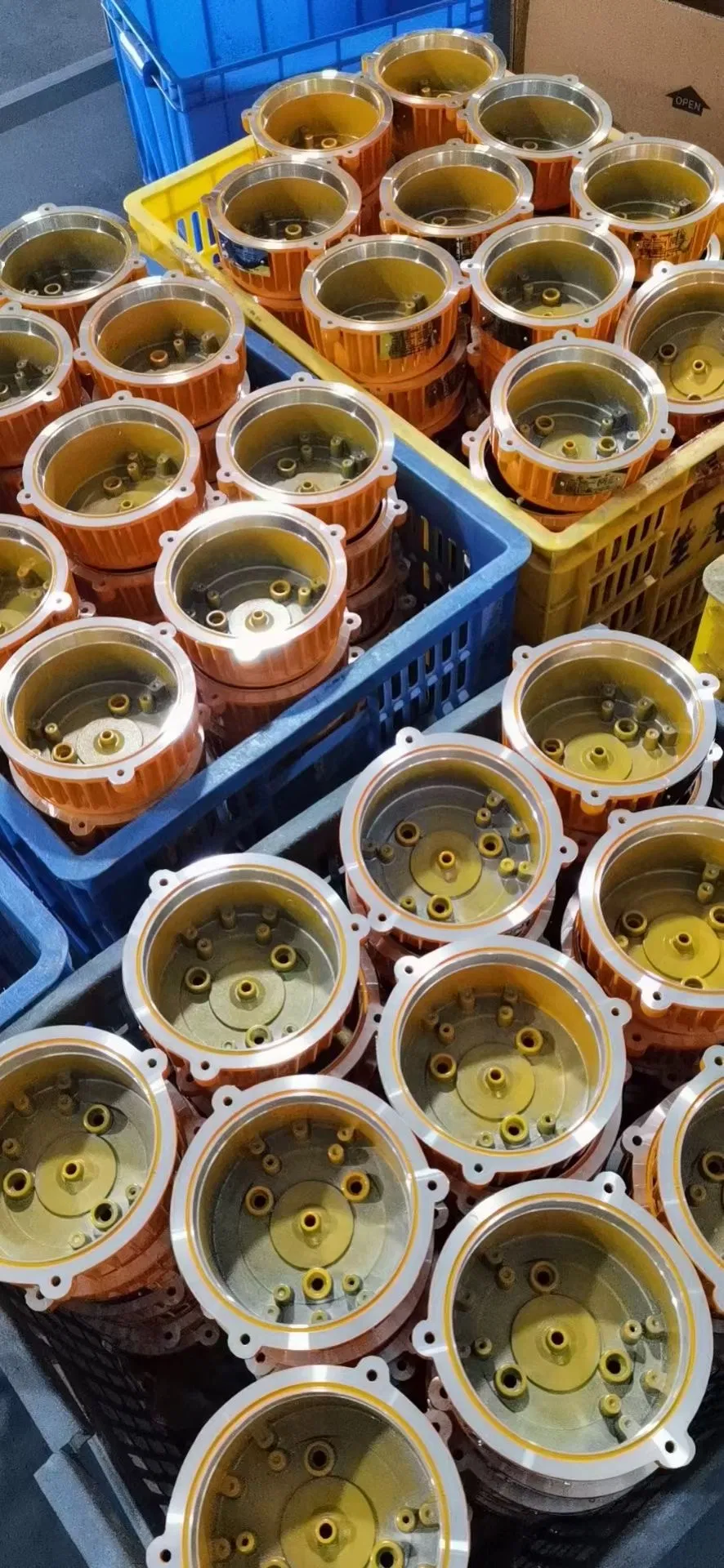

Installation

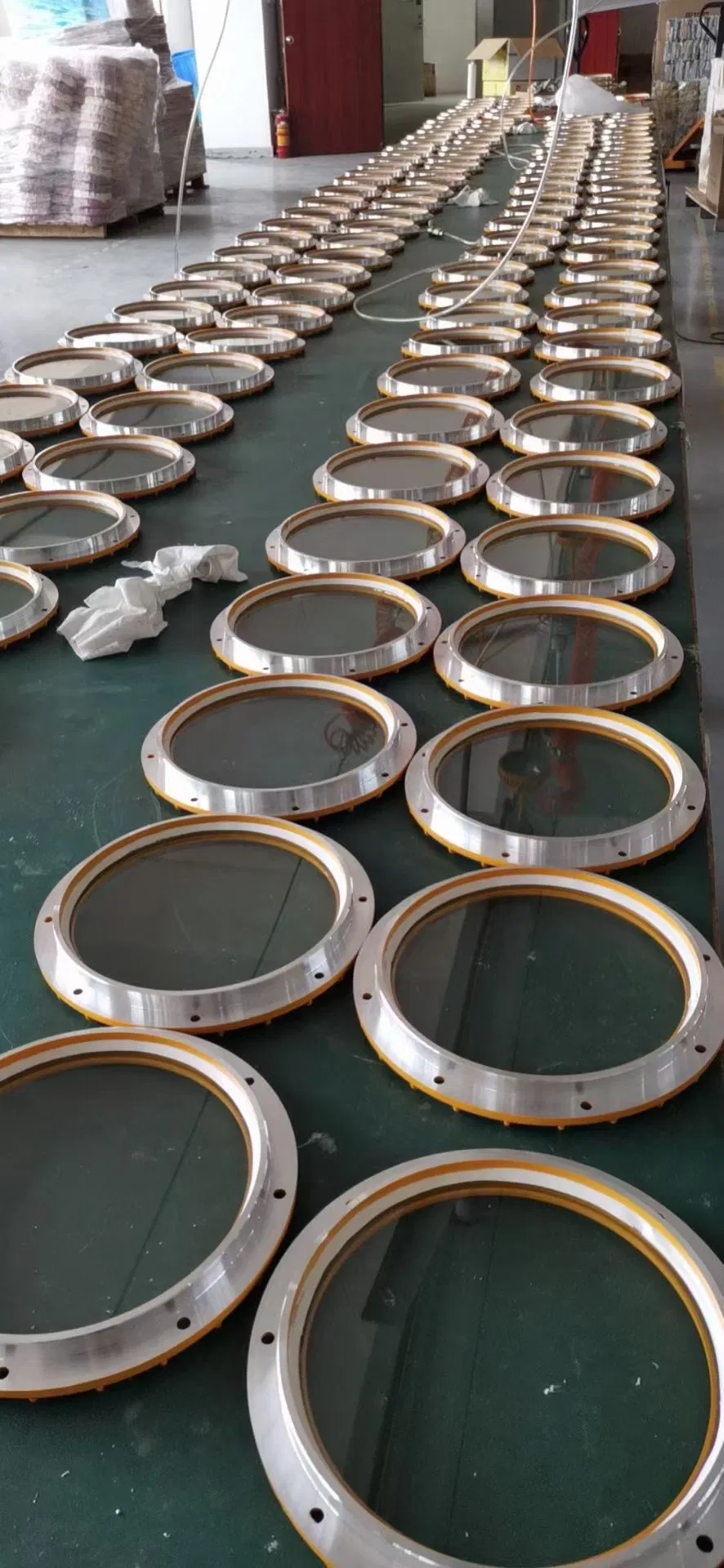

Usage

Packaging & Logistics

Model Qty/Carton Packing Size (mm) N.W (KG) G.W (KG)
Security Man 5 1 460*490*290 12.5 15
Packaging Detail
Carton Box

Frequently Asked Questions

Q1: What is the explosion-proof rating of this light?
A: This flood light is ATEX and IECEx certified with ratings II 2 G Ex eb mb IIC T6...T4 Gb and Ex tb IIIC T80°C...T100°C Db IP66.
Q2: Can it be used in marine environments?
A: Yes, it features a marine-rating powder-coated finish and carries UL1598A and ABS certifications for offshore use.
Q3: What is the operating temperature range?
A: The light is designed to operate reliably in extreme environments ranging from -40°C to +60°C.
Q4: Are the LED components replaceable?
A: Yes, the LED boards and drivers are replaceable, ensuring easier maintenance and a longer service life.
Q5: What is the standard warranty period?
A: We provide a comprehensive 5-year warranty for all models in the series.
Q6: Does it support emergency or battery backup?
A: Yes, dimmable functions and battery backup options (up to 3 hours emergency time) are available upon request.
