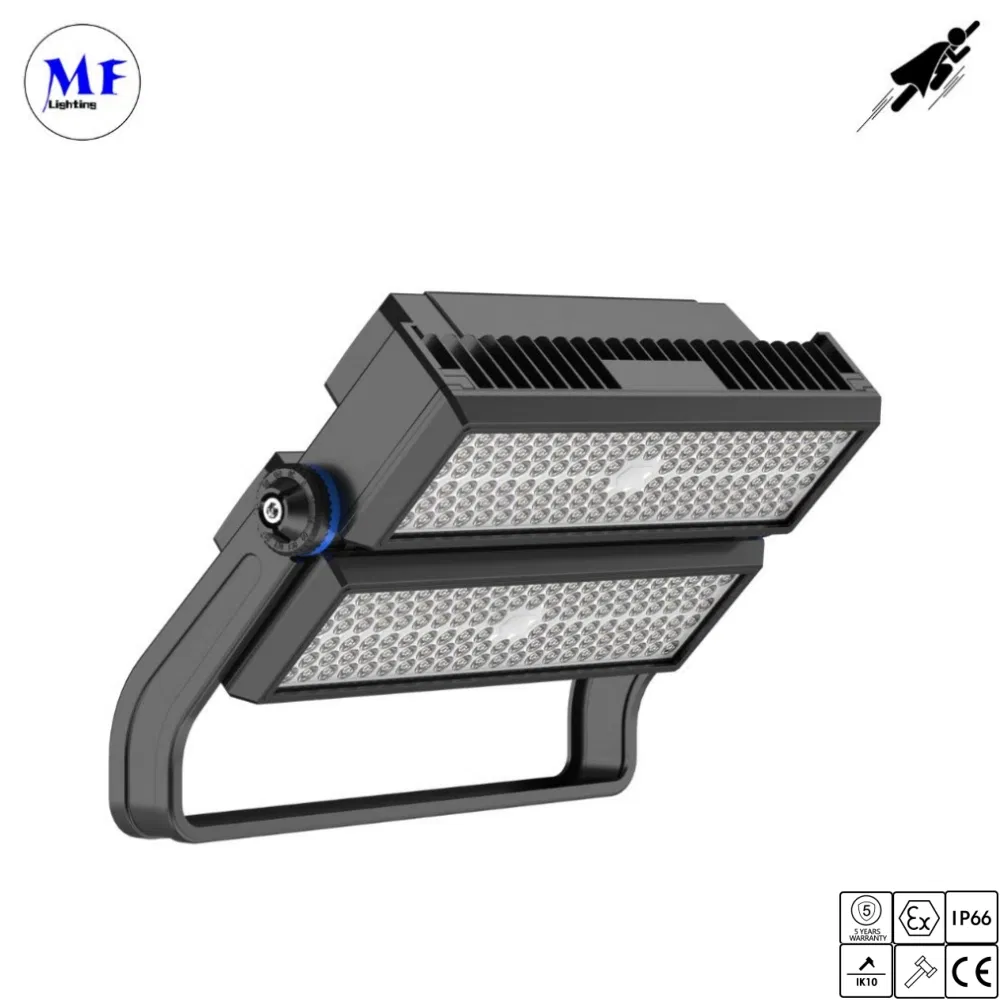

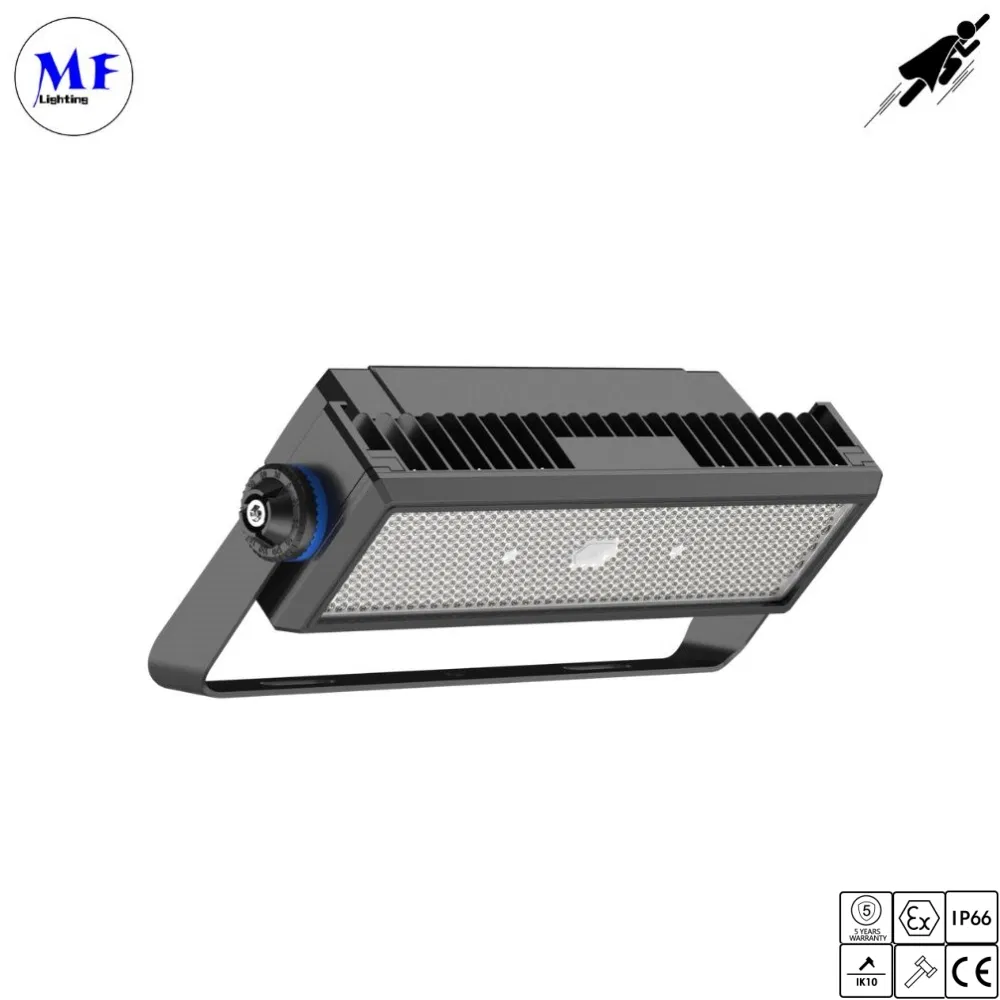

High Power Module Outdoor Waterproof LED Flood Light for Sports Stadiums
The new generation in LED sports & area lighting combines world-class performance, energy savings, and cutting-edge optical technology. Designed for high-definition 4K broadcasting and rigorous outdoor environments like football courts and airports.

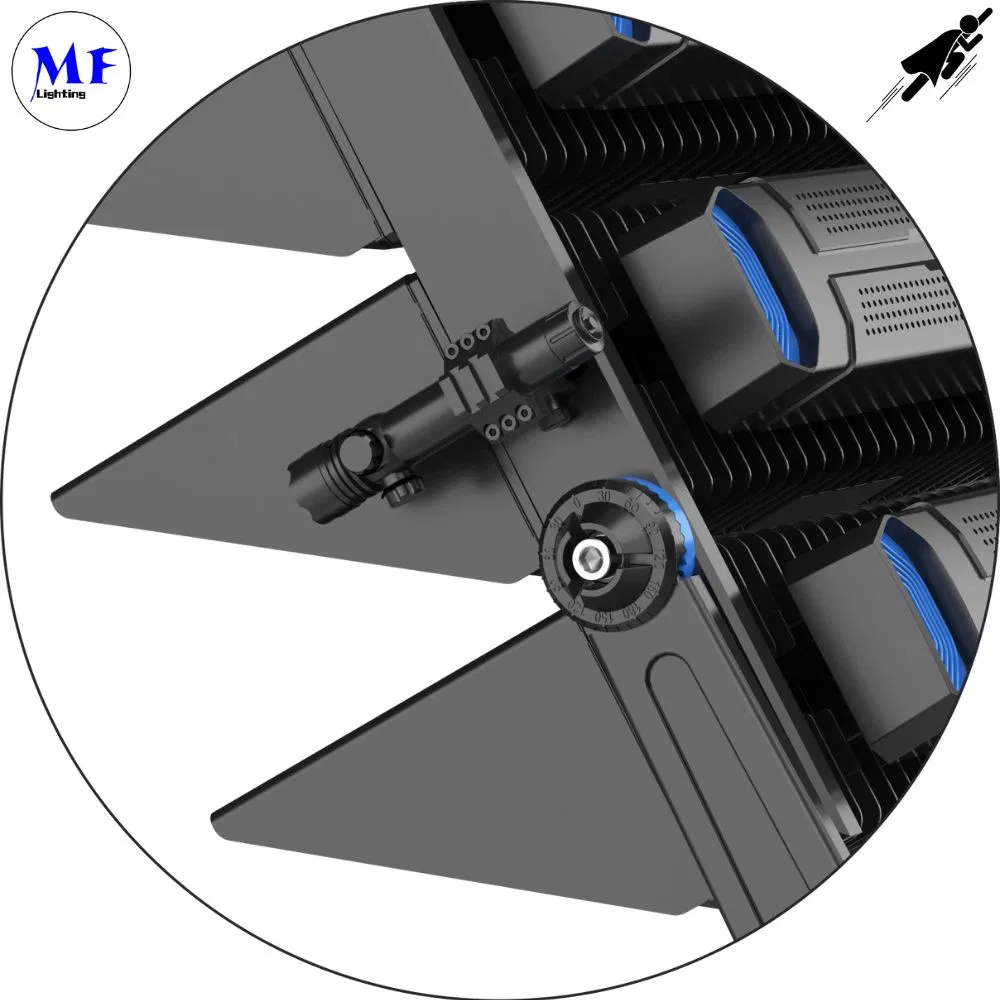

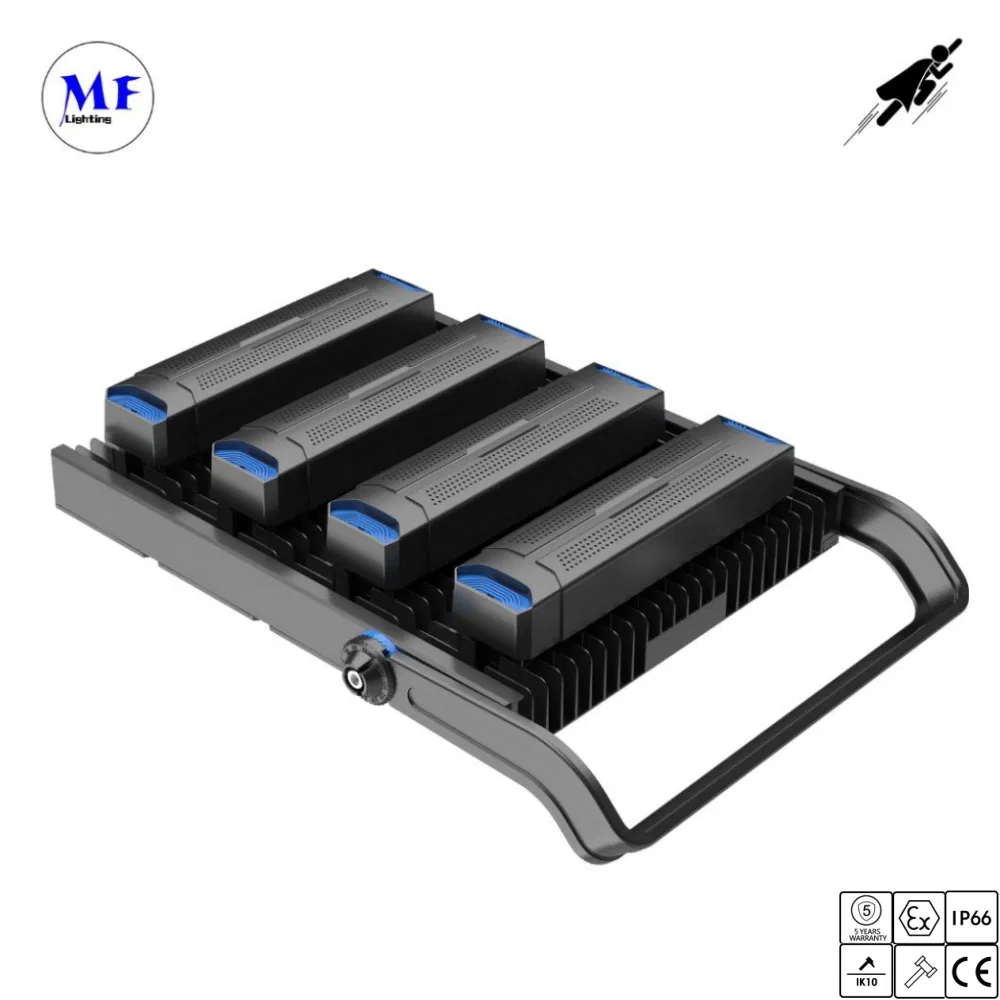

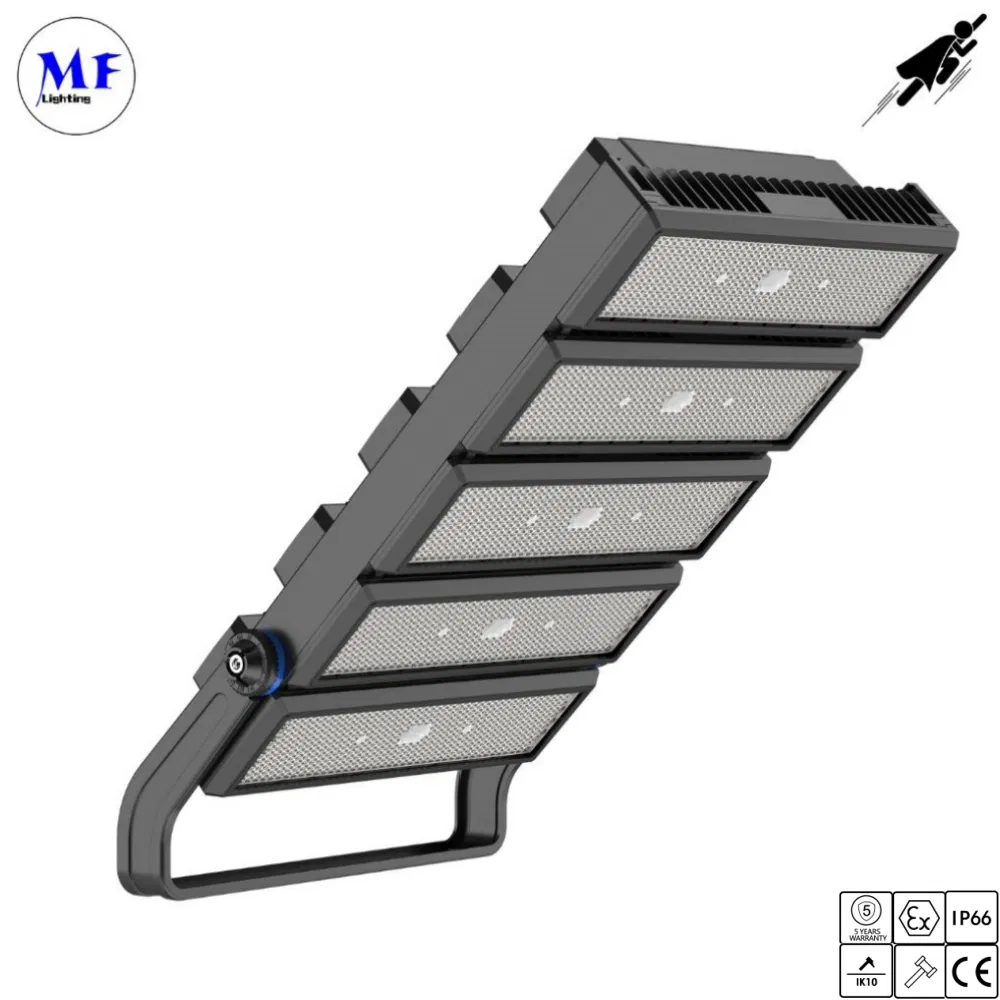

Adopts modular design concepts (250-300W per module), scalable up to 1500W. Racked angles allow flexible light control, compatible with laser aimers for precision targeting.
Optimized for slow-motion replay. Compatible with 4K camera technology up to 2000fps, ensuring high-quality broadcasting without visual flickering.
Three passive cooling methods (conduction, radiation, and convection). Fin-design increases heat dissipation areas to protect LED reliability and extend lifespan.

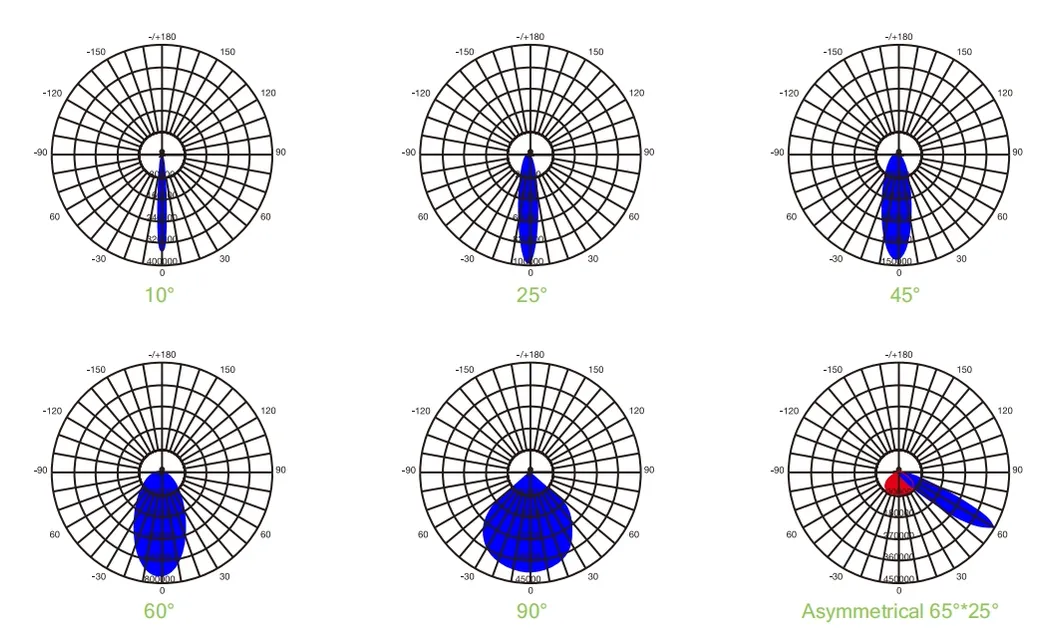

Designed with asymmetrical optical lenses and visors to focus light purely on the field, eliminating spill light and glare for surrounding residential areas.
IP66 waterproof and IK10 impact resistance. Features 10KV surge protection (upgradeable to 20KV) and high corrosion resistance (up to 3000H salt spray testing).

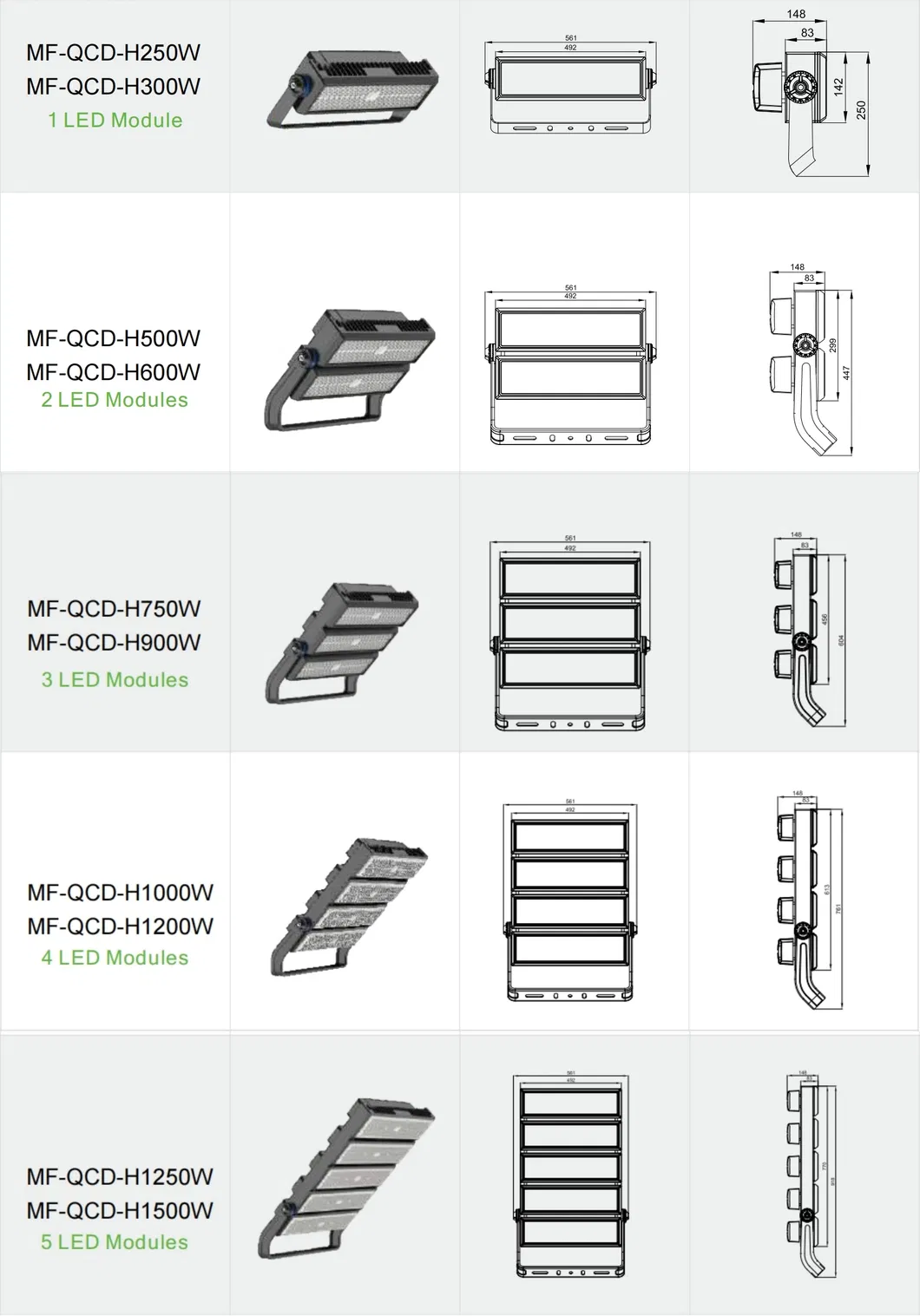

| Model No. | QCD-H250W | QCD-H500W | QCD-H750W | QCD-H1000W | QCD-H1500W |
|---|---|---|---|---|---|
| Rated Power | 240W | 480W | 720W | 960W | 1200W/1500W |
| Luminous Flux | 36,000 lm | 72,000 lm | 108,000 lm | 144,000 lm | 225,000 lm |
| Output Voltage | 48V | 48V | 48V | 48V | 48V |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 | >0.95 |
| Weight (Net) | 7 kg | 14 kg | 20 kg | 26 kg | 32 kg |

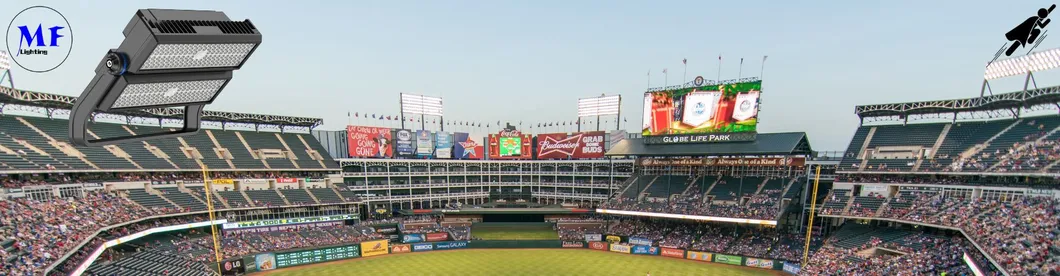

Widely used in high-mast environments requiring uniform, high-intensity lighting:
1. Must be installed by a certified electrician according to local regulations.
2. Verify local voltage requirements before installation.
3. Ensure power is off and the lamp is cooled before maintenance.
4. Clean using a soft cloth and PH neutral detergent.
5. Avoid covering fixtures with flammable materials.
