Basic Info & Overview
Model NO.FD031
Power50-400W
Projection Distance>35m

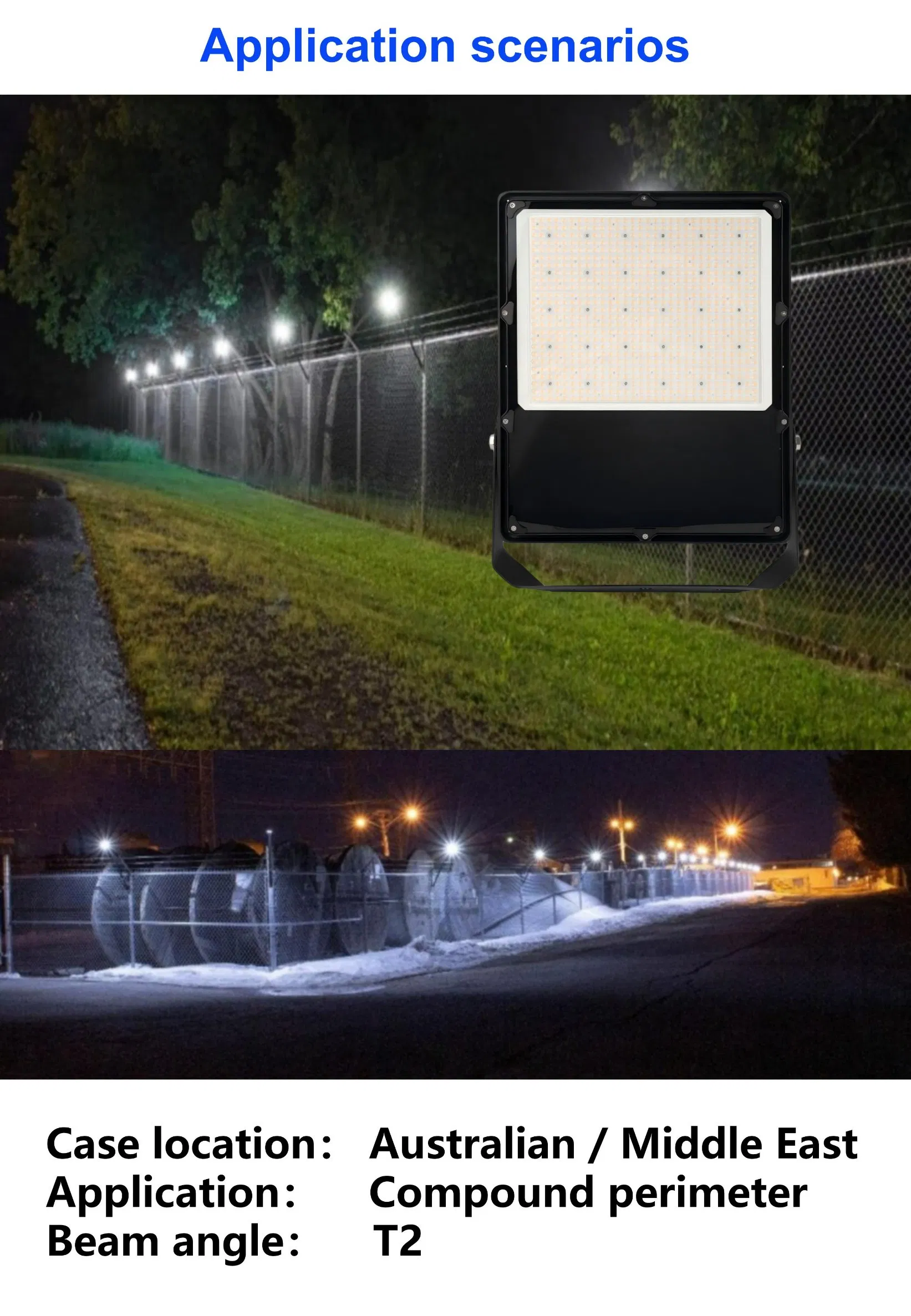

ApplicationPark, Square, Factory, Garden, Stadium Sport
IP RatingIP66
CertificationCCC, CE, CQC, EMC, Energy Star, FCC, RoHS, etc.
Operating Voltage100-240V
Input Voltage90-305V
LED Chips BrandEpistar
Beam Angle120 Degree
Lpw120lm/W - 200lm/W
MaterialTempered Glass, Aluminum
LED Type5050 / 3030 /3535 LED Chip
InstallationBracket Adjustable
★

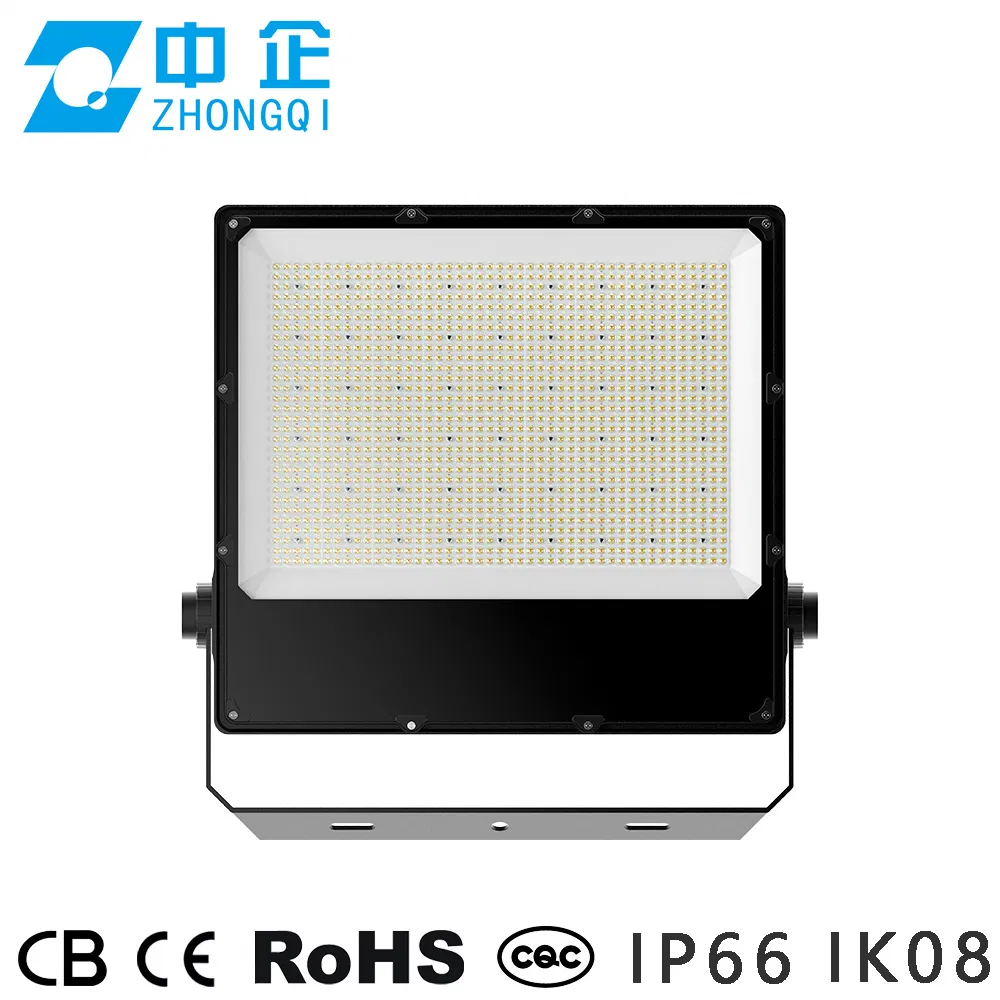

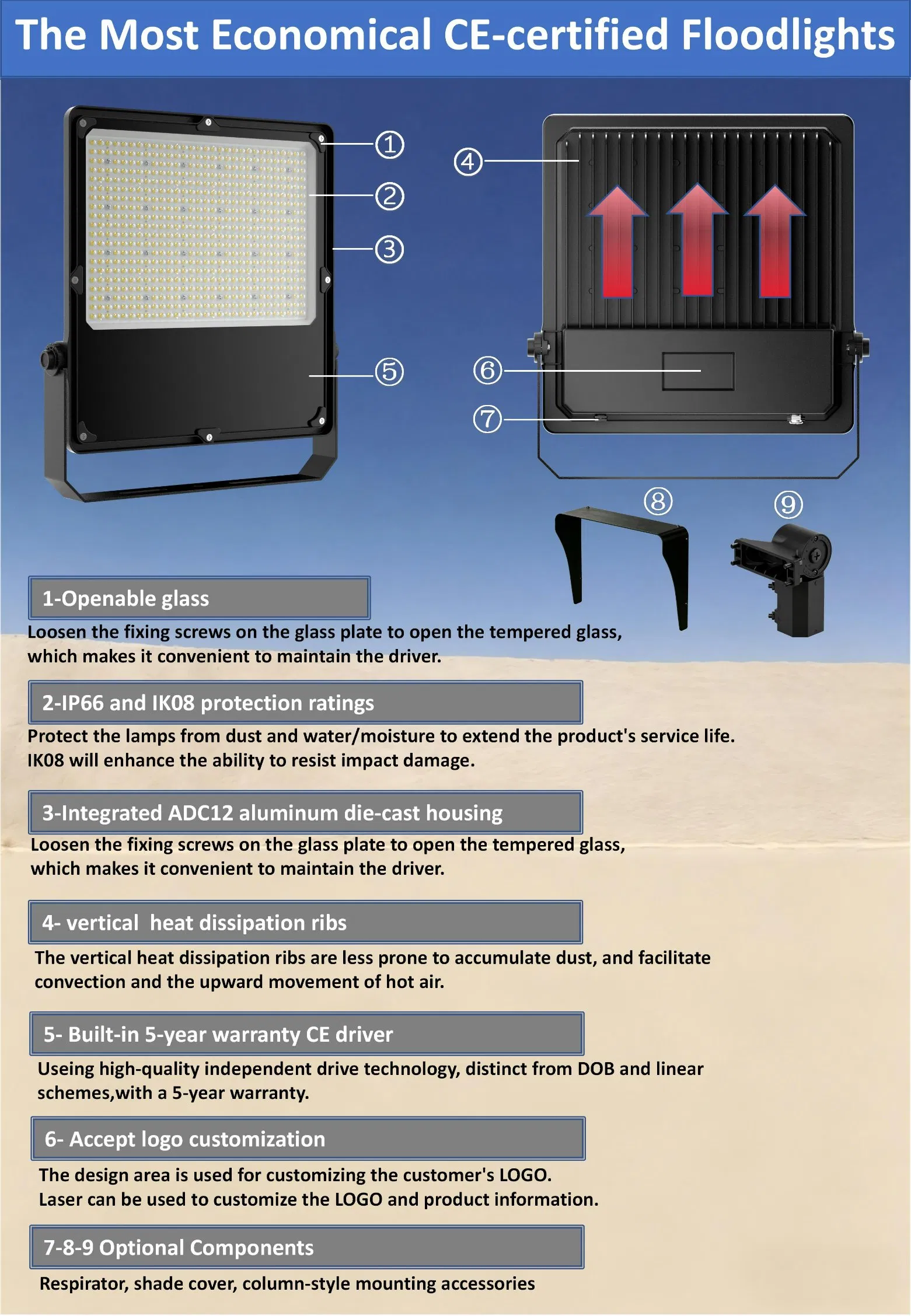

Product Features
- Patented design combined with many advanced technologies
- Die-casting Aluminium housing, strong resistance to impact and corrosion

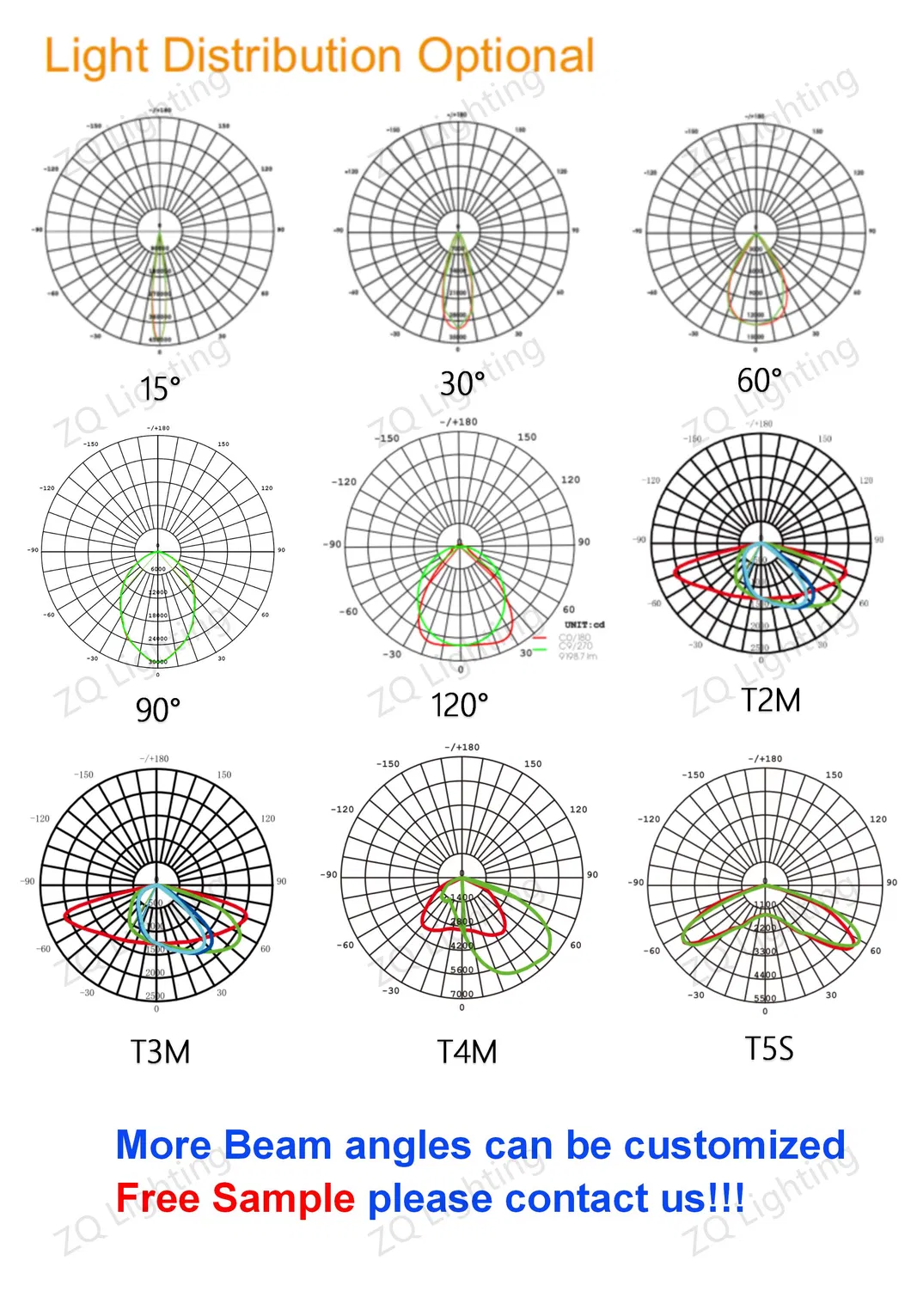

- Multiple beam angles for your options: 30/60/90
- IP65 IK08, suitable for various application environment.
- Stainless mounting bracket for options
📋

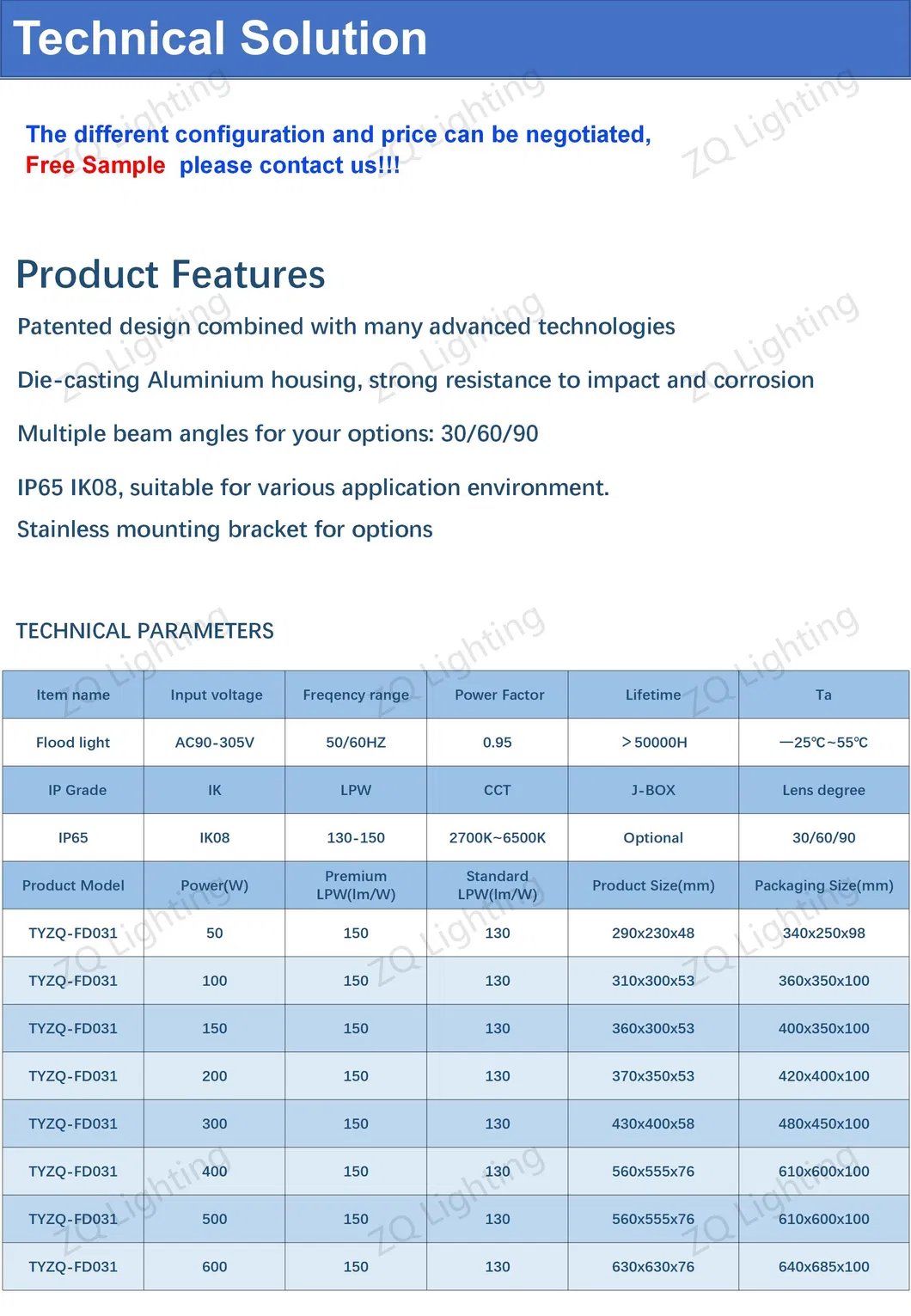

Product Parameters
| Item name |
Input voltage |
Frequency |
PF |
Lifetime |
Ta |
| Flood light |
AC90-305V |
50/60HZ |
0.95 |
>50000H |
-25ºC~55ºC |

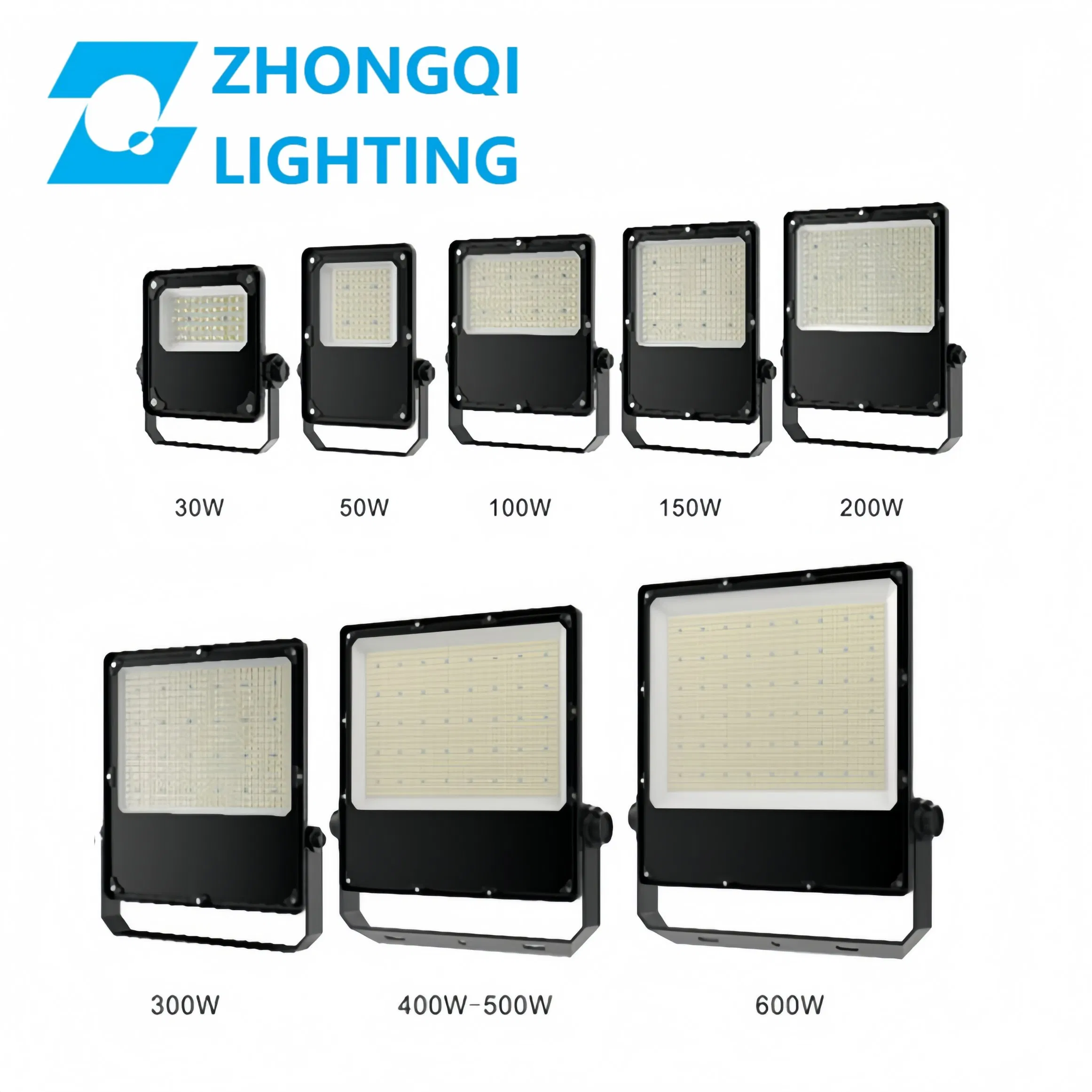

| Model |
Power(W) |
Premium LPW |
Standard LPW |

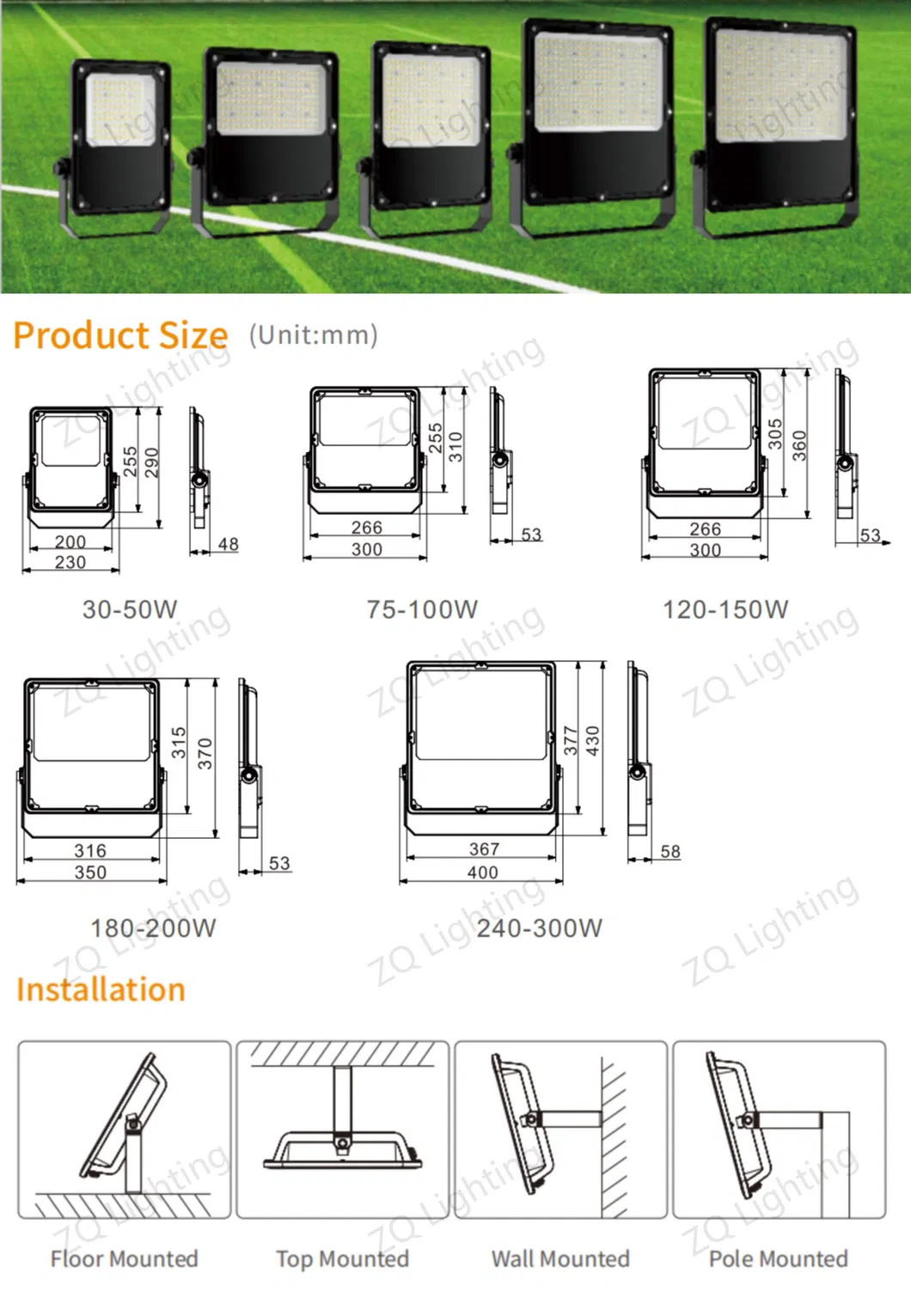

Size(mm) |
| TYZQ-FD031 | 50 | 150 | 130 | 290x230x48 |
| TYZQ-FD031 | 100 | 150 | 130 | 310x300x53 |
| TYZQ-FD031 | 150 | 150 | 130 | 360x300x53 |
| TYZQ-FD031 | 200 | 150 | 130 | 370x350x53 |
| TYZQ-FD031 | 300 | 150 | 130 | 430x400x58 |
| TYZQ-FD031 | 400 | 150 | 130 | 560x555x76 |
📷

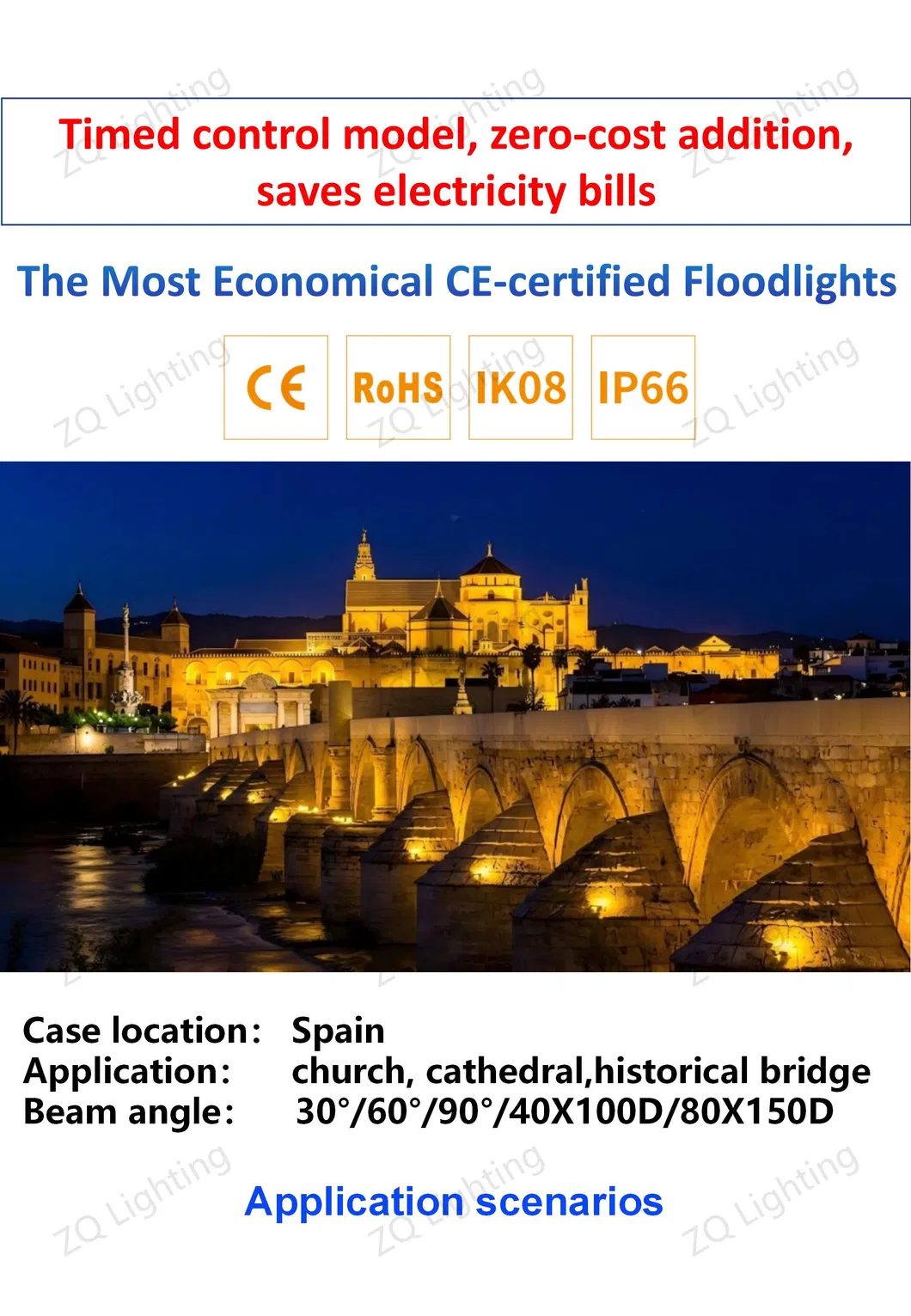

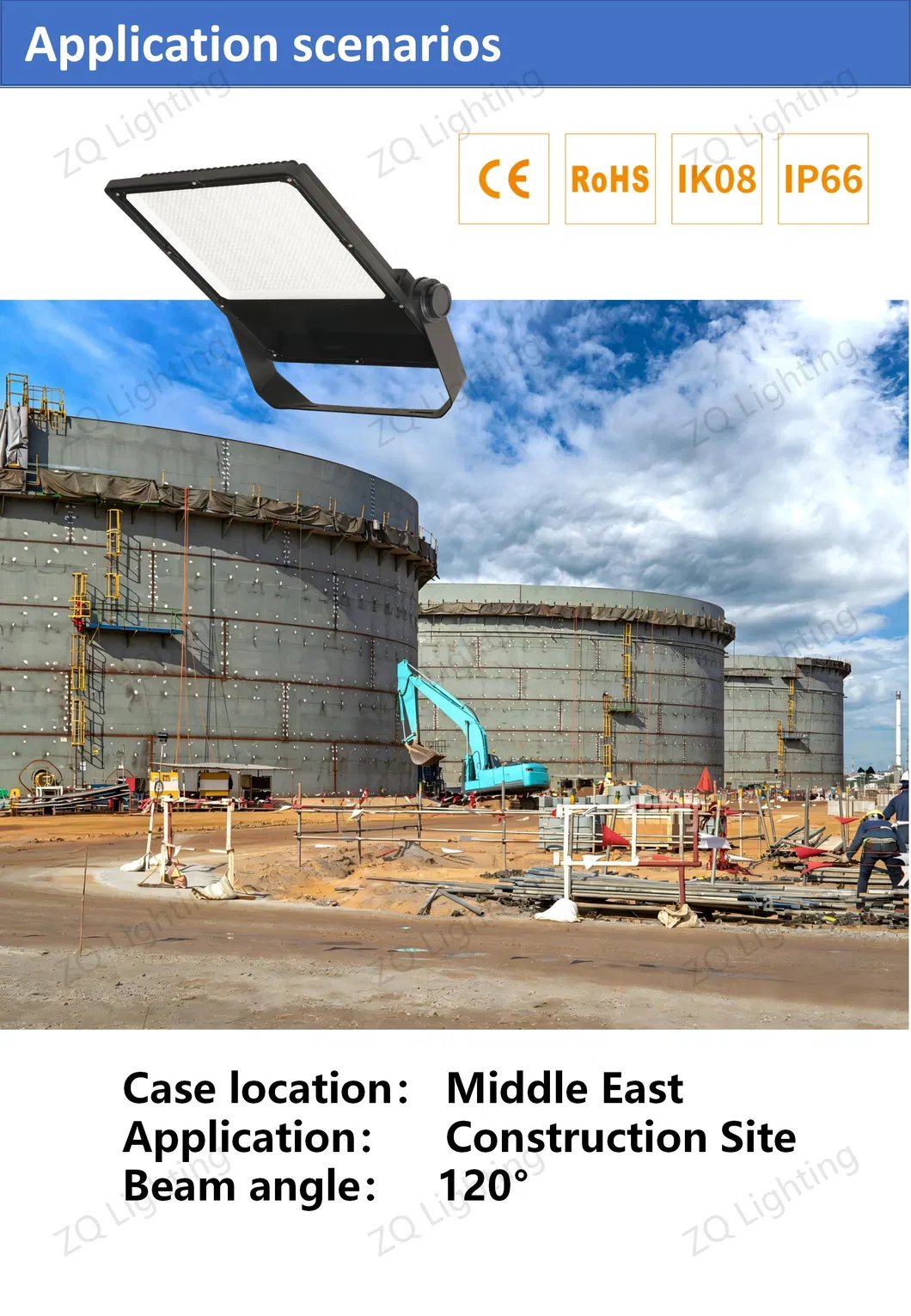

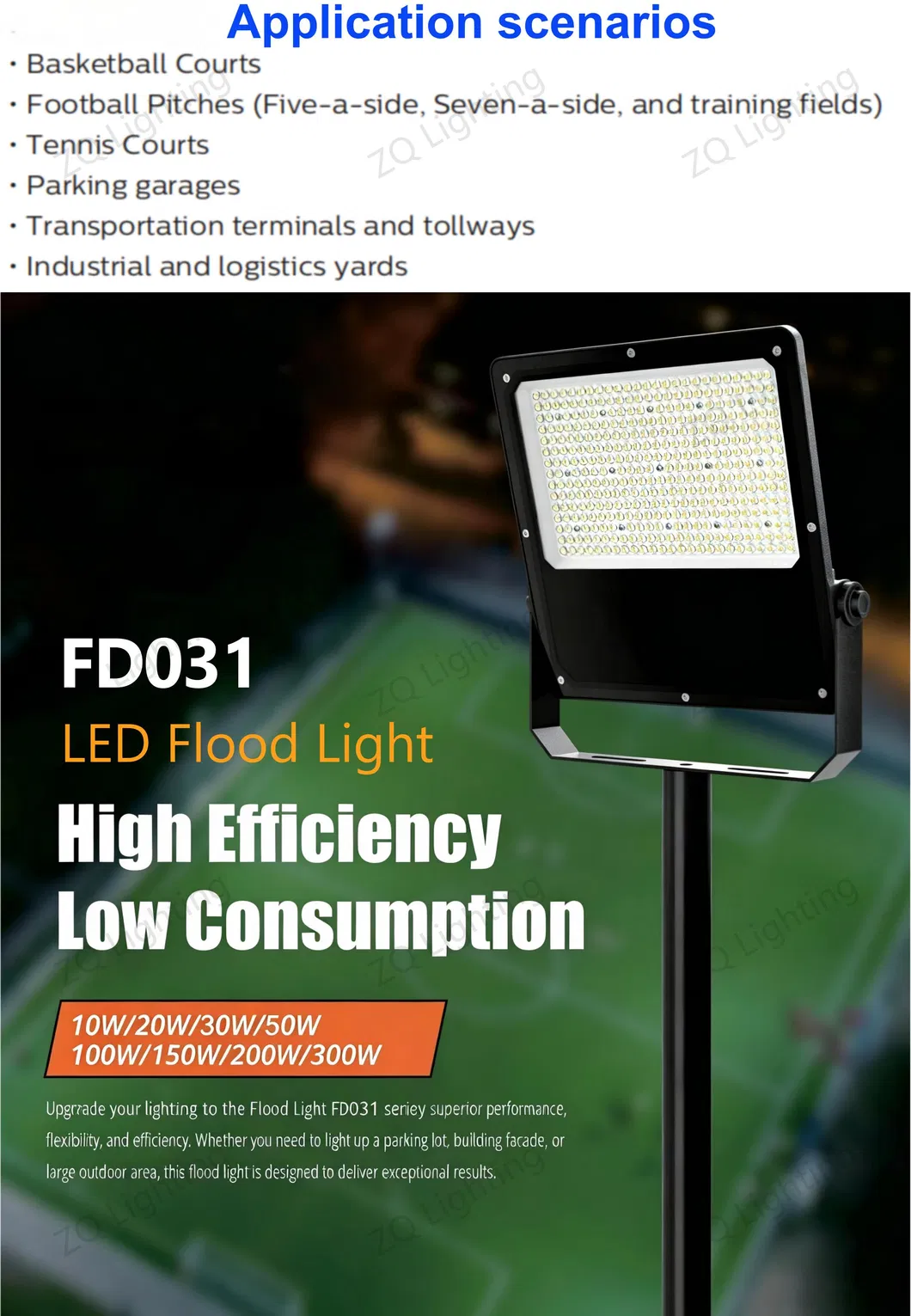

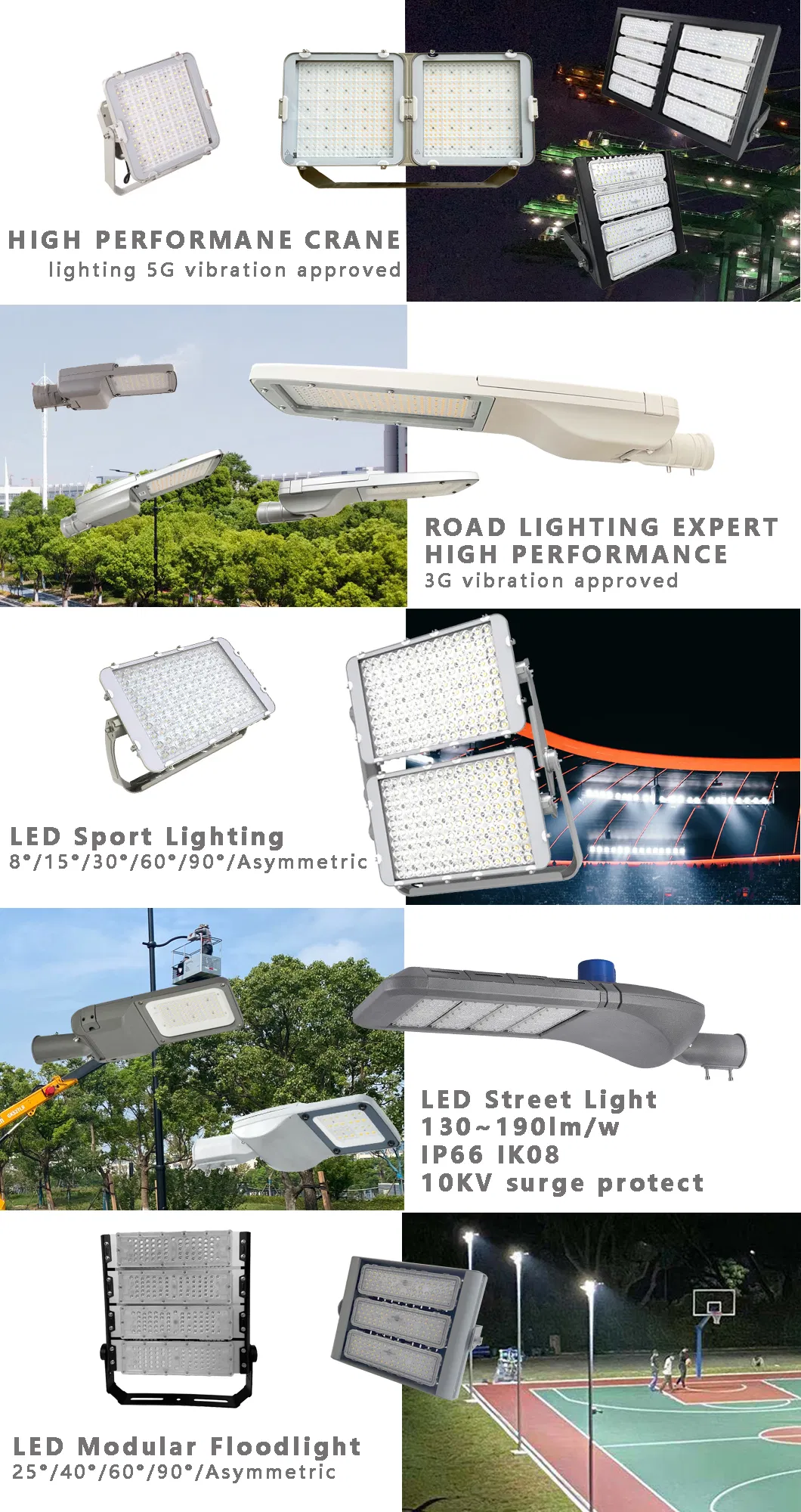

Product Applications & Details
?
Frequently Asked Questions
Q1: Can I have a sample before quantity orders?
Yes, we welcome sample order for your approving.
Q2: What about lead time?
Sample 3-5 days, quantity order 25-30 days.
Q3: Is ODM or OEM accepted?
Yes, we can offer ODM & OEM service.
Q4: How long is the warranty for your products?
We offer 2-5 years warranty to our products.
Q5: What about the payment terms?
30% TT deposit, 70% before shipment.
Q6: What is the IP rating of this flood light?
This product features an IP66 rating, making it suitable for outdoor applications like parks and stadiums.
