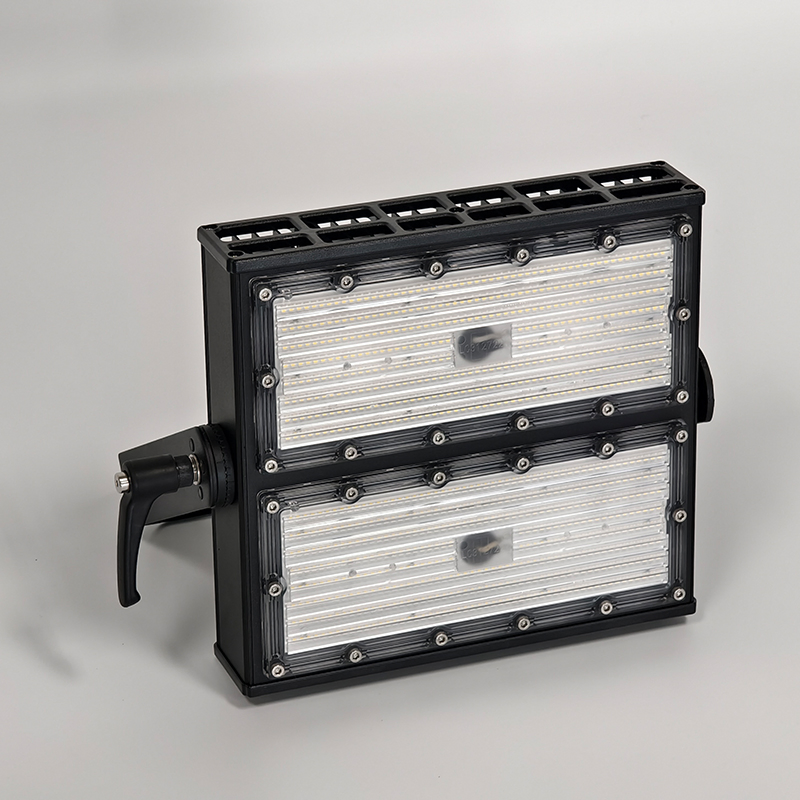

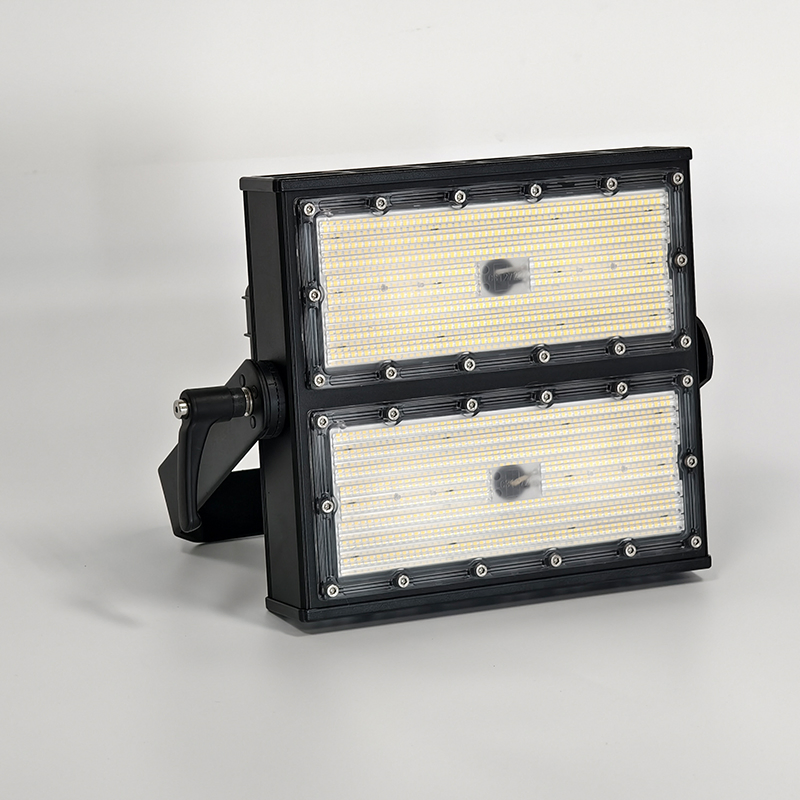

Waterproof Robust Construction Long Lifespan Low Maintenance LED Floodlight

Product Description

LED Floodlight Main
Product Introduction

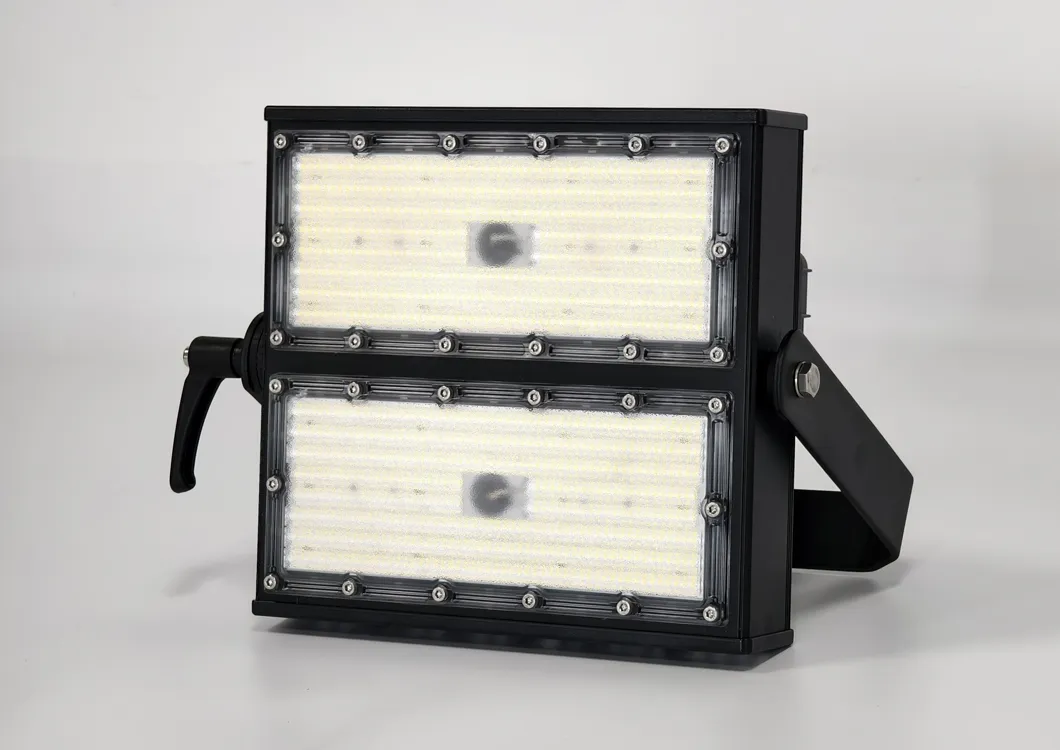

Product Display

The Mining & Heavy-Duty LED Floodlights has a robust appearance and features various LEDs panel, emitting concentrated and highly luminous light. It can provide sufficient illumination over a wide & narrow area and is suitable for various places such as mine sites, outdoor construction sites, squares, parking lots etc. Its casing is made of sturdy material, featuring good impact resistance and durability, and can adapt to different harsh environments. The product is equipped with a heat dissipation sink, which helps to quickly dissipate the heat generated by the LEDs, extending their lifespan. Pre-assembled driver kits cuts labor time and maintenance free. The side adjustment handle makes it convenient for users to flexibly adjust the lighting angle according to their actual needs, achieving precise lighting.

Key Features
💡 High lighting efficacy: The densely arranged advance LED chips provide large-area and high-brightness light beam, meeting the requirements of complex working conditions.
🛡️ Strong protection: The LED panels and lenses are firmly mounted, with screws on all sides for secure fixation, effectively preventing dust and water ingress (IP69K).
🏗️ Robust structure: IK10 impact resistance, and ultra-low windage design - built to outlast in rain & sand storms, vibrations.

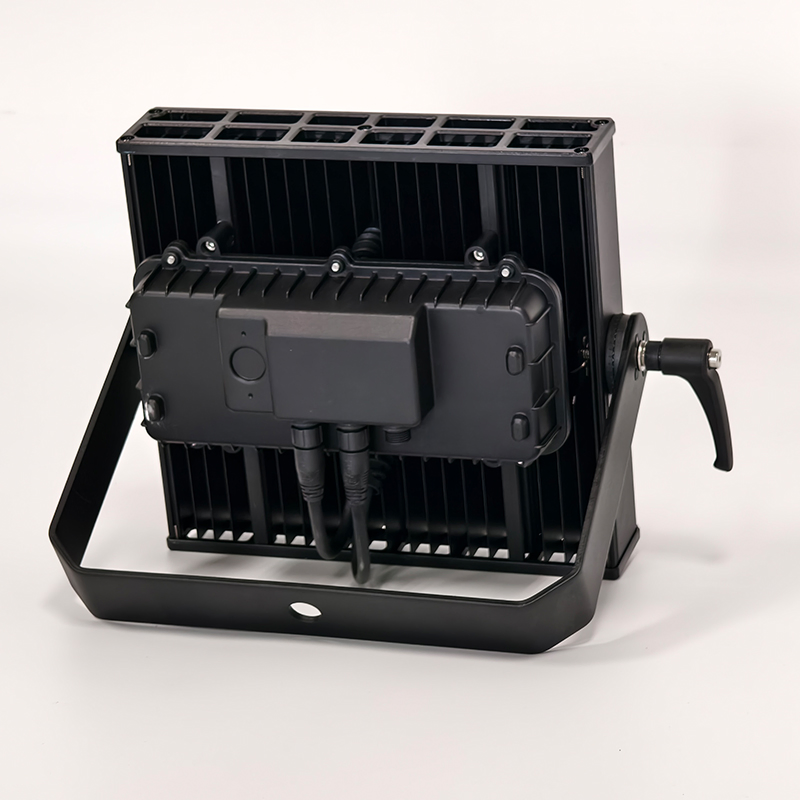

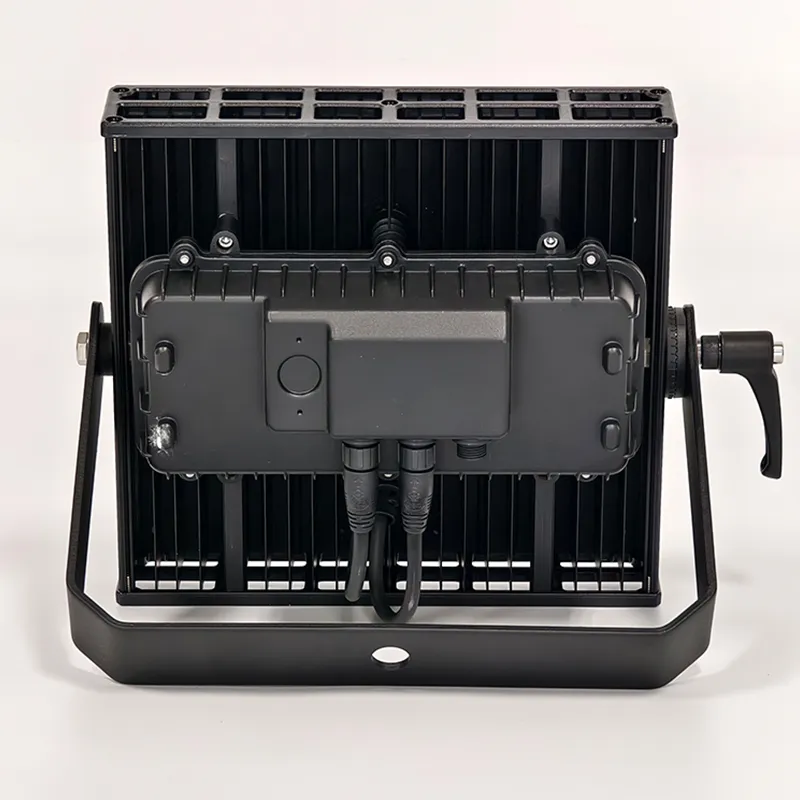

🌡️ Heat Dissipation: The large-area heat dissipation sink on the back increases the performance, enabling quick dissipation and extending service life.

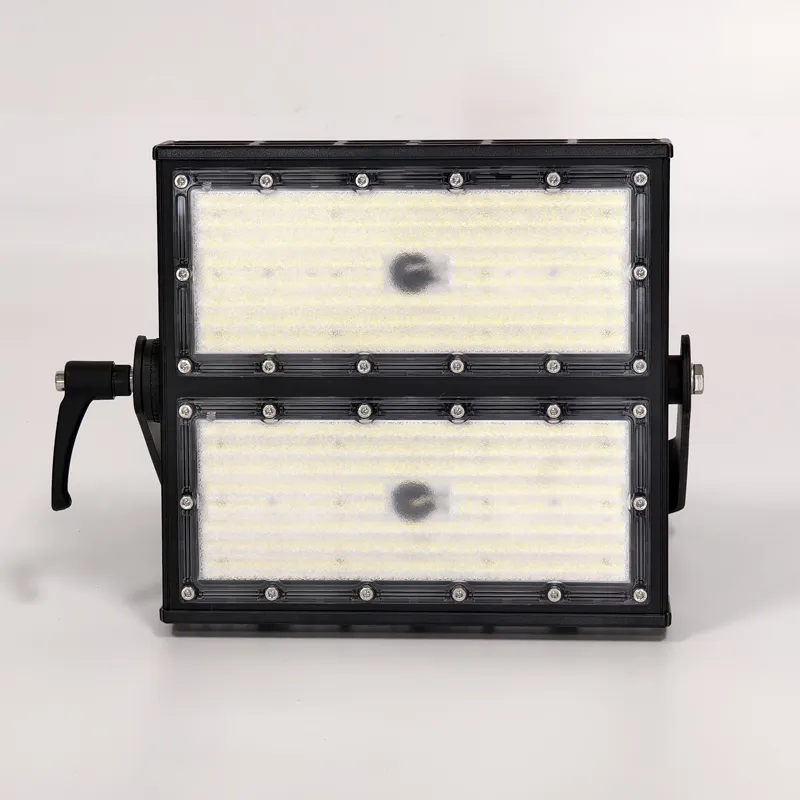

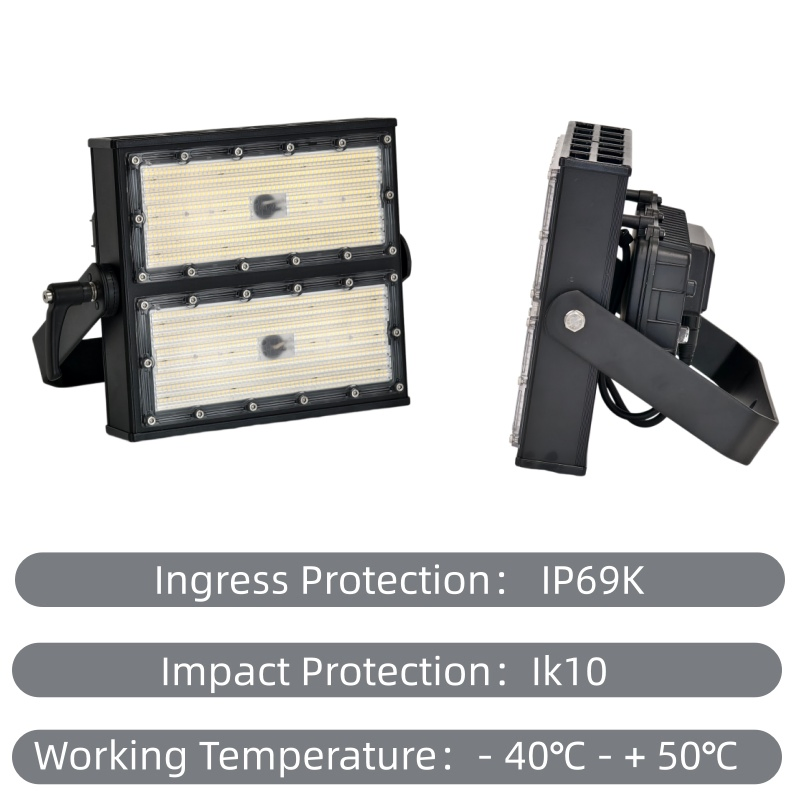

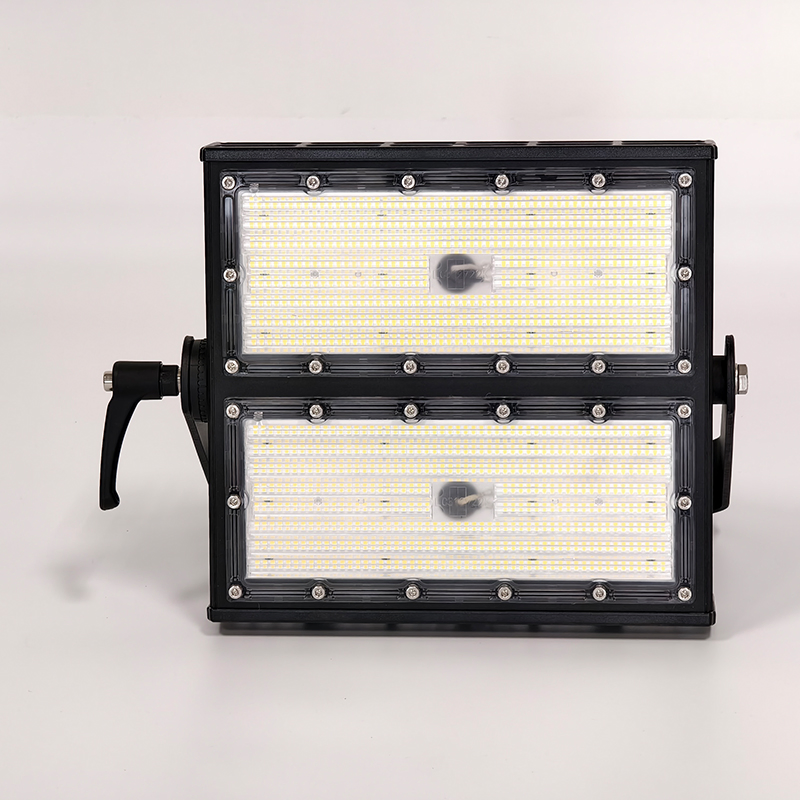

Feature View 1 Feature View 2
Technical Specifications
Ingress ProtectionIP69K
Impact ProtectionIK10
Working Temperature- 40ºC - + 50ºC
MaterialAluminum alloy & Polycarbonate
Correlated Colour Temperature5000K Standard (Option 2700K - 6500K)
Colour Render Index70Ra Standard (Option 80Ra / 90Ra)
Model Power Flux Voltage Driver Box Beam Angle Weight
KUH1S - 160160w23200-30000lmAC100-277VBuilt-inAsymmetric5kg
KUH2S - 250250w36250-37500lmAC100-277VBuilt-inAsymmetric6.9kg
KUH2S - 350350w50750-52500lmAC100-277VBuilt-inAsymmetric8.9kg
KUH2S - 400400w58000-60000lmAC100-277VBuilt-inAsymmetric9.3kg
KUH4S - 500500w72500-75000lmAC100-277VBuilt-inAsymmetric12kg
KUH4S - 600600w87000-90000lmAC100-277VBuilt-inAsymmetric15.5kg
Quality & Reliability

Our company is a globally recognized leader in advanced lighting and cutting-edge energy storage solutions. Since 2007, we have built a sound reputation for being a specialist manufacturer of LED lights for Mining, Industrial, Commercial and Sports applications. In response to the global call for energy conservation, we provide hybrid or solar solutions based on lithium battery systems for industrial illumination.

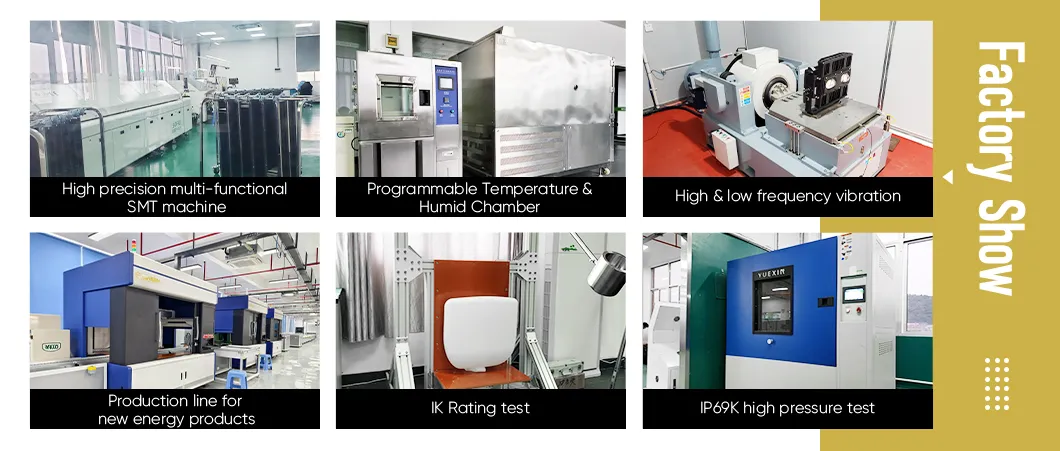

Production Line Workshop
Certifications & Global Presence
Advantages Certificate Exhibition
Packaging & Shipping
Packaging
Frequently Asked Questions
What are the main applications for these floodlights?
They are specifically designed for heavy-duty environments like mine sites, outdoor construction, parking lots, and industrial squares.
Can these lights withstand extreme weather conditions?
Yes, with IP69K ingress protection and an IK10 impact rating, they are built to resist water, dust, and mechanical impacts in harsh climates.
What is the operating temperature range?
The floodlights are engineered to operate reliably in temperatures ranging from -40ºC to +50ºC.
Is maintenance required for the drivers?
The pre-assembled driver kits are designed to be maintenance-free, significantly reducing labor time and costs.
Are different color temperatures available?
Yes, while 5000K is standard, we offer options ranging from 2700K to 6500K to meet specific lighting requirements.
How do you ensure product quality before shipping?
We have a professional QC team that monitors mass production and performs a complete inspection of all goods prior to shipment.
